Heltec 5A 5.5A активный балансировки Lifepo4 Lipo LTO батареи энергии выравнивания конденсатор с алюминиевой крышкой, 4S фотоаппаратов моментальной печати 7S 8S 14S 16S 21С за рубежом склад

Share on:

Price:14,00 $
Price in USD:Details


Product Overview


Products Description

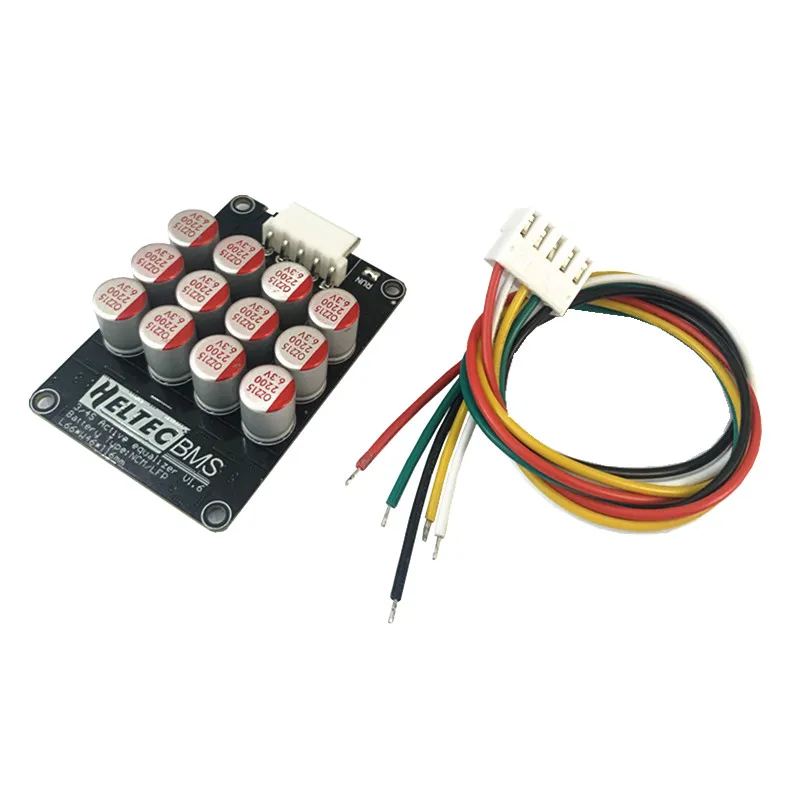

PCB board
Country of origin:
1 pc
Battery Type:
Balance type:
Capacitive Energy transfer Active Balancing



Working voltage: 1.8V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA. LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.
for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate.




1. Can you accept customization?
A: Yes,our company has a design department.And we provide Hardware design,ARM and Mbed system sofftware design...
If you want to know our service ,please click here: Why choose Us
battery Equalizer for lifepo4/lipo/LTO
2. How long will it take for sample making and mass production?
A: it takes 3-5 days to make the sample, and 7-30 days for mass production.
battery Equalizer for lifepo4/lipo/LTO
3.How about the productivity of your company?
A.We have enough storage for most of our products,if you need customize we have SMT factory to fulfill your needs after you pay for the products.
battery Equalizer for lifepo4/lipo/LTO
4.What about the mode of transportation ?
A: according to the quantity and volume, we will choose the most suitable mode of transportation for you. Of course, you are also free to choose.
battery Equalizer for lifepo4/lipo/LTO
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test.And we use manual inspection. Each product will be tested before packaging.
