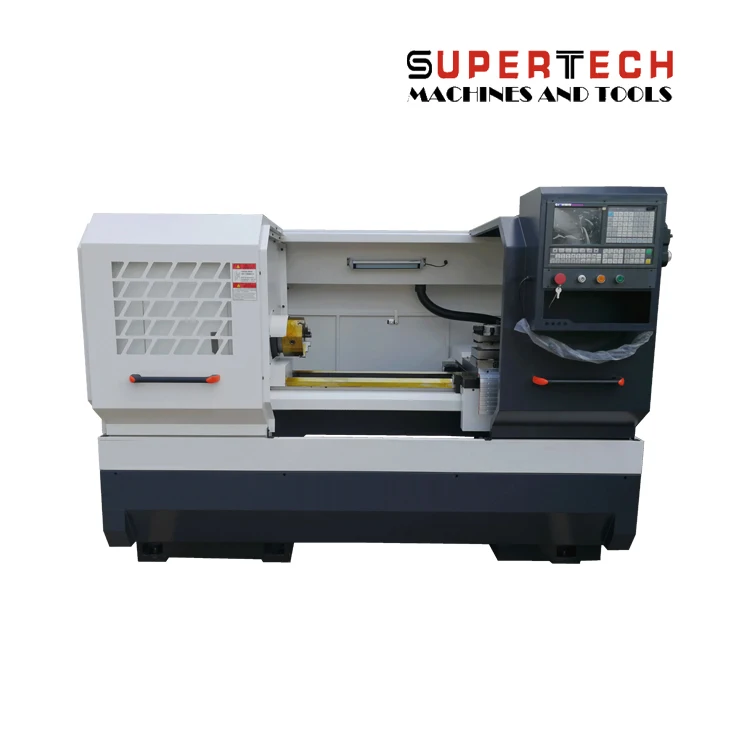

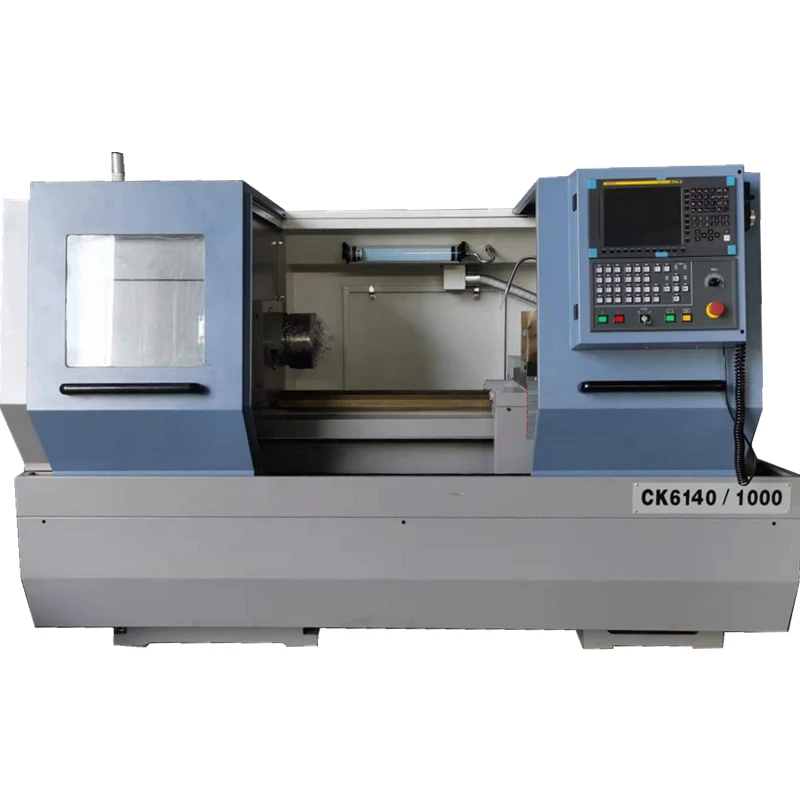

Superetch Lathe Frame China lathe CNC Lathe CK6140 factory with Siemens/FANUC controller high speed
- Category: >>>
- Supplier: Supertech,Machine,Tool,Co.,Ltd.
Share on:
Product Overview
Description
PRODUCT FEATURES
（1）THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
（2）GEARS PRECISELY GROUND TO REDUCE NOISE.
（3）SPINDLE BORE 52MM.
（4）MORE KINDS OF APPEARANCE AND CONTROL SYSTEM CAN BE CHOSEN.
（2）GEARS PRECISELY GROUND TO REDUCE NOISE.
（3）SPINDLE BORE 52MM.
（4）MORE KINDS OF APPEARANCE AND CONTROL SYSTEM CAN BE CHOSEN.
（5）DRIVEN TOOL HOLDER, SERVO MOTOR, TRUSS MANIPULATOR AND MORE OPTIONAL DESIGN FOR MORE AUTOMATIC TURNING NEEDS.
SPECIFICATION | LCK400/1500MM | |||
CAPACITY | Max.swing over bed | 400mm | ||
Max.swing over cross slide | 210mm | |||
Center Distance | 1550mm | |||
Max. turning length | 1400mm | |||
Bed Width | 360mm | |||
HEADSTOCK | Spindle hole | 52mm | ||
Spindle nose | ISO-A2-6 | |||
Spindle taper | MT6 | |||
Spindle speed steps | Variable speed | Gears 2 steps | ||
Spindle speed | 150-2250rpm | 70-1600rpm | ||
CARRIAGE | X/Z axis rapid travel speed | 4000/6000mm/min | ||
Max.travel of X/Z axis | 200/1400mm | |||
Number of tool post | 4 electrical tool post | |||
Max.size of toolshank | 20*20mm2 | |||
ACCURACY | Positioning accuracy | 0.015mm | ||
Repeat positioning accuracy | 0.01mm | |||
The smallest unit | 0.001mm | |||
TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||
Taper of tailstock sleeve | MT4 | |||
Max.travel of tailstock | 140mm | |||
MOTOR | Main drive motor | 5.5KW OR 7.5KW | ||
Coolant pump motor | 120W | |||
PACKING L*W*H | STANDARD MODEL | 305*155*195cm | ||
N.W/G.W | STANDARD MODEL | 1950/2400kg | ||
TECHNICAL PARAMETERS
Standard accessories
GSK980TB3i servo control system
Manual 3-jaw chuck(Φ200mm)
4-station electrical toolpost
Oil gun
Work lamp
Coolant system
Automatic lubrication system
Inching button for gears headstock
Dead centre(MT4)
Centre sleeve(MT6/4)
Adjustable paddings
One whole set spanner
The whole set operation manuals
The whole set operation manuals
Tool box
Optional accessories
SIEMENS 808D servo control system
FANUC 0i-TF(5) servo control system
Live centre(MT4)
Manul 4-jaw chuck(Φ250mm)
Pneumatic chuck(Φ200mm)
Pneumatic tailstock
Hollow hydraulic chuck(Φ200mm)
Hydraulic tailstock
6-position electrical toolpost
Driven tool holder for special function

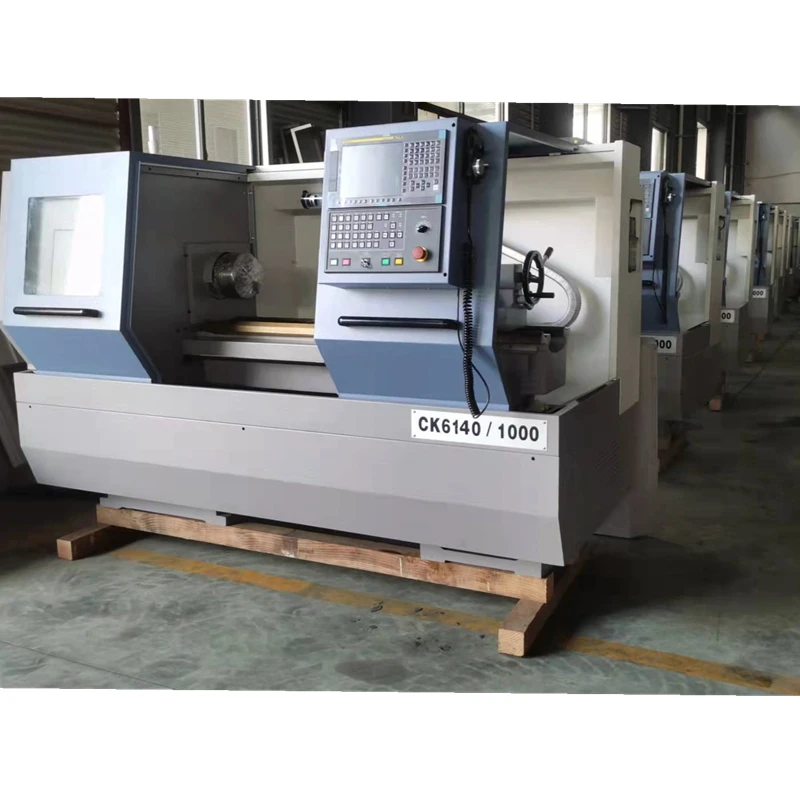

OUR WORKSHOP
RECOMMEND PRODUCTS
Supertech Machine Tool Co.,Ltd is a company including active and professional teams ,specialized in CNC machining Center,CNC Lathe Machine,Wheel Lathe machine . Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
PACKING&SHIPPING
1. Q:Are you a factory or trading company?
A: Yes,we are a factory. welcomed to visit us.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu, China.
It takes about 1 hours from Shanghai by plane.
It takes about 1 hours from Shanghai by plane.
3. Q: What is the lead time?
A: It depends on your order quantity.
4. Q: Where is your Loading Port ?
A: Shanghai. port, China or otheres as you request.
5. Q: What are your payment terms?
A: T/T 30% deposit and balance paid before shippment.
