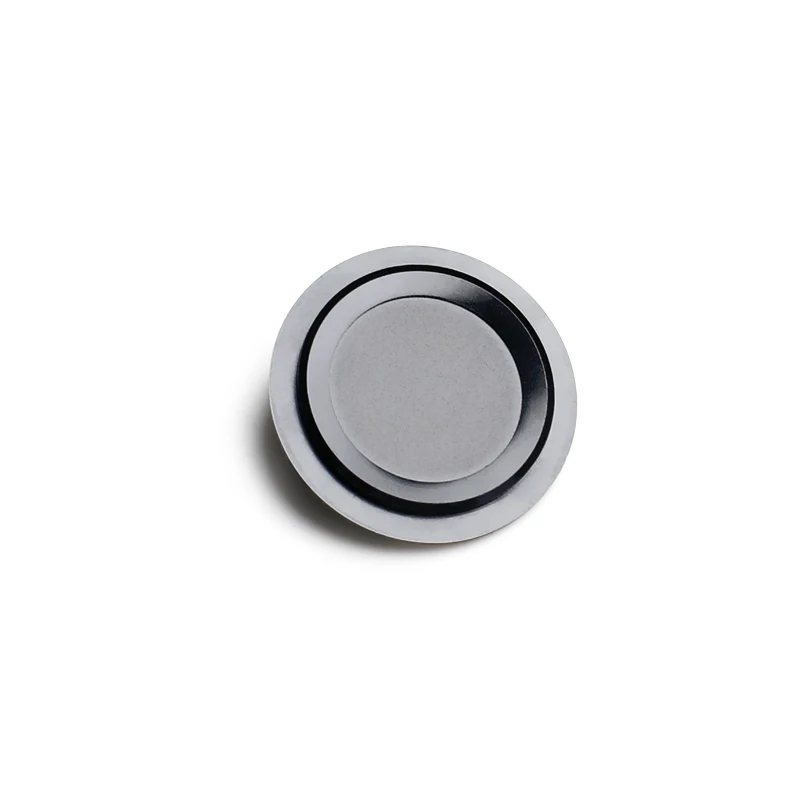

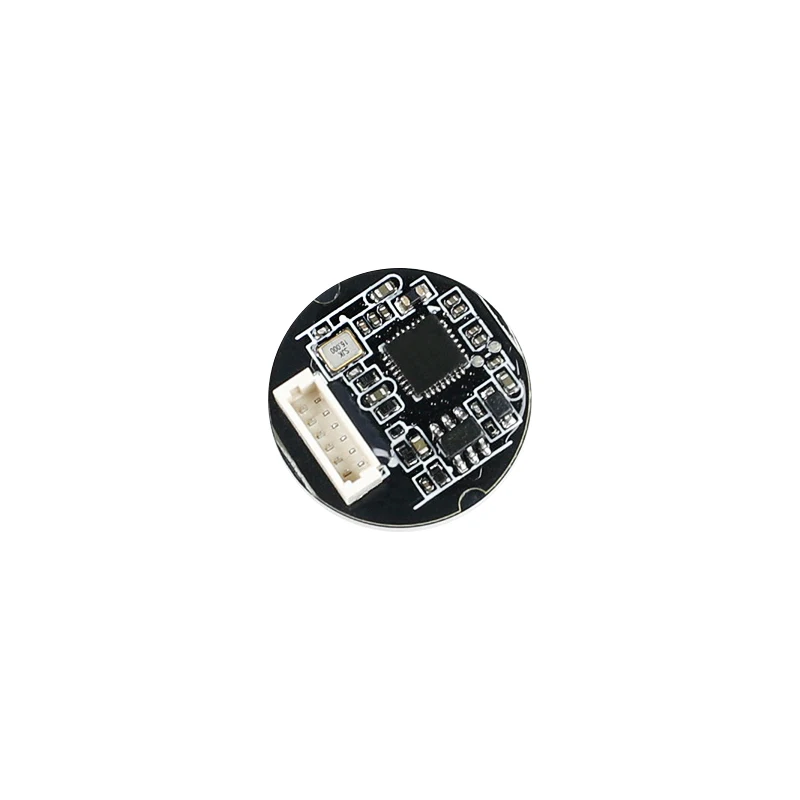

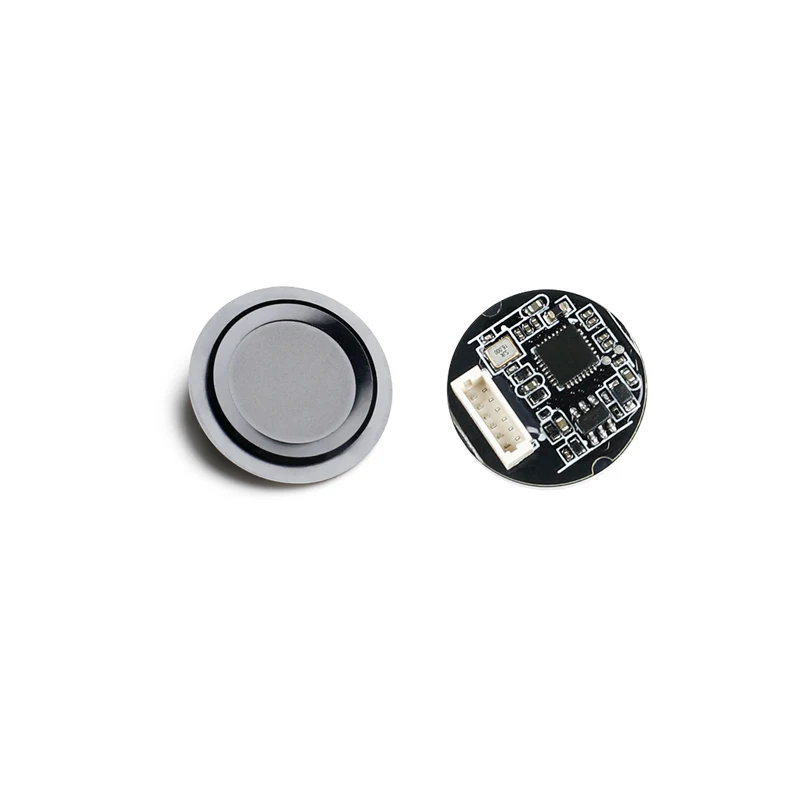

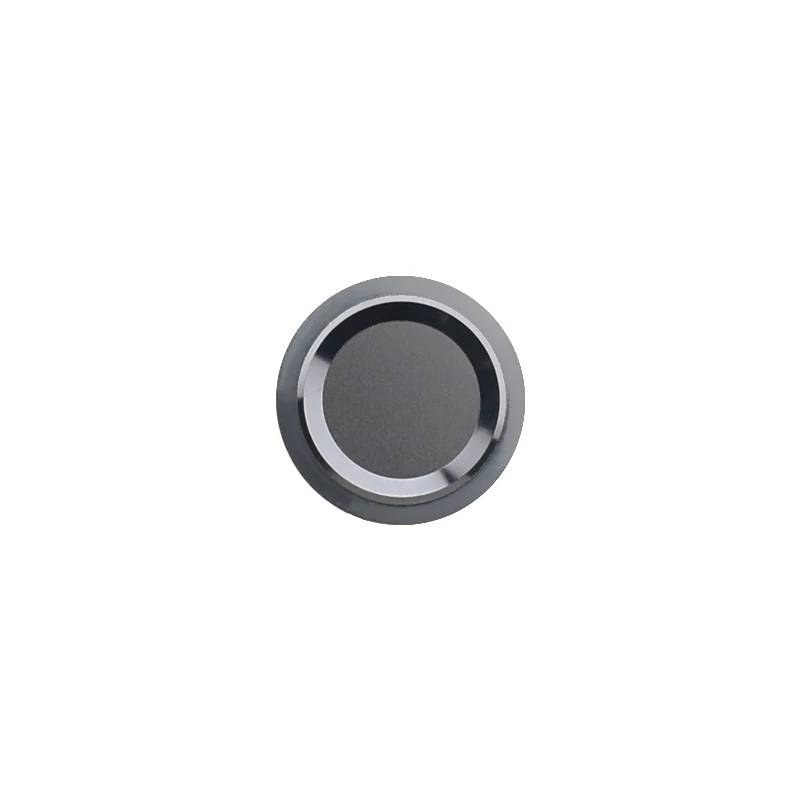

DW232Y Fingerprint Reader Sensor Module Door Lock Access Control

Share on (1600692829211):


Price:$7.00 - $9.00

Quantity:


Product Overview

Description



Product Description





Product parameters


























































































































































Category



Technical Parameter



1



Module size



Φ17.5MM



2



Window size



Φ11MM



3



Grayscale



256level



4



Acquisition speed



30 f/s



5



Data Connections



USART



6



Operating Voltage



+3.3V



7



Working current



Acquisition mode



<35mA



Standby mode



5uA



8



Fingerprint library capacity



100



9



Search time



<1s@100



10



Power up time



<=100ms



11



Interface



6pin, 1.0mm pitch



12



Interface Protocol



RS232(TTL)



13



Communication baud rate



115200bps(BR protocol)



14



Storage temperature



-40℃ - 60℃



15



Operating temperature



-20℃ - 55℃



16



Relative humidity



0% - %85



17



False recognition rate



<0.001%



18



Rejection rate



<=1.5%



19



Comparison Method



1:N



20



Processing speed



Fingerprint extraction time



325ms



1:N comparison time



535ms



21



Touch situation



Touch function



Yes



Operating Voltage



+3.3V



Quiescent Current



5uA@+3.3V



Output level



Highly effective



22



Supported OS



Embedded,Android,Linux,Wince,Windows etc. operating system
