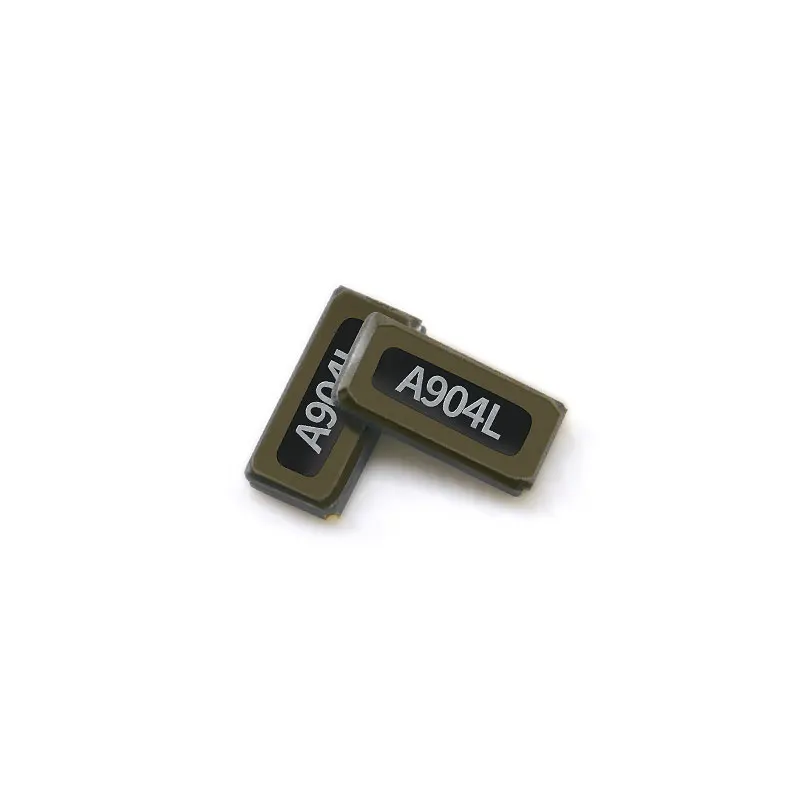

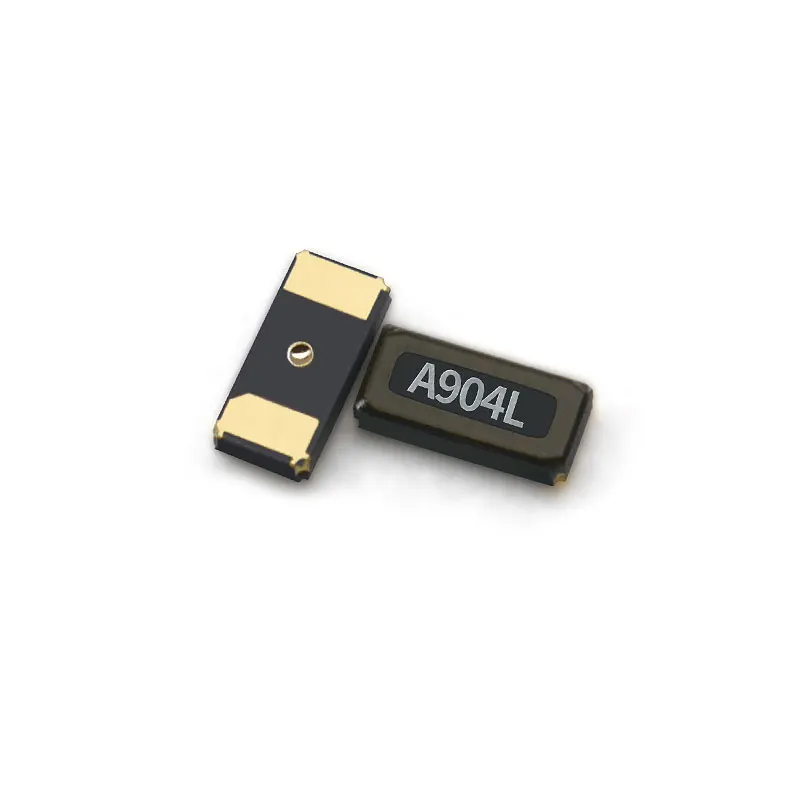

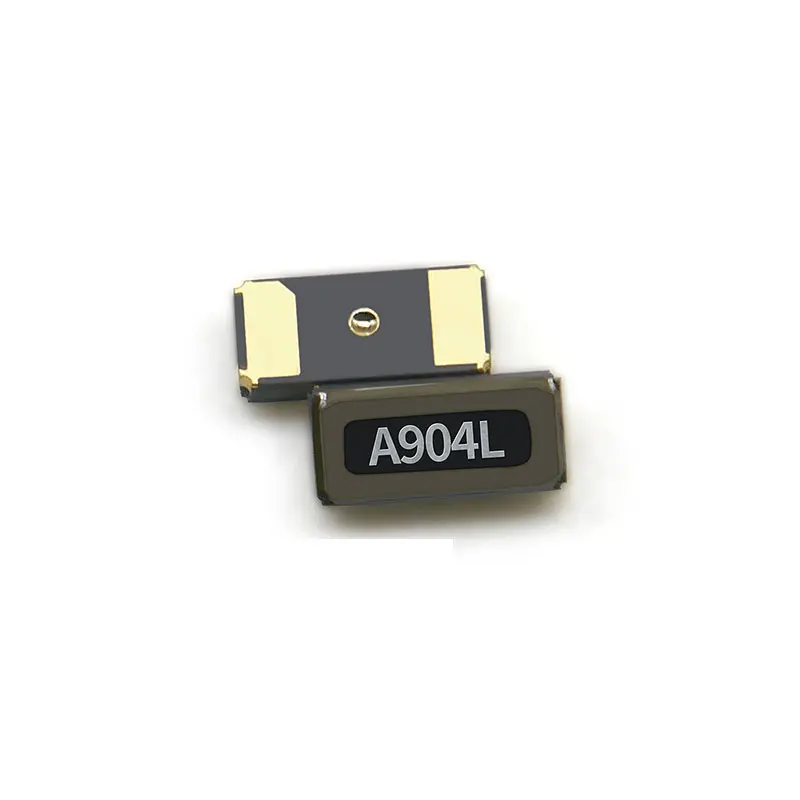

EPSON FC 135 32.7680KA AG3 32.768KHZ 6PF 20PPM Q13FC1350004900
- Category: Oscillators old >>>
- Supplier: Yqm Electronics Intl Limited
Share on (1600692859072):
Product Overview
Description
Specifications

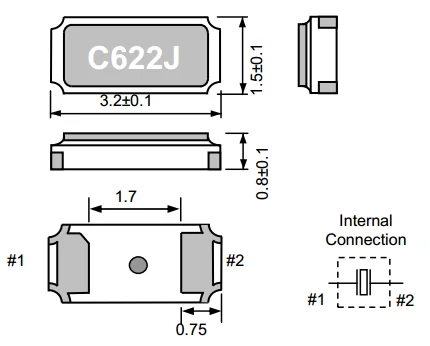

External Dimensions
Electrical Specifications
Item | Symbol | Specifications | Condition/Remarks | ||||
FC-135R | FC-135 | ||||||
Nominal frequency range | f_nom | 32.768 kHz | 32.768 kHz | 32 kHz to 77.5 kHz | Please contact us for inquiries regarding available frequencies. | ||
Storage temperature | T_stg | -55 °C to +125 °C | Store as bare product. | ||||
Operating temperature | T_use | -40 °C to +85 °C (+105 °C) | Please contact us about +85 °C < T_use | ||||
Level of drive | DL | 0.5 µW (1.0 µW Max.) | Please contact us if you require 1.0 µW Max. | ||||
Frequency tolerance (standard) | f_tol | ±20 × 10-6 | +25°C, DL = 0.1µW Please ask for tighter tolerance | ||||
Turnover temperature | Ti | +25 °C ± 5 °C | |||||
Parabolic coefficient | B | -0.04 × 10-6 / °C2 Max. | |||||
Load capacitance | CL | 7 pF, 9 pF, 12.5 pF | Please specify | ||||
Motional resistance (ESR) | R1 | 50 kΩ Max. | 70 kΩ Max. | 70 kΩ to 45 kΩ | |||
Motional capacitance | C1 | 3.4 fF Typ. | 3.4 fF Typ. | 3.7 fF to 1.6 fF | |||
Shunt capacitance | C0 | 1.0 pF Typ. | 1.0 pF Typ. | 1.3 pF to 0.5 pF | |||
Frequency aging | f_age | ±3 ×10-6 / year Max. | +25 °C, First year | ||||
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
