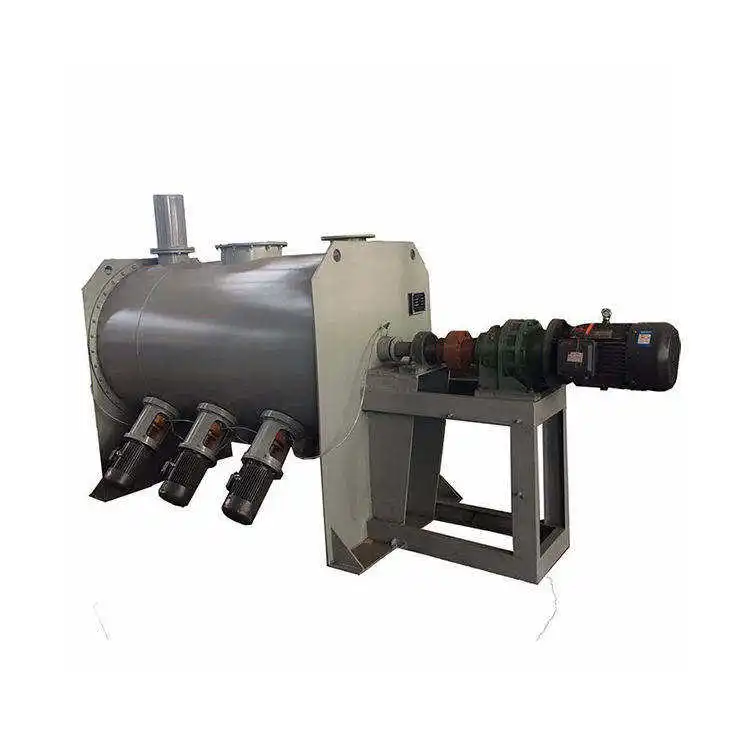

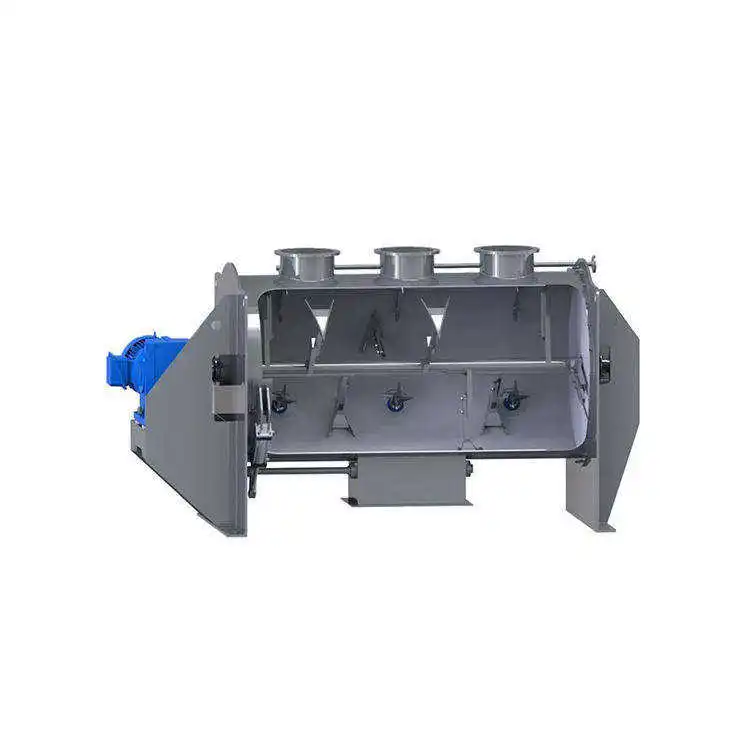

ss304 ss316L series plow horizontal loedige ribbon blade powder
- Category: >>>
- Supplier: Sinoped Innovation International (Liaoyang) Co. Ltd.
Share on (1600692860122):
Product Overview
Description
Product Description

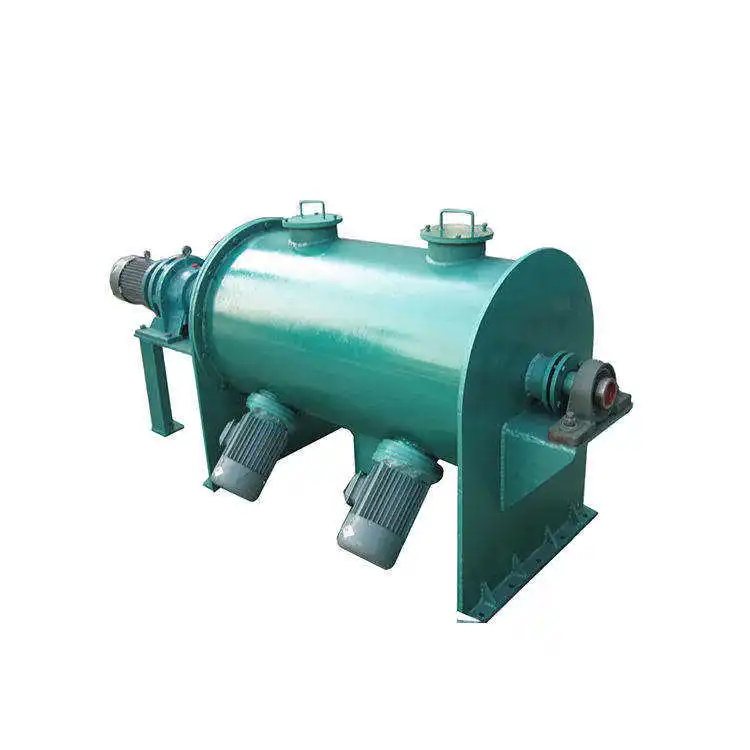

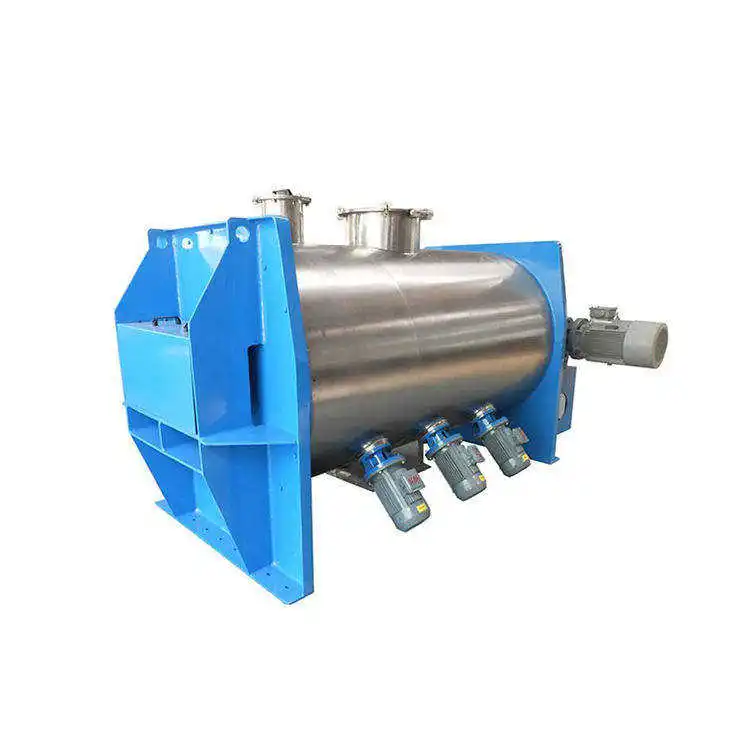

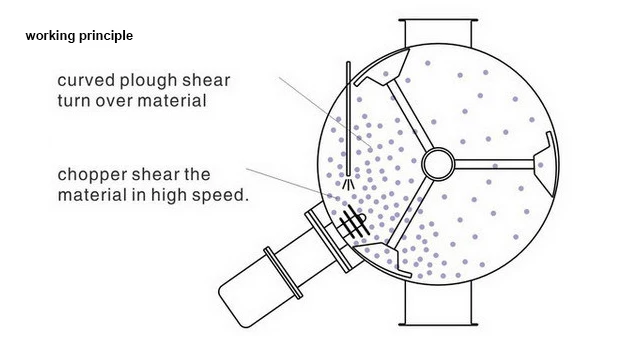

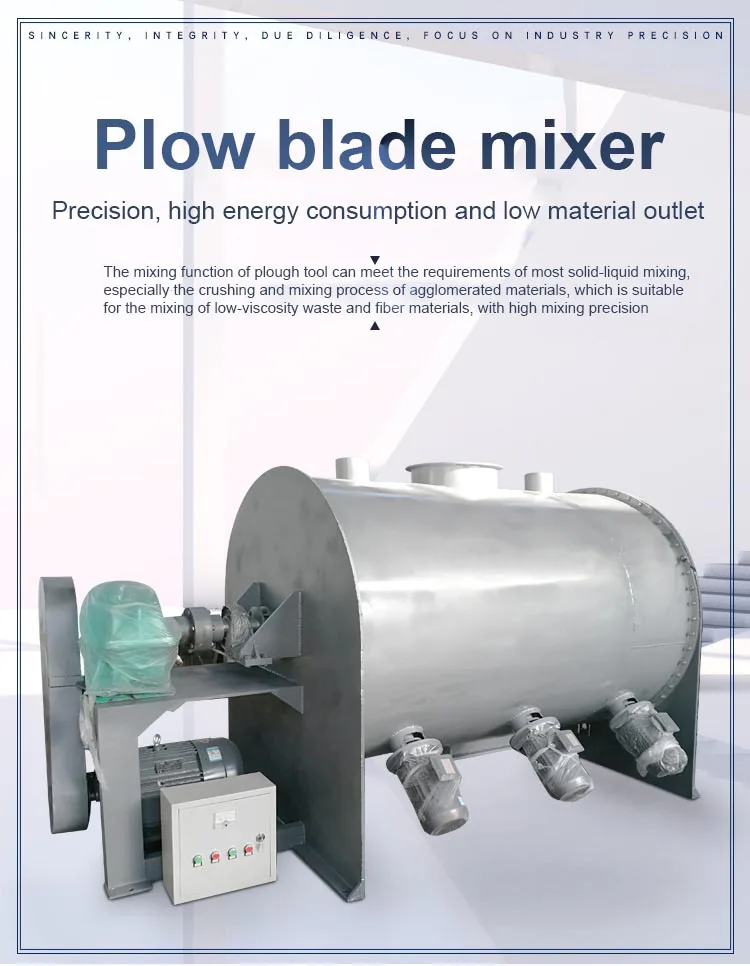

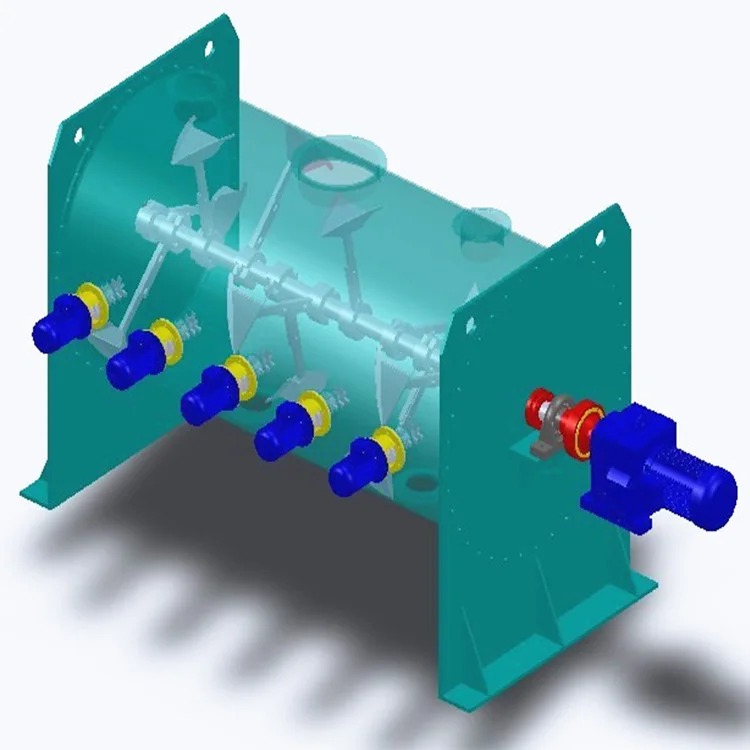

This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convection mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
○ As a high efficient mixing equipment , this machine is used for highly uniform mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics , mining and metallurgy, national defense industry and scientific research etc.
○ Material has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each omponent can be mixed under wide gap of weight roportion, mixing rate reaching up to 99.9%.
○ Loading coetticiency can reach 80%(40% for normal ones).
○ With compact structure, driving part of the equipment is step less controlled, featuring convenient operation.
○ Each part of drum is transited by arc and polished precisely, meeting the GMP requirements.
○ Material has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each omponent can be mixed under wide gap of weight roportion, mixing rate reaching up to 99.9%.
○ Loading coetticiency can reach 80%(40% for normal ones).
○ With compact structure, driving part of the equipment is step less controlled, featuring convenient operation.
○ Each part of drum is transited by arc and polished precisely, meeting the GMP requirements.
Model&Specs (m³) | Mixed a mount/batch (Kg) | Equipped power (Kw) | Dead Weight (Kg) |
WLDH-0.1 | 30-50 | 1.5-4 | 420 |
WLDH-0.3 | 100-150 | 3-5.5 | 850 |
WLDH-0.5 | 200-300 | 4-11 | 1060 |
WLDH-1 | 400-600 | 7.5-15 | 1790 |
WLDH-1.5 | 600-900 | 11-18.5 | 1900 |
WLDH-2 | 800-1200 | 15-22 | 2750 |
WLDH-3 | 1200-1800 | 18.5-30 | 3500 |
WLDH-4 | 1600-2400 | 22-37 | 4280 |
WLDH-6 | 2400-3600 | 37-55 | 5300 |
WLDH-8 | 3200-4800 | 37-55 | 6800 |
WLDH-10 | 4000-6000 | 45-75 | 7800 |
Professional we can provide sterilizers and packaging machines. Can meet your mass production.

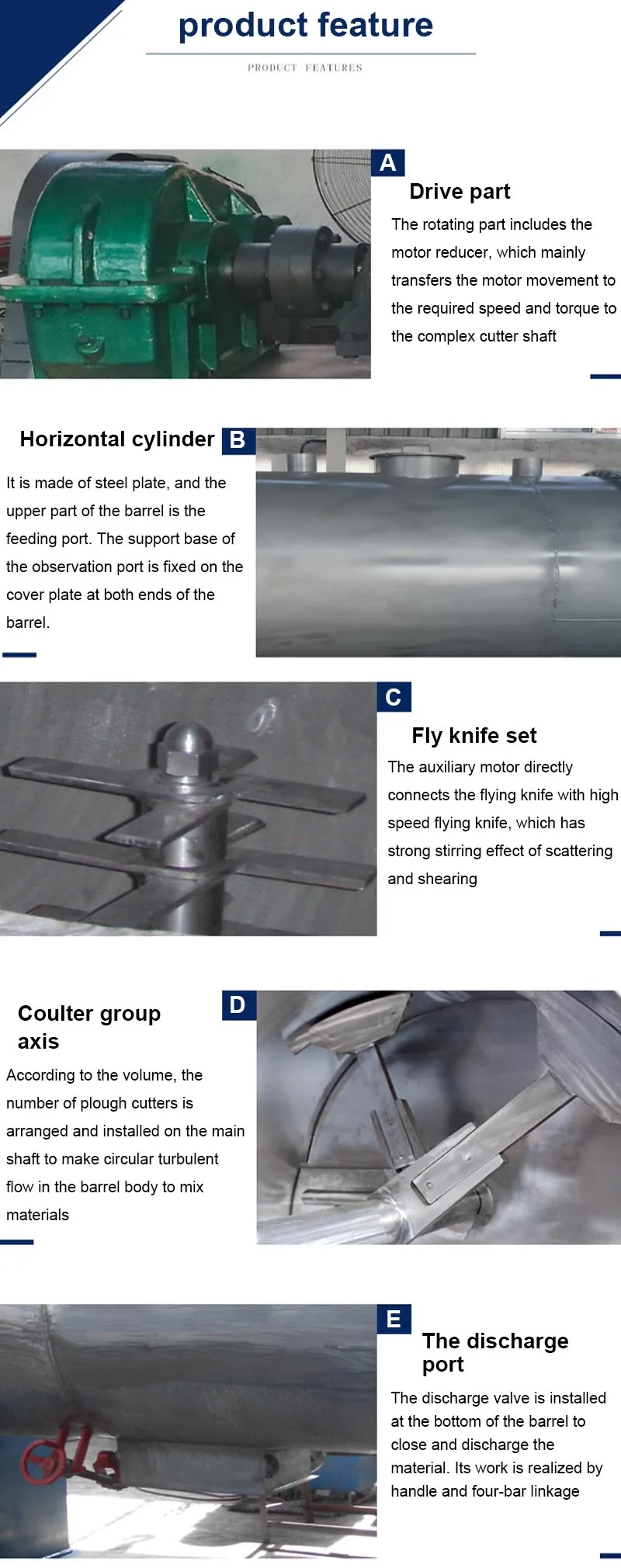

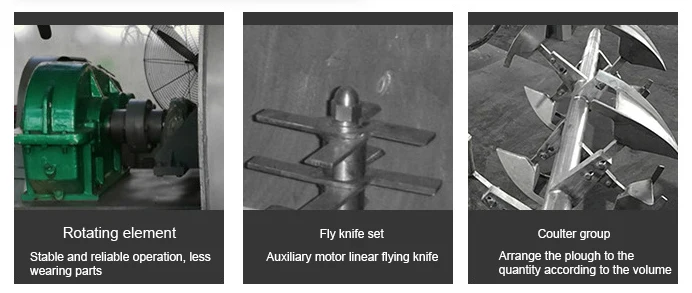

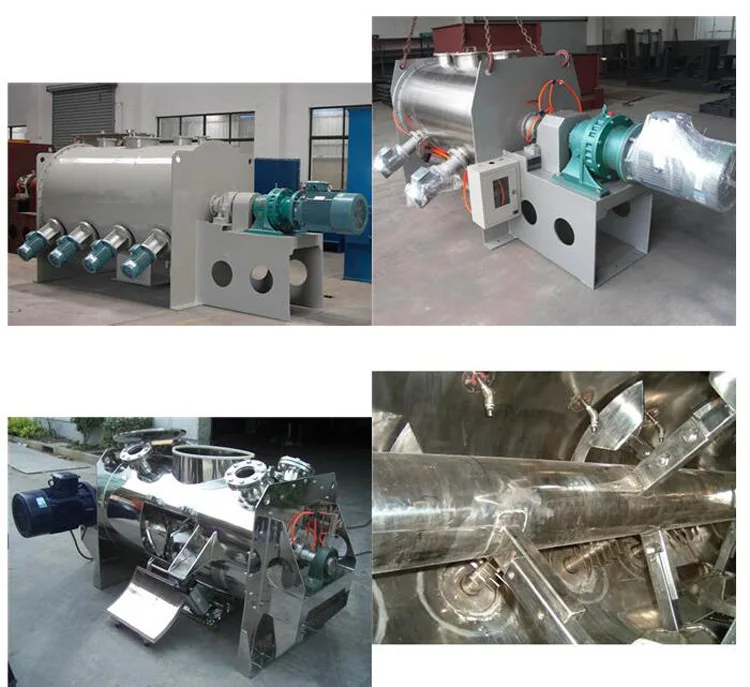

Details Images

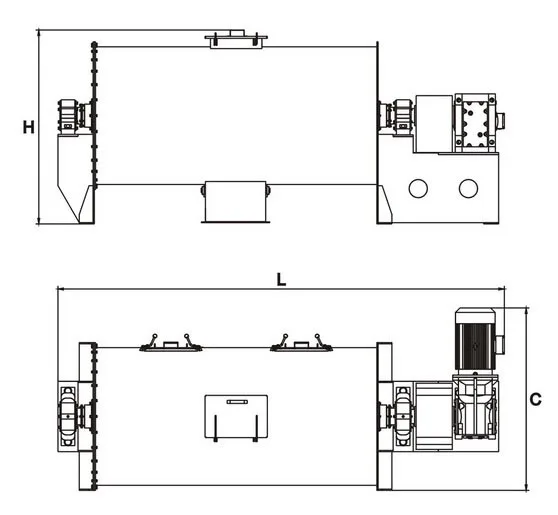

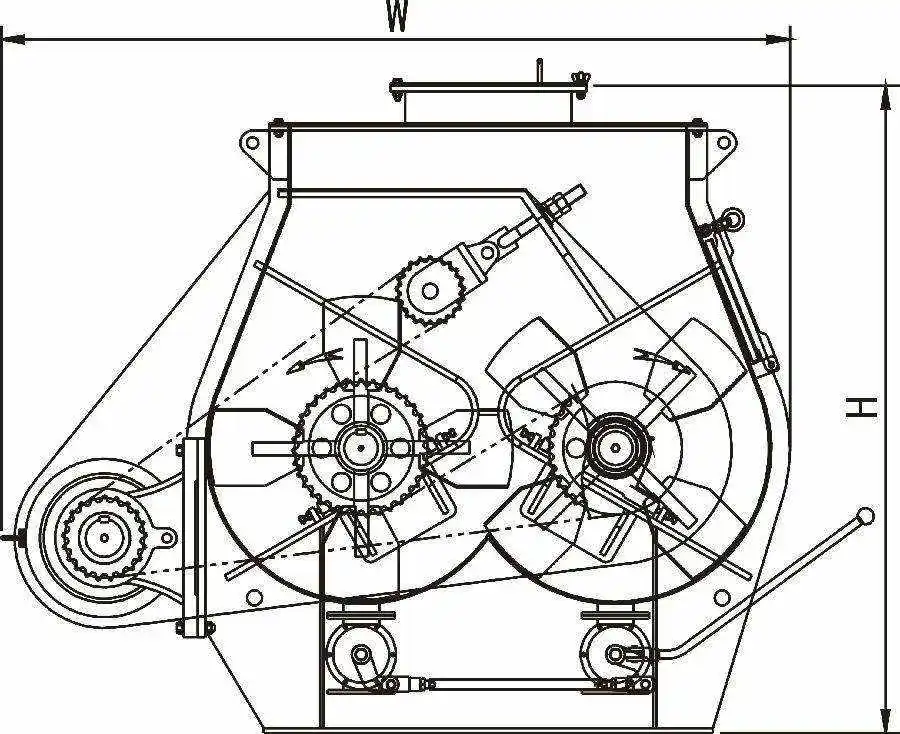

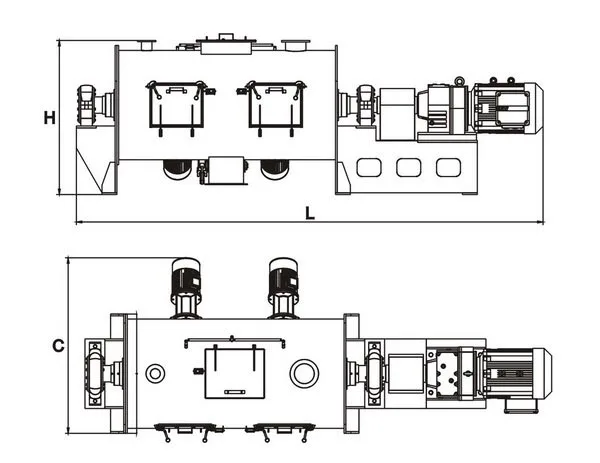

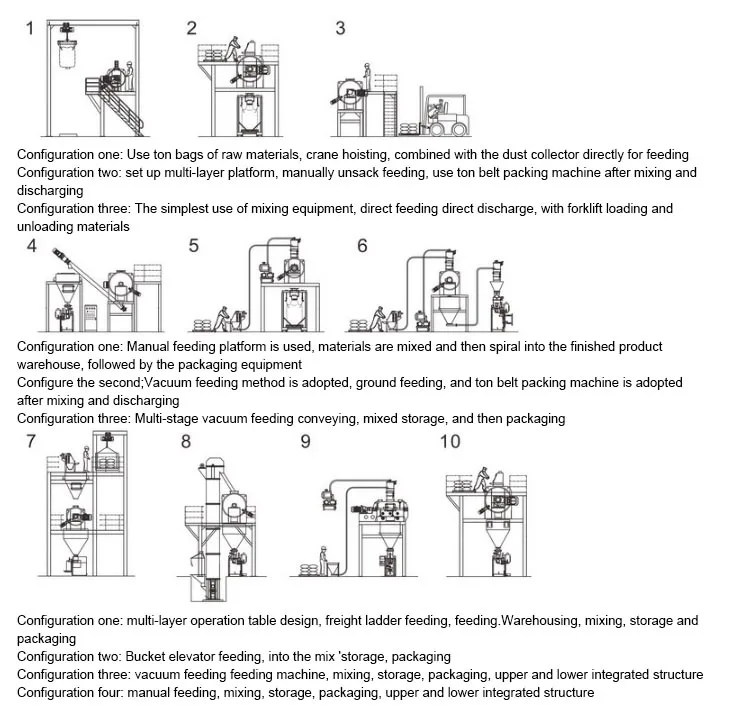

We can provide a series of detailed materials for production process videos, drawings, etc.
Professional we can provide sterilizers and packaging machines. Can meet your mass production.
Product Application
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
