Connecting Rod Bearings GAR8 UK Spherical Plain Bearing Units GAR 8 UK Rod End Bearings GAR8UK
- Category: Rod End Bearings >>>
- Supplier: Shanghai,Songyi,Bearing,Co.,Ltd.
Share on:
Product Overview
Description
Connecting Rod Bearings GAR8-UK Spherical Plain Bearing Units GAR 8 UK Rod End Bearings GAR8UK
Connecting Rod Bearings GAR8-UK Spherical Plain Bearing Units GAR 8 UK Rod End Bearings GAR8UK introduction :
Rod end ball joint types bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

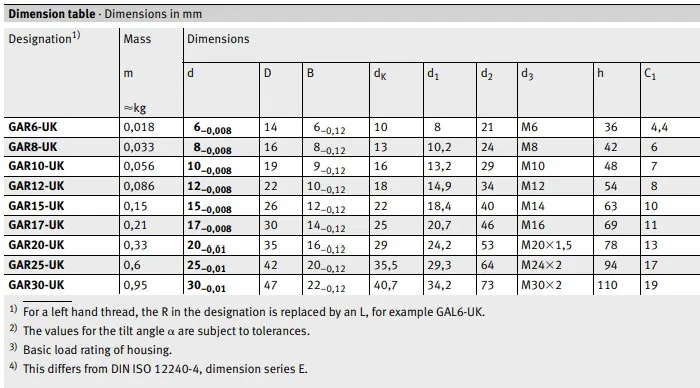

| d | 8 mm | Bore diameter bearing |
| d2 | 24 mm | Outer eye diameter |
| D | 16 mm | Outside diameter bearing |
| l2 | 54 mm | Total length external thread rod |
| B | 8 mm | Width inner ring |
| Cr | 5,850 N | Basic dynamic load rating, radial |
| C0r | 12,900 N | Basic static load rating, radial |
| ≈m | 33 g | Weight |
Main specifications :
- Item NumberGAR8-UK
- Also known as0066326530000
SA8C
TFE8MKB - EAN4012802523638
- CategoryRod End
Weight and Dimensions
- Inner (d) MM8
- Outer (D) MM25
- Width (B) MM12
- Weight (kg)0.029
Product Properties
- SealNo Seal
- Contact MaterialSteel on PTFE
Data from Schaeffler (medias)
- Radial Static Load Rating C0r (N)12900
- Radial Dynamic Load Rating Cr (N)5850
- ECLASS number23-05-01-05
- ECLASS2 number23-05-01-05
- Medias descriptionRod end with external thread, right hand thread maintenance-free, sliding layer: PTFE composite, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, open design
Rod end ball joint types bearings models series :
| Bearing No. | d | d3 | B | C1 | L |
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 |
| PHS5 | 5 | M5x0.8 | 8 | 6 | 10 |
| PHS6 | 6 | M6x1.0 | 9 | 6.75 | 12 |
| PHS8 | 8 | M8x1.25 | 12 | 9 | 16 |
| PHS10 | 10 | M10x1.5 | 14 | 10.5 | 20 |
| PHS10-1 | 10 | M10x1.25 | 14 | 10.5 | 20 |
| PHS12 | 12 | M12x1.75 | 16 | 12 | 22 |
| PHS12-1 | 12 | M12x1.25 | 16 | 12 | 22 |
| PHS14 | 14 | M14x2.0 | 19 | 13.5 | 25 |
| PHS14-1 | 14 | M14x1.5 | 19 | 13.5 | 25 |
| PHS16 | 16 | M16x2.0 | 21 | 15 | 28 |
| PHS16-1 | 16 | M16x1.5 | 21 | 15 | 28 |
| PHS18 | 18 | M18x1.5 | 23 | 16.5 | 32 |
| PHS20 | 20 | M20x1.5 | 25 | 18 | 33 |
| PHS22 | 22 | M22x1.5 | 28 | 20 | 37 |
| PHS25 | 25 | M24x2.0 | 31 | 22 | 42 |
| PHS28 | 28 | M27x2.0 | 35 | 24 | 48 |
| PHS30 | 30 | M30x2.0 | 37 | 25 | 51 |
| PHS30-1 | 30 | M27x2.0 | 37 | 25 | 51 |
| POS5 | 5 | M5x0.8 | 8 | 6 | 20 |
| POS6 | 6 | M6x1.0 | 9 | 6.75 | 22 |
| POS8 | 8 | M8x1.25 | 12 | 9 | 25 |
| POS10 | 10 | M10x1.5 | 14 | 10.5 | 29 |
| POS12 | 12 | M12x1.75 | 16 | 12 | 33 |
| POS12-1 | 12 | M12x1.25 | 16 | 12 | 33 |
| POS14 | 14 | M14x2.0 | 19 | 13.5 | 36 |
| POS16 | 16 | M16x2.0 | 21 | 15 | 40 |
| POS16-1 | 16 | M16x1.5 | 21 | 15 | 40 |
| POS18 | 18 | M18x1.5 | 23 | 16.5 | 44 |
| POS20 | 20 | M20x1.5 | 25 | 18 | 47 |
| POS22 | 22 | M22x1.5 | 28 | 20 | 51 |
| POS25 | 25 | M24x2.0 | 31 | 22 | 57 |
| POS28 | 28 | M27x2.0 | 35 | 24 | 62 |
| POS30 | 30 | M30x2.0 | 37 | 25 | 66 |
Product Photos

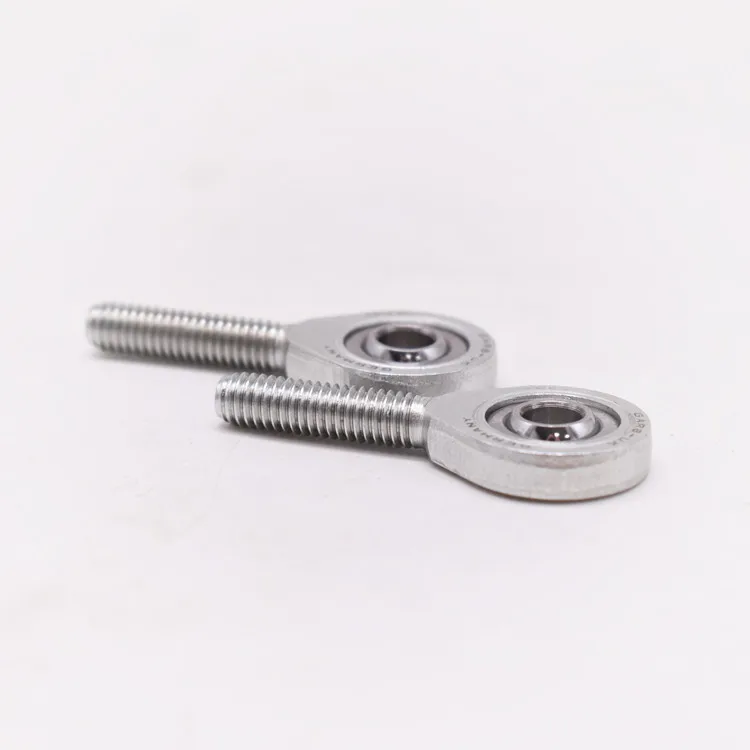

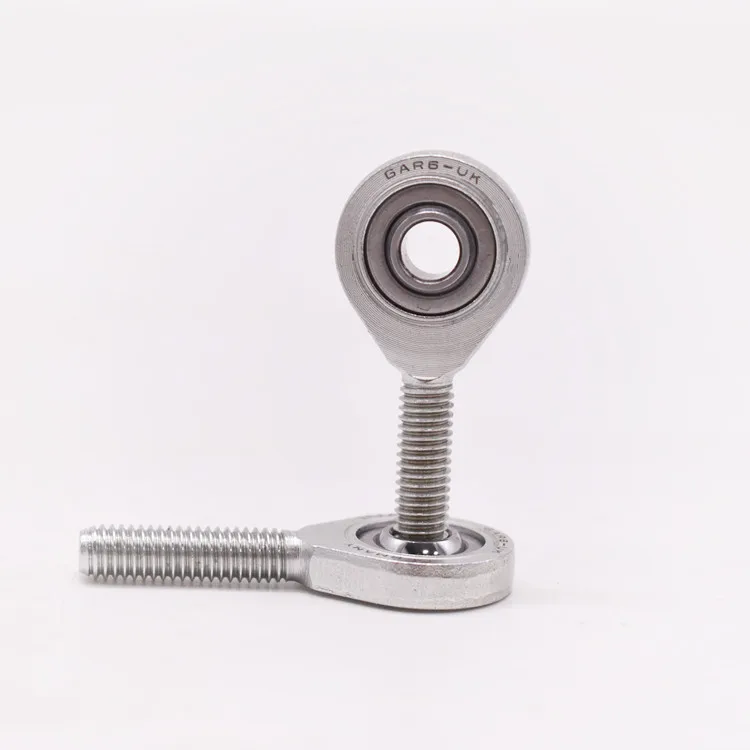

Connecting Rod End Bearings GAR series photos reference :
Packaging & Shipping
Bearing packages :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
Application Industry
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
a. Auto wheel hub, Auto engine, Auto axle
b. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator
c.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery
d. Steel mill machinery, Oil field machinery, Motorship machinery
e. Hardware tool, Electric power tool, Household appliance industry
f. Electronic toys, Fitness equipment, Building machinery
g. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
Hot Sale Series
