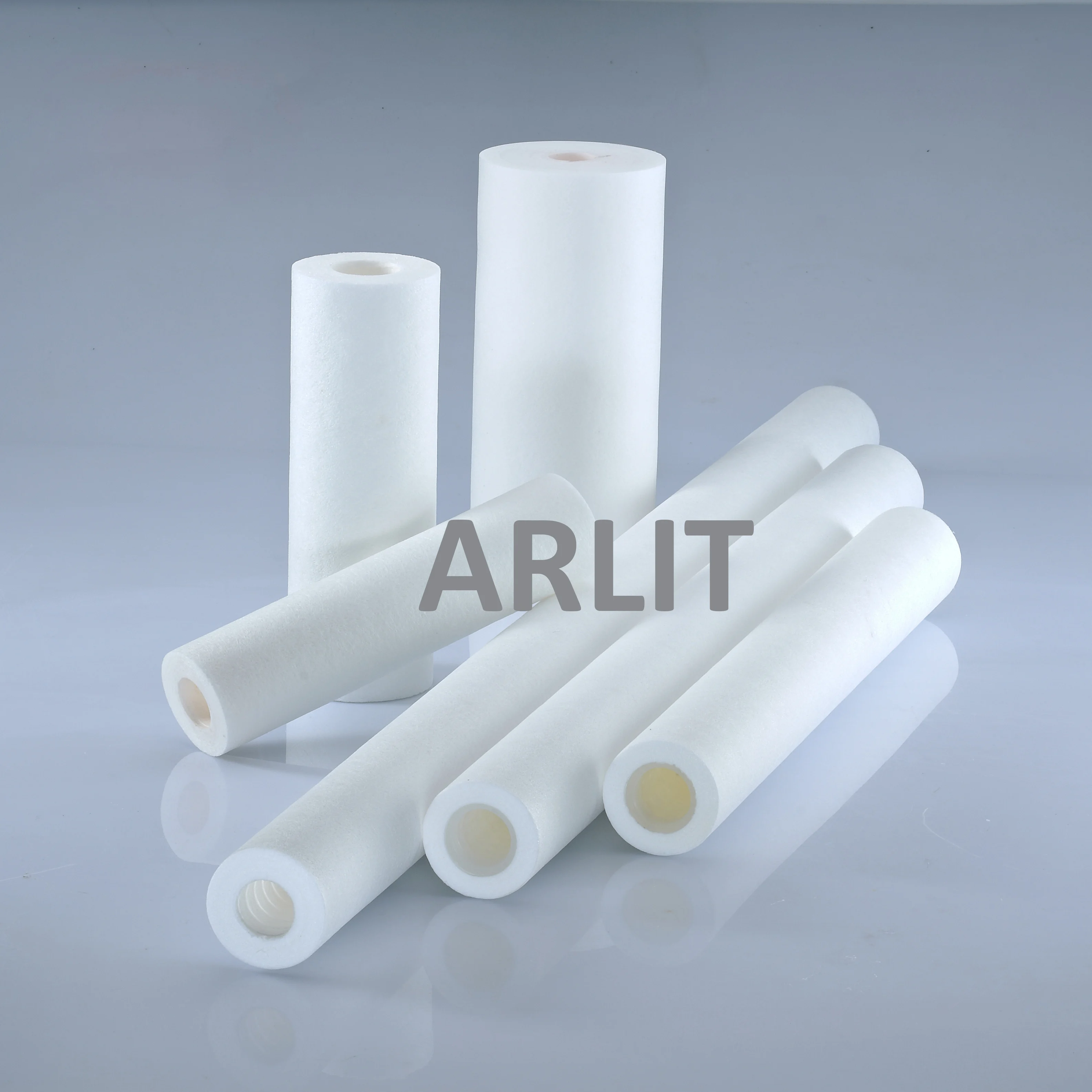

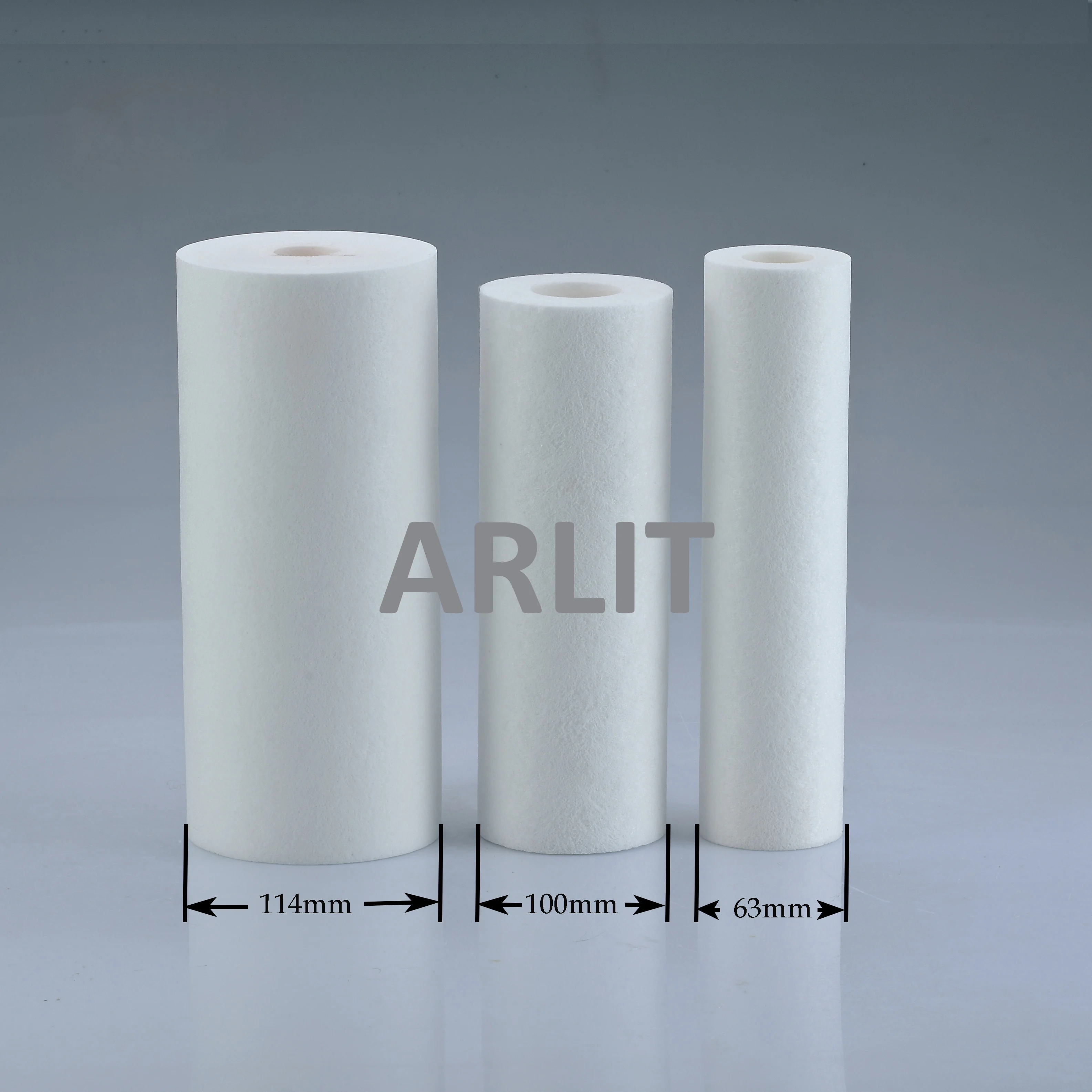

High flow rate of φ114mm x 10"L PP spun melt blown /sediment filter cartridge for water treatment
Production Introduction
The filtration media of PP melt blown filter cartridge is PP of nonpoisonous and tastless as the material. It is made by melt-sprayed, extruded, stretched and formed into tube-like core. The benefit summary: the features of small resistance, large flow rate, strong dirt holing capacity, corrosion resistance, good pressure resistance and wide chemical compatibility.
The filtration media of PP melt blown filter cartridge is PP of nonpoisonous and tastless as the material. It is made by melt-sprayed, extruded, stretched and formed into tube-like core. The benefit summary: the features of small resistance, large flow rate, strong dirt holing capacity, corrosion resistance, good pressure resistance and wide chemical compatibility.
Specification
Item | PP Spun Filter Cartridge |
Filter medium | Polypropylene (PP) |
Pore size | 1, 3, 5, 10, 20, 30, 50, 75, 100 µm |
Length | 10 inches |
OD/ID | 69 mm ± 1mm |
Gasket / O - rings | Silicone, NBR, EPDM, Viton |

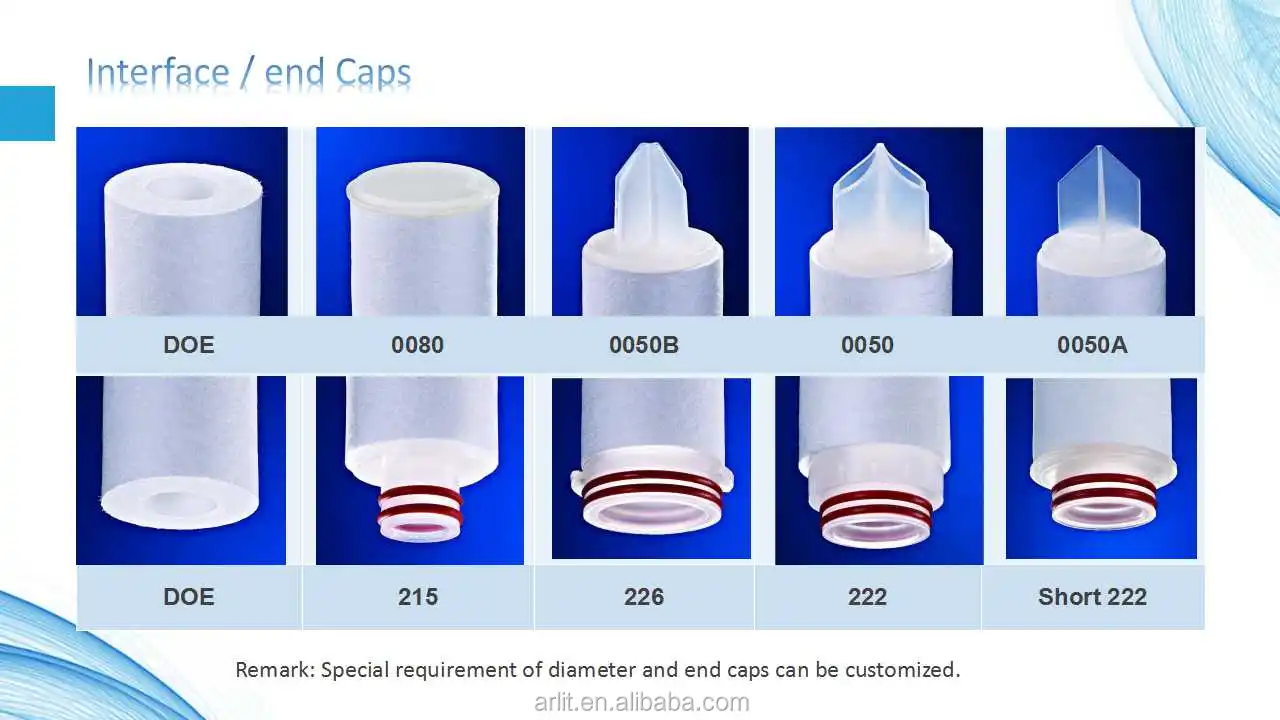

Interface | DOE,215,226,222/short 222 |
End caps | DOE,0080,0050,0050A,0050B |
Effective filtration area | ≥ 0.045 m²/10” |
Max. operating temperature | 60°C, 0.2 MPa |
Max. forwarder differential pressure | 0.2 MPa ( 25 °C ) |
Max. reverse differential pressure | 0.1 MPa ( 25 °C ) |
Others | special requirement of diameter and end caps can be customized. |
Typical Applications
Mainly it is suitable for filter bigger pellets, water pre-treatment.
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Micro rating (μm) | 1 | 3 | 5 | 10 | 20 | 30 | 50 | 75 |
55Flow rate (L/min) | 10 | 14 | 17 | 20 | 24 | 28 | 32 | 34 |
Our services
1.We are a manufacture,can offer competitive prices.

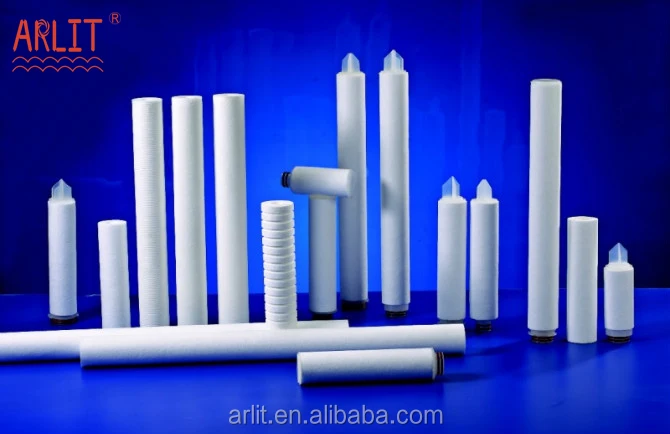

2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
Company Profile
Shantou Yalida Filtration Equipment Co.,Ltd. was established in 2005, which specialized in liquid and air filtration equipment manufacturer.Our company has introduced the advanced production equipments, quality control instruments and manufacture technology for micropore filter cartridge since it was found.
