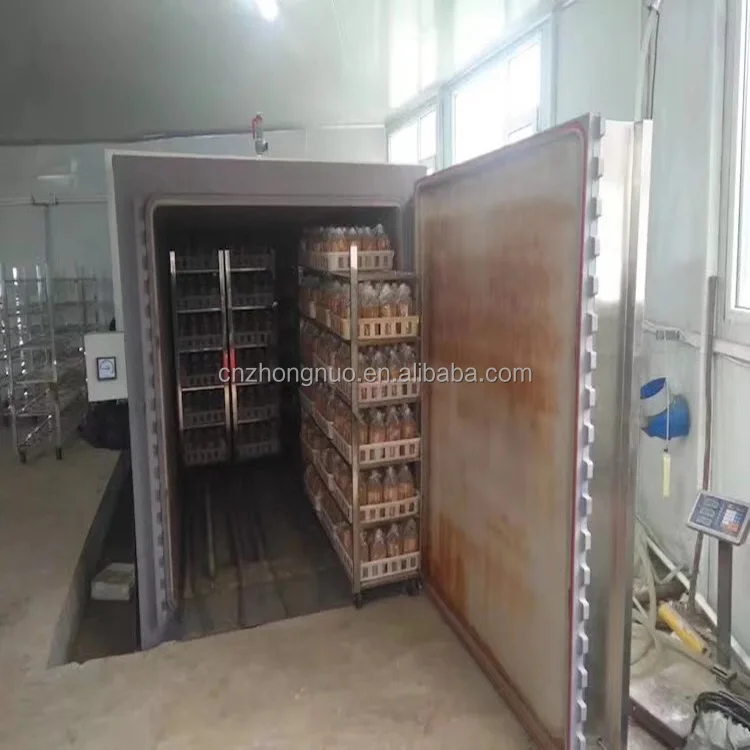

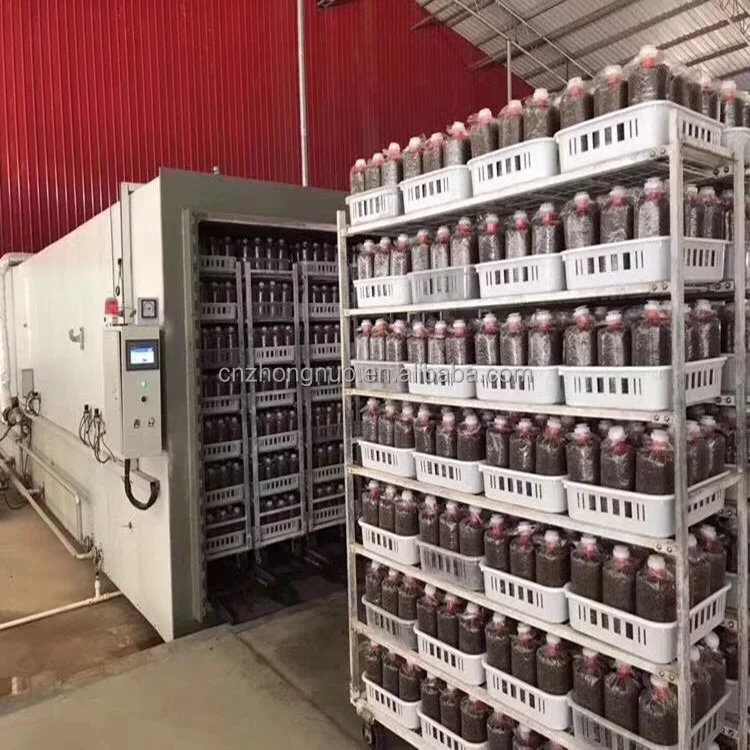

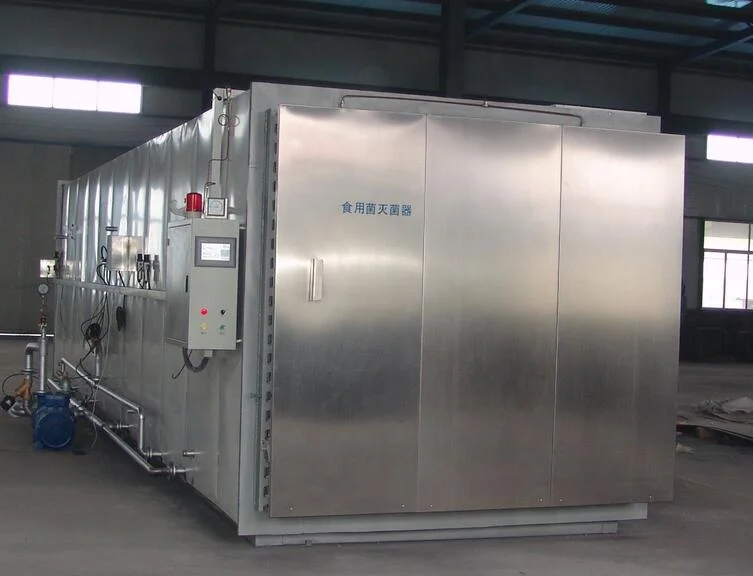

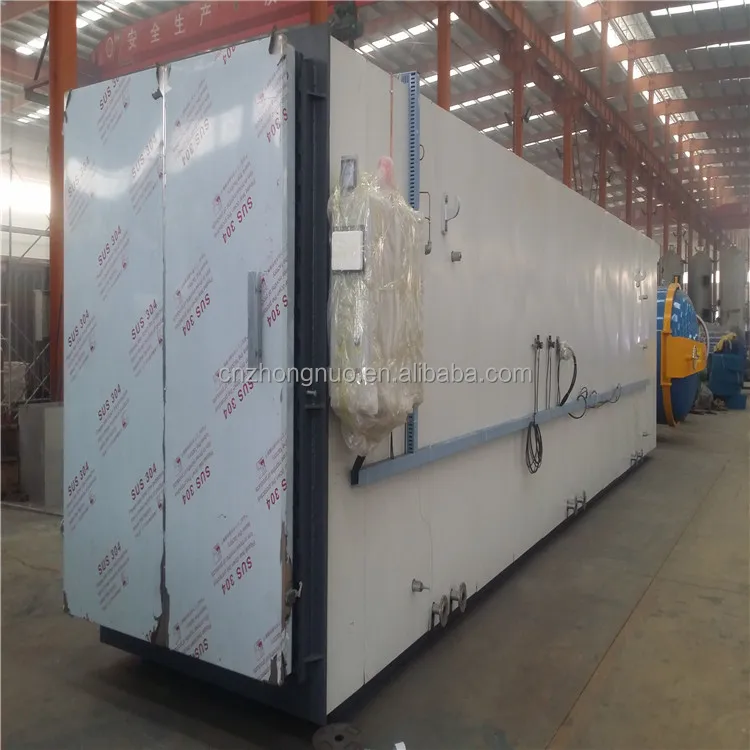

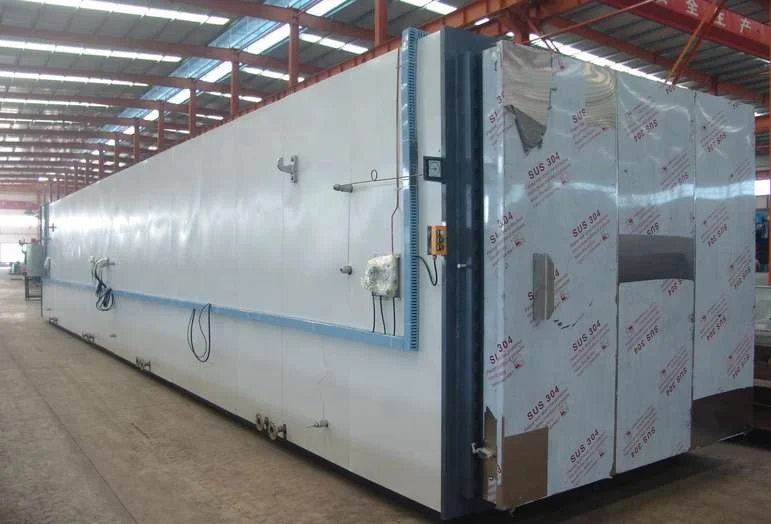

Mushroom substrate autoclave sterilizer/autoclave for mushroom substrate
- Category: >>>
- Supplier: Zhucheng City Zhongnuo Machinery Co. ltd.
Share on (1600693092016):
Product Overview
Description
Product Description

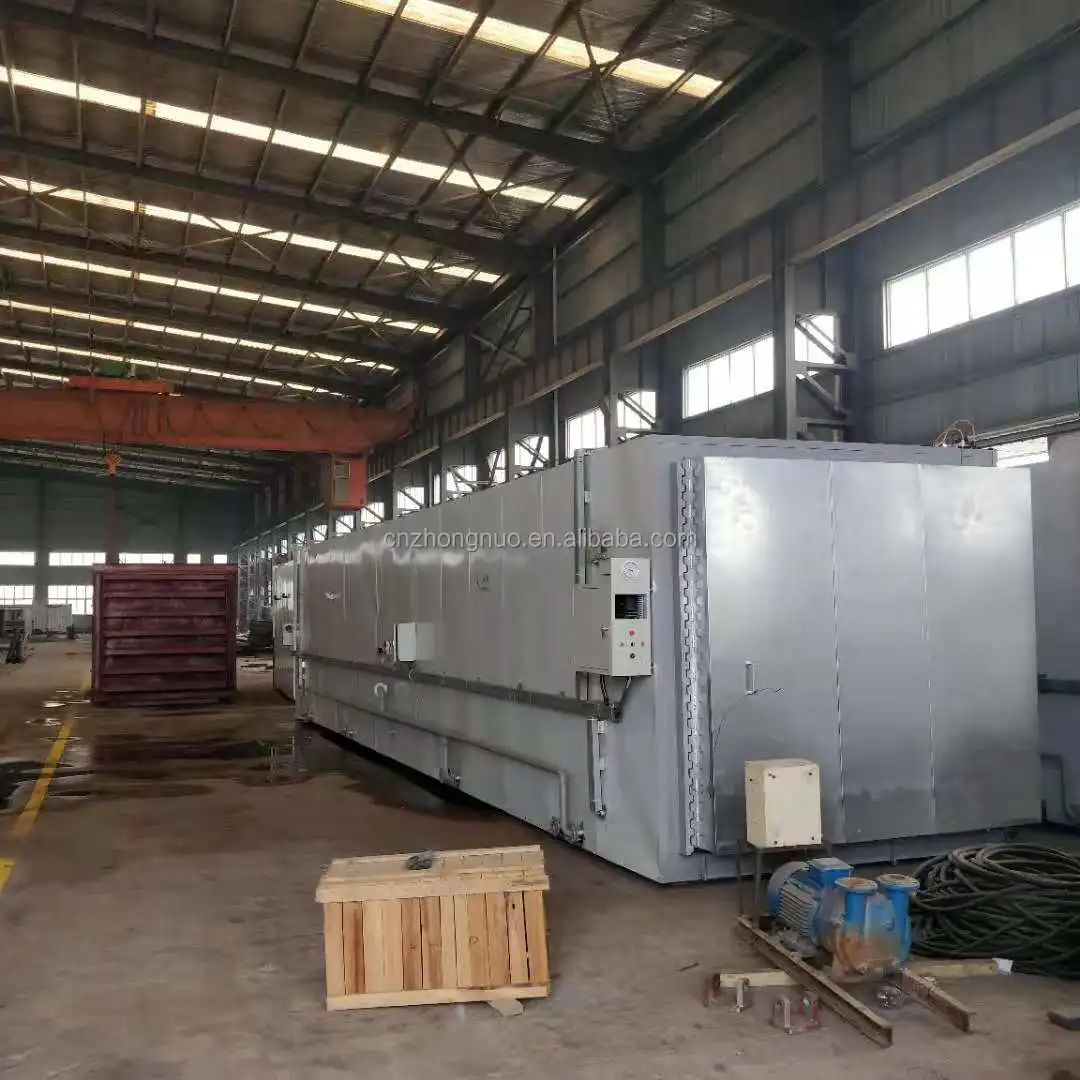

High Mushroom Substrate Sterilization Autoclave
1. Product structure
Structural features：Advanced technology, superior performance, simple operation and reliable operation

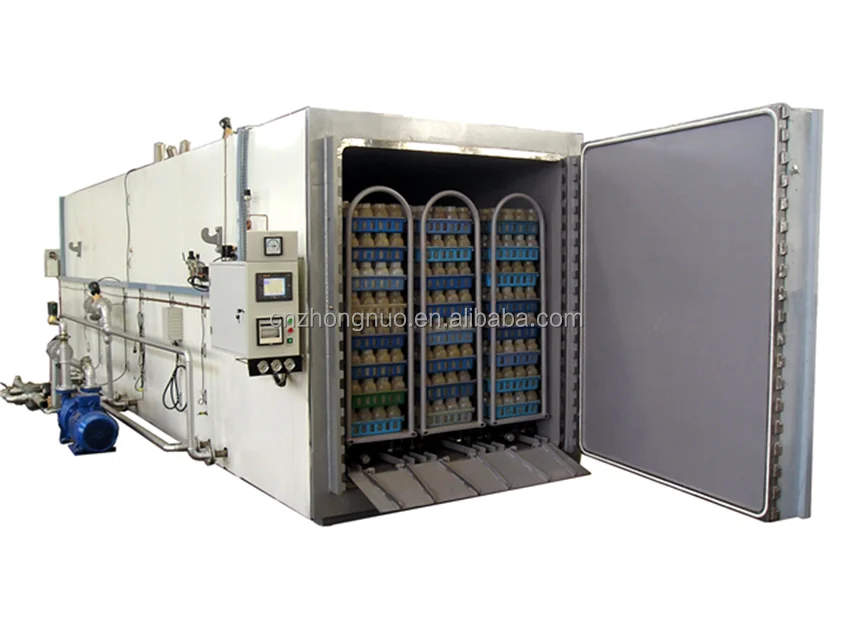

The steam sterilizer for edible fungus culture medium of motor door series adopts advanced manufacturing technology. It is mainly composed of cylinder body, gate, pipeline system, control system and decoration parts.
Cylinder block and gate：
The cylinder block is designed and manufactured according to the national standard gb-150 steel pressure vessel and Technical Supervision Regulation for pressure vessel. It is made of 10mm Q345R boiler steel plate and has a rectangular structure. The inner surface of cylinder block and gate is treated by sand spraying and high temperature paint spraying, which is corrosion resistant. There is a standard overpressure relief valve on the cylinder block, which ensures the safety of the cylinder block.
Piping system：
It is mainly composed of pneumatic valve, vacuum pump, pipeline and other auxiliary pipe fittings. Pneumatic valve control wiring is simple, reliable, stable action, to avoid the electromagnetic valve due to residual magnetism, magnetic chaos caused by the open, close not dead phenomenon.
Control system：
The color touch screen and Siemens S7-200 series industrial programmable controller are the main controllers, which are
shockproof, moisture-proof, anti electromagnetic interference, stable performance and reliable operation. Advanced control software and digital processing of sterilization temperature make sterilization timing scientific and reasonable and ensure sterilization effect reliably. The inputable color touch screen can display temperature, pressure and time directly during operation, and can input product name, batch number, operator, etc. according to customer requirements. The whole travel parameter data is stored in the touch screen with memory, and can be exported by U disk or printed by micro printer (optional).
Structural features：Advanced technology, superior performance, simple operation and reliable operation
The steam sterilizer for edible fungus culture medium of motor door series adopts advanced manufacturing technology. It is mainly composed of cylinder body, gate, pipeline system, control system and decoration parts.
Cylinder block and gate：
The cylinder block is designed and manufactured according to the national standard gb-150 steel pressure vessel and Technical Supervision Regulation for pressure vessel. It is made of 10mm Q345R boiler steel plate and has a rectangular structure. The inner surface of cylinder block and gate is treated by sand spraying and high temperature paint spraying, which is corrosion resistant. There is a standard overpressure relief valve on the cylinder block, which ensures the safety of the cylinder block.
Piping system：
It is mainly composed of pneumatic valve, vacuum pump, pipeline and other auxiliary pipe fittings. Pneumatic valve control wiring is simple, reliable, stable action, to avoid the electromagnetic valve due to residual magnetism, magnetic chaos caused by the open, close not dead phenomenon.
Control system：
The color touch screen and Siemens S7-200 series industrial programmable controller are the main controllers, which are
shockproof, moisture-proof, anti electromagnetic interference, stable performance and reliable operation. Advanced control software and digital processing of sterilization temperature make sterilization timing scientific and reasonable and ensure sterilization effect reliably. The inputable color touch screen can display temperature, pressure and time directly during operation, and can input product name, batch number, operator, etc. according to customer requirements. The whole travel parameter data is stored in the touch screen with memory, and can be exported by U disk or printed by micro printer (optional).
Specification
item | value |
Applicable Industries | Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops |
After Warranty Service | Video technical support, Online support, Field maintenance and repair service |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | PLC, Pressure vessel |
Place of Origin | China |
Warranty | 1 Year |
Field maintenance and repair service | |
Key Selling Points | Easy to Operate |
Material | Q345R steel |
design temperature | 147℃ |
working pressure | 0.35MPa |
Application | mushroom fungus |
Control system | SIEMENS Control System |
Color | customized |
Capacity | 1.3m3 |
Package | Standard Packing |
diameter | 900mm |
heating source | electric |

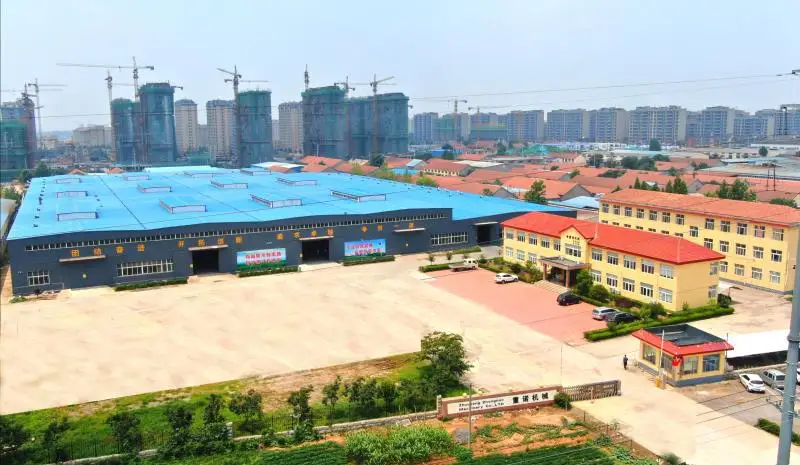

Company Profile
Zhongnuo, the implication of "keep its promise", which is our creed when establish the company.We have been completely implemented, from good to the best.
Zhucheng Zhongnuo Machinery Co.,Ltd, established in 2010, is a professional manufacturer of food processing machine and D1/D2 pressure vessel equipment(manufacturing license No. : ts2237466-2016). The company has complete qualification, advanced equipment, strong technical team and first-class testing equipment. We are engaged in food machinery and pressure vessels for a long time. Zhongnuo company will keep the high quality of products all the time, and constantly bring forth the new in order to provide better balue for thenew and old customers.
Delivery
wooden package or packaged according to the customer's requirements
Why Choose Us
FAQ
Q1. Does your company accept processing customization and what's your MOQ for customized?
A: Yes, we usually produce the equipment according to the customer's requirements. Our MOQ is one set.
Q2. When will you deliver the goods?
A: We usually begin to produce the equipment after receiving 30% as deposit and ship after 70% balance payment.
Q3. What can you offer if there is some trouble with the machine?
A: We can provide English manual book and also can make a video to tell you how to resolve the problem. We can also dispatch our workers to your factory.
Q4. How long is your warranty?
A: Usually one year except for vandalism or improper operation.
Q5. How do you pack the machine?
A. Our company uses PE film or wooden case to pack for standard export packing.
