Water Tank Sealing Gasket Car Plastic Rubber Parts Inspecting Optical Sorting Machine
- Category: >>>
- Supplier: Xiamen Openex Mechanical Technology Limited
Share on (1600693099031):
Product Overview
Description
Equipment Features

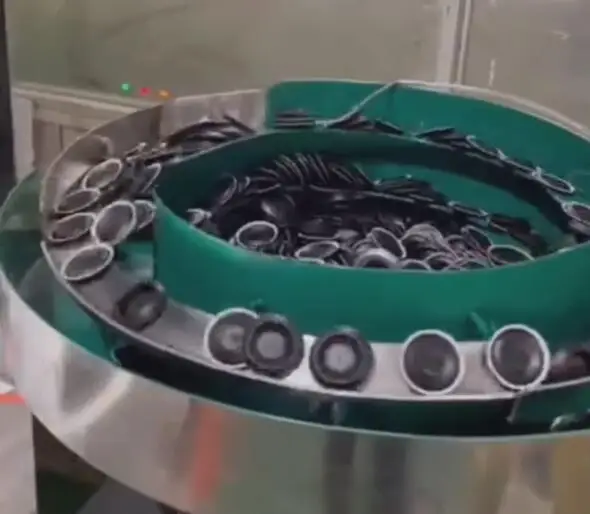

Vibratory Bowl Feeder

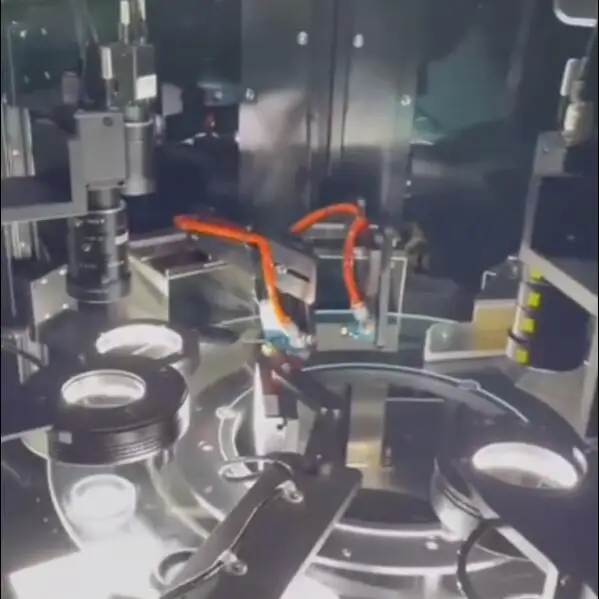

Optical Inspection Machine
High Resolution Industrial Cameras

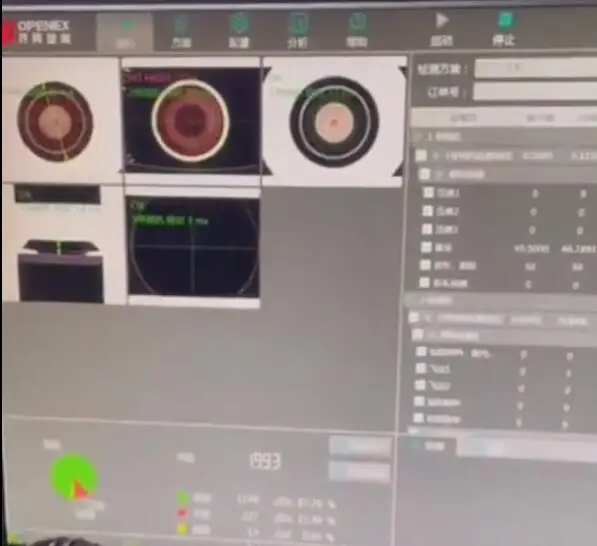

Computer Screen

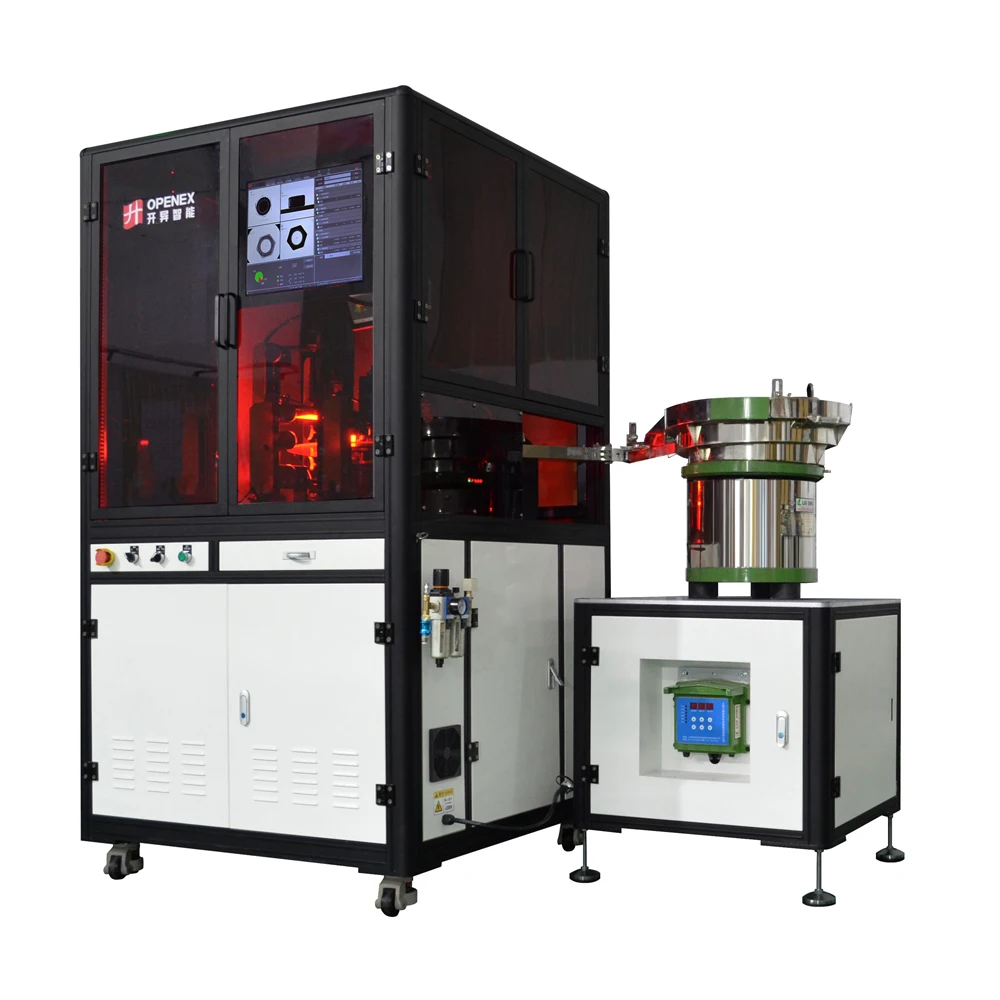

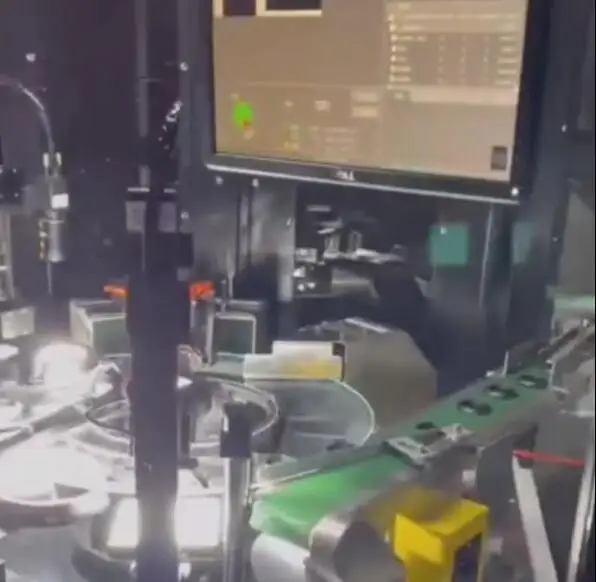

Sealing Gasket Optical Inspection Machine
1. High speed feeding system.
2. Detect Bulge, Material Missing, Edge Missing, Flash, Crack, Debonding, Deformation, Smudge, etc.
3. 5-Camera vision machine for measurement and inspection.
2. Detect Bulge, Material Missing, Edge Missing, Flash, Crack, Debonding, Deformation, Smudge, etc.
3. 5-Camera vision machine for measurement and inspection.
Detectable Parts | Sealing Gasket for Car Water Tank |
Inspection Speed | < 1000 pcs/min |
Feeding System | Vibratory Bowl Feeder & Conveyor Belt |
Camera Resolution | 1.3 MP ~ 25 MP |
Algorithm | Special-designed Algorithm |
Dimensional Measurement | Critical Dimensions |
Visual Defects Inspection | Bulge, Material Missing, Edge Missing, Flash, Crack, Debonding, Deformation, Smudge |
Compatibility | Plastic & Rubber Sealing Gasket |

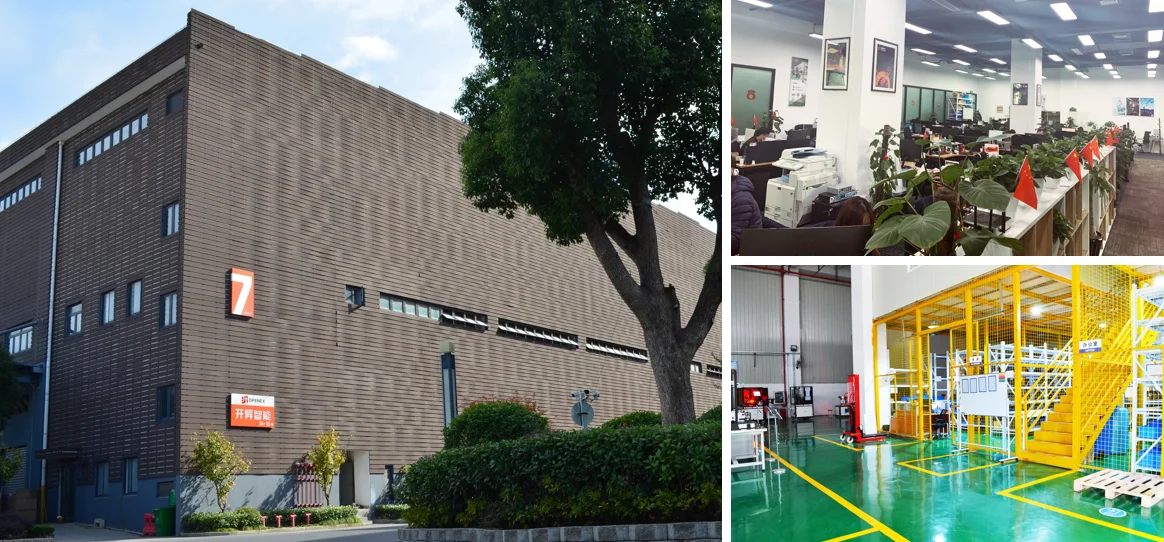

Who Are We?
Providing You with
Stable, Efficient and Accurate Testing Services
Stable, Efficient and Accurate Testing Services
Openex Intelligent Technology (Shanghai) Co., Ltd. is a high-tech enterprise under Openex Group, which develops and produces inspection machine, robots, precision optical devices and intelligent assembly lines.
Over the years, OPENEX based on the basis of optical inspection, developed a series of part sorting machines. It includes glass disc series, slot disc series, linear series, magnetic conveyor, pinhole insertion type, electrical performance test, etc., can meet various industry needs for surface defects detection, size measurement, pattern recognition, fixed function and many other testing requirements.
OPENEX inspection machine has reached a maximum speed of 1000 parts/min, with 100% inspection accuracy, zero misjudgment and accuracy up to 0.01mm.
Products Description
Specification | ||||
Machine Dimension | L1200*W1200*H2000 mm | |||
Net weight | 500-600 kg | |||
Power Supply | Single Phase 220V10A，50Hz | |||
Air Supply | Air Pressure 0.4~0.7Mpa | |||
Inspection Range | Nuts | Diameter up to 60mm Length up to 50mm | ||
Screws Bolts | Diameter up to 40mm Length up to 100mm | |||
O ring Washer | Diameter up to 60mm Length up to 10mm | |||
Magnetic products Irregular parts | Diameter up to 60mm Length up to 50mm | |||
Accuracy | ±0.01mm | 0.001mm—0.01mm | ||
Speed | 500—1000 pcs/min | |||
Configuration | Standard models come with 1-8 cameras Based on specific requirement to increase or decrease stations. | |||
Hardware | The hardware is selected from international famous brands, such as Basler, Computar, Omron, KEYENCE, Siemens and Advantech, OPENEX independently developed cameras, optical systems. | |||
Software | OPENEX independently developed software. | |||
Feature | OPENEX adopts high-resolution CCD industrial lens, combined with OPENEX's self-developed 360° system and accurate image recognition software. They can achieve the most inspection requirements with the least number of cameras, saving cost for customers. | |||

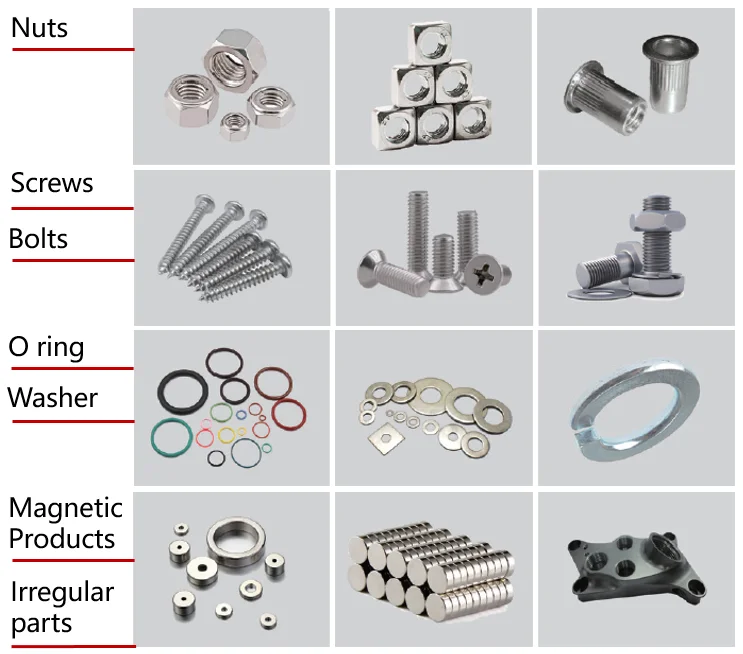

The Glass Discs Series
The glass discs series is generally suitable for products that can stand on the glass surface steadily.
*Nuts
*Screws
*Bolts
*O ring
*Washer
*Magnetic products
* Irregular part

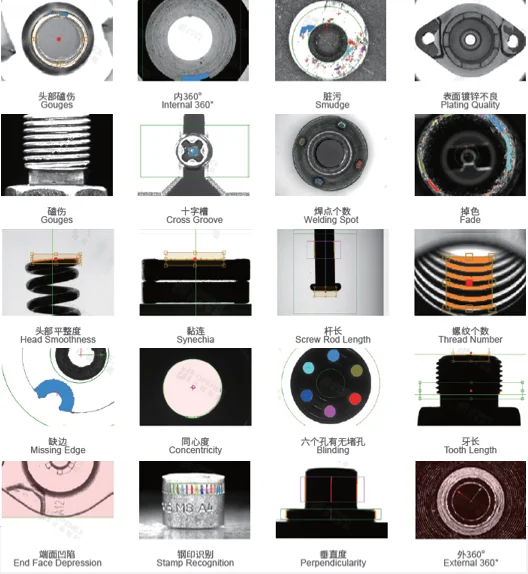

Display of Some Test Items
The inspection items of some equipment have reached up to 400.
*Diagonally Opposite Side
*Each Level Height
*Inner/outer Diameter
*Welding Spot Area
*Crack
*Concentricity
*Roundness
*Label
*Thread Diameters
*Gouges
*Concentricity
*Straightness
*Deformation
*Opening Size
*Smudge
*Spot *Flatness

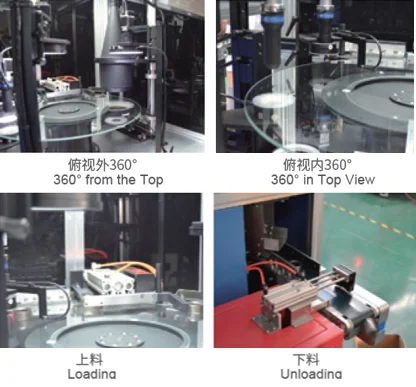

Partial Display of Equipment
*360° from the Top
*360° in Top View
*Loading
*Unloading

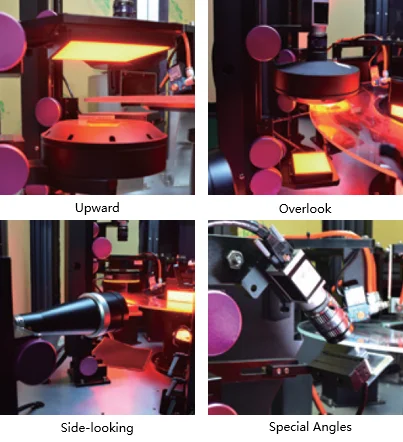

Partial Station Display
*Upward
*Overlook
*Side-looking
*Special Angles
FAQ
Do you have any certificates?
We have CE and ISO9001 certificates. We are a certified high-tech enterprise with many experienced engineers.
How long is your guarantee?
Our guarantee is 1 year. One machine consists of components such as PLC, servo motors, moter drivers, sensors, cameras, lenses, light sources, etc. All these components are made of famous brands, such as Siemens, Omron, Mitsubishi, Keyence, Basler, and so on. So, our machines are reliable and our quality is guaranteed.
What is the lead time?
The lead time (L/T) depends on the inspection requirements. If the parts are simple and there's only a few items should be inspected, the L/T will be shorter; but if the structure is complicated and many parameters to be checked, the lead time will be longer. For common type bolts, nuts, screws, rivets, pins, washers, fittings, bearings, etc., the L/T is about 30 working days.
What is the accuracy?
The accuracy we can achieve is 0.01mm, or even higher. With high resolution industrial cameras range from 1.3MP to 25MP, and self-developed softwares, we can inspect very tiny flaws, such as the thread gouge, flange crack, etc.
What is the inspection speed?
The maximum speed we can achieve is 1200pcs/min. The speed largely depends on the size and structure of the parts to be inspected. Usually, the smaller the size, the higher the speed; the more complicated the structure, the lower the speed.
How can the machines save manufacturing cost?
One case is that one machine we developed for the customer saved 5 to 6 operators. The labour cost of these operators in one year is about 2 times of the machine's price.
How can you make correct judgement?
Our machines make judgement according to user defined accept/reject criteria, and the judgement is objective and consistent. With AI deep learning algorithm, we can achieve zero misjudgement.
Can the machine work properly in our country?
The answer is almost always "Yes". The machines accept power supply range from 100V~220V, with 50/60Hz, and the plug can be modified to meet the electrical standard in your country. So our machines can work properly in nearly all the countries worldwide.
How can you help me for installation and maintainence?
We can provide the AR glasses with self-developed software. Once the operator put on the AR glasses, the remote expert can have real-time on-site scene. With two hands free, the operator can take tasks according to the suggestion of remote experts.
