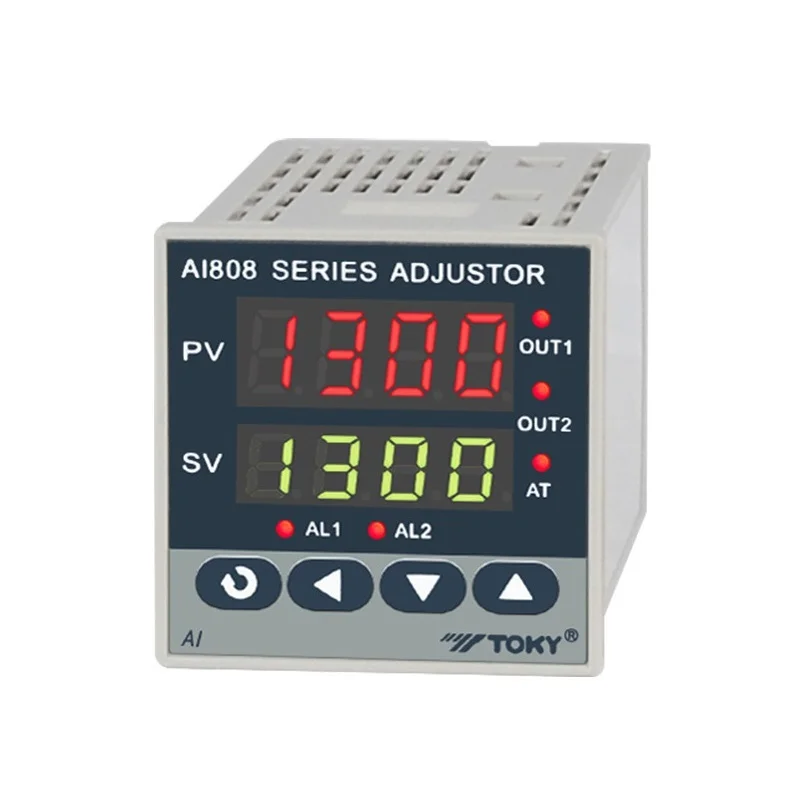

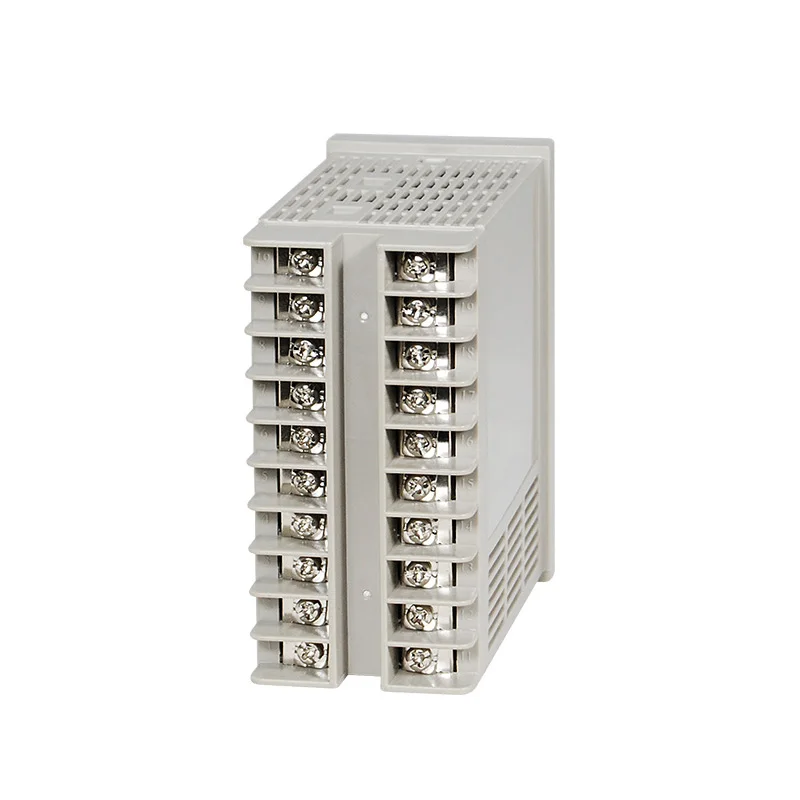

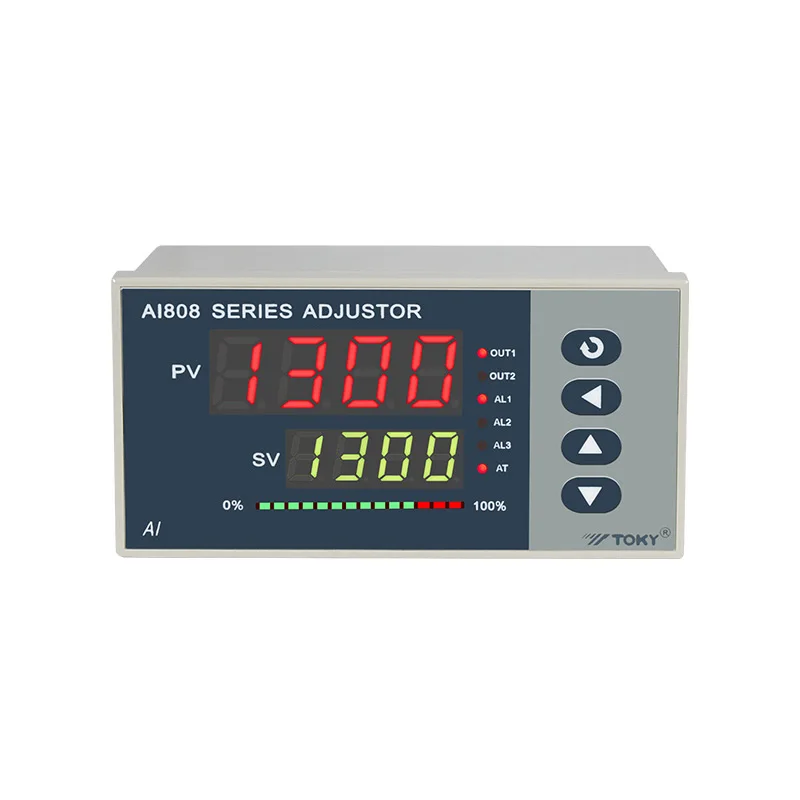

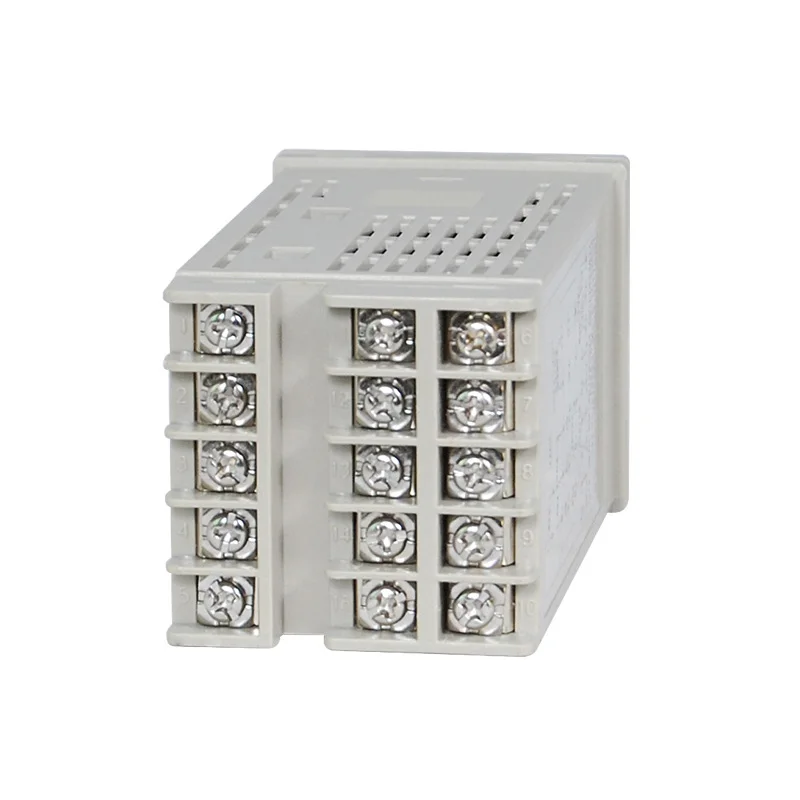

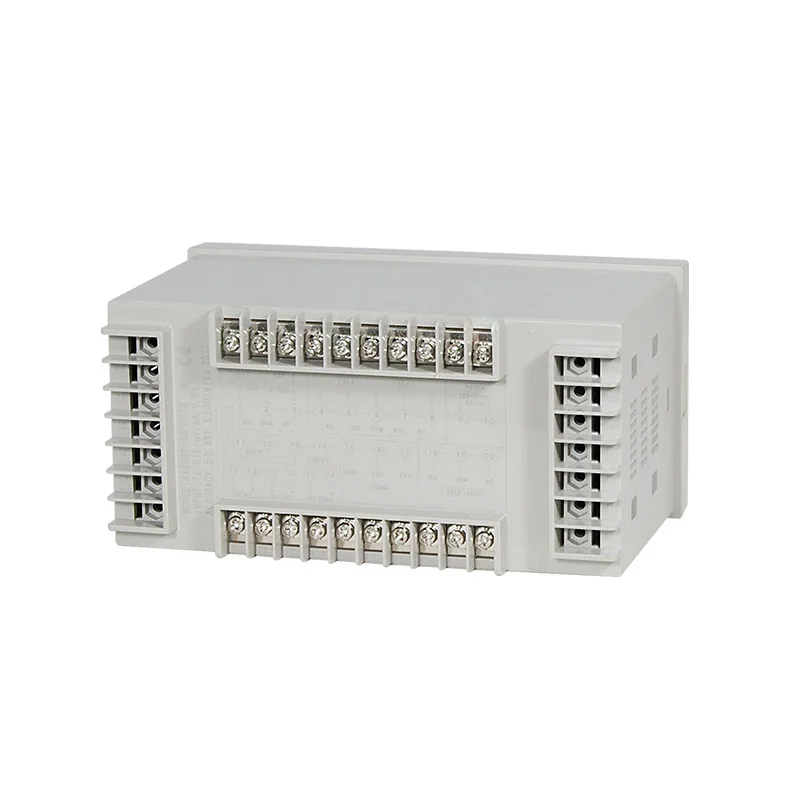

Programmable Digital Thermostat Intelligent Temperature Controller For Incubator
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600693118201):
Product Overview
Description
Products Description
Programmable Digital Thermostat Intelligent Temperature Controller For Incubator
Model | Alarm output | Control output | Input type | Communication | Code |
AI808P-SC10 | 2 loop alarm (It can add 1 loop alarm if without cooling control) | SSR output | K,J,E,T,R,S,B,N CU50,CU100,PT100 0-10,4-20mA 0-50mV,0-400Ω | No | B02330AI02 |
AI808P-RC10 | Relay output | No | B02330AI02 | ||
AI808P-DC10 | Current output | No | B02450AI02 | ||
AI808P-SC18 | SSR output | R485 | B02580AI02 | ||
AI808P-RC18 | Relay output | R485 | B02580AI02 | ||
AI808P-DC18 | Current output | R485 | B02700AI02 |
Display | Digits | 4 digits |
Max | Refer input signal table | |
Input signal | Input type | TC/RTD universal input Stanard analog signal input Refer input signal specification table |
Accuracy | 0.3%FS±3digits | |
Resolution | Display± 0.1℃ | |
Sample rate | 3 time/second | |
Analog output | Output points | 1 loop |
Type | 4~20mA | |
Range & Load | Load resistance 600Ωmax | |
Output accuracy | 0.5%FS | |
Resolution | 0.01mA 12 digits | |
Voltage output | Voltage supply | DC 24V |
Capacity | 30mA max | |
Relay output | Load | 3A/250V AC |
Electrical life | 10W times | |
Mechanical life | 100W times | |
Communication | Communication protocol | RS-485 ModBUS-RTU |
Baud | 4800bps,9600bps | |
IP range | 1-247 | |
Communication delay | No | |
Power supply | Voltage | 100~240V AC/DC 50/60Hz |
Power consumption | ≤5W | |
Protection level | Panel | IP64 |
Body | - | |
Environment | Working environment | 0~50℃ <85%RH |
Storage enviroment | -10~60℃ <85%RH | |
Structure | Vibrate,pile | 10~55Hz X\\Y\\Z 0.75mm |
Screw torque | 0.74n.m~0.9n.m | |
Safe | Dielectric strength | 2000V AC 50/60Hz 1 minute |
Insulation Impedance | 100MΩ DC 500V | |
EMC | ESD | 3X level |
Pulse train anti-interference | 4 level Each mode ±4000Vp-p | |
Lightning surge | 3 level N-L ±2000V | |
Frequency drop | 3 level | |
Frequency drop | 3 level |
