PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by
PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by
PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by
PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by
PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by

PIR Motion Sensor LoRaWAN /BLE for environment monitoring with hall sensor detect environment near by

Share on (1600693203545):


Price:$35.00 - $48.00

Quantity:


Product Overview

Description



Product Description




Description

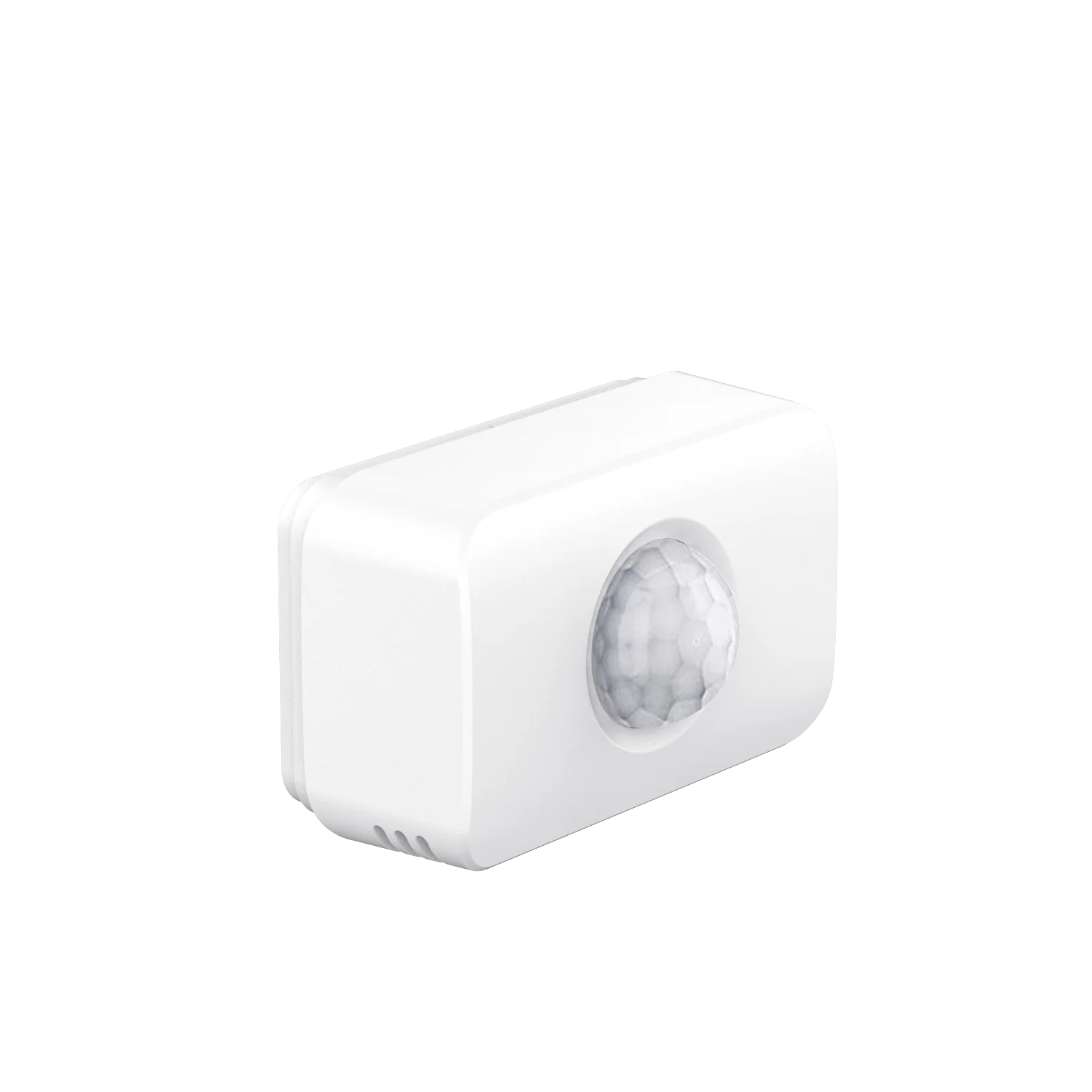

The LW007-PIR is a passive infrared-based LoRaWAN PIR sensor used to detect motion or occupancy. It can detect whether there is movement within the detection range and send this status change via LoRaWAN network.

In addition, it also supports door/window status detection and environment temperature and humidity monitoring functions, making it can be widely used in office, housing, industrial building and other scenarios.


Features


> Occupancy or motion detection based on passive infrared and Fresnel Lens
> Long detection range(Max. 8m) and wide detection angle(Horizontal 120°, vertical 60°)
> Door status detection
> High sensitive temperature & humidity Sensor with exterior ventilation holes design
> Multiple temperature and humidity monitoring alarm functions for dealing with abnormal situations timely
> Ultra low power consumption with 5200mAH lithium sub-battery,which can stand up to five years
> CE and FCC certification are pending


Applications

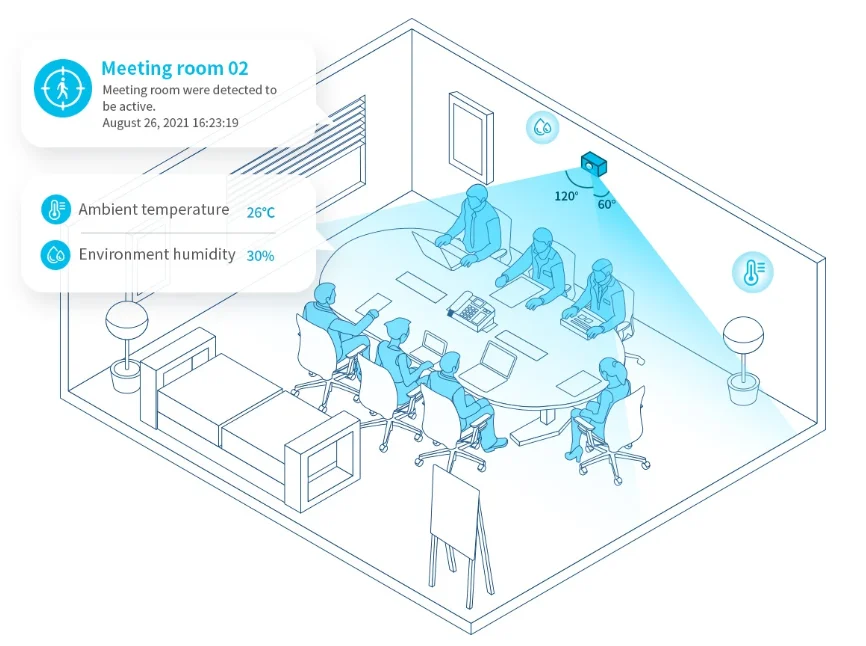

Scenario 1: Smart Office
Through the LW007-PIR, user can detect the occupancy of a conference room or other purpose
built space, so that space resources can be arranged in a rational manner. At the same time, the
LW007-PIR can also be used to monitor the current ambient temperature and humidity.

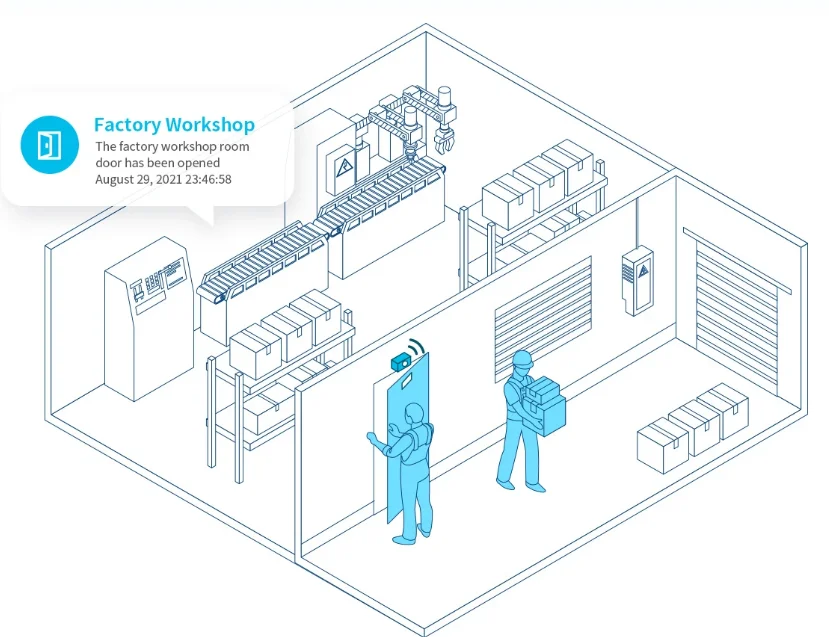

Scenario 2: Intelligent Factory
Users can use the LW007-PIR to detect whether someone is on inspection or duty at the corresponding location at the corresponding time to ensure the safety of assets and equipment and production. The device will report the notification to the server, according to which the user can judge the duty situation and the inspection situation and make the corresponding.
management scheduling.

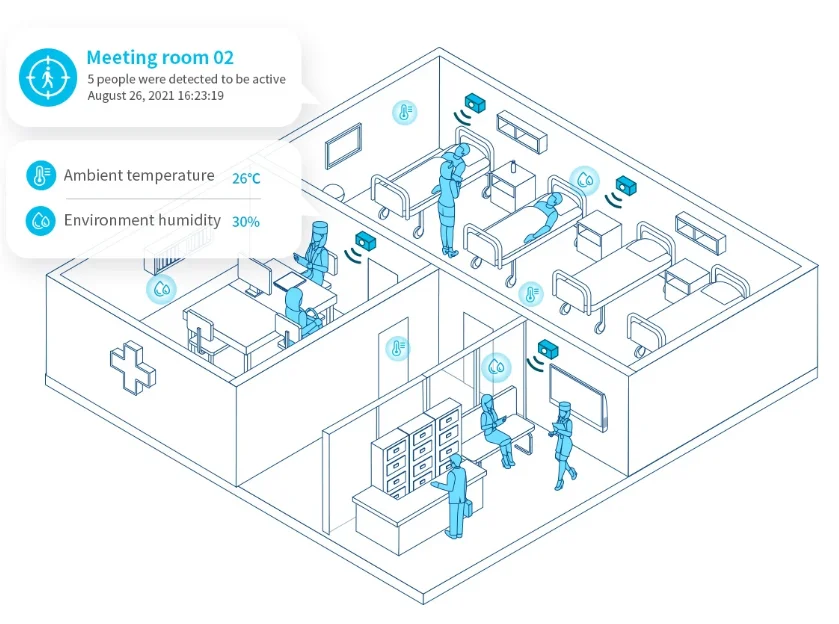

Scenario 3: Environmental Monitoring
LW007-PIR can realize temperature and humidity monitoring of the environment, and when the temperature (humidity) changes too fast or the temperature (humidity) exceeds the set threshold, alarm information will be issued to realize intelligent monitoring of the environment. It can be mainly applied to computer room/library storage room/document room/hospital ward and other
scenarios.

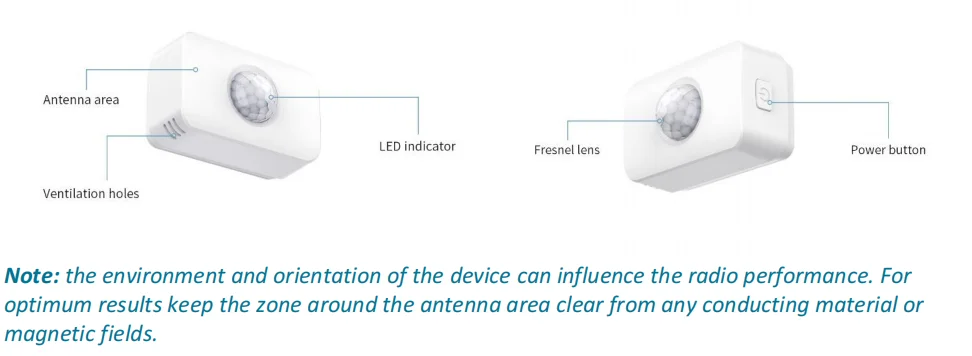

Hardware Interfaces and Indicator

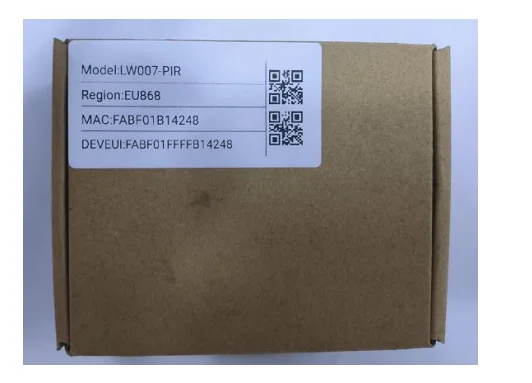

Package Information






Company Profile





MOKO SMART is a professional manufacturer dedicated to the research, development and manufacturing of IoT smart devices. We offer a range of programs for our potential partners which include electronic engineering, firmware customized, wholesale program, white-label solution, certificating, EMS(Electronics Manufacturing Service) and
ODM program. Basically, we can offer mature products for you to directly sell, and additionally provide you with a custom-made service to meet your requirement.

Currently, our company has over 400+ employees, of which over 90 engineers concentrate on IoT technology and solution research including Bluetooth Low Energy, Lora WAN, Wi-Fi, NB-IoT, Cat-M1, RFID, GPS and other wireless solutions. We have built sophisticated production lines for Bluetooth beacon, Wi-Fi smart plug, IoT gateway, LoRa WAN devices, Cellular tracker, those all are equipped with advanced manufacturing technology to ensure high quality.


Regarding OEM part, We have got the ISO9001:2015, ROHS certifications, and UL listed (File Number: E501497 & E499341). We can offer all kinds of services including PCB manufacturing and PCB assembly, sample orders and batch orders. For PCB assembly, utilizing 5 high-speed SMT PCBA lines from Yamaha and Sony, to meet our customers' need. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(38.00%),Western Europe(18.00%),Domestic Market(15.00%),South America(7.00%),Eastern Europe(6.00%),South Asia(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),Oceania(2.00%),Eastern Asia(1.00%),Central America(1.00%),Africa(1.00%),Mid East(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Smart Socket, Bluetooth Beacon, Ble/Wifi Gateway, NB/Lora Tracker, etc

4. why should you buy from us not from other suppliers?
We have 90+ engineers who are specializing in smart products design,including software,hardware,enclosure,app designer.And,we have our own factory to produce,offering pcb fabrication,components sourcing,pcb assembly,pcba testing and enclosure assembly.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
