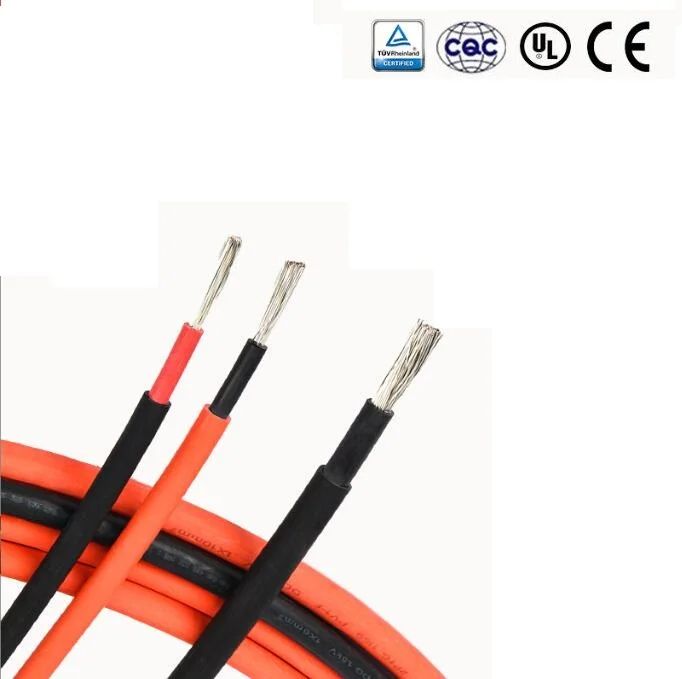

Pv Cable Black Red 4mm2 1000v 1500v Tinned Copper Wire Pv Solar Cable For Solar Power Station Good Quality From China
- Category: >>>
- Supplier: Nct Lighting Technology (sz) Co. Ltd.
Share on (1600693334839):
Product Overview
Description
Product Description
China Supplier Quick Coupler Electric 4mm2 Pv Cable Connector Solar PanelChina Supplier Quick Coupler Electric 4mm2 Pv Cable Connector Solar Panel
Product Name: Solar Photovoltaic Cable Cross-sectional area 1.5mm2~35mm2 Conductor
material: stranded tinned copper wire
Sheath layer material: lrradiation cross-linked low-smoke halogen-free flame retardant environmentally friendly polyolefin
lnsulation layer material: Irradiation cross-linkedlow-smoke halogen-free flame retardant
environmentally friendly polyolefin
Rated voltage: ACO.6/1.OKV DC 1.0KV
Sheath layer material: lrradiation cross-linked low-smoke halogen-free flame retardant environmentally friendly polyolefin
lnsulation layer material: Irradiation cross-linkedlow-smoke halogen-free flame retardant
environmentally friendly polyolefin
Rated voltage: ACO.6/1.OKV DC 1.0KV
Rated temperature -40°℃~+125°C

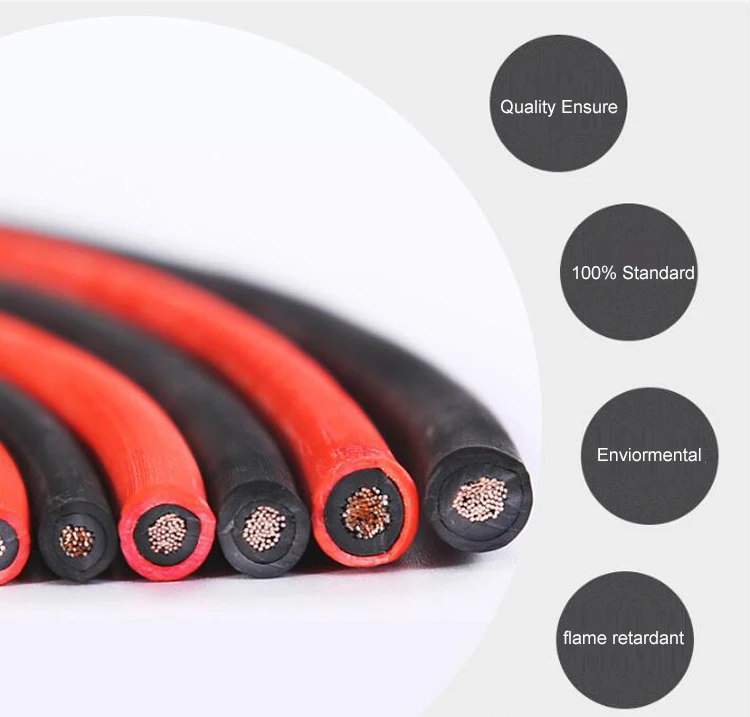

Item | Solar Cable |

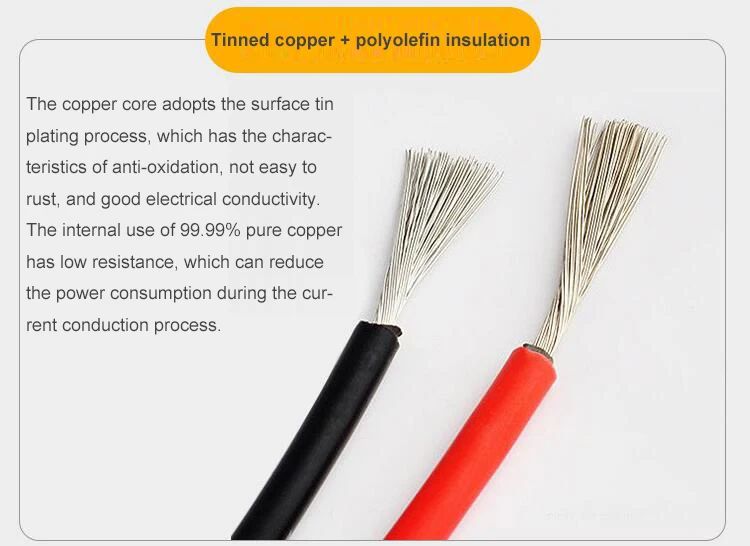

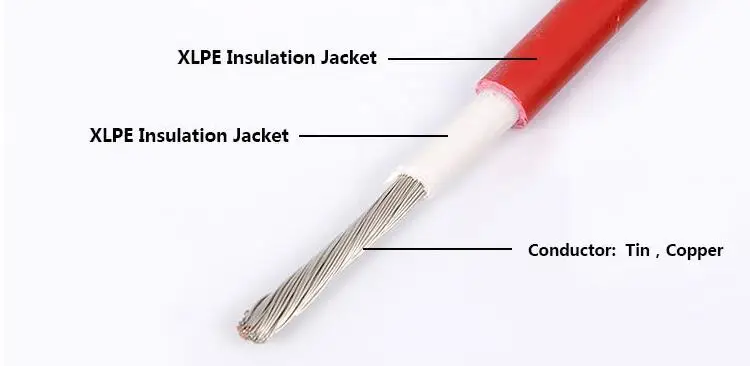

Construction | Tinned copper + polyolefin insulation |
Test voltage | 6500V 5min. |
Rated voltage | 1000/1800V DC |
Tenperature rating | -40°C to 125°C,cold resistance. |
Smallest Permissible Bending Radius | 5XD |

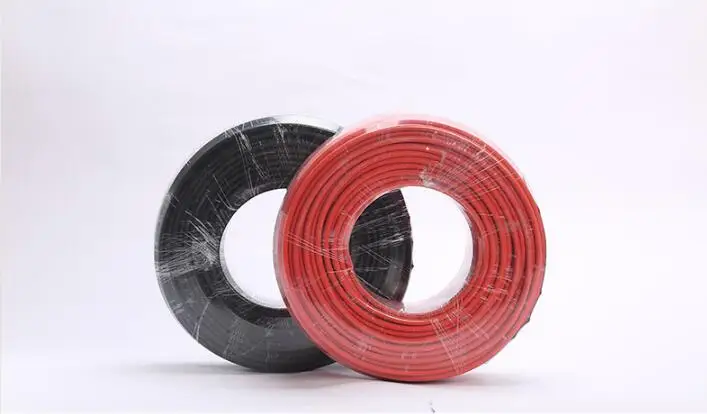

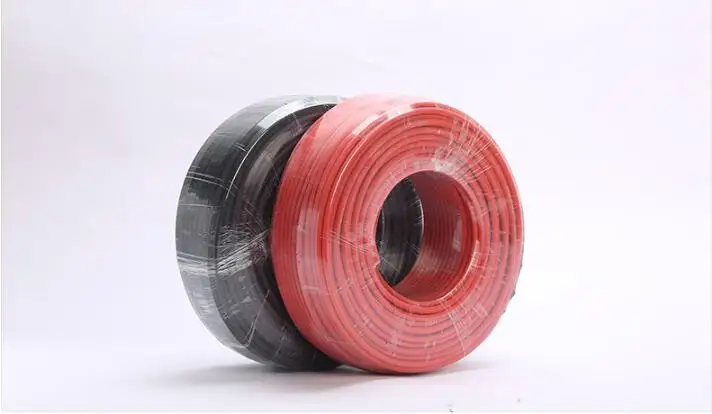

Colours | Black/red |
Specification
item | value |

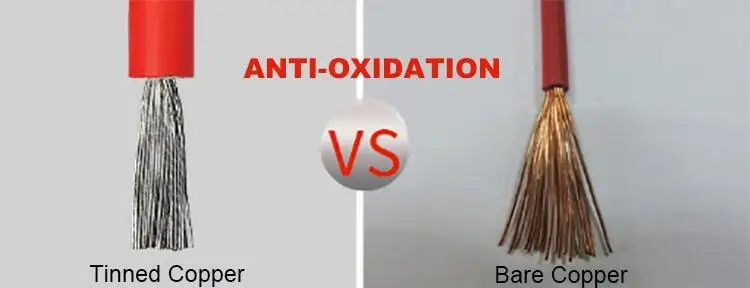

99.9% High-purity Oxygen-free Copper | High quality tin-plated copper, high purity, anti-aging, high Electrical conductivity, low loss, strong current carrying capacity, High corrosion resistance, and can adapt to the outdoor harsh Environment. |

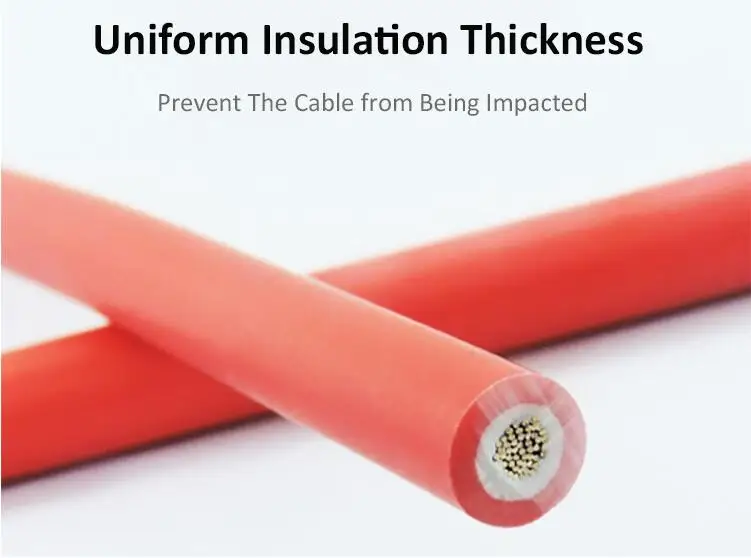

Low Eccentricity | Thickness uniformity, effectively prevent the current breakdown Fire, to ensure safety. |

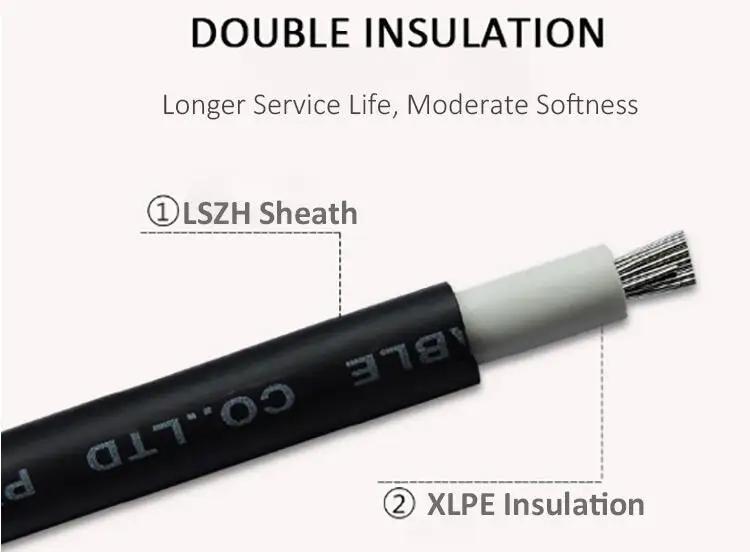

Double Protection | The solar photovoltaic cable adopts insulation and Jacket double Protection structure to extend the service life of the cable |
High-performance Polymer Materials | Insulating and jacket all use environmentally friendly low-smoke Halogen-free flame-retardant cross-linked polyolefin materials, With wear-resistant, high temperature, oil, ozone, UV, high flame Retardant properties. |
Strong Flexibility | Cable has a pressure, bending, strong toughness. |
Long Service Life | Normal outdoor use, service life> 25 years |

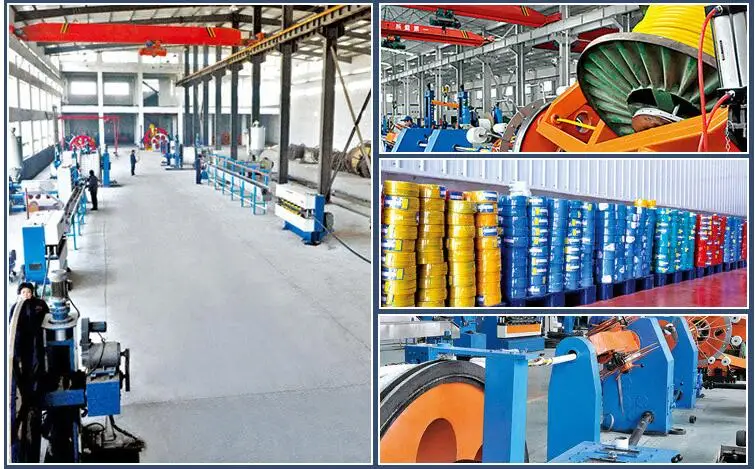

Advanced Equipment | The company has advanced foreign production, scientific research Equipment, passed the ISO9001-2015 quality management System certification. |
NO. OF CORES ×NOMINAL CROSS SECTION | NO. OF STRANDING | NOMINAL CONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | NOMINAL OVERALL DIAMATER | NOMINAL WEIGHT |
NO. ×MM² | MM | MM | MM | MM | MM | |
1×1.5 | 30/0.25 | 1.58 | 1.14 | 0.82 | 5.4 | 52 |
1×2.5 | 50/0.25 | 2.04 | 1.14 | 0.82 | 5.8 | 67 |
1×4.0 | 56/0.30 | 2.59 | 1.14 | 0.82 | 6.4 | 87 |
1×6.0 | 84/0.30 | 3.17 | 1.14 | 0.82 | 7.0 | 113 |
1×10 | 78/0.40 | 4.07 | 1.52 | 0.82 | 8.6 | 178 |
1×16 | 128/0.40 | 5.22 | 1.52 | 0.82 | 9.8 | 254 |
1×25 | 199/0.40 | 6.51 | 1.52 | 0.82 | 11.1 | 363 |
1×35 | 279/0.40 | 7.71 | 1.52 | 0.82 | 12.3 | 473 |

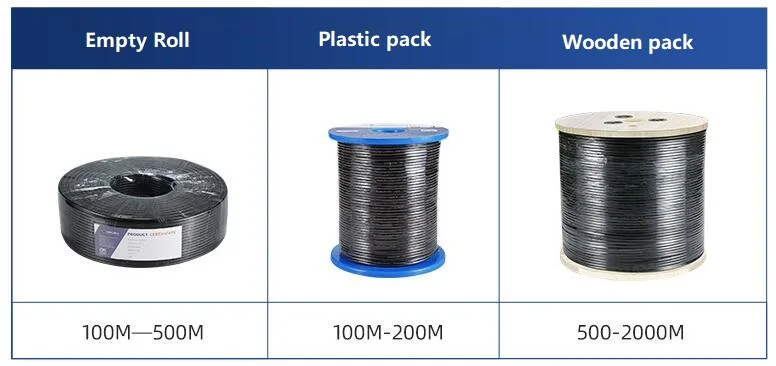

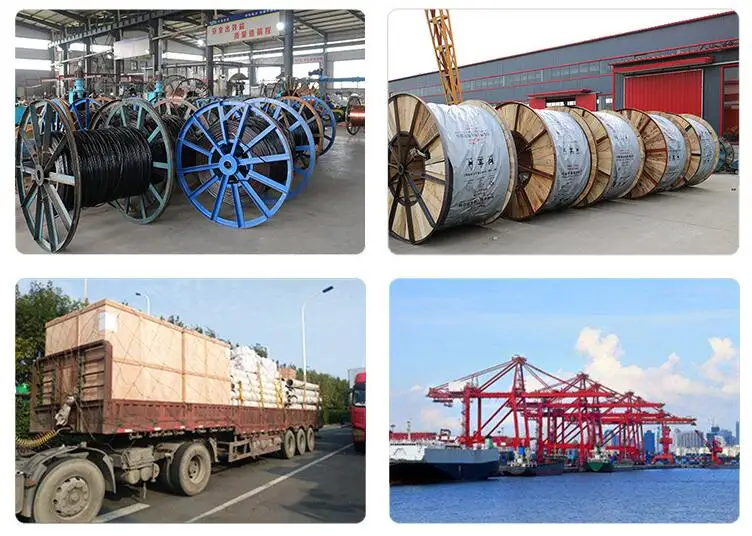

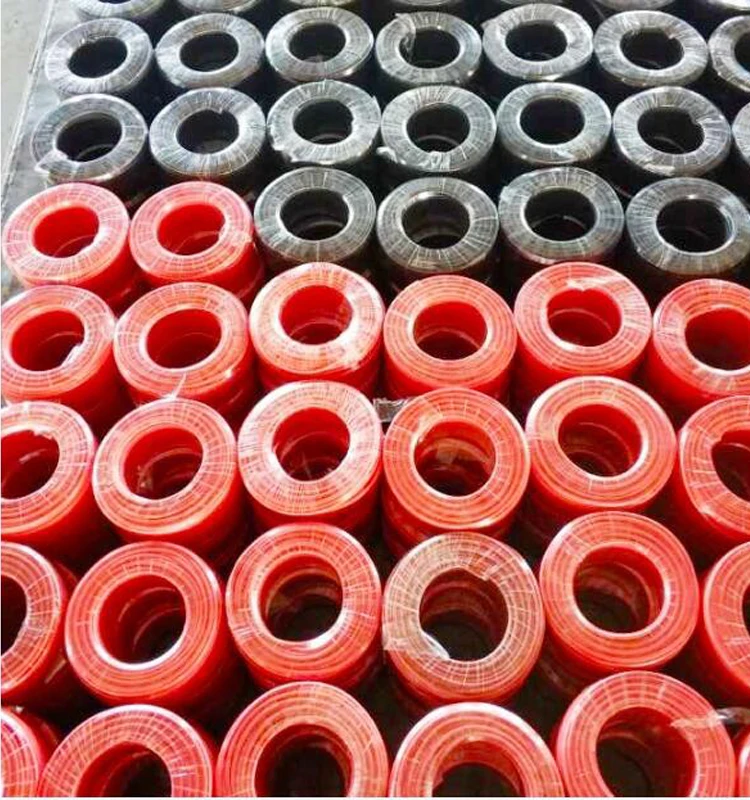

Packing & Delivery
FAQ
When can I get the quotation?
Within 24 hours of getting the inquiry,if you are very urgent to get the price,please call us to give complete specifications
about the cable.price will be calculated soon.
How long about the delivery?
Usually within 3-7 working days after payment,mainly according to the quantity.
What's your payment terms?
We accept T/T,L/C(bank transfer)
Do you accept the customized order?
Yes,we do.
Do you offer OEM&ODM?
Yes.OEM&ODM are available
Within 24 hours of getting the inquiry,if you are very urgent to get the price,please call us to give complete specifications
about the cable.price will be calculated soon.
How long about the delivery?
Usually within 3-7 working days after payment,mainly according to the quantity.
What's your payment terms?
We accept T/T,L/C(bank transfer)
Do you accept the customized order?
Yes,we do.
Do you offer OEM&ODM?
Yes.OEM&ODM are available
