Product Overview
Description
Products Description

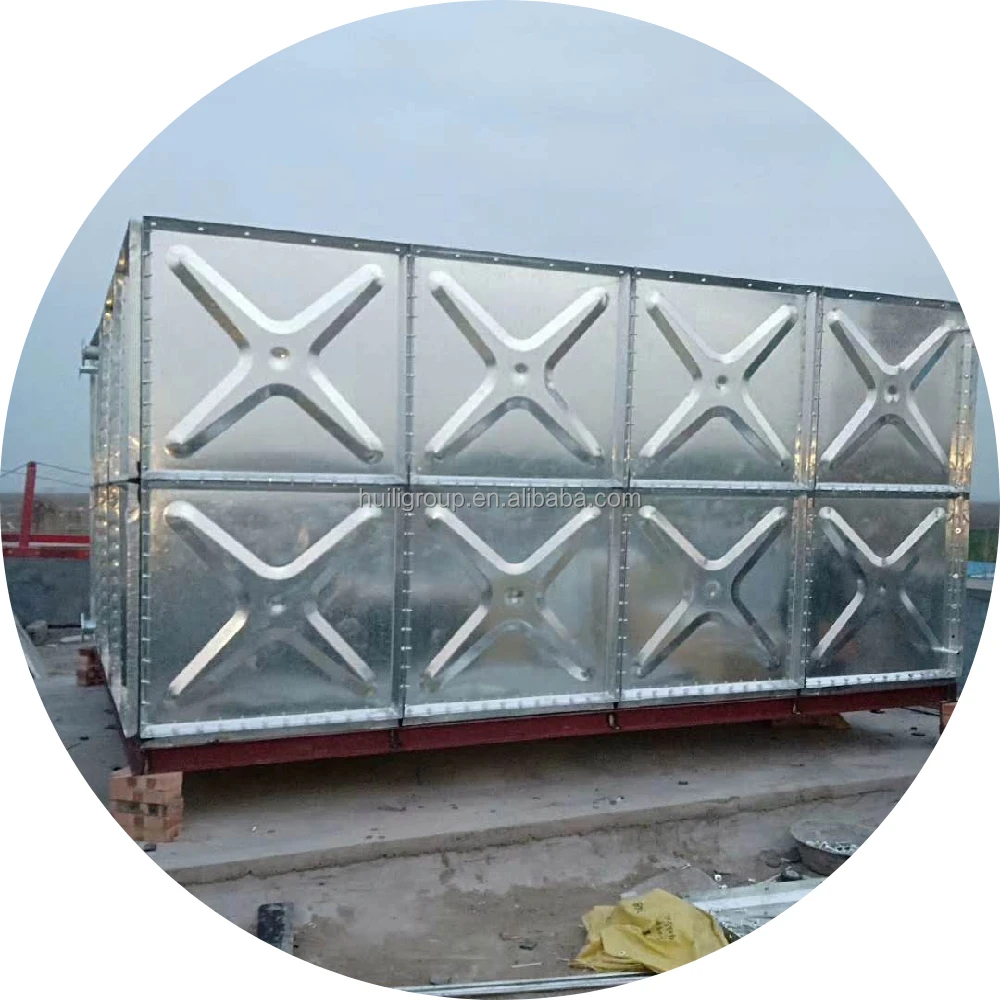

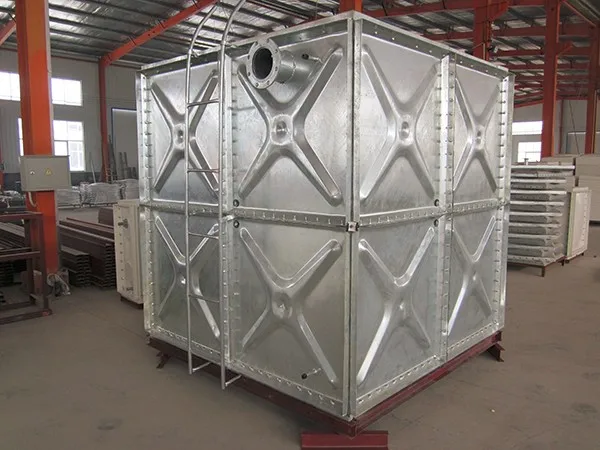

Bolted Water Tank
Stainless steel grades, such as the 316 or 304 types which are generally suitable for storing both cold and heat drinking waters. There are two connection ways including bolt-connection and welding connection. For welding one, it is connected through argon welding way and it is more fast to installation completion. Both two types stainless steel water tank could meet the high precise science and technology water storing or somewhere with strict water quality demands. In addition,stainless steel welding water tank is afraid of high chloride concentration water. Welding point will reduce the nickle content and lose the ability to prevent corrosion from high chloride water.
Our Advantages
ANTI-CORROSION
The raw material adopt pure stainless steel 304 or 316; it has excellent corrosion resistance.
POTABILITY
The stainless steel material can be implanted into the human body, it is very best healthy material for us.
RELIABLE QUALITY
Our raw material are all international famous brand. Tank life-span can be over 1/4 century.
CONVENIENT INSTALLATION

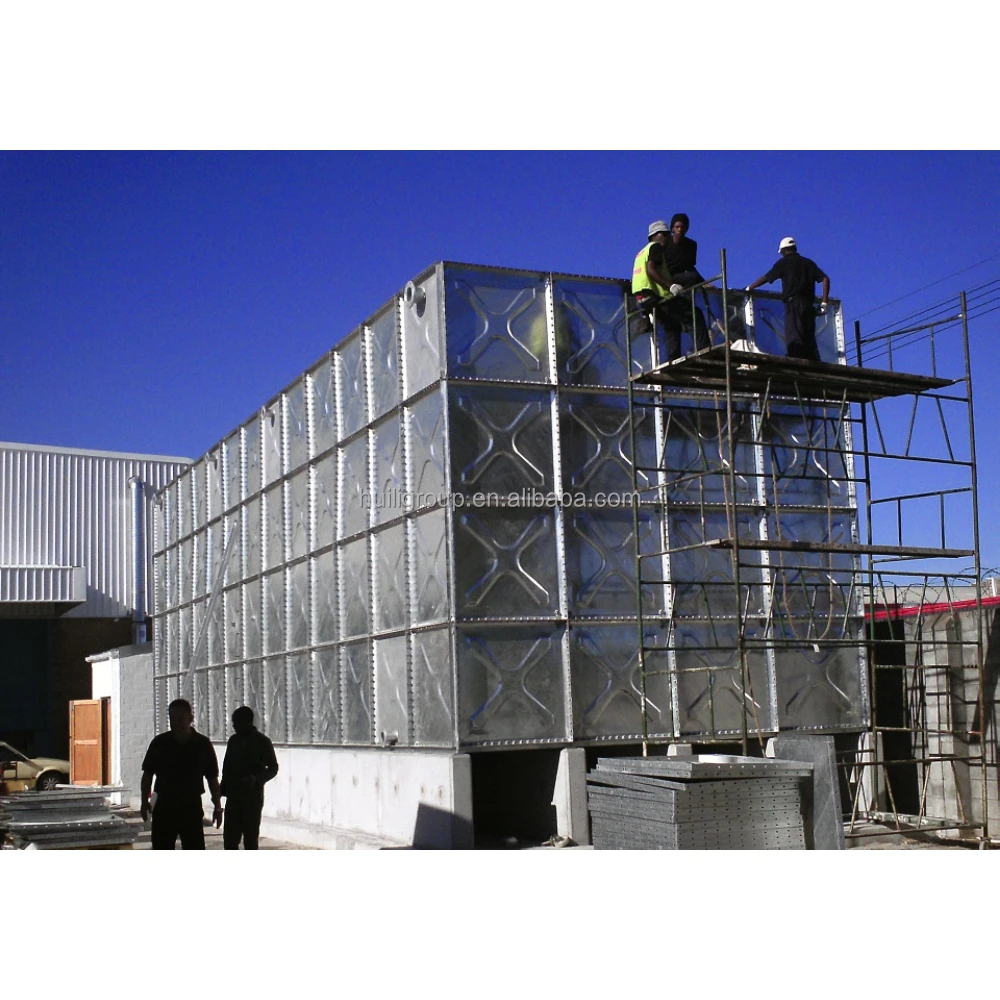

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.
SAVE SPACE
For argon arc welding type, all the welding process are handle from inside the tank, so there’s no need left space around of tank.

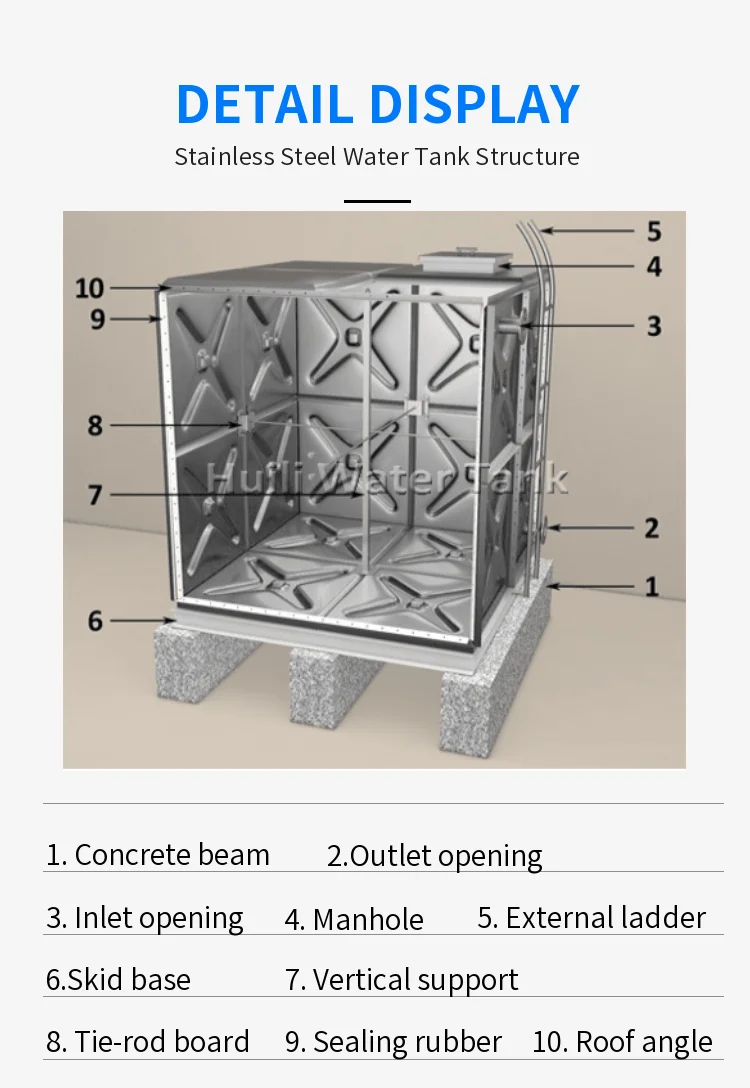

Details Images
ACCESSORY NAME | OPTIONAL MATERIAL | ||||
Bolts & Nuts | Hot Dipped Galvanized | Stainless Steel 304/316 | |||
Skid Base | Hot Dipped Galvanized | Painting | |||
Internal Structure | Hot Dipped Galvanized | Stainless Steel 304/316 | |||
Water Indicator | Glass with Brass Valve | Float Type | |||
Sealing Rubber | Food Grade White Color EPDM | Silicon | |||
Flanges | Hot Dipped Galvanized | Stainless Steel 304/316 | PVC | ||
PHYSICAL PROPERTIES | STANDARD REQUIREMENT | RESULT |
Tensile Strength | ≥515 MPa | 695 MPa |
Yield Strength | ≥205 MPa | 309 MPa |
Elongation | ≥40% | 54% |
Hardness | ≤92HRBS | 85HRBS |
TANK HEIGHT (mm) | THICKNESS OF EACH PANEL | ||||||||||||
Bottom | 1st layer | 2nd layer | 3rd layer | 4th layer | 5th layer | Roof | |||||||
1000 | 3mm | 2.5mm | / | / | / | / | 2mm | ||||||
1500 | 3mm | 2.5mm | 2.5mm | / | / | / | |||||||
2000 | 3mm | 3mm | 2.5mm | / | / | / | |||||||
2500 | 3mm | 3mm | 3mm | 2.5mm | / | / | |||||||
3000 | 3mm | 3mm | 3mm | 2.5mm | / | / | |||||||
3500 | 4mm | 4mm | 3mm | 2.5mm | 2.5mm | / | |||||||
4000 | 4mm | 4mm | 3mm | 3mm | 2.5mm | / | |||||||
4500 | 5mm | 4mm | 3mm | 3mm | 2.5mm | 2.5mm | |||||||
5000 | 5mm | 4mm | 3mm | 3mm | 2.5mm | 2.5mm | |||||||
Company Profile
Why Choose Us
Product packaging
FAQ
Q: Do you provide installation guidance?
A: Yes, we can provide installation guide: installation video or installation assistance on site by our engineers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is the warranty time for your products?
A: The warranty time of our products is 12 months, which guarantees a good after-sale service. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts will be replaced for free if the problems are caused by quality fault.
Q: Do you arrange shipment for water tanks?
A: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. also we do DAP and DDP shipment terms. For EXW price, clients need to arrange shipment by themselves or their agents.
