Ведущая промышленность Китай Оптовая Продажа умный измеритель мощности
- Category: Energy Meters >>>
- Supplier: Shenzhen,Jsy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification

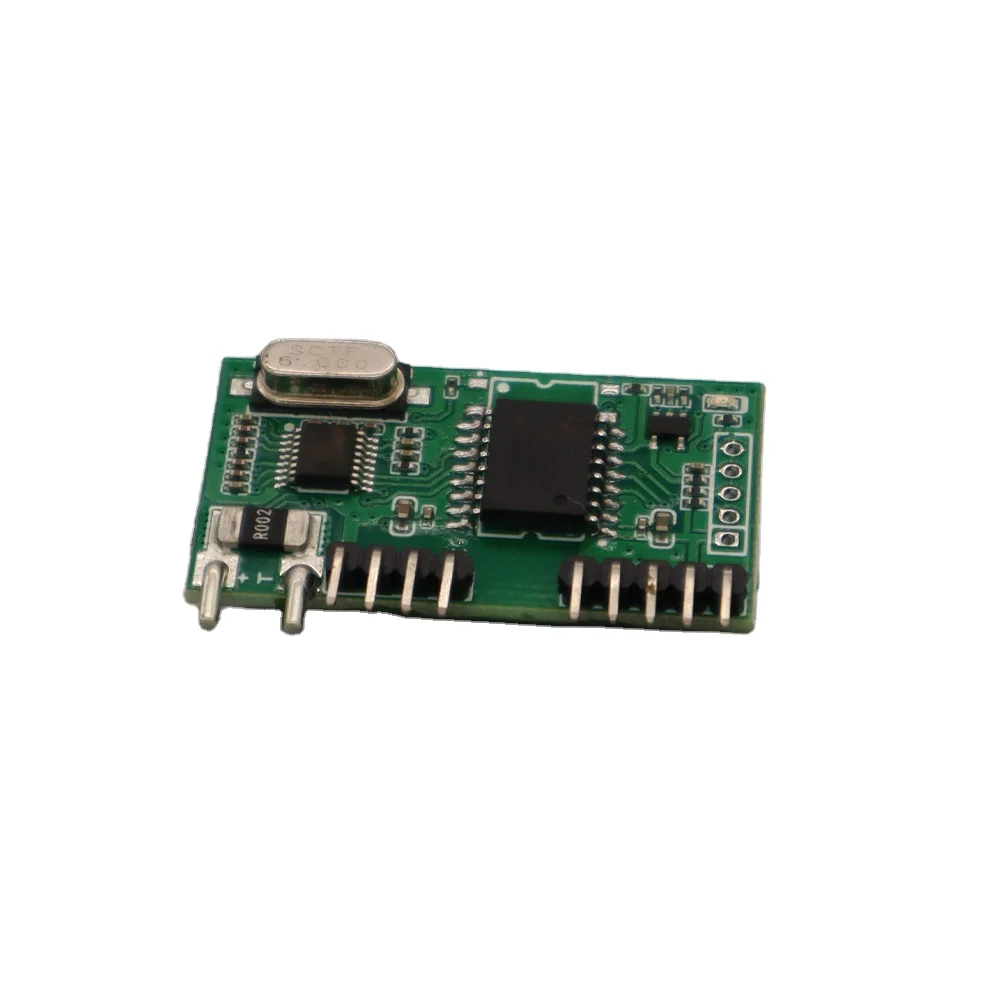

Project | JSY-MK-1031 AC and DC power metering module | ||
Measurement | Voltage measurement range | 0-264V | |
Current measurement range | 100uA-750mA (small current customization); 10mA-20A (conventional) | ||
Measure | Data output | Multiple electrical parameters such as voltage, current, power, power factor, frequency, power, etc. | |
Digital signal | Signal processing | Using dedicated metering chip, 24-bit AD sampling | |

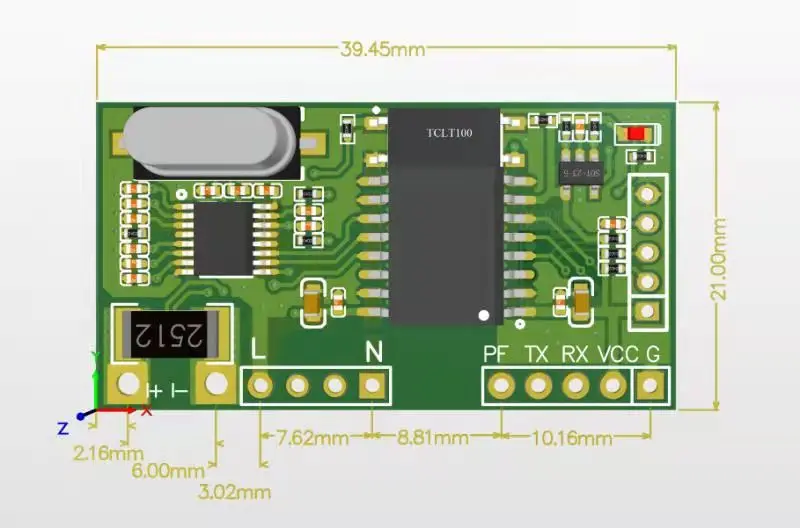

Module | size | 39.5*21.0*8.0mm | |
power supply | DC 5V power supply, power consumption 10mA. | ||
Installation method | Pin welding | ||
Communication | Interface and communication protocol | TTL communication interface, MODBUS-RTU communication protocol | |
Data Format | "N,8,1", "e,8,1", "o,8,1", "n,8,2" | ||
Baud rate | Can be set to 1200, 2400, 4800, 9600bps; the baud rate defaults to 9600bps | ||
environment | Operating temperature | -20~+70℃ | |
storage temperature | -40~+85℃ | ||
Relative humidity | 5~95%, no condensation (under 40℃) | ||
altitude | 0-3000 meters | ||
FAQ
A. On time delivery:
We will execute your order into our carefully organized production plan to ensure that you deliver on time.
Production report before packing your order.
Shipment notifications and photos will be sent to you as soon as your order is shipped.
B. After-sales service:
We attach great importance to your feedback upon receipt of the goods.
We offer a 12-month warranty upon arrival of the goods.
We promise to use all parts for life.
We will actively respond to your complaint within 48 hours.
C. Professional Sales:
We value every inquiry sent to us to ensure a fast and competitive quotation.
We cooperate with our clients in bidding.Provide all necessary files.
We are a sales team with all the technical support of an engineer team.
