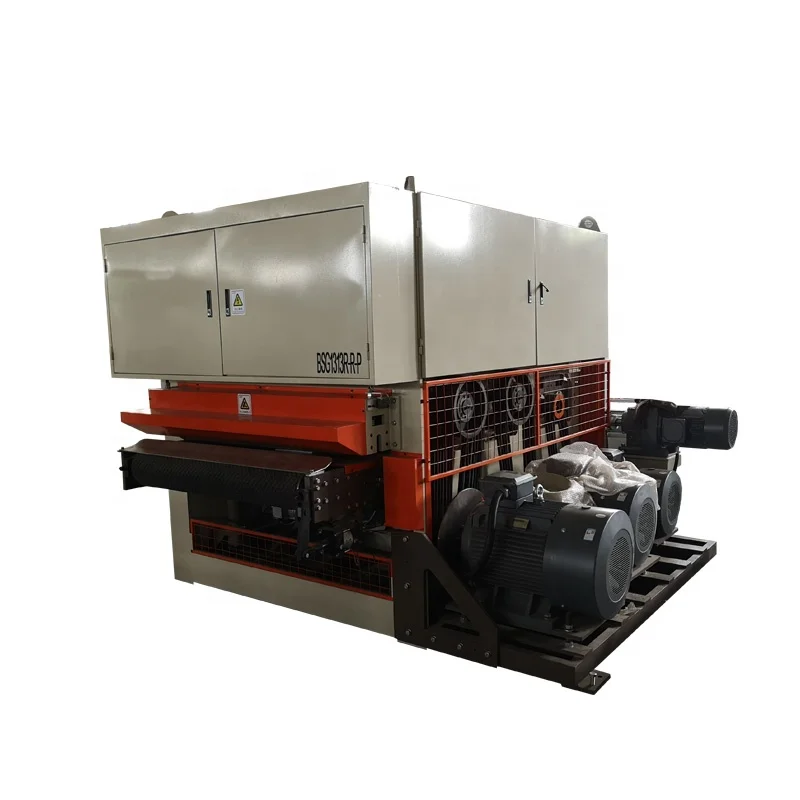

Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding
Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding

Heavy duty calibrating sanding machine for plywood sanding paper sander of plate sanding

Share on (1600693448697):


Price:$28,000.00 - $28,500.00

Quantity:


Product Overview

Description



Wide-belt calibration sanding machine






parameters

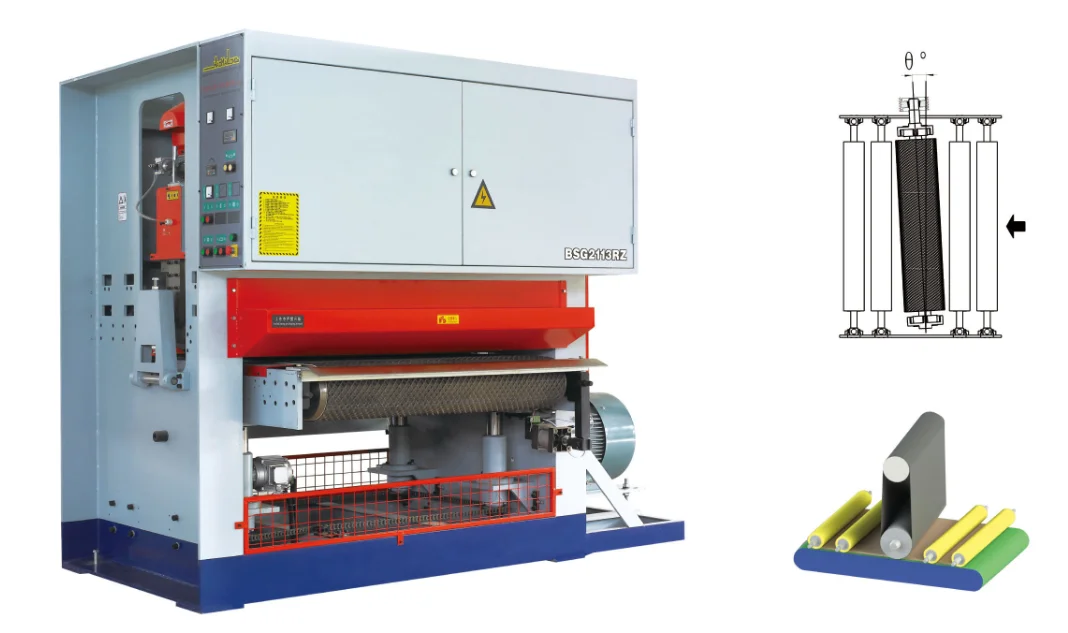

1300 R single head Calibration Sander
Model
BSG 2113RZ
Working width
40-1300mm
Working thickness
10-80mm
Working length
≥780mm
Sand belt speed
25m/s
No. 1 sand belt motor
55kw
Transport reducer
7.5kw
Total power
64kw
Sand belt diameter
300mm (Steel roller)
Feed speed
10-40m/min
Size of sand belt (WxP)
1330*2620mm
Volume of sucked air
7000m³/h
Overall dimension (LxWxH)
2100*2900*2440mm
Weight
6500kg

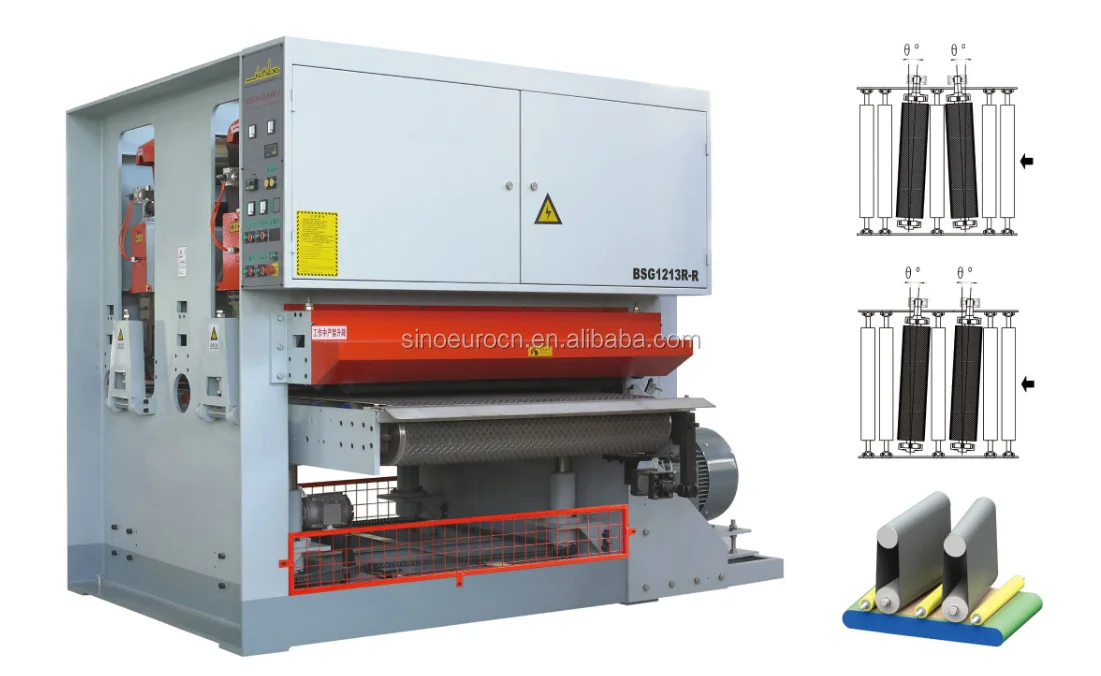

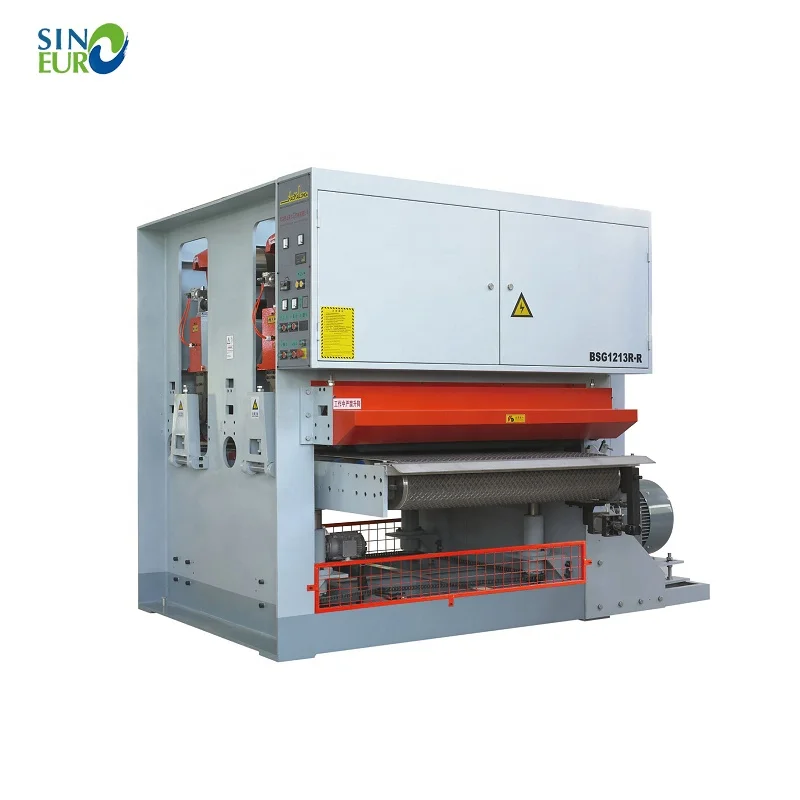

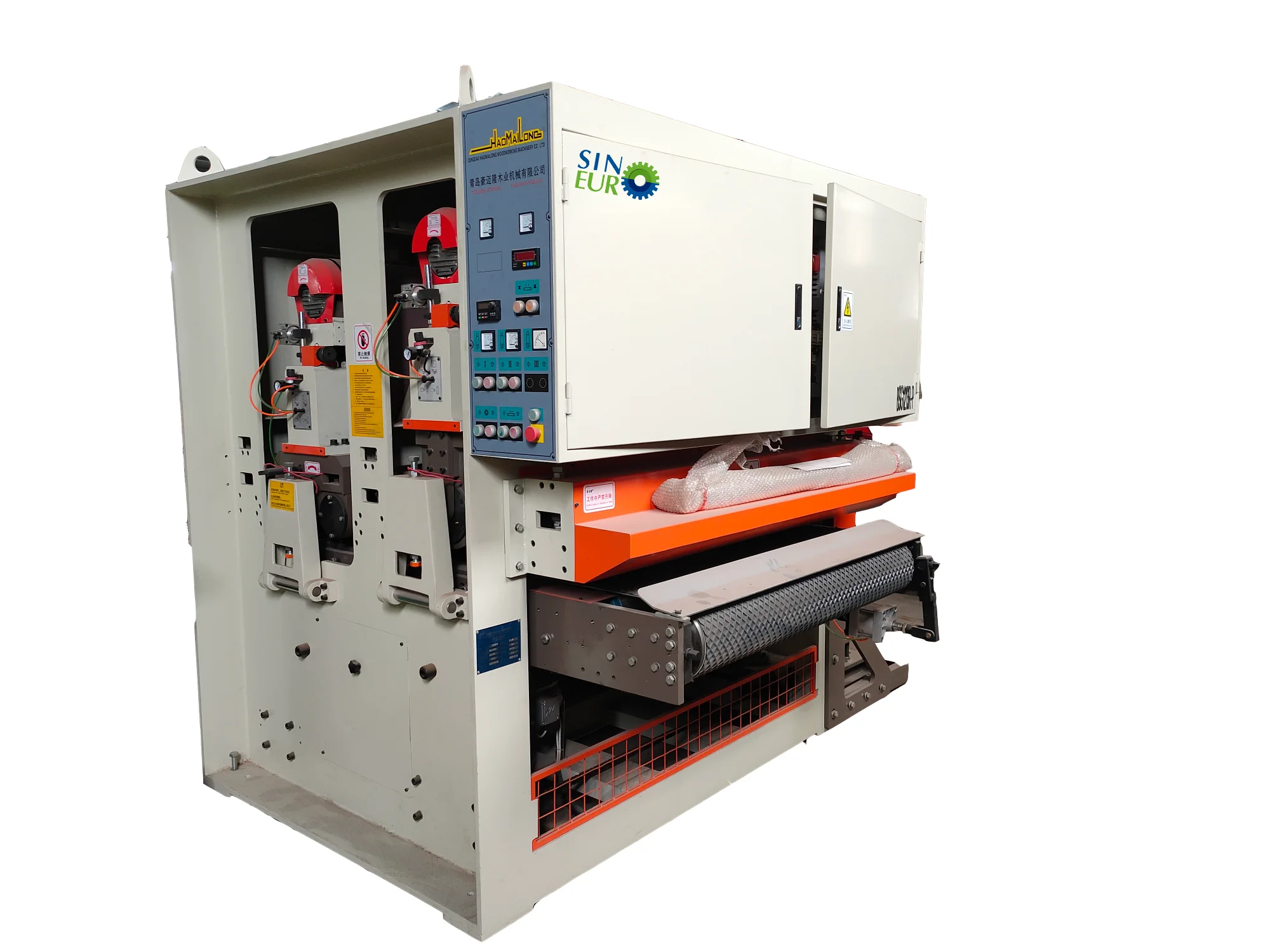

1300R-R 2 heads Calibration Sander
Workin+A25:B38g widA25:B39
40-1300mm
Working thickness
10-80mm
Working length
≥780mm
No. 1 Abrasive belt speed
25m/s
No. 2 Abrasive belt speed
25m/s
Voltage
380v, 50Hz, 3phase
No. 1 sand belt motor
55kw
No. 1 sand belt motor
45kw
Transporting motor
7.5kw
Lifting motor
0.75kw
Brushing motor
0.37kw
Total power
109kw
No. 1 sand belt diameter
320mm (Steel roller)
No. 2 sand belt diameter
320mm (Rubber roller)
Feed speed
20-40m/min
Size of sand belt (WxP)
1360*2620mm
Operating pressure
0.6Mpa
Volume of sucked air
15000m³/h
Overall dimension (LxWxH)
3030*2900*2440mm
Weight
8800kg


Product Description


The machine is the calibration sander, suitable for wood panels, block board, cement fiberboard, insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.



Frame
Adopting foundry frame, the sanding units can not be distorted and have good effect of vibration and absorption, and the machine tool has a long service life.


Big diameter sanding roller
After the accurate dynamic balancing , work steadily, good sanding performance, work fast and efficient, high precision, feed power adopt the frequency conversion device.

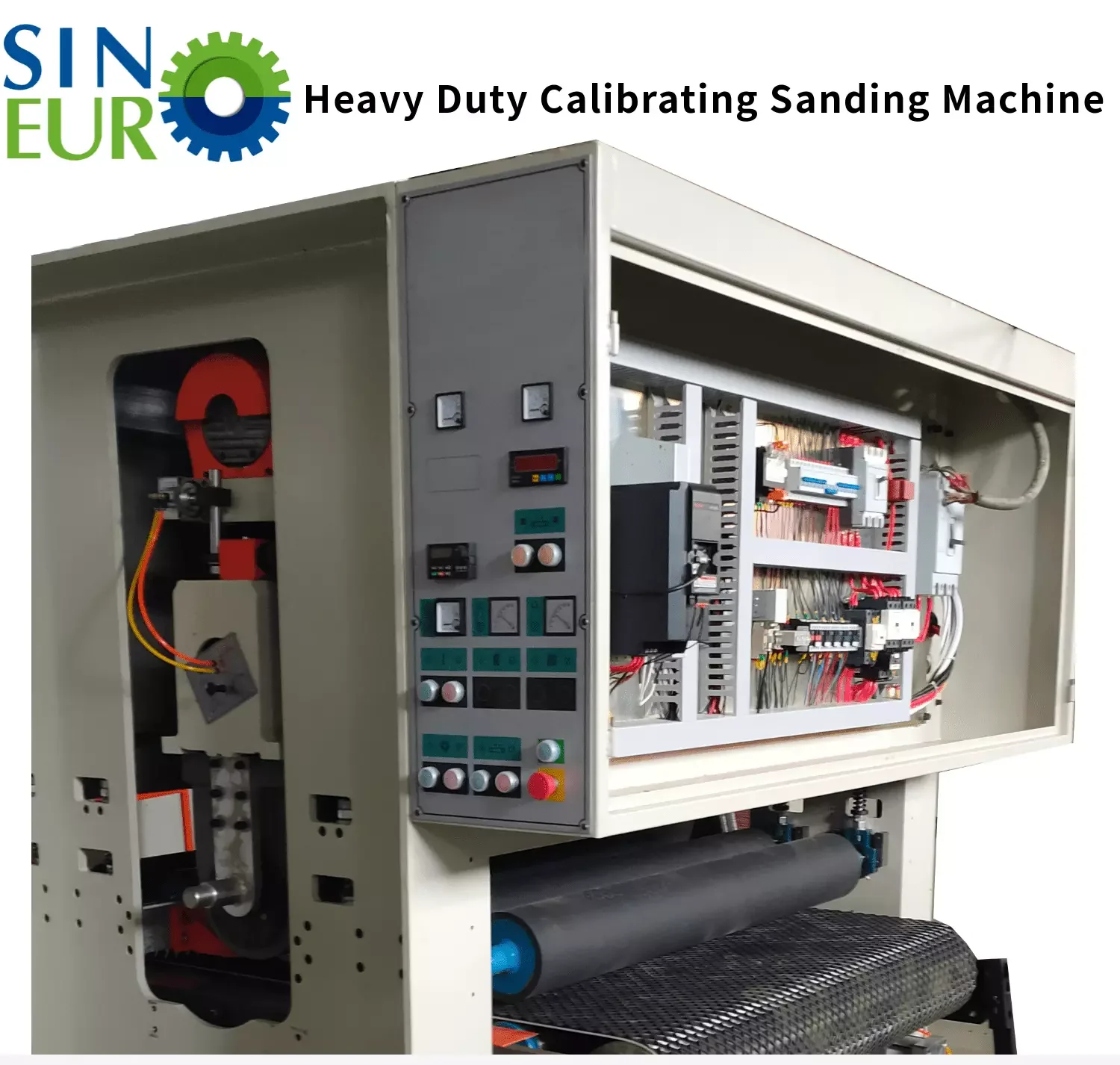

Electric parts
This machine selected international advanced electrical components, effective protection of the normal working state.
All famous electric brand schneider and siemens, you can got it in all of the world.
