В наличии с перекрестной роликовой этап оси xy алюминиевого сплава ультра тонкий тип линейной стадии

В наличии с перекрестной роликовой этап оси xy алюминиевого сплава ультра тонкий тип линейной стадии

Category: Other Optics Instruments >>>
Supplier: GMT GLOBAL INC.

Price:

Quantity:

Product Overview

Description

Product Description

Outline
♦ Mini-Stage is applied for high precision or mid and heavy loading of various production machinery, testing device, precise positioning and quantitative movement.
♦ There are many types of mini-stages with single axis (X-axis); dual axes (XY-axis); Z-axis; θ axis; α axis...can be collocated as needed.

Characteristics
♦ Can be customized according to the requirements of precise fine tuning; positioning; quantitative movement and able to proceed mass feed of fine tuning.
♦ Coordinated customer's precise machinery of instrument and fixed in suitable position.

♦ Feeding mode diversification such as coarse moving handle / micrometer head; feed screw, rack and pinion with scale and able to manage movement rate.
♦ The sets of mini stages, XY-axis, XYZ-axis, XZ-axis, and multi-axis modules are able to effectively reduce assembling process because of adjusting their vertical angle before shipping.

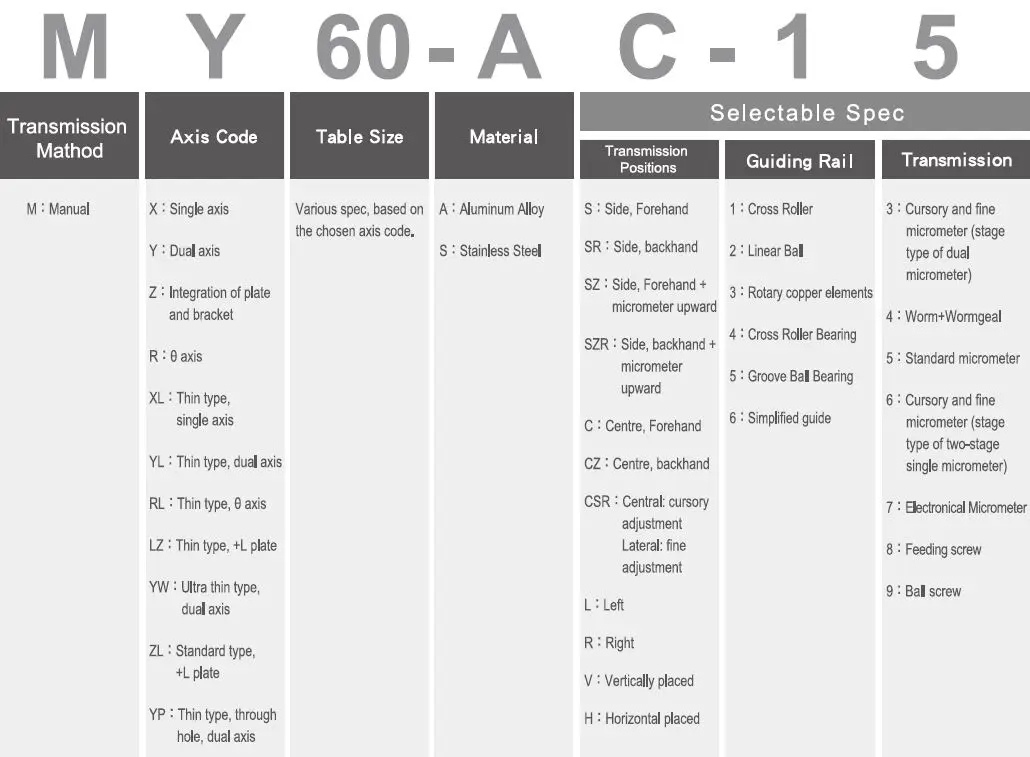

Standard Selection
♦ GMT presents clearly with each kind of mini stages in accordance with different types of moving axis, minimum reading and loading capacity.
♦ Please coordinate with adjusting methods and refer below information to select the most suitable stages.
♦ Please refer to the feeding method provided to select the most suitable stages.

Axes Definition

Regarding definitions of moving and rotating axis, GMT defines as the diagram below.

X-axis, Y-axis are in parallel direction; Z-axis in vertical direction; Rotating around X, Y, Z-axes are called α-axis, β-axis, θ-axis individually.

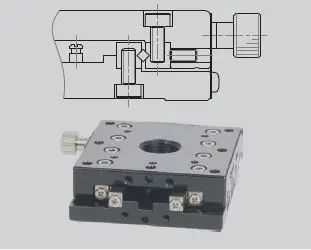

Crossed Roller Stages

Characteristic:

The slide rail consists of two hardened V-grooves with fine ground surface and crossed roller bearings.

Application:
This is suitable for precise movement device in high accuracy and high capacity, optical instruments in precise gauging and fine
tuning, various machine tools, gauging instruments, precise positioning...etc.

Specification

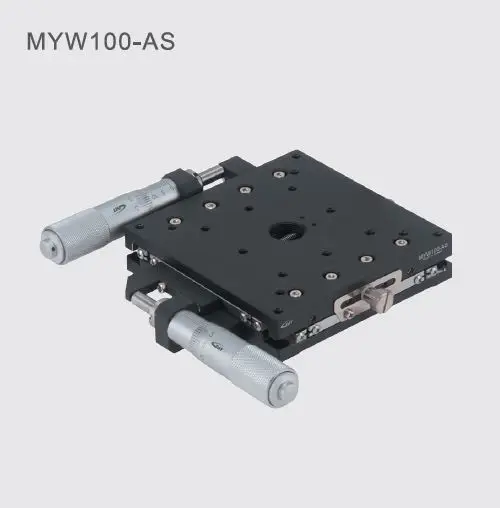

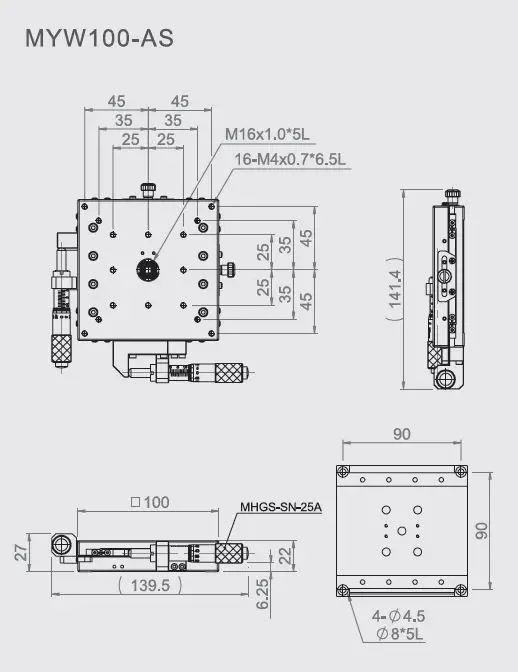

Model No.	MYW100-AS
Table Size (mm)	100 X 100
Axis	XY - Axis
Feed Position	Side
Travel Stroke (mm)	± 12.5
Micrometer Min. Reading (μm)	10
Straightness Accuracy (μm)	3
Allowable Loading (Kgf)	4
Weight (Kg)	1.1
Material	Aluminum Alloy
Surface Finish	Black Anodized
