High Capacity Soybean Slag Rolling Dryer for Asian Market
- Category: >>>
- Supplier: Zhengzhou Dingli New Energy Technology Co. Ltd.
Share on (1600693536690):
Product Overview
Description
Product Description
Product Introduction
Bean dregs, the by-product of producing soy milk or tofu, is a kind of material with big water and oil combining performance. After being processed, it has the following advantages: fresh bean dregs' water content is about 90%, its nutritional ingredient is higher than many inferior dregs; the crude protein content is high, especially in hot summer and high temperature, it is easily rotted and mildewed. Dry bean dregs' crude protein content is three times higher than that of the unhulled rice. It is suitable for nutrition feed for pig, chicken, duck, etc.

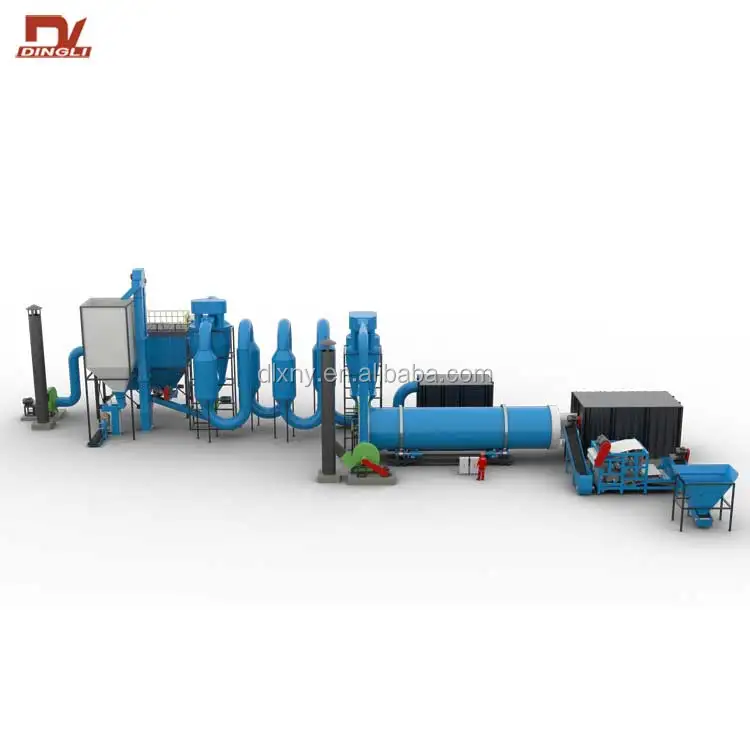

Bean dregs dryer mainly consists of the heat source(hot blast stove or gas producer furnace), material feeder(beater), rotary drying roller, discharger, induced draft fan, driving device, unloader, and power distribution cabinet. After a certain degree of dehydration and scattering, wet bean dregs enters into the drying roller through the material feeder. Under the stirring of the lifting plates and shoveling plates that distribute evenly inside the roller, the bean dregs scatter evenly and contacts with hot air sufficiently in the drying area. This speeds up the drying heat transfer and mass transfer. Wet air is pumped by air-inducing device, which avoids material from being wet again.
Working Principle
Material flow : 75-85% moisture content material first with special dehydration machine removing a part of moisture, the moisture removed around 68%, then send into the dryer by screw conveyor to realize downstream drying. Under the effect of inner shoveling plate, materials are took and scattered constantly, and move in spiral forward method. Inside mixing blade device will be fully stirred and crushed material, material and hot air through full heat exchange, the rapid evaporation of water vaporization, reaching about 35%, discharged by the screw conveyor, then send into the semi-wet material crusher, crushed material size below 1mm, then into pulse air drying process, within 10-15s the material quickly removed to 10% by the cyclone discharger and Pulse bag dust collector recovery dry powder, exhaust emissions amount to the national standard requirement, to complete the entire drying process. Drum cleaning device is installed inside the drum to prevent the material from adhering to the cylinder wall.
Air Flow: The air through hot blast stove fan inflating, the air enters into the hot blast stove for combustion heating. Its temperature reaches up to 600-850℃, then it is inhaled by the dryer induced draft fan absorbed to dry material and evaporate water. Through the heat exchange drying the material. When temperature decreases to 55-85℃, it is discharged out of the dryer. Wet dust are discharged on standard through the cyclone and the pulse dust collector purifying and emission.
Technical Parameters
Specification (DLZG) | 1208 | 1408 | 1610 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | 2912/3 | ||||||||
Input Capacity (t/d) | 43.7 | 52.5 | 75.8 | 169.0 | 186.5 | 215.5 | 262.2 | 317.6 | ||||||||
Output (t/d) | 25.7 | 30.9 | 44.6 | 99.4 | 109.7 | 126.7 | 154.2 | 186.8 | ||||||||
Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 | ||||||||
Raw Material Moisture (%) | 80±5%(Mechanical dehydration to around 68%, and then dry by dryer) | |||||||||||||||
Dried Material Moisture(%) | 10% (adjustable) | |||||||||||||||
Drying temperature (℃) | 350-450℃ | |||||||||||||||
Total Power (kw) | 55 | 75 | 95 | 140 | 170 | 210 | 260 | 300 | ||||||||
Total Weight (kg) | 25000 | 27000 | 28500 | 33500 | 38500 | 45000 | 60000 | 80000 | ||||||||
Area (m2) | 5*20 | 5*20 | 6*22 | 8*25 | 8*25 | 10*28 | 10*30 | 10*30 | ||||||||
Except above models, we also can supply special model according to your requirements. | ||||||||||||||||
Packing & Delivery
Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below is Dingli Group Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
Company Information
Dingli Main Products
Biomass Pellet Production Line
Wood Sawdust Dryer
Cassava Residue Dryer
Brewer Grain Dryer
Slime Coal Dryer
Chicken Manure Dryer
Coconut Fiber Dryer
Coconut Coir Dryer
Beer Yeast Dryer
Below are Dingli Group Factory & Sales Team:
Below are Dingli Group Honors & Certificates & Patents:
Buyer & Project Case
Below are Dingli Customers Visiting:
Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

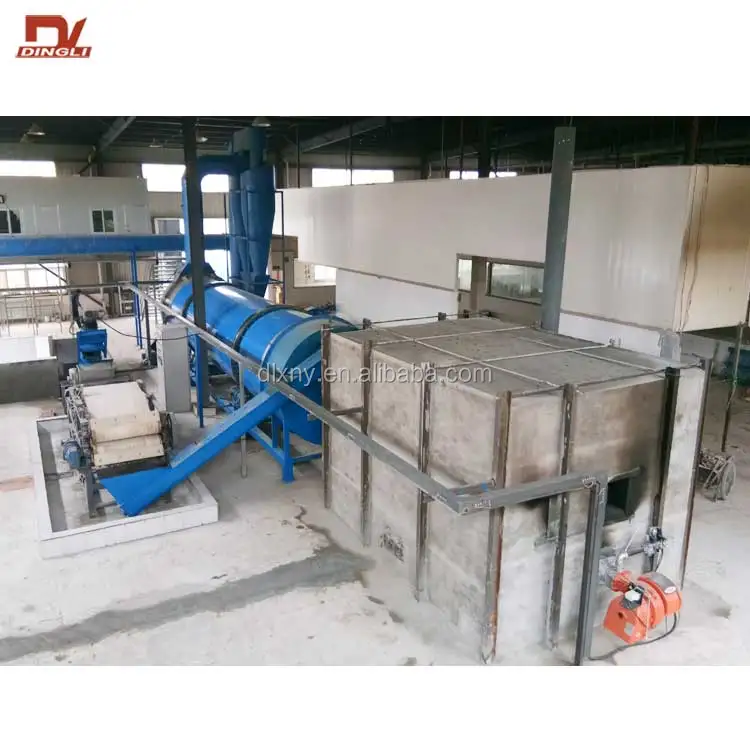

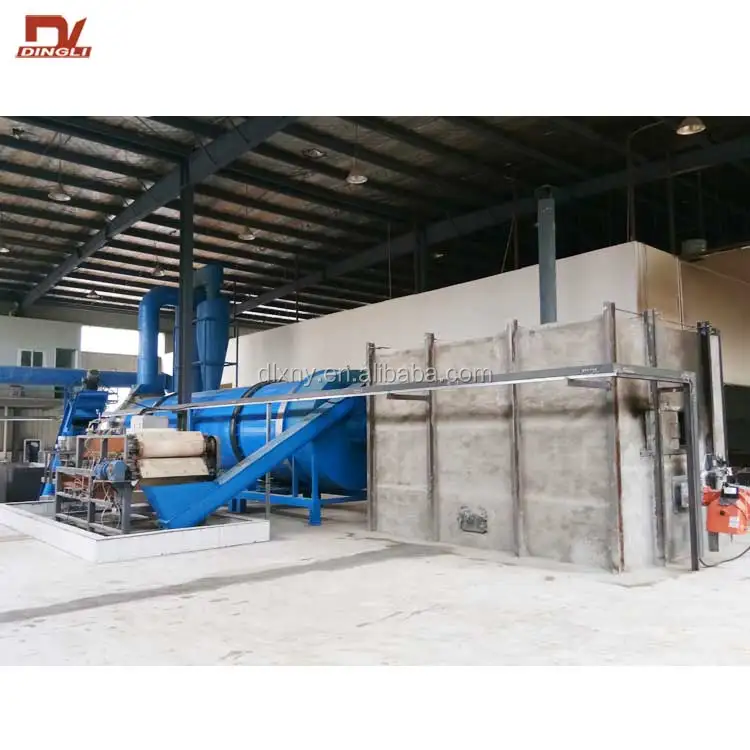

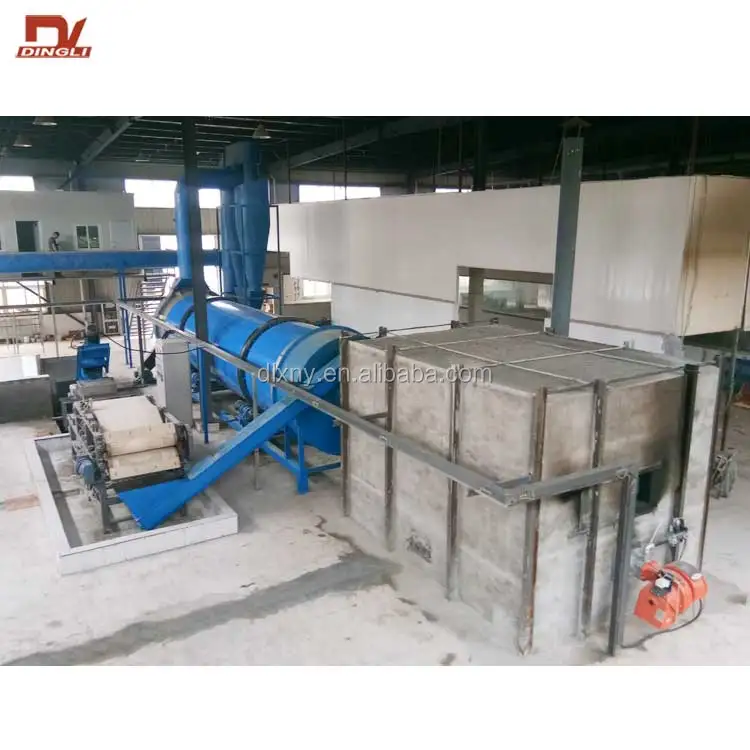

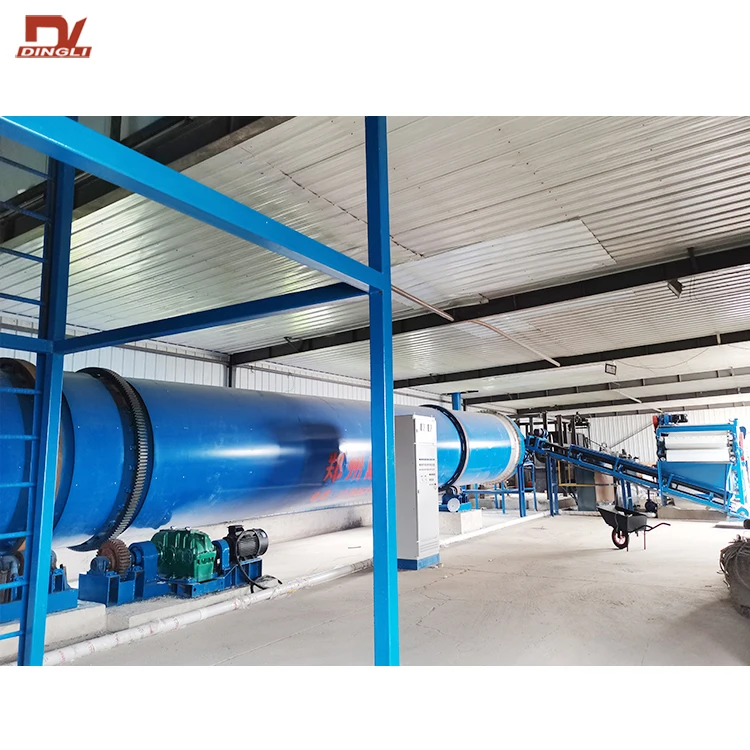

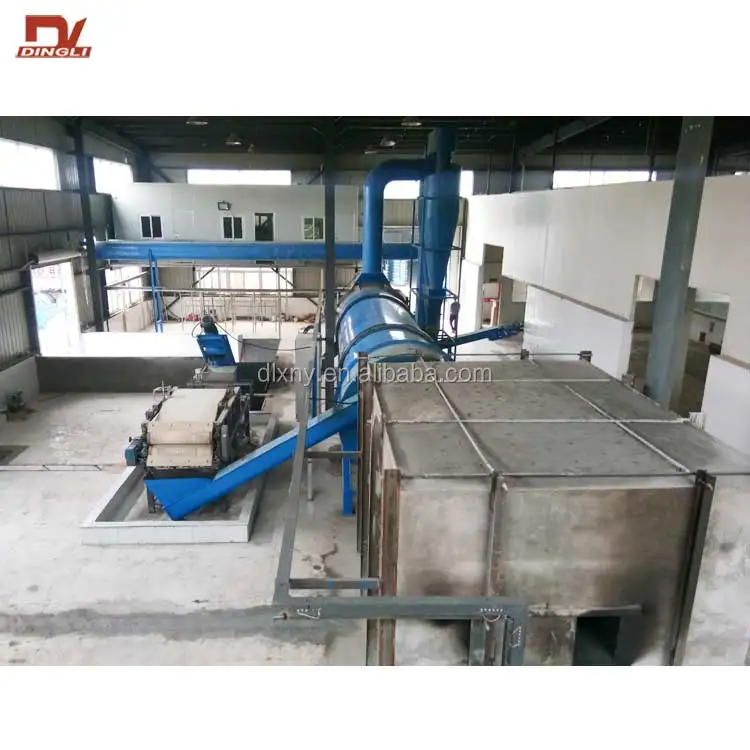

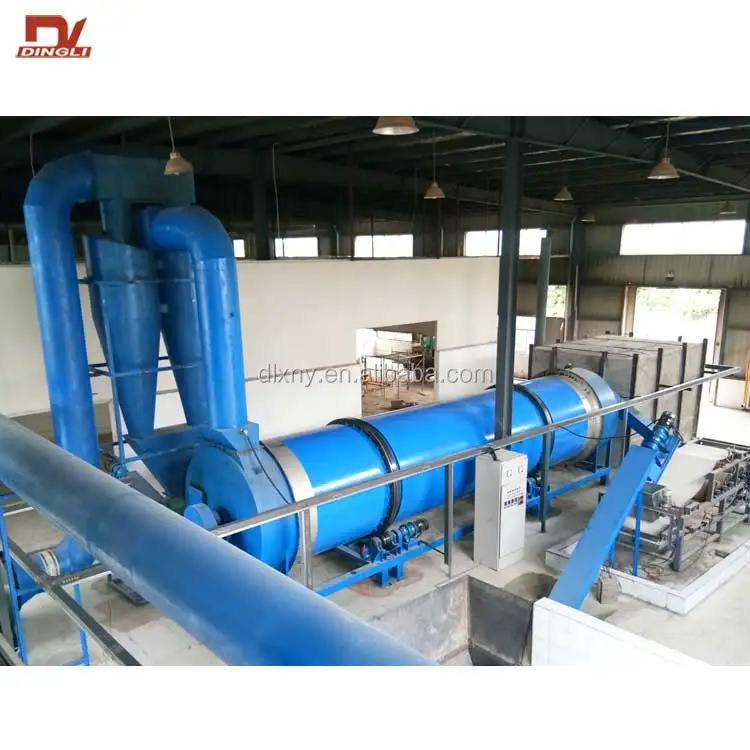

Below are Installation Sites of Our Customers:
After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: What is your Business Model? Trading company or factory?
A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO
We will pick you up at airport. Welcome to visit our factory.
Q: What is the Quality of your products?
A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q. What is the Installation of your products?
A: Dingli Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technicians' safety.
Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
