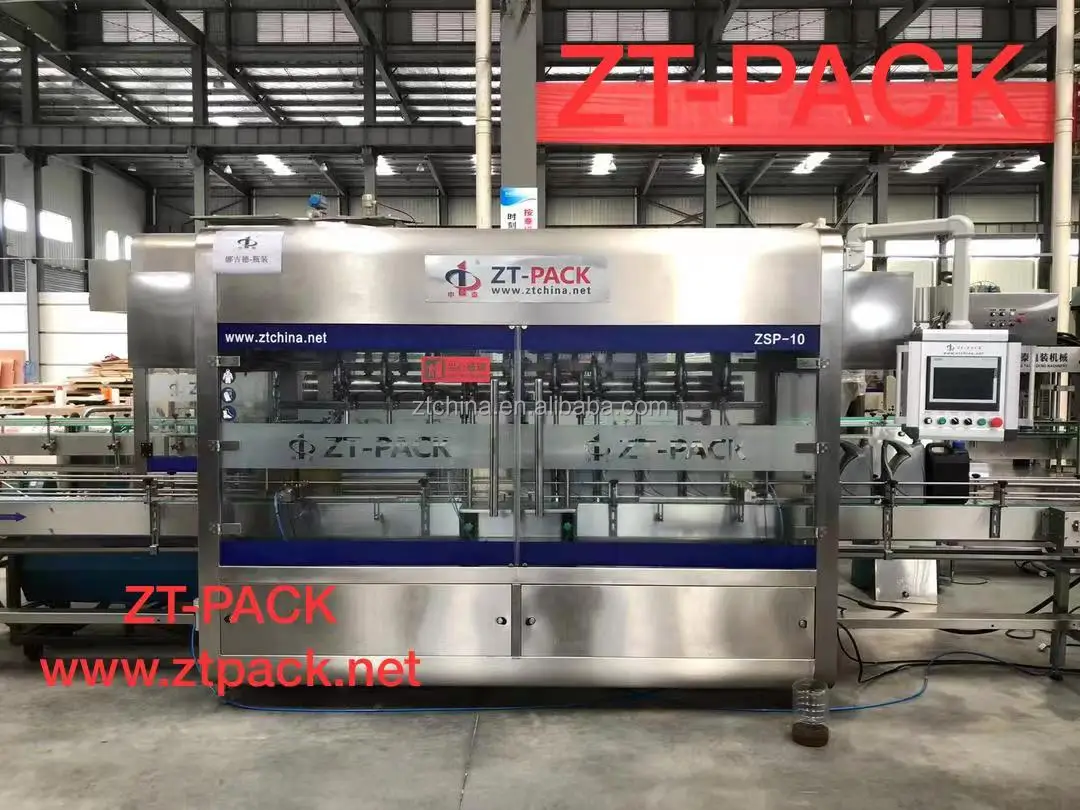

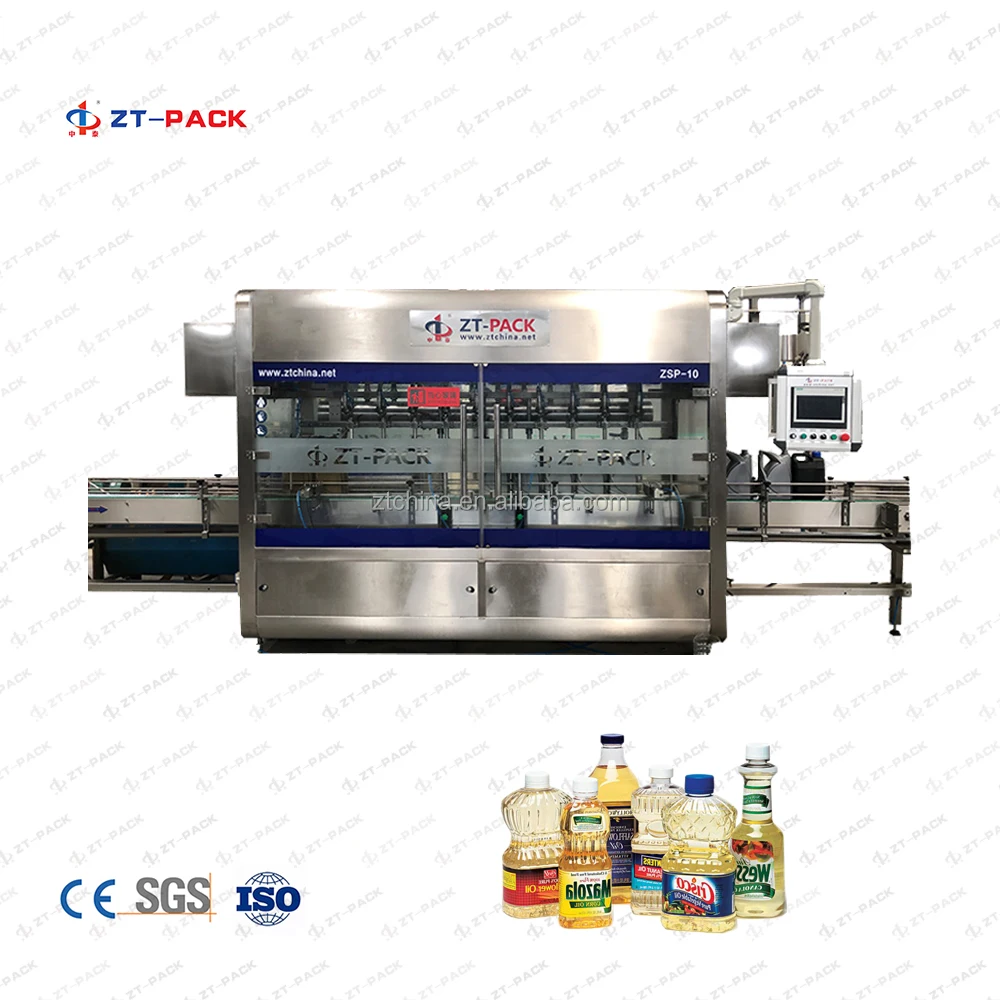

Automatic edible/cooking/coconut/vegetable/sunflower oil bottle flow meter system filling machine
- Category: >>>
- Supplier: Jiangsu Zhongtai Packing Machinery Co. Ltd.
Share on (1600693554571):
Product Overview
Description
Oil Filler Flow Meter Automatic Cooking Edible Oil bottle liquid packing machine Bottling oil filling machine
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Filling Range : 50ml -1000ml
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details

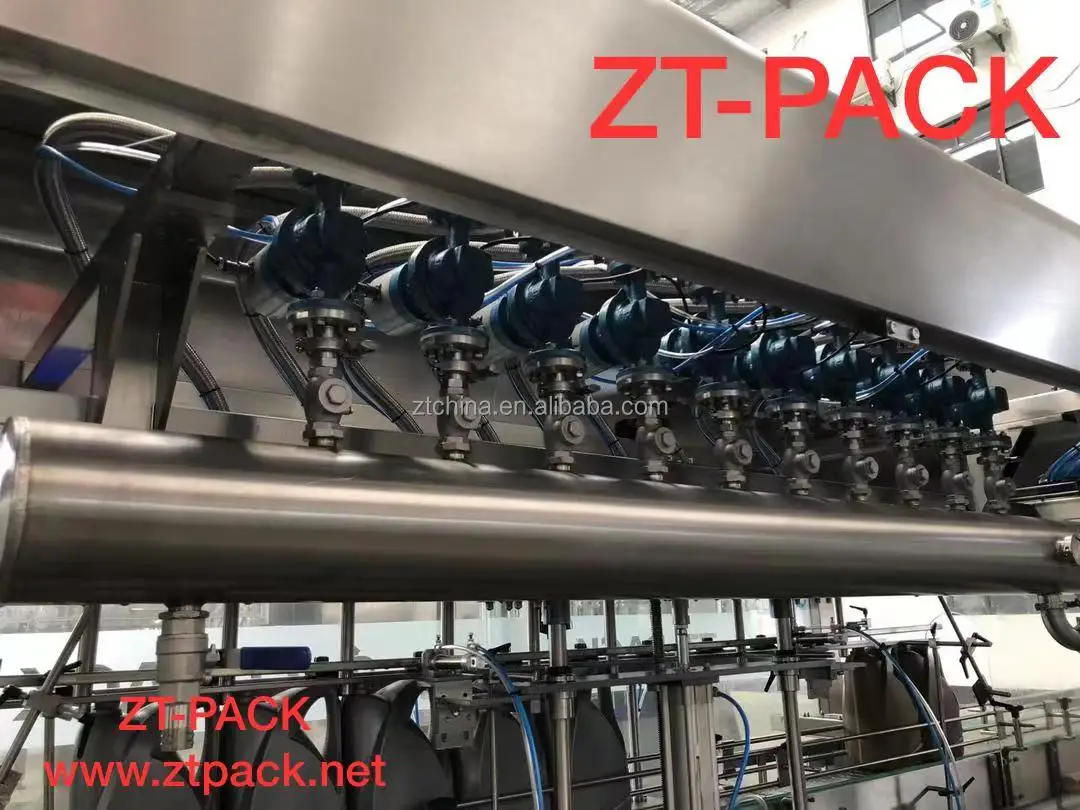

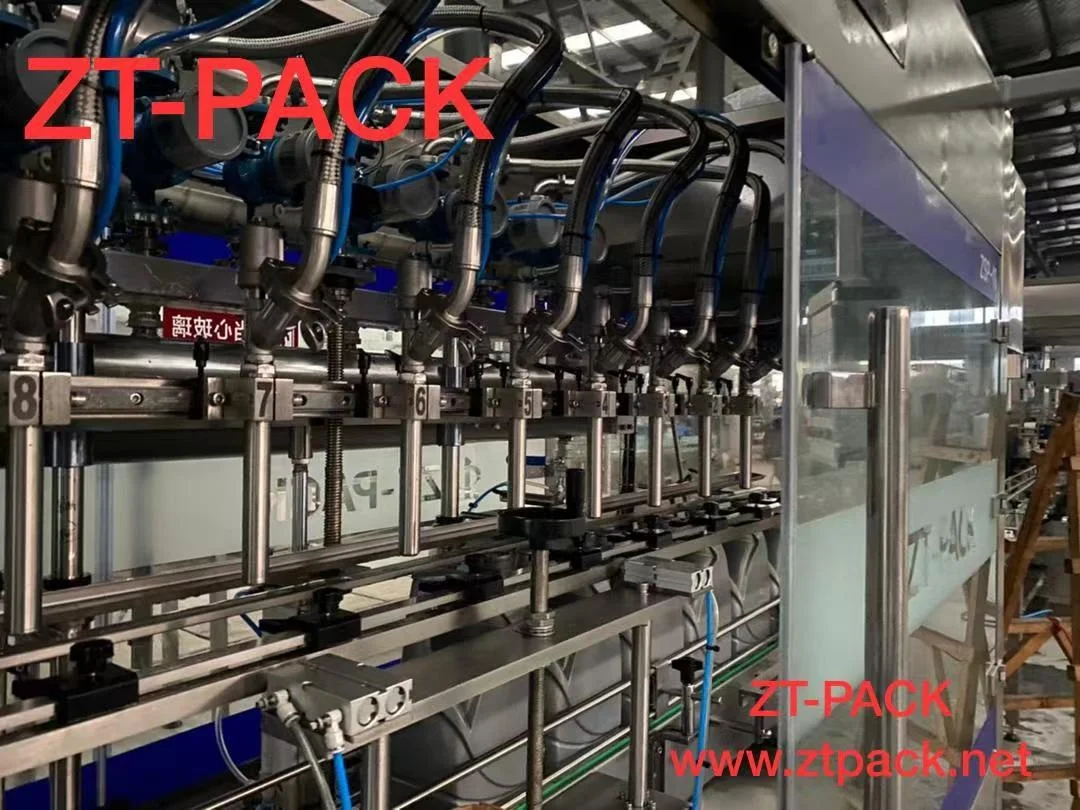

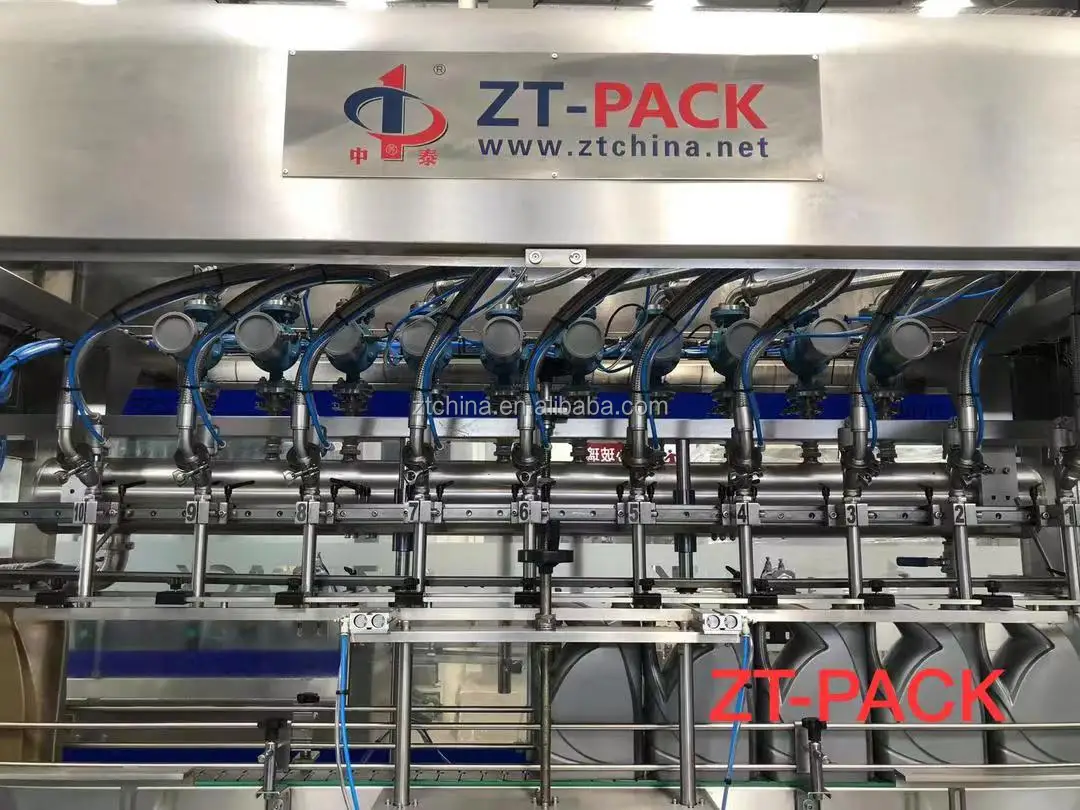

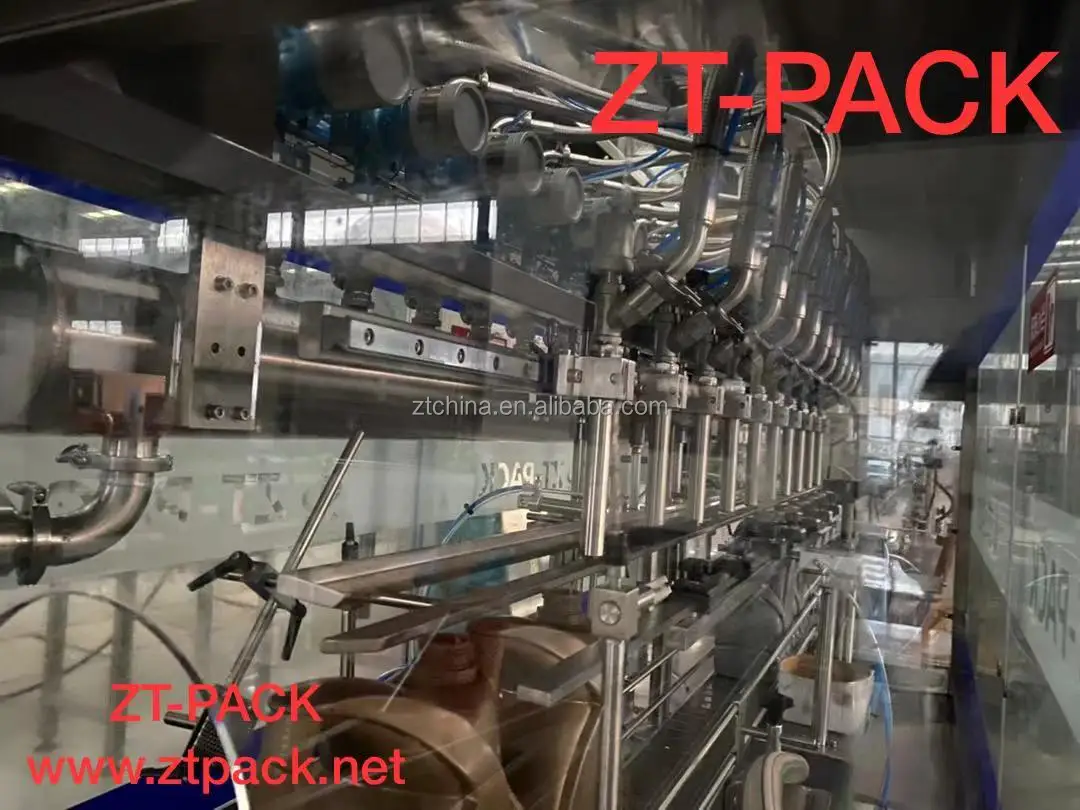

1: the advantage of flow meter way: The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
The accuracy of filling: instead of the traditional computing type of flow meter --through pulse generator, now promoted by our company, adopting rotary encode is more accurate.
2: The speed of filling: instead of the traditional power delivery -- pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touch screen.
3: It will not affected by the season, In summer and winter the oil all can be fill easily, not restricted by the viscosity of oil products, such as gear oil can also be easily filled. The more viscous material is, the more obvious the advantage of flowmeter filling method is.
4:The operation interface is simple, easy to learn and maintain, low requirements for field operators, use of startup and formula adjustment and one key solution
5: No wearing parts in the production process, mechanical transmission, The cost in use is lower.
0.5L -5L
4L -30L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details
1: the advantage of flow meter way: The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
The accuracy of filling: instead of the traditional computing type of flow meter --through pulse generator, now promoted by our company, adopting rotary encode is more accurate.
2: The speed of filling: instead of the traditional power delivery -- pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touch screen.
3: It will not affected by the season, In summer and winter the oil all can be fill easily, not restricted by the viscosity of oil products, such as gear oil can also be easily filled. The more viscous material is, the more obvious the advantage of flowmeter filling method is.
4:The operation interface is simple, easy to learn and maintain, low requirements for field operators, use of startup and formula adjustment and one key solution
5: No wearing parts in the production process, mechanical transmission, The cost in use is lower.
Ideal for oils kinds products filling
flow meter system with high accuracy 0.5%
No wearing parts mostly require
Filling range can be widely than piston t
Filling range :
Capacity Speed :
10 / 12 nozzles can be choosen
based on 5L : can get 2000-2500BPH
based on 1L : can get 4000-4500BPH
No wearing parts mostly require
Filling range can be widely than piston t
Filling range :
100ml -1000ml
500ml -5000ml
5-30L
10 / 12 nozzles can be choosen
based on 5L : can get 2000-2500BPH
based on 1L : can get 4000-4500BPH
Main performance parameter | ||||||||
Model | ZT-FM | |||||||
Nozzle number | 4 | 6 | 8 | 12 | ||||
Filling Volume | 500ml-5L/5-30L(From ZT-PACK) | |||||||
Production capacity | 300-4000pcs/Hour (Depend on filling volume and filling head) | |||||||
Quantitative error | ≤±0.5% | |||||||
Voltage | AC220V/380V±10%:50HZ/60HZ | |||||||
Filling method | By Flow meter system | |||||||
Consumed power | 3 | 6 | 9 | 12 | ||||
Air pressure | 0.6-0.8Mpa | |||||||
Air consumption | 1.5KW | 2.2KW | 3KW | 4KW | ||||
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds
Products
Filling Range :
Products
Filling Range :
50ml -1000ml
0.5L -5L
4L -30L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details
Zhongtai Packing Machinery Company develops high quality packaging and botting pro-duction lines. From flling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers.
Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods;
cosmetic and beauty care products such as lotions, creams, and shampoos;
pesti-cides and other agrochemicals;
and oils and gases.
We help customers from over 30 countries around the world to package their products.
Since our beginnings, we've designed our packaging and bottling equipment to meet the needs of our customers. Our filling machines, capping machines, labeling machines, and carton sealing machines can fll bottles and pouches of vanying specifications with high and low viscous liquid and powdered or granular material. We've passed ISO9001:2008 quality management system certification and CE certification, and we're one of the top ten bottle flling machine suppliers in China. Many of our products have received invention and utility model patents.

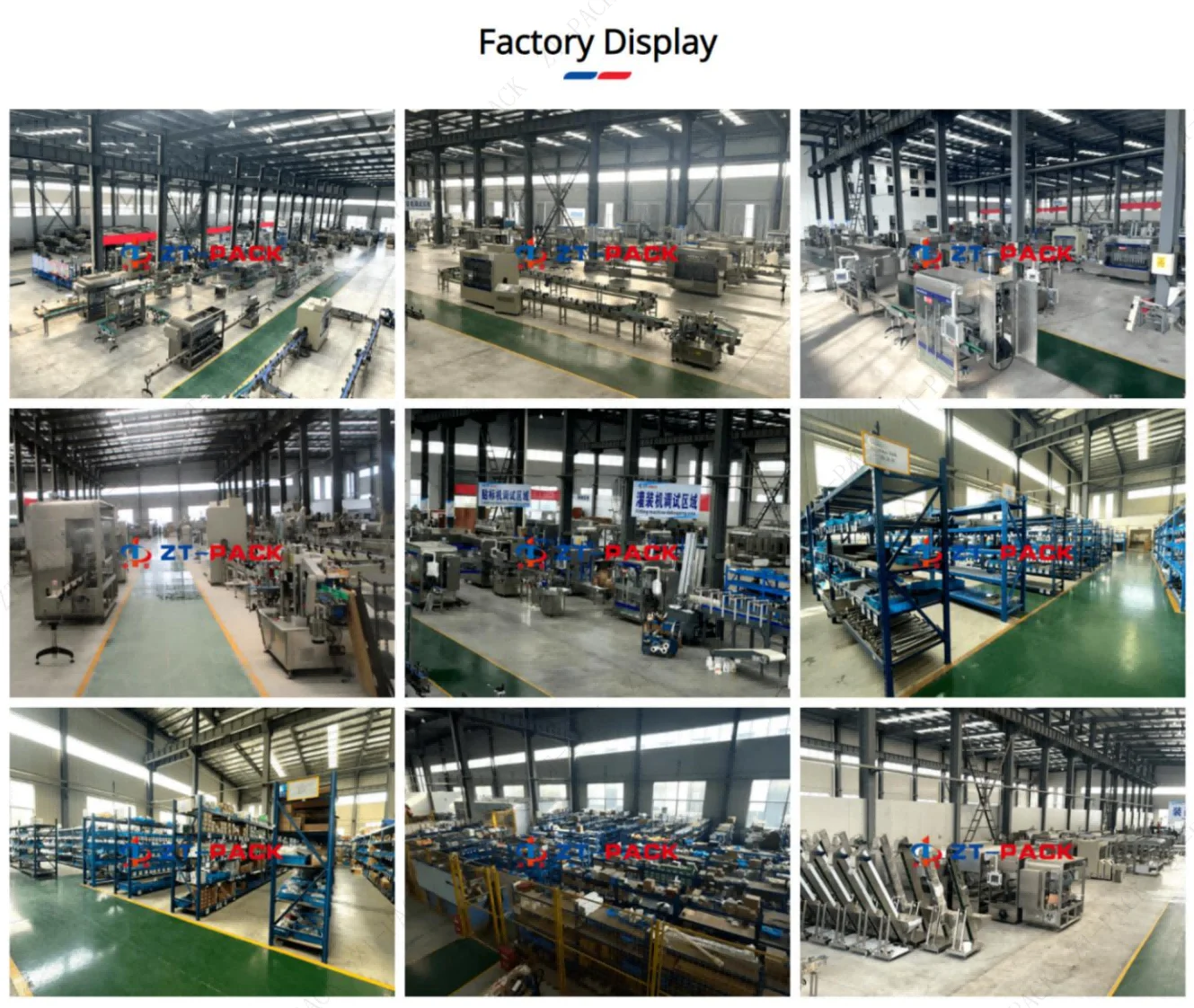

Factory with 13,000 m2
Technology Team more than 10 persons
Service Team more than 10 persons
Our growing company has the advantages of large modern manufacturing facilities and a talented team of 20 senior technical staff.
We research and develop new products using pneumatic control and photo electric transduction that increase our products' speed, precision, and life span.
At ZT-Pack, we value collaboration and innovation, working together and with our customers to devel-op better packaging solutions that keep products fresh and hold up in transit. With quality management and production processes, our packaging machines meet industry standards and satisfy those who use them. Whatever your product, we can package it. Contact ZT-Pack today.
Focus on the bottle production packing machines the full automatic line
Mixer tanks --bottle unscramble -- filling machine --capping machine --labeling machine --carton packing machine –palletilizer
Do for the Bottle /gallons Drum Filling machine production packing line
for agrochemicals , oil , food , lubricant oil ,Home care Cleaning, house holding products , personal care products ; Painting
packing
for bottles sizes :
Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods;
cosmetic and beauty care products such as lotions, creams, and shampoos;
pesti-cides and other agrochemicals;
and oils and gases.
We help customers from over 30 countries around the world to package their products.
Since our beginnings, we've designed our packaging and bottling equipment to meet the needs of our customers. Our filling machines, capping machines, labeling machines, and carton sealing machines can fll bottles and pouches of vanying specifications with high and low viscous liquid and powdered or granular material. We've passed ISO9001:2008 quality management system certification and CE certification, and we're one of the top ten bottle flling machine suppliers in China. Many of our products have received invention and utility model patents.
Factory with 13,000 m2
Technology Team more than 10 persons
Service Team more than 10 persons
Our growing company has the advantages of large modern manufacturing facilities and a talented team of 20 senior technical staff.
We research and develop new products using pneumatic control and photo electric transduction that increase our products' speed, precision, and life span.
At ZT-Pack, we value collaboration and innovation, working together and with our customers to devel-op better packaging solutions that keep products fresh and hold up in transit. With quality management and production processes, our packaging machines meet industry standards and satisfy those who use them. Whatever your product, we can package it. Contact ZT-Pack today.
Focus on the bottle production packing machines the full automatic line
Mixer tanks --bottle unscramble -- filling machine --capping machine --labeling machine --carton packing machine –palletilizer
Do for the Bottle /gallons Drum Filling machine production packing line
for agrochemicals , oil , food , lubricant oil ,Home care Cleaning, house holding products , personal care products ; Painting
packing
for bottles sizes :
50ml -1000ml
1L-5L
5L -30L
220L
1ton
Customer Service
Product packaging
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in package machine field since 2002, located at Jintan ,Changzhou, near Shanghai, We will pick you up to visit our factory.
Q:What about the machine's capacity?
A:according to differnent machines' type, 800-4000 bottles in 1000ml per hour.
Q:The after-sale service
A: 12 months warranty to change the spare parts which are damaged by non-human factors for free.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center
Q: If I want to buy a machine, what information do I need to tell you?
A:a. What kind product you want to pack?
b. bottle volume: 250ml, 330ml, 500ml, 750ml, 1L, 2L, 5L, 20L etc.?
c. Producing capacity requirement? How many bottles you want to pack per hour?
d. Pictures of your products' bottles and caps
e. Voltage and altitude.
b. bottle volume: 250ml, 330ml, 500ml, 750ml, 1L, 2L, 5L, 20L etc.?
c. Producing capacity requirement? How many bottles you want to pack per hour?
d. Pictures of your products' bottles and caps
e. Voltage and altitude.
