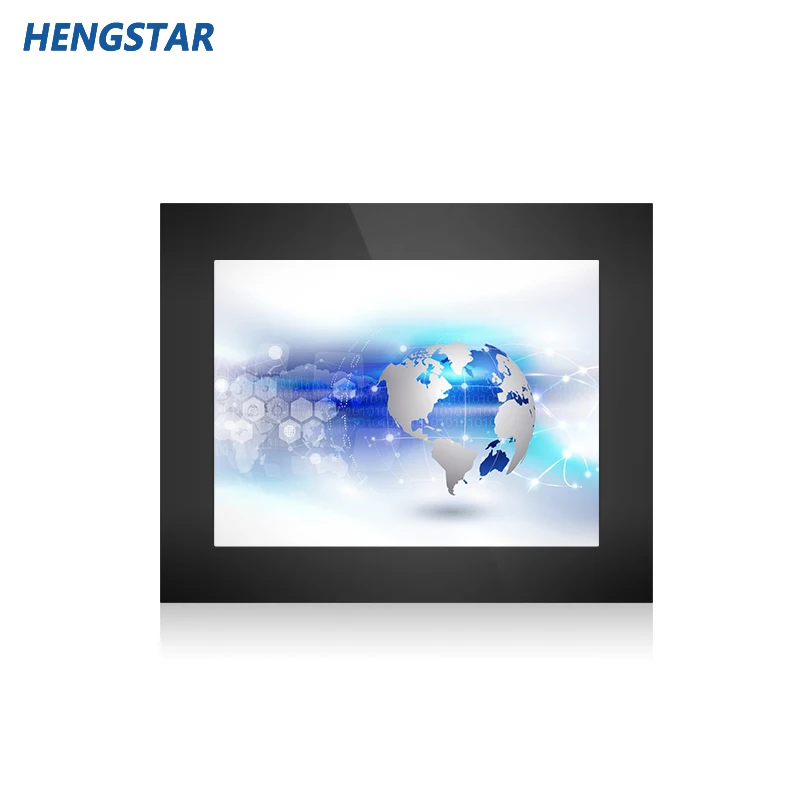

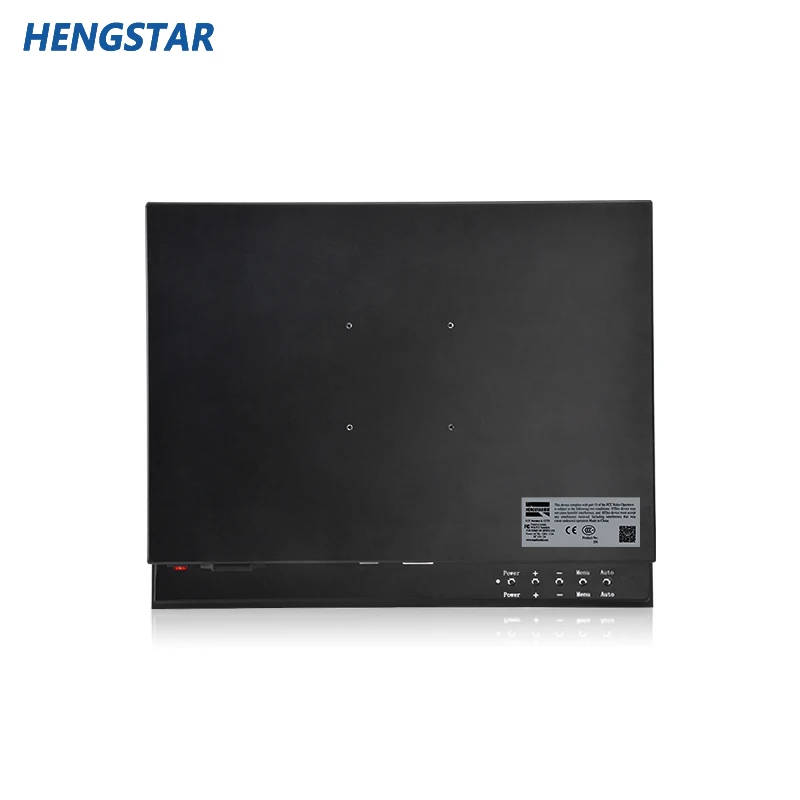

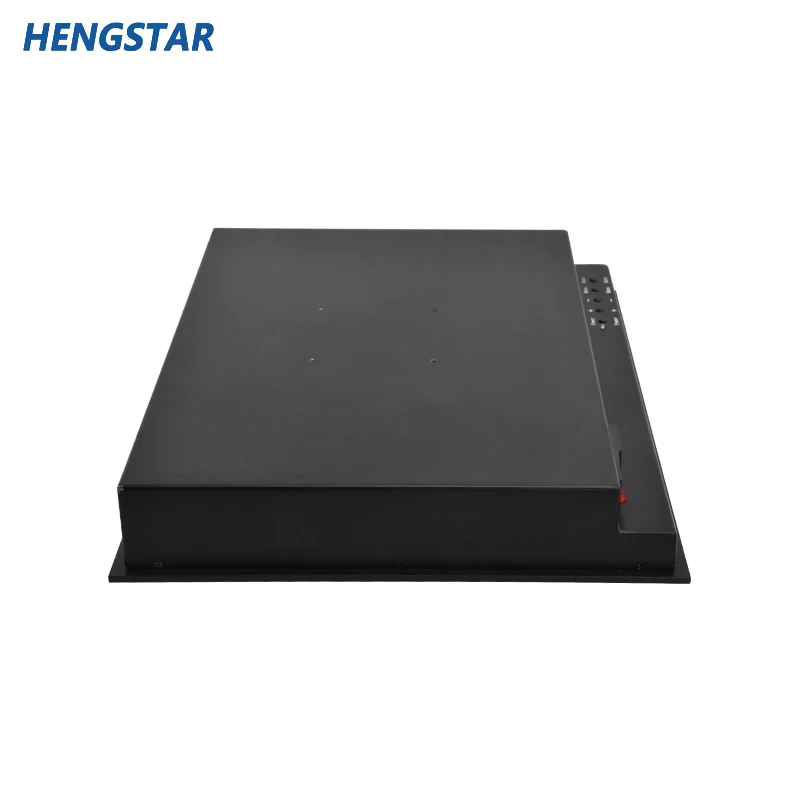

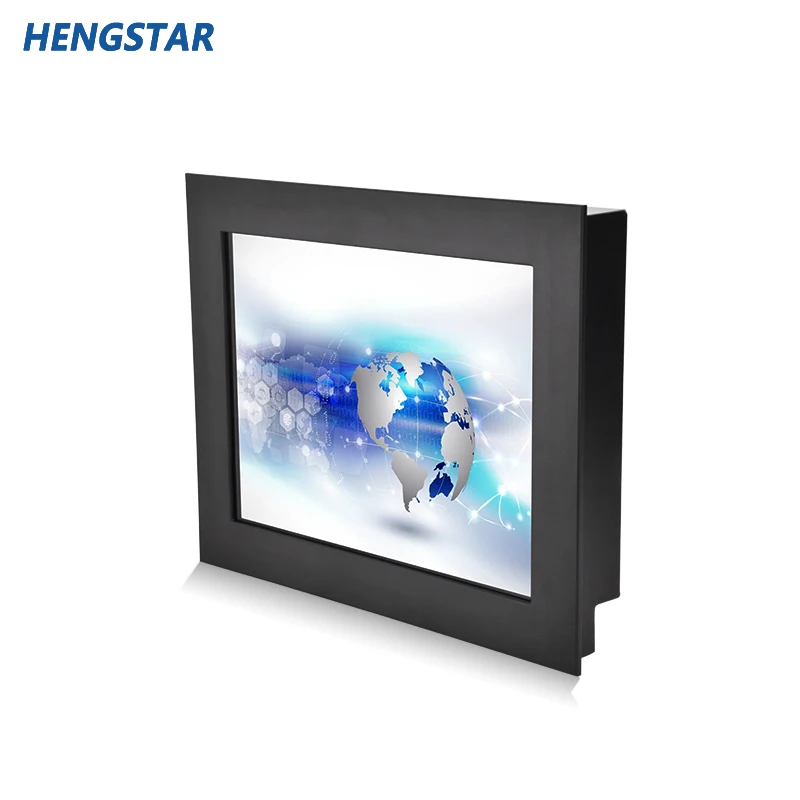

15 Inch Tft Panel Standard Screen Industrial Grade Lcd Ip65 Waterproof Computer Touch Monitor
- Category: >>>
- Supplier: Shenzhen Hengstar Technology Co. Ltd.
Share on (1600693708518):
Product Overview
Description
15 Inch Industrial Grade Lcd Computer Monitor Ip65 Waterproof Monitor Tft Panel Standard Screen
Key Features:
Mitsubishi industrial grade TFT panel.
450nits brightness.
Vandal-proof 10 points projected capacitive touchscreen (PCAP).
USB & RS232 touch interfaces, plug and play.
PCAP is driver free for Win7/Win8 OS.
One-piece silicone gasket sealing, IP65 front panel.
Heat dissipating aluminum structure.
VGA+DVI-D signal inputs, auto detect and auto switch.
100-240V AC power input, low power consumption.
Designed for industrial control system, kiosks.
Specification:
LCD panel | Size/Aspect ratio | 15''/4:3 |
Pixel numbers | 1024(H)*768(V) | |
Brightness | 450 cd/m2 | |
Contrast Ratio | 700:1 | |
Viewing Angle | 160° (H)/140° (V) | |
Colors | 16.7 M | |

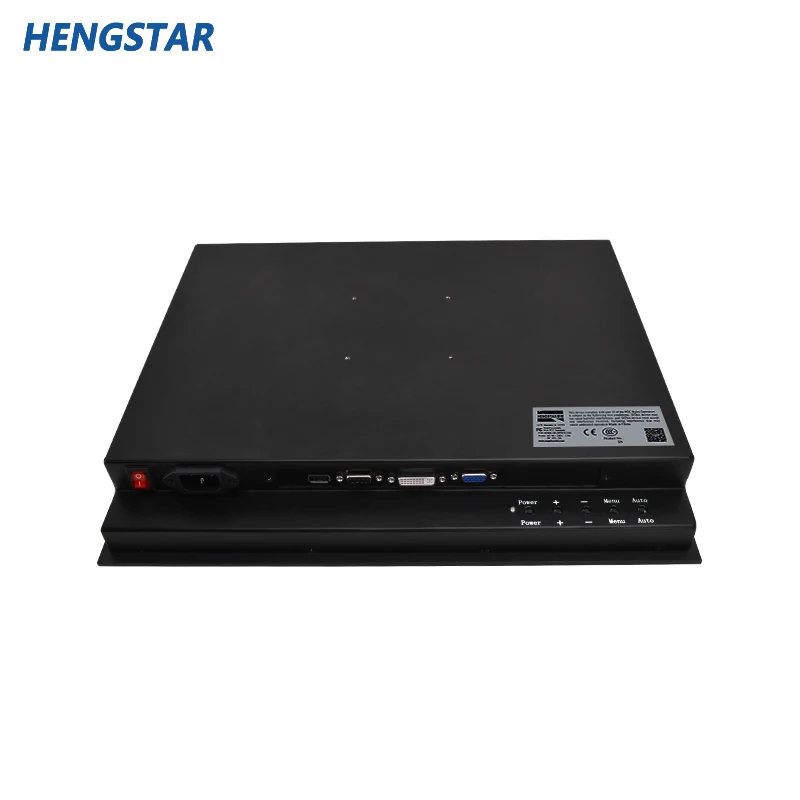

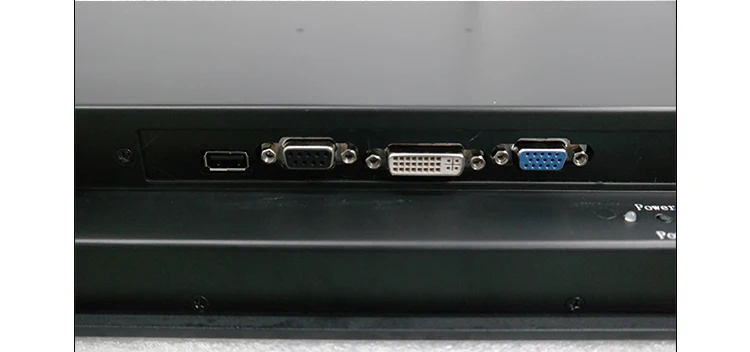

Input terminals | PC signal | VGA, DVI-D |
Power jack | 100-240V AC power jack | |

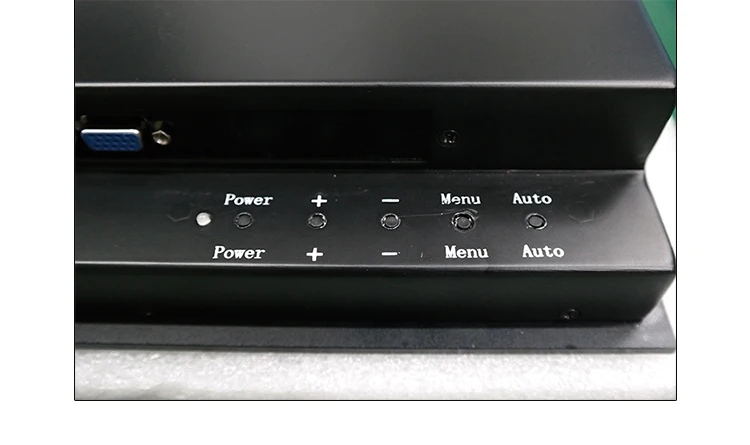

OSD Control | Menu, Auto, Up, Down, Power | |
Touchscreen interface | USB & RS232 | |
| Operating condition | Temperature | -10°C to 50°C (Operating) -20°C to 65°C (Storage ) |
| Humidity | 10% RH to 90% RH (Operating) 5% RH to 95% RH (Storage) | |
| Touchscreen
| 10 points projected capacitive, driver free for Win7/Win8 OS | |
| Interface: USB / RS232 | ||
| Power | Input Voltage | 100-240V AC |
| Operation | 30 watt | |
| Stand-by | ‹1 watt | |
| Weight | N.W./G.W. | 4.5 kgs/ 6.0kgs |
| External Dimension
| L*W*D: 385.5*312.5*57 mm | |
| Mount | VESA 75*75mm, panel mount | |
| Accessories | Power cord, USB cable | |

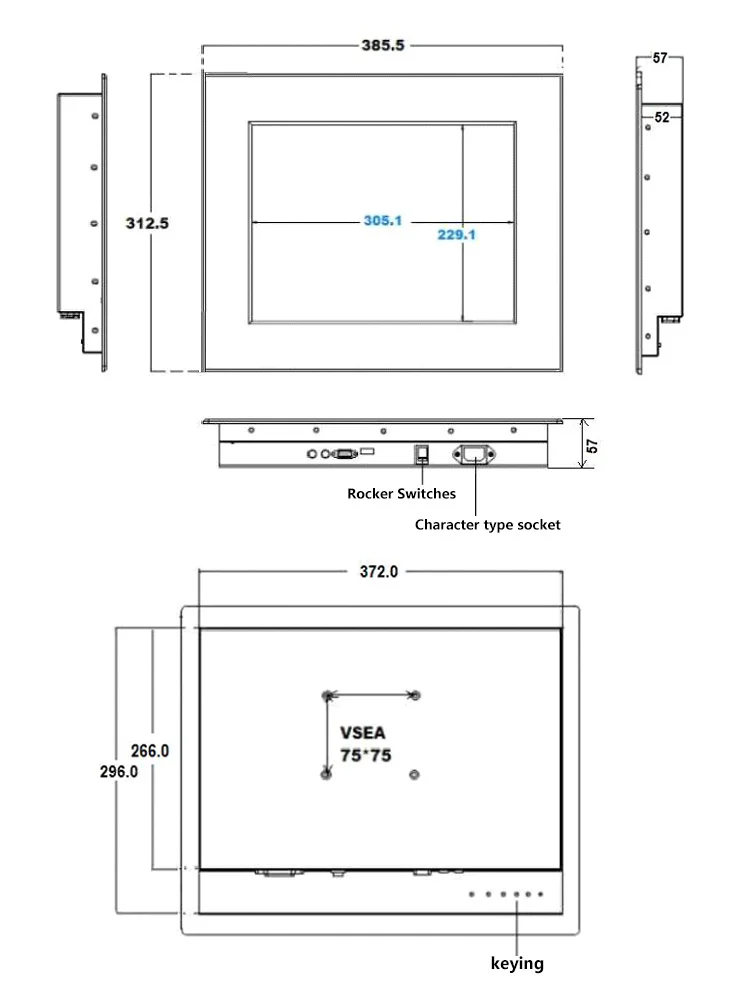

Mechanical Drawing:
Packing and Shipping:
Certificates:

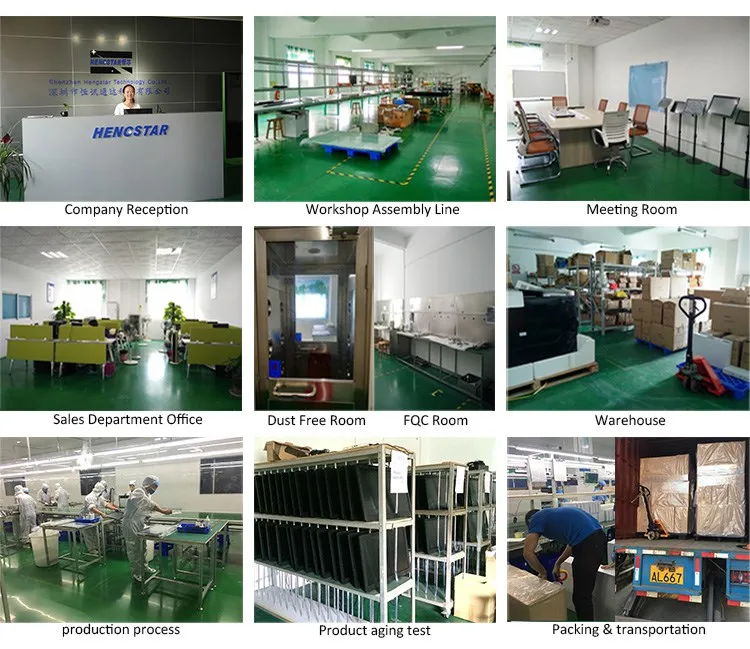

Company information:
FAQ
Q1.Are you manufacturer?
A1:Yes,we are professional manufacturer, which establish in 2004,having 18 years production experience.
Q2.Where is your factory?
A2:Our factory is located in shenzhen City, Guangdong Province with 1500 square meters workshop.
Q3:How is the quality?
All of Hengstar items are industrial and military grade items:
1.Raw material:they are built with military grade components: PCB layer≥ 4/6/9, the plastic case use:ABS+PC, Never use recycled raw materials, the metal case use aluminium alloy, All raw materials comes from supplier chain of Fortune Global 500, such as Avnet, Arrow Electronics,completely control supply chain. Component brand supplier such as Samsung,LG and TI.These material can help to withstand conditions that would cause a consumer grade tablet to fail. The items can be used 24x7 without interruption in harsh conditions.
2.R&D: industrial manufacture processes, each product goes through 56 processes.
3.Production:the quality system strictly according to AQL inspection process.
Q4:How is the service?
A4:After-sales:24 hours online technical services.
Q5: Do you support OEM or ODM?
A5: OEM & ODM are welcomed. We have been offered OEM or ODM service for well-known brands and even the Chinese military.
Q6: Do you have any certificate for your products?
A6: Yes, we have CE, KCC certificate for our products.
