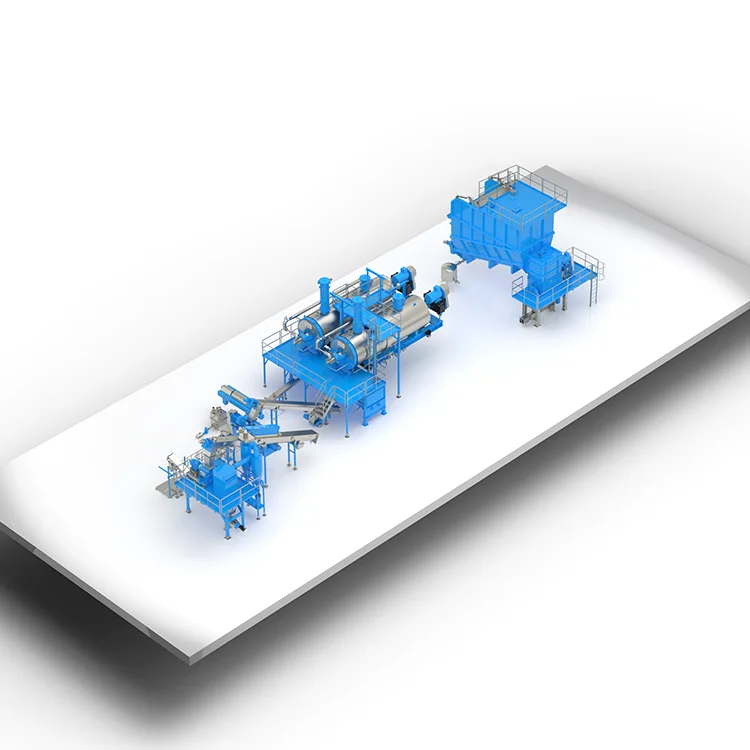

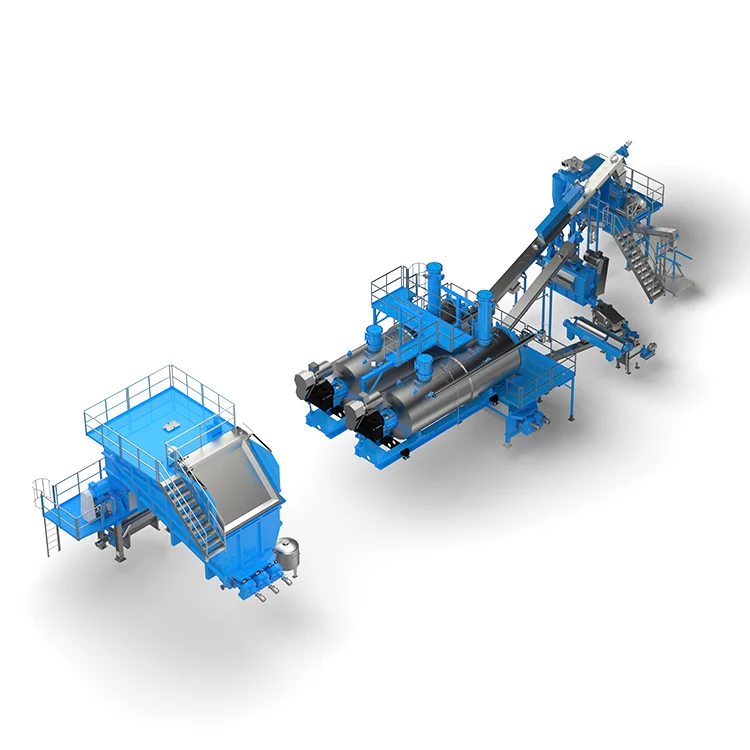

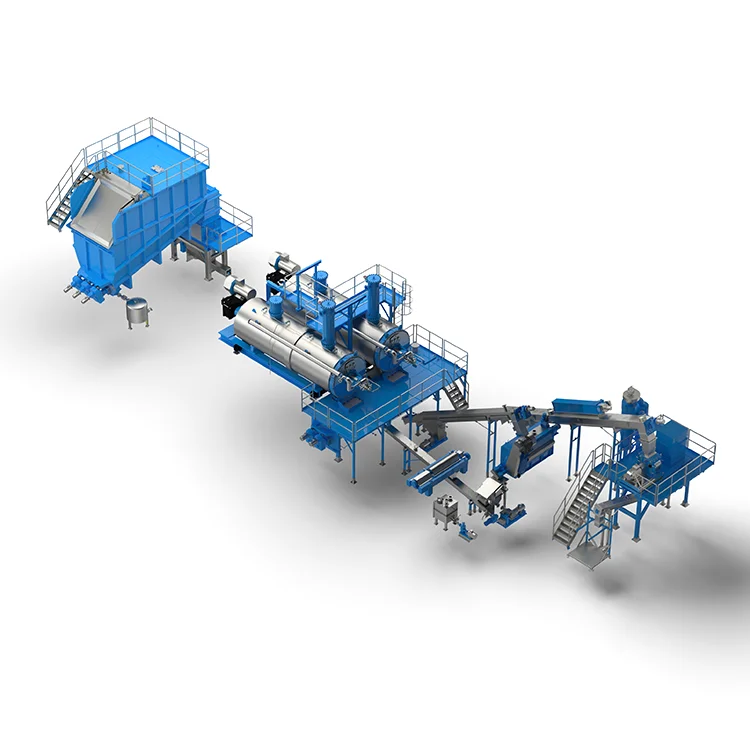

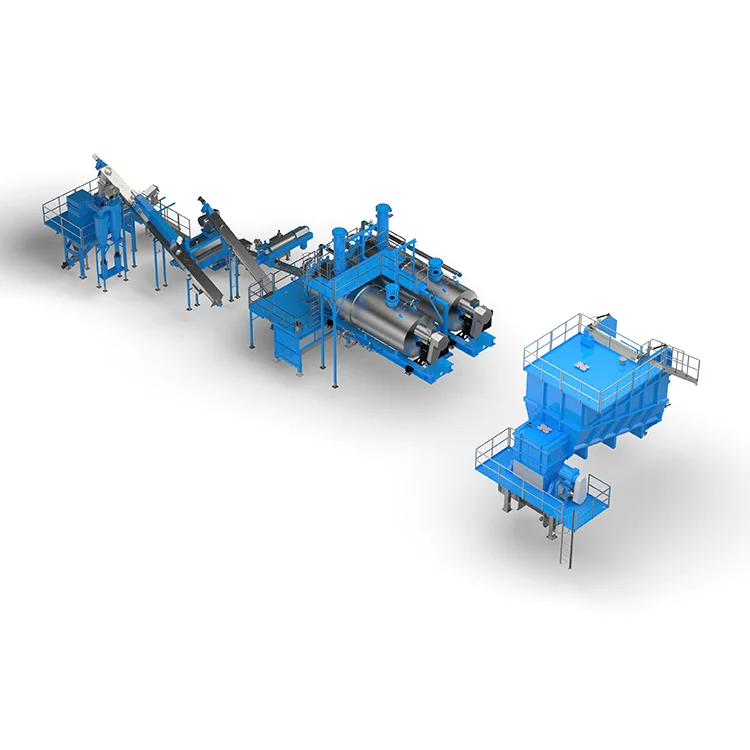

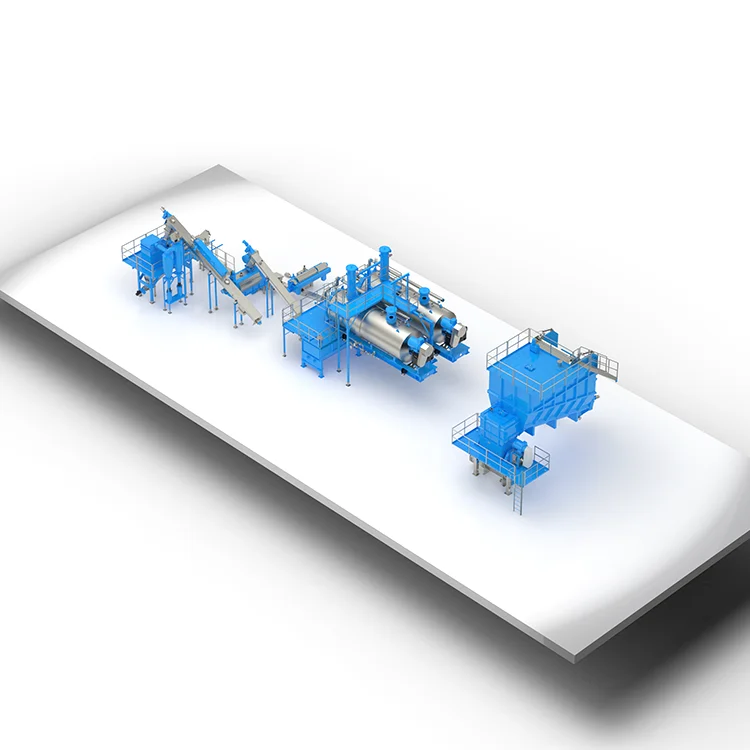

Best Selling Animal Waste Rendering Plant of Chicken Slaughterhouse
- Category: >>>
- Supplier: Jiangsu Sunrise Environmental Protection Technology Co. Ltd.
Share on (1600693713554):
Product Overview
Description
Products Description
How to choose a Rendering Plant
SUNRISE manufactures meat and bone rendering plants for all kinds of animal byproducts. Our plants are among the strongest are among the strongest and most efficient on the market, securing a long and problem free production life for our customers. We manufacture to the highest quality and safety standards and have many satisfied customers where the requirements are particularly strict.
SUNRISE manufactures meat and bone rendering plants for all kinds of animal byproducts. Our plants are among the strongest are among the strongest and most efficient on the market, securing a long and problem free production life for our customers. We manufacture to the highest quality and safety standards and have many satisfied customers where the requirements are particularly strict.

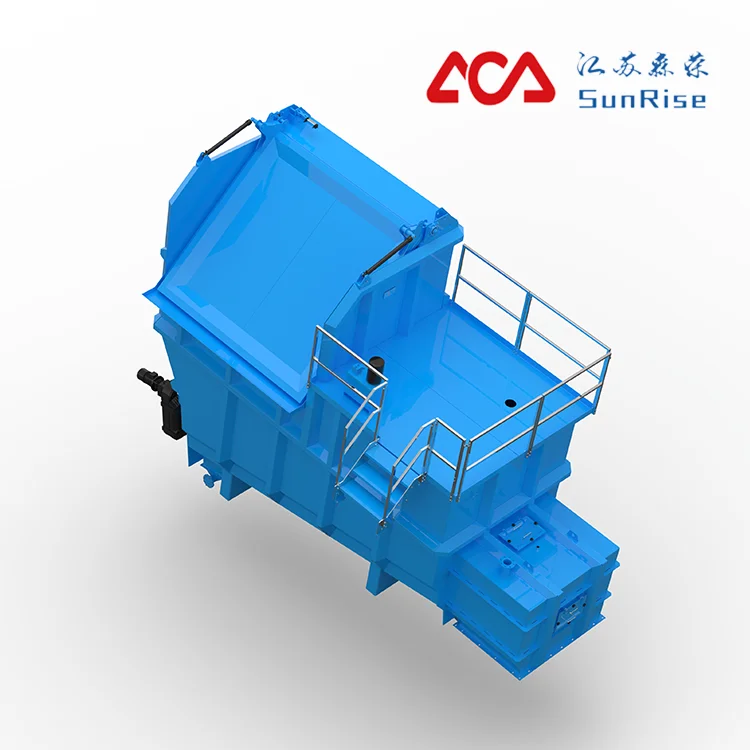

RAW MATERIAL BIN
The SUNRISE raw material bin is the first element of the rendering production line for the storage of feathers, meat, fish offal, fatty tissue, pork, sheep, beef, and poultry. It can be installed above the ground and sometimes for customer requests it is possible to make a bin for underground storage. The raw material is transported with a truck and a special design of the bin allows direct unloading of the material to the bin. Each steel hopper is custom-made according to customer requirements. A load cell system for monitoring the weight of the raw material and automatic hydraulic lids can be installed. We offer versions made of stainless steel or carbon steel.

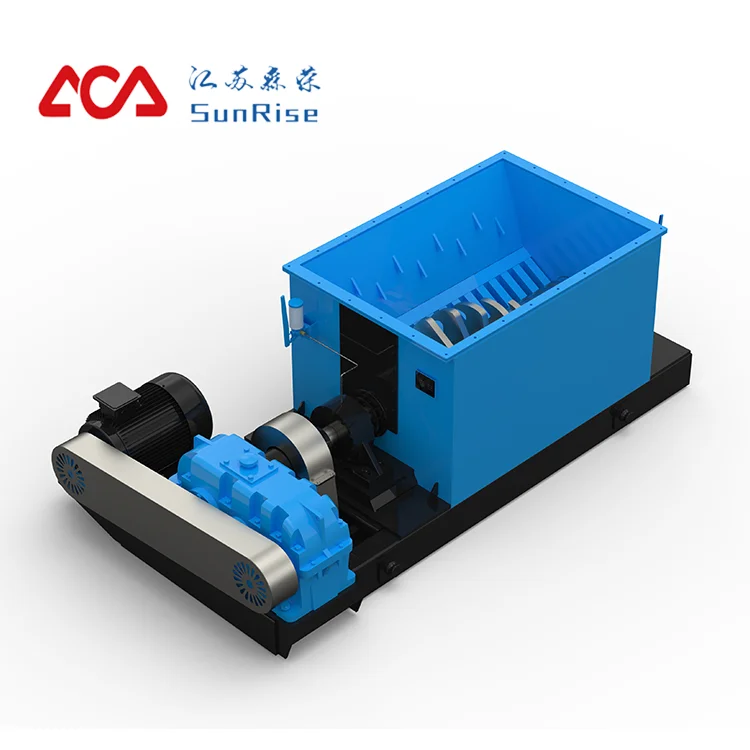

PRE-CRUSHER
SUNRISE pre-breaker is particularly rugged and hardwearing, designed for breaking down complete carcasses as well as all types of offal and bones from meat and poultry slaughterhouses, so they can be used more effectively in rendering processes. Pre-breakers are used for the initial breaking down of input material to particles over 40-50 mm in size. They are ideal as a first stage prior to crushers, enabling you to align these initial steps with overall efficiency requirements for your process, based on particle size. You can select motor size and breaker shaft speed based on the amount of material you need to break down, and the output capacity you require. This helps keep operating costs down.

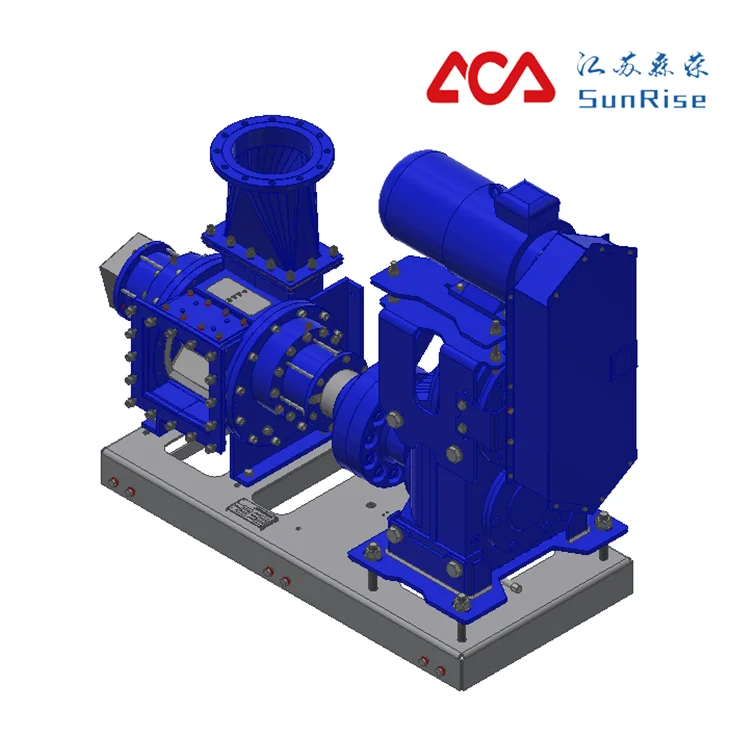

LAMELLA PUMP
If you need to move liquids containing large particles from one point to another – even over distances of as much as 200 meters –the SUNRISE Lamella Pump is ideal. These uncomplicated, extremely robust units are widely accepted as the “gold standard” for pumping meat, fish and poultry material.
This type of positive-displacement sliding vane pump is specifically designed to transfer flows that contain large particles, such as pre-broken animal by-products, pet food or fish, with as little as 20% liquid in the flow. It is ideal for filling all types of cookers and other processing equipment in a closed system that ensures good hygiene and limits odor issues.

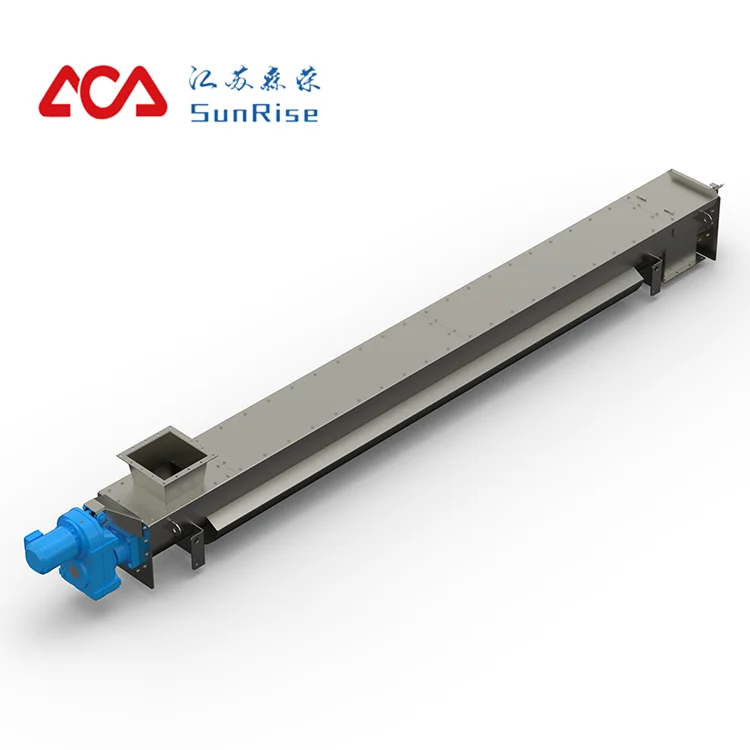

SCREW CONVEYOR
The SUNRISE Screw Conveyor is specially designed to help you move material from one step to the next in your processing setup, coping easily with often-considerable height differences by operating reliably with an incline of as much as 30 degrees. This helps ensure processing continuity and higher overall outputs, by eliminating bottlenecks and “weak links” between the efficiency of individual processes. These screw conveyors are available in stainless steel, mild steel, or a combination of the two, depending on the amounts and the type of material you need to move. 230, 300, 400, 500 and 600 mm screw diameters are available as standard.

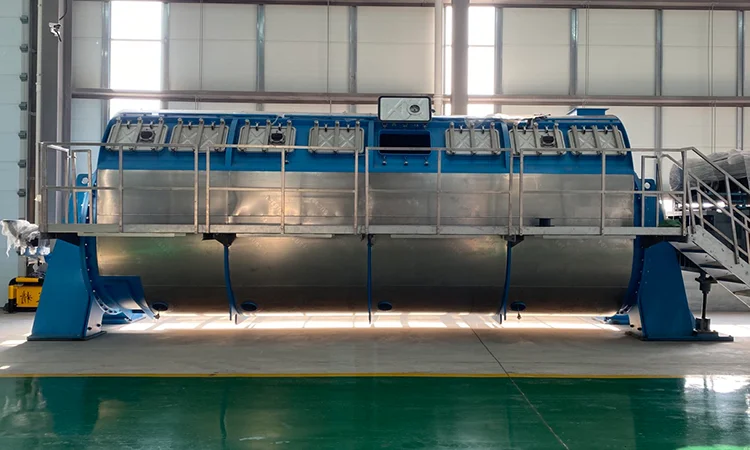

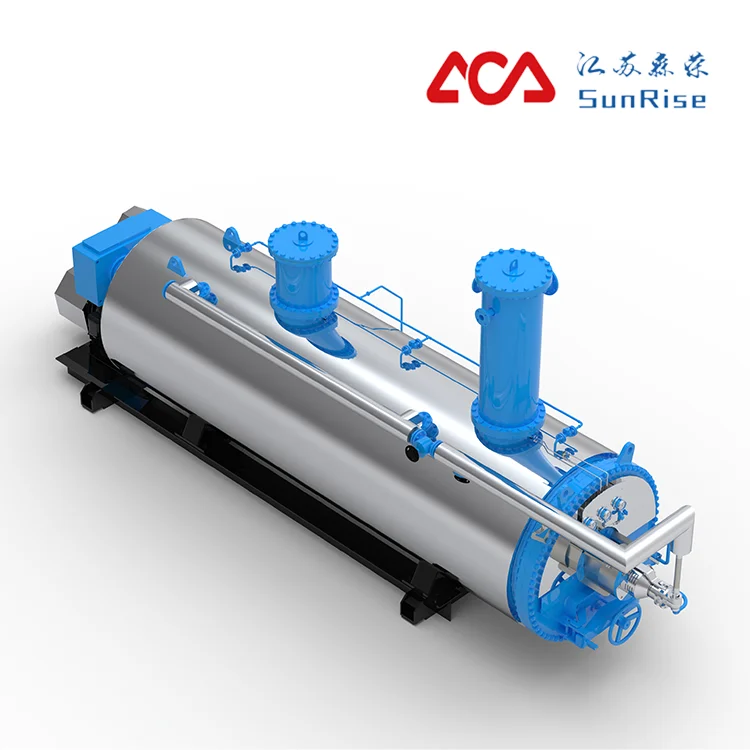

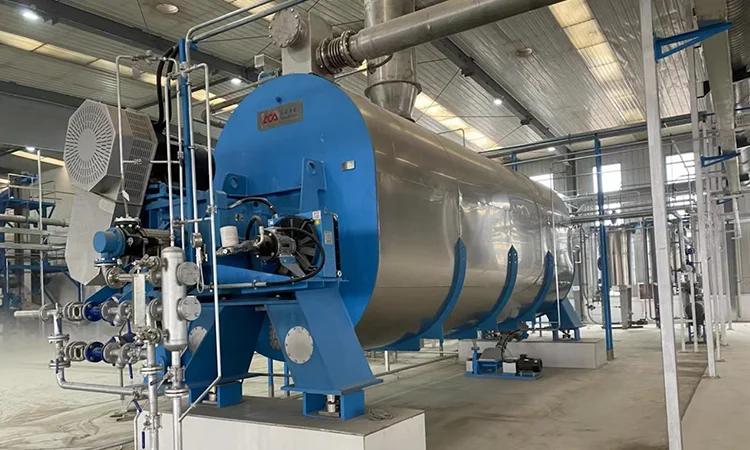

Batch Cooker
Batch cookers are used for the batch cooking process as described in the processing section. The purpose of the batch cooker in the rendering process is to condition, sterilize, hydrolyze and dry the product. If your company renders white meat (poultry), red meat, feathers, blood or a mixture of by-products the batch cooker is the perfect solution for you.
The Sunrise Batch Cooker is quick-to-install unit that you can use for the cooking, pressure cooking, hydrolysis or drying of an exceptional range of animal and poultry by-products. These include mixed meat offal and bones, poultry offal and wet feathers.
The Sunrise Batch Cooker is quick-to-install unit that you can use for the cooking, pressure cooking, hydrolysis or drying of an exceptional range of animal and poultry by-products. These include mixed meat offal and bones, poultry offal and wet feathers.

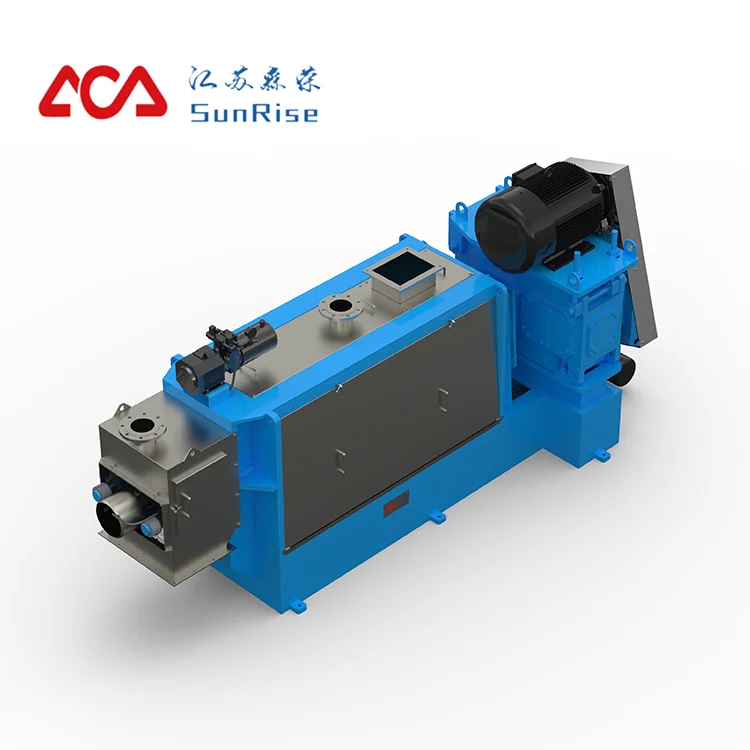

SCREW PRESS
The fat press separates the liquids from the solid by the application of high mechanical pressure. Initially developed to remove liquid fat from unpressed crax in batch rendering plants. After cooking, the raw material is discharged from the Batch Cooker and conveyed by the Drainer Conveyor to the Twin Screw Press. Free liquids percolate out in the Drainer Conveyor, and in the Press most of the remaining fat and water is removed, leaving a cake with a moisture content of 8–12%. The Press and Drainer liquid, consisting of oil, water and a small percentage of the fine solids, is pumped to the Decanter Feed Tank and the Press cake is continuously conveyed to the Drier.

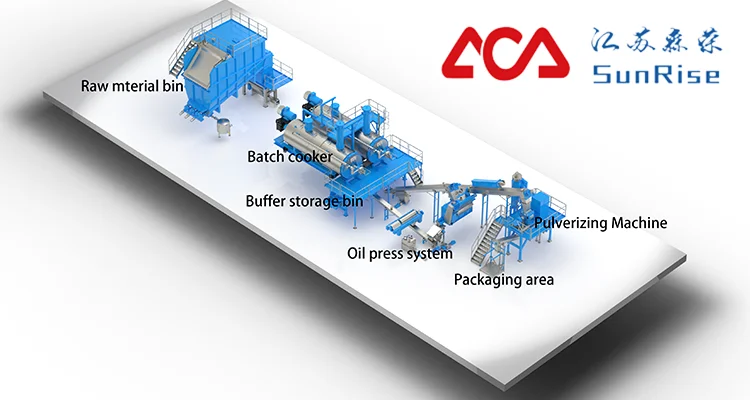

RENDERING PROCESSING POULTRY LIVESTOCK ANIMAL
SUNRISE help you turn co-products from the ovine, bovine, fish, poultry, and cervine industries into high-quality fats, oils and protein meals. Our focus is on high operational performance, fine tuning for energy efficiency, and achieving better quality yields. We solve a range of challenges plants might face through their lifetime as equipment ages, raw materials change, and compliance standards become more stringent.
SUNRISE help you turn co-products from the ovine, bovine, fish, poultry, and cervine industries into high-quality fats, oils and protein meals. Our focus is on high operational performance, fine tuning for energy efficiency, and achieving better quality yields. We solve a range of challenges plants might face through their lifetime as equipment ages, raw materials change, and compliance standards become more stringent.

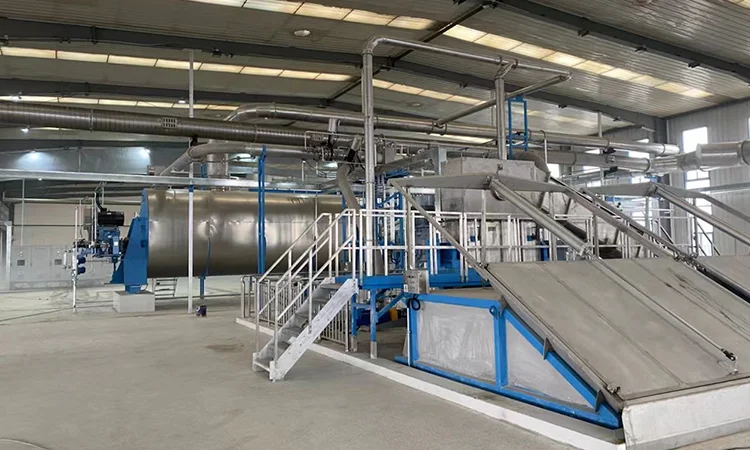

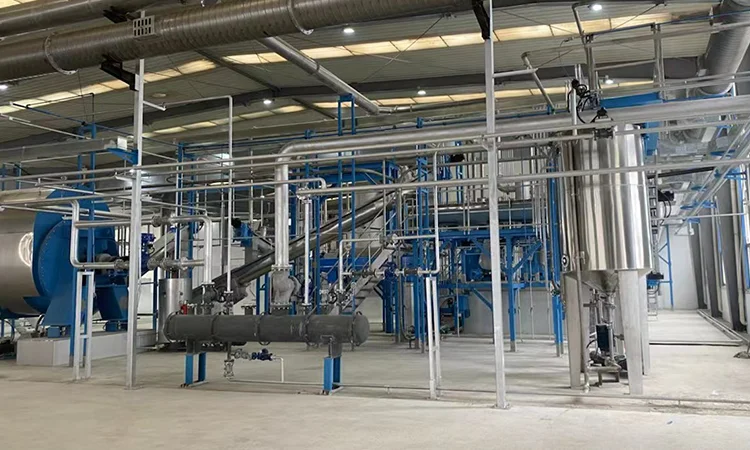

Customer installation site
Brand Name | Sunrise |
Service | Design, installation, commissioning, after-sales, maintenance |
Main material | Steel, Carbon steel, Stainless steel, special steel |
Production time | According to the complexity of equipment and process requirements. |

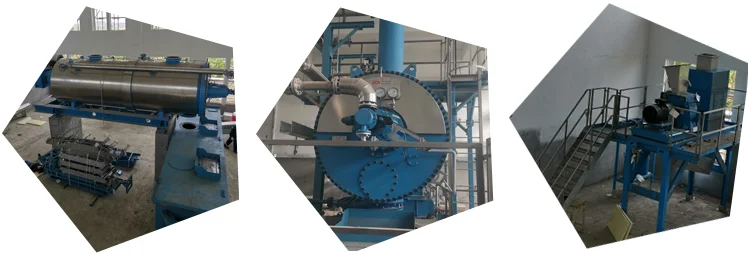

Customer Photos
Raw material handling
Raw material transmission device
Batch processing
Company Profile
Why choose SUNRISE?
SUNRISE specialize in pressure products, using modern technologies and procedures that correspond with the latest standards. Our products have withstood the test of quality over time in the many orders we have received since 2001. Our employees are reliable, with many years of experience in the field. We follow the latest developments in the field through regular professional training.
SUNRISE specialize in pressure products, using modern technologies and procedures that correspond with the latest standards. Our products have withstood the test of quality over time in the many orders we have received since 2001. Our employees are reliable, with many years of experience in the field. We follow the latest developments in the field through regular professional training.
SUNRISE can offer more
SUNRISE offer customized solutions for every client. We also provide complete solutions: from technical drawings to production to complete assembly. It means you can speed up the process as you won’t need to deal with several different suppliers. Our numerous certificates and outstanding references from satisfied clients testify to our wide knowledge and experience.
SUNRISE offer customized solutions for every client. We also provide complete solutions: from technical drawings to production to complete assembly. It means you can speed up the process as you won’t need to deal with several different suppliers. Our numerous certificates and outstanding references from satisfied clients testify to our wide knowledge and experience.
Exhibition
Product packaging
Package according to customer's requirements, or use the most appropriate delivery method based on the size of the product.
FAQ
Q:What are the payment terms?
A:T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
Q:What is the delivery time?
About 45 day after the deposit for most machines
Q:How to pack the machine?
A;Standard packaging
Q:How to install after the machines arriving destination?
A:Our engineer will go to customers site if you need,but need to pay installation fee according to the contract.
Q:What's the capacity you can do?
A:We always produce any capacity depend on customer needs
A:T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
Q:What is the delivery time?
About 45 day after the deposit for most machines
Q:How to pack the machine?
A;Standard packaging
Q:How to install after the machines arriving destination?
A:Our engineer will go to customers site if you need,but need to pay installation fee according to the contract.
Q:What's the capacity you can do?
A:We always produce any capacity depend on customer needs
