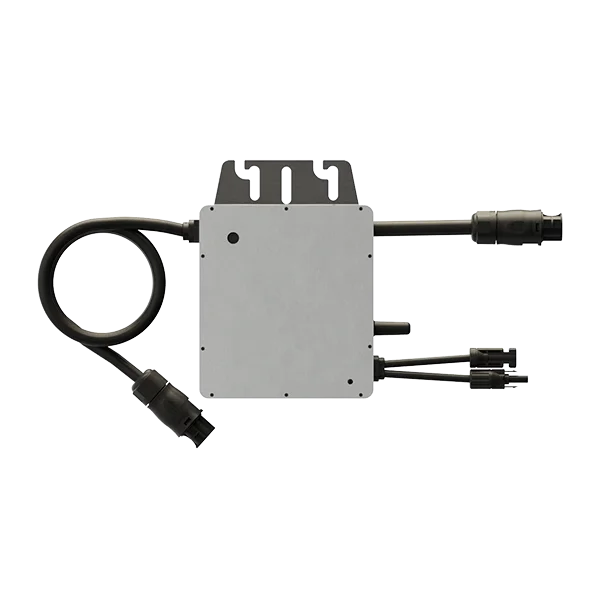

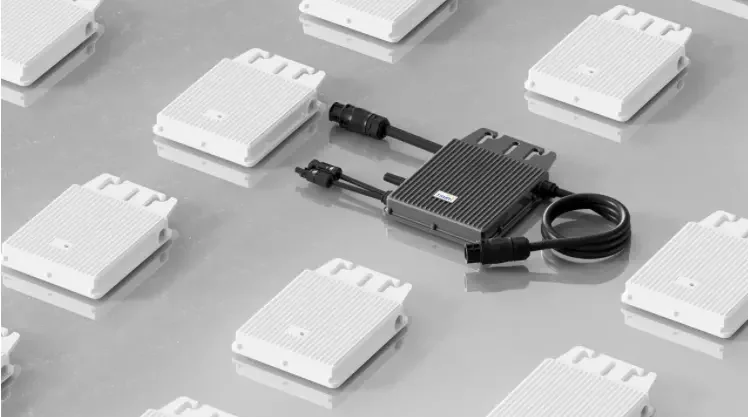

Tsun TSOL M800(DE) 800W Micro Inverter With Max. efficiency Up To 96.7%.
- Category: >>>
- Supplier: Lovsun Solar Energy Co.LtdLovsun Co.Ltd
Share on (1600693754415):
Product Overview
Description
TSOL micro inverter is a plug-and-play device used in photovoltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC).

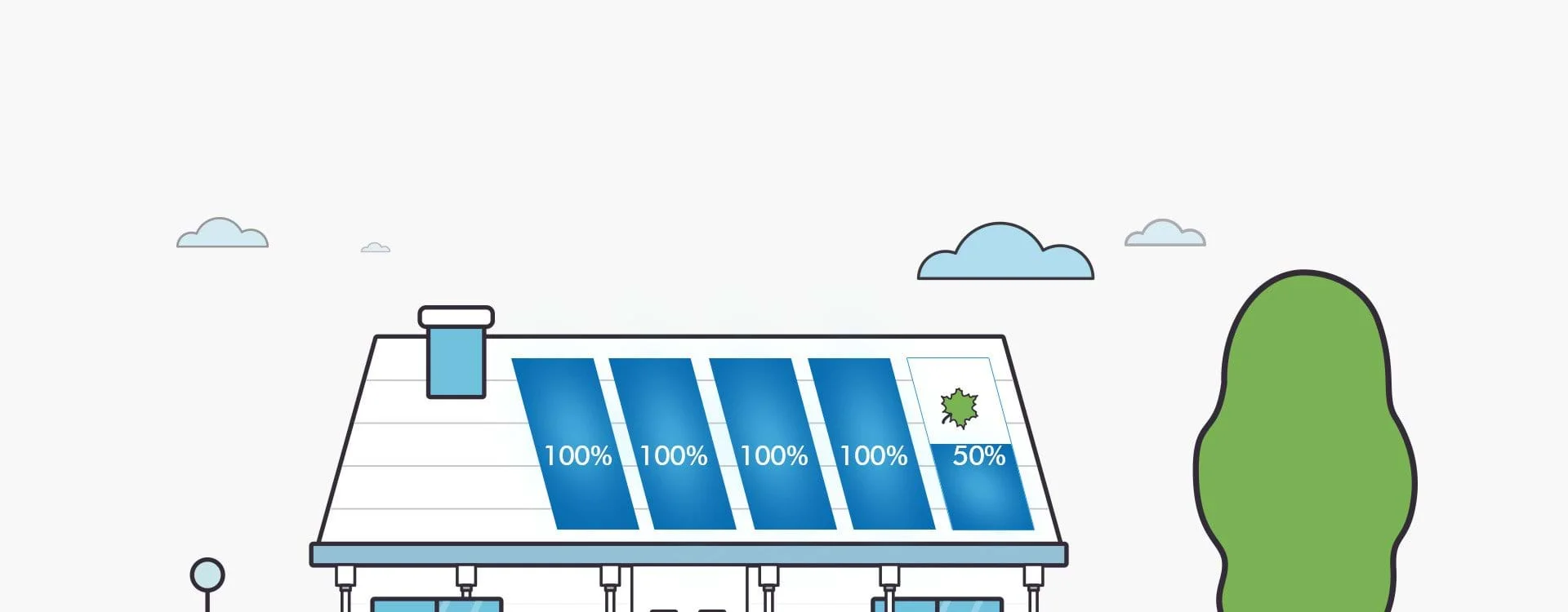

The main advantage is that small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not disproportionately reduce the output of the entire array.
Each micro inverter harvests optimum power by performing maximum power point tracking (MPPT) for its connected module.
Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the micro inverter solution.
The main advantage is that small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not disproportionately reduce the output of the entire array.
Each micro inverter harvests optimum power by performing maximum power point tracking (MPPT) for its connected module.
Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the micro inverter solution.
Dimensions (WxHxD) | 250×170×28 |
Weight [kg] | 3 |

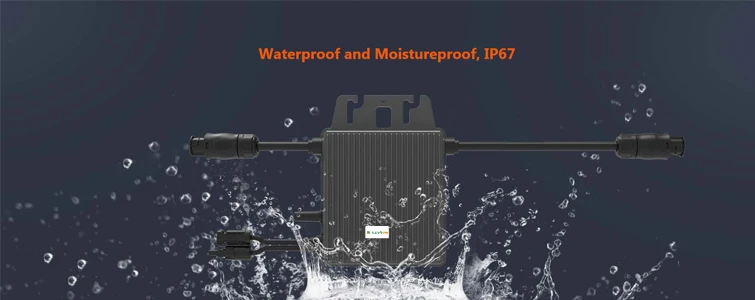

Type of Enclosure | IP67 |
Cooling | Natural Convection |
Max. Operating Altitude Without Derating [M] | 2000 |
Operating Ambient Temperature Range [℃] | -40°C to 65°C |
Operating Internal Temperature Range [℃] | -40°C to 85°C |
Micro Inverter
Technical Data
Model | TSOL-M800 | |
Input(DC) | ||
Recommended Input Power [W] | 2*280-440 | |
MPPT Voltage Range [V] | 33-48 | |
Operating Voltage Range [V] | 16-60 | |
Max. Input Voltage [V] | 60 | |
Max. Input Current [A] | 11.5 | |
Max. Input Short Circuit Current[A] | 15 | |
Output [AC] | ||
Max. Continous Output Power [W] | 700 | |
Nominal Output Current [A] | 3.04 | |
Max. Output Current [A] | 3.19 | |
Nominal Output Voltage [V] | 220/230/240, L/N/PE | |
Nominal Frequency [Hz] | 50/60 | |
Power Factor | >0.99 | |
Output Current Harmonic Distortion | <3% | |
Max. Units Per 20A Branch | 7 | |
Efficiency | ||

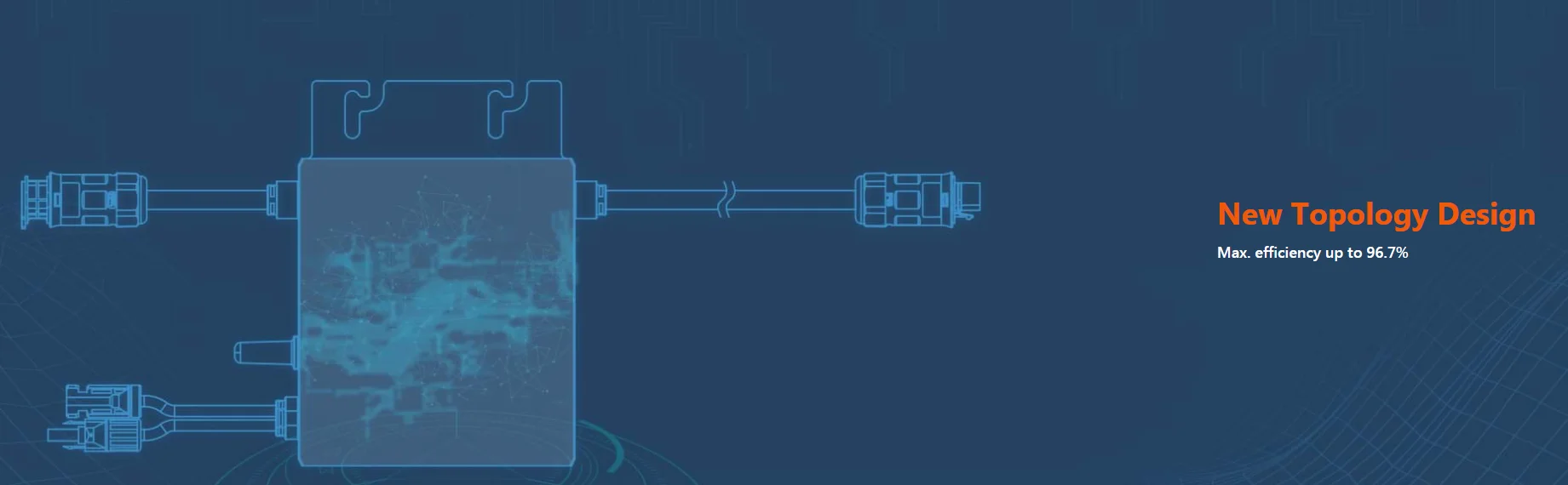

Peak Inverter Efficiency | 96.7% | |
CEC Weighted Efficiency | 96.5% | |
Nominal MPPT Efficiency | 99.9% | |
Night Time Power Consumption [mW] | <50 | |

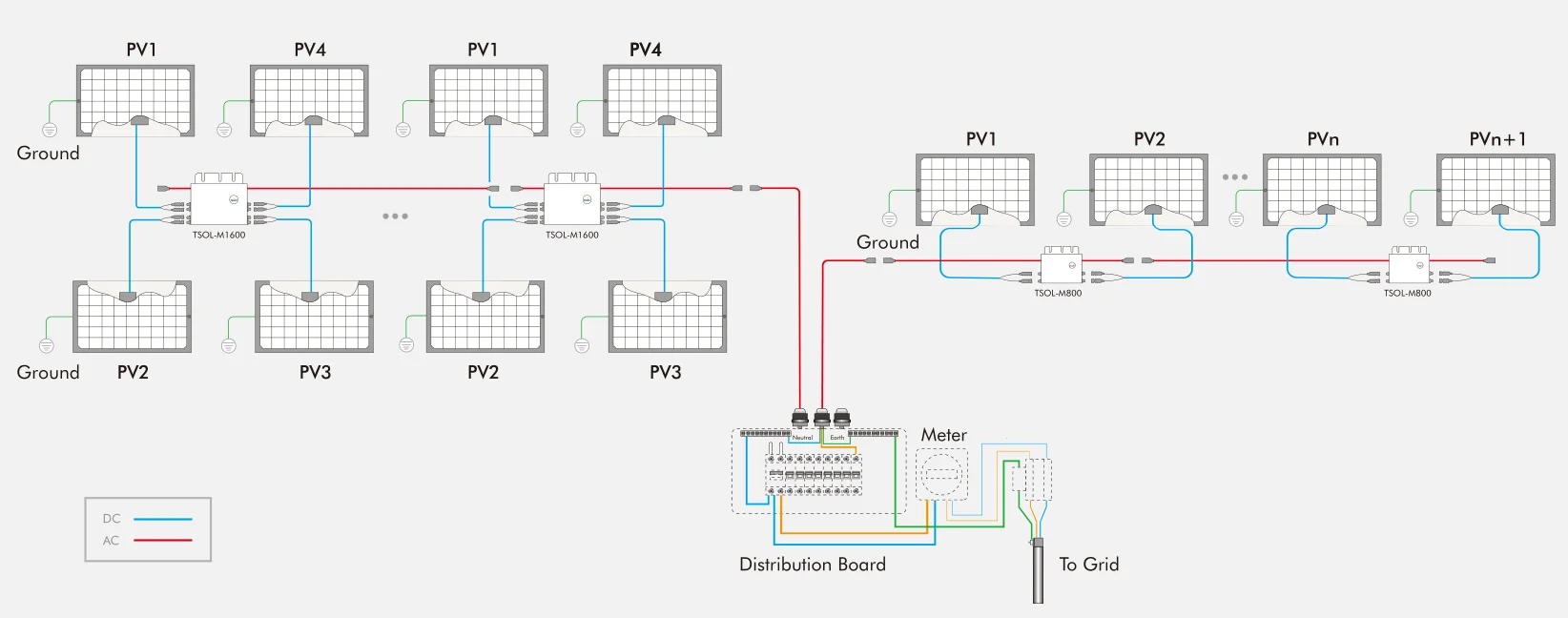

Diagram
Functions
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | ||||
FOB | |||||||
CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | ||||||
CIF | |||||||
L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | ||||||
West Union | |||||||
Paypal | |||||||
Delivery Time | 7~25 days after receiving the payment or the deposit payment | ||||||
