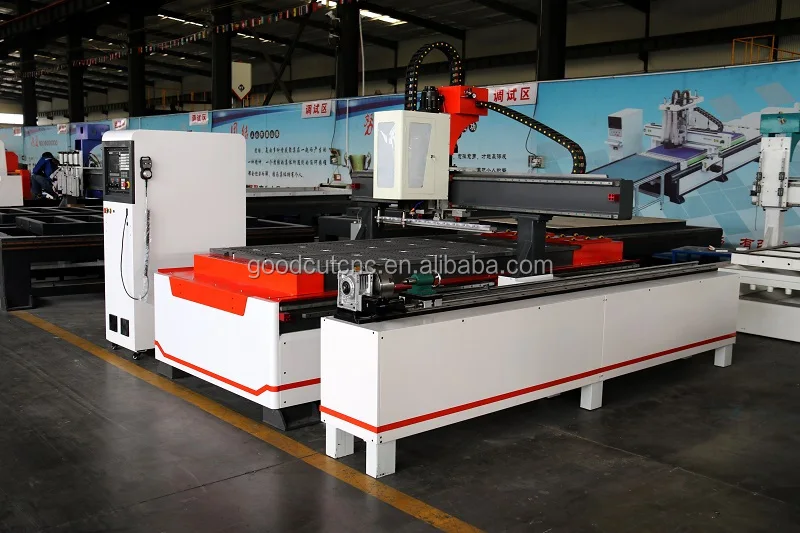

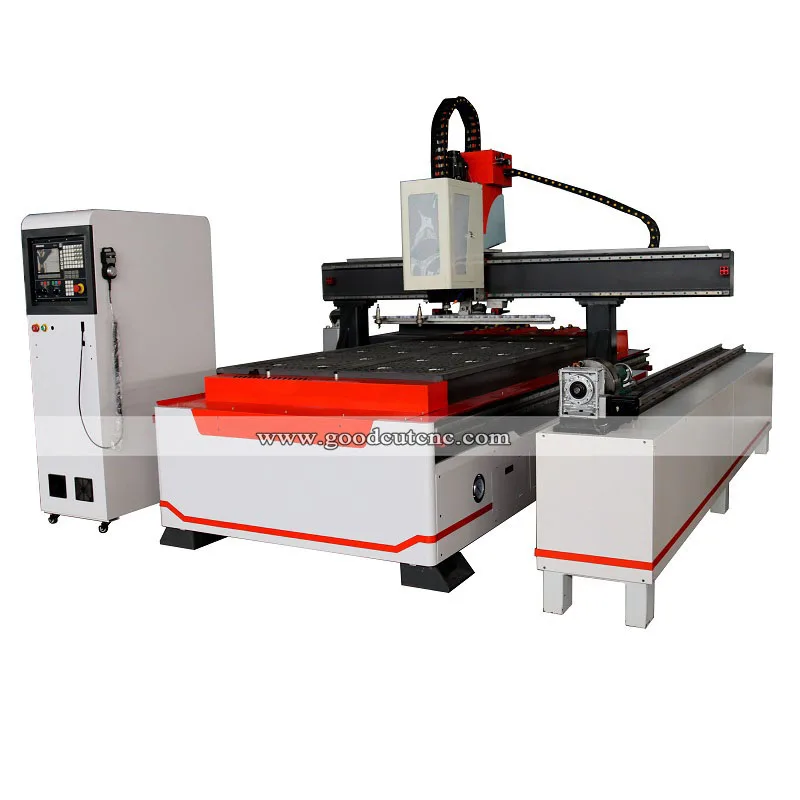

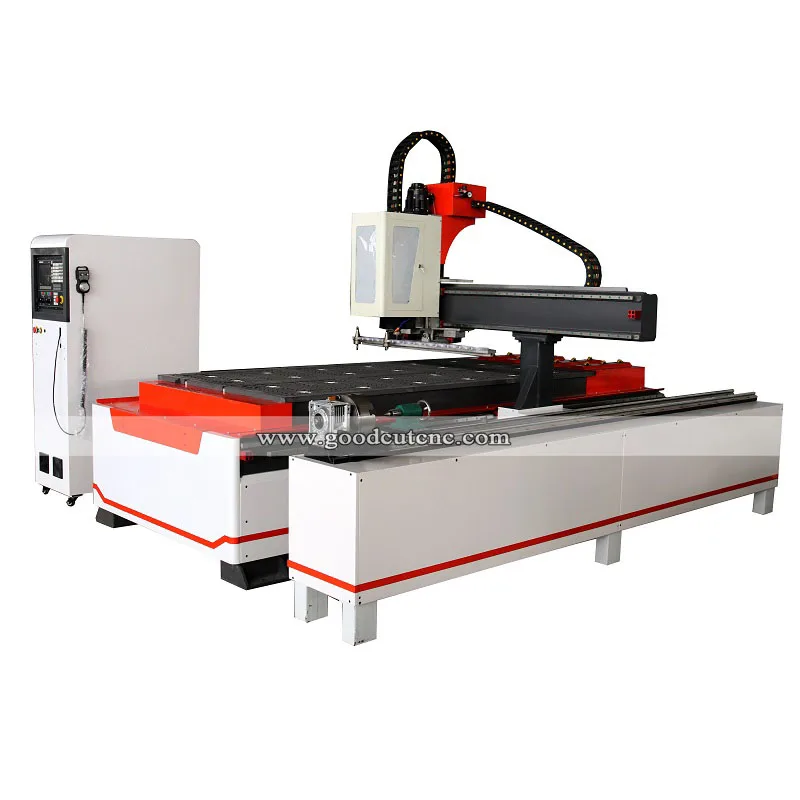

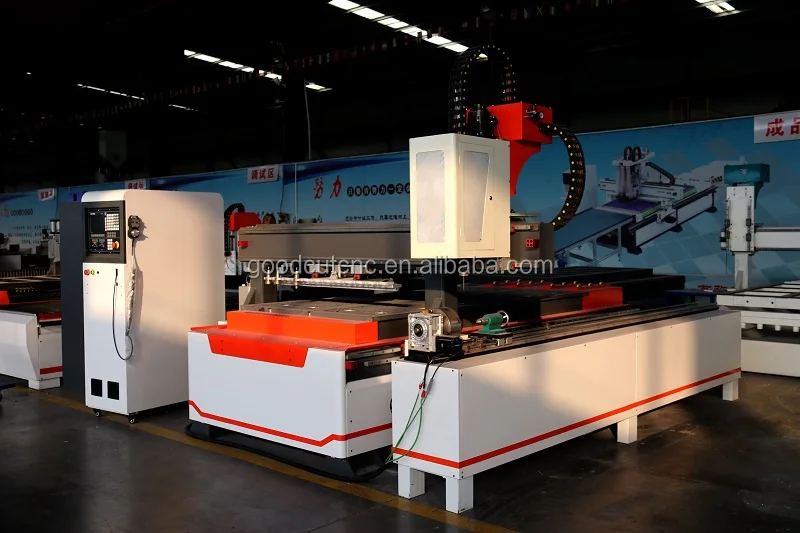

4x8 ft Automatic ATC 3D Cnc Wood Carving Machine 1325 Woodworking Machinery Cnc Router for Sale
- Category: >>>
- Supplier: Jinan Youteng Numerical Control Equipment Co. Ltd.
Share on (1600693801902):
Product Overview
Description
4x8 ft Automatic ATC 3D Cnc Wood Carving Machine 1325 Woodworking Machinery Cnc Router for Sale
Product Description
1.Welded structure by thick profiled steel stabilized under high temperature, ensures ,minimum distortion, excellent rigidity and powerful strength.
2. Vacuum working table optional,with double cavities and Bakelite material with high absorption power.
3.adopt domestic water cooling spindle of big power(option:air cooling spindle) .
4.high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.
Description | Parameters |
X,Y,Z Working Area | 1300*2500*200mm |
Table Surface | Vacuum with T-slot Table , 7.5kw big power vacuum pump |
Frame | Welded Structure |
X, Y Structure | 25mm 30mmHIWIN linear guide, helical rack |
Z Structure | Hiwin Rail Linear guide and TBI Ball Screw |
Rotary device | Yes Diameter can be customized |
Spindle Power | 9kw HQD or Italy HSD air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | 850w Leadshine servo motor and driver |
Working Voltage | AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Command Language | G Code |
Operating System | Weihong NK280 system |
Inverter | 11kw DELTA inverter or Fuling |
Computer Interface | USB |
X,Y,Z repositioning Accuracy | ±0.02mm |
X,Y Resolution | ±0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Lubrication system | Auto |
Tool sensor | Auto |
Dust collector | 5.5kw double packages dust collector |
Reducer | Japanese Shimpo reducer |
Optional parts | Japanese YASKAWA servo motor, Taiwan Syntec 6MB controller Rotary device ± 90 degree swing spindle |
Product Features
1) Weihong control system: Popular and easy operation, with USB port to transfer program;
Taiwan Syntec, Weihong NK260, LNC Control System etc.
2) China Local Brands air-cooling ATC spindle HQD: Long working life, easy maintenance;
3) Taiwan Delta Servo Driving System: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide 30mm and Block: Guaranteed genuine rail with good quality,realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
8) Linear tool magazine, with Tool holders x 12pcs, effectively improve working efficiency.
9) Swing head, 180 degree ratating head.
10) Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector, Rotary device.
Details

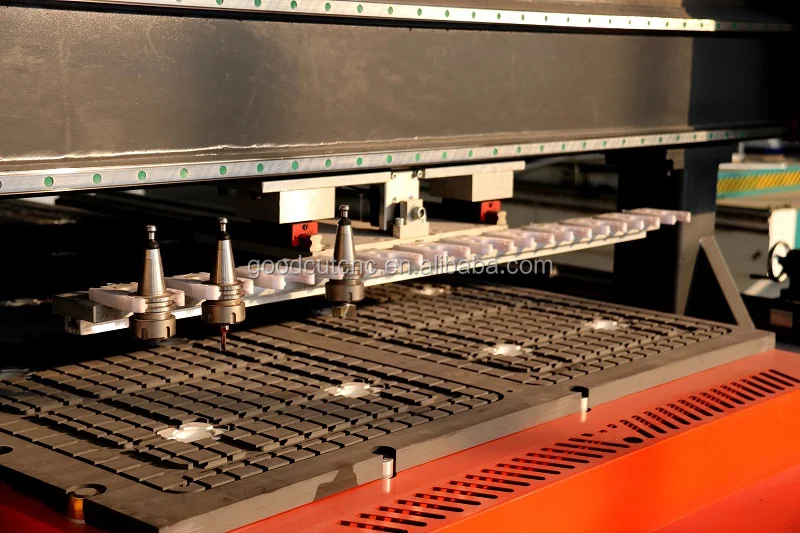

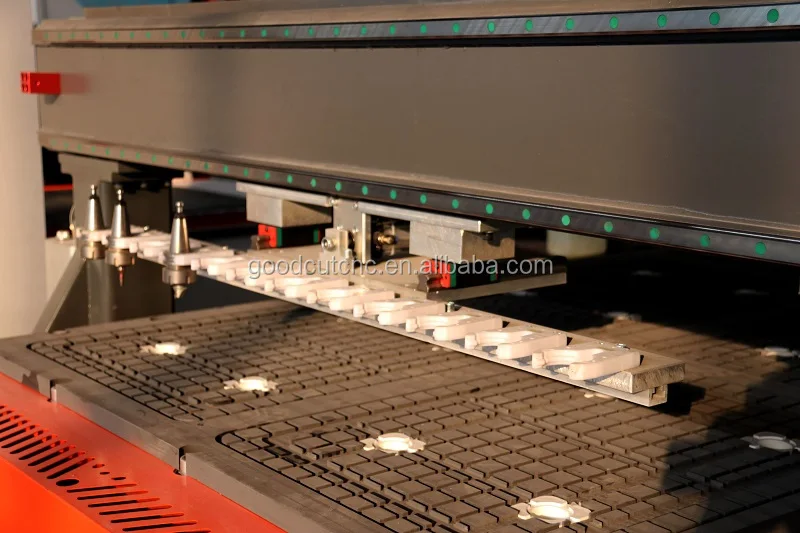

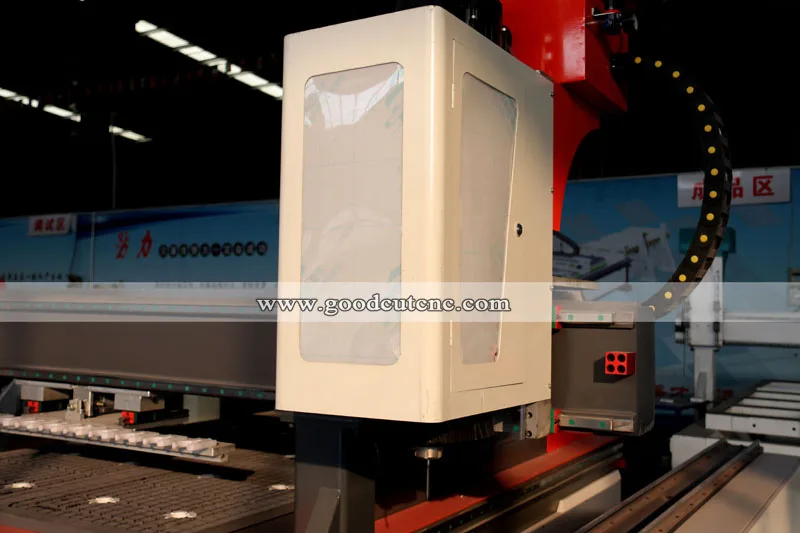

Linear automatic tool changer, has high speed change tool
Spindle
HQD,HSD.Long lifespan, low noise, free maintenance.

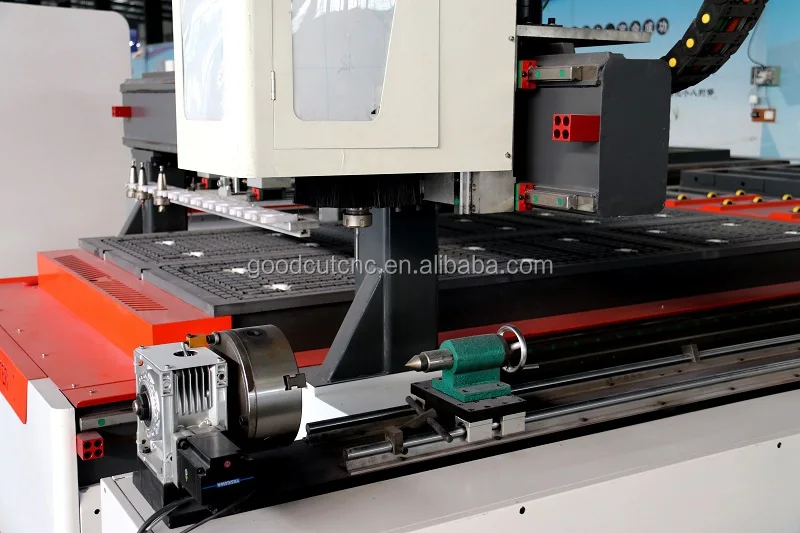

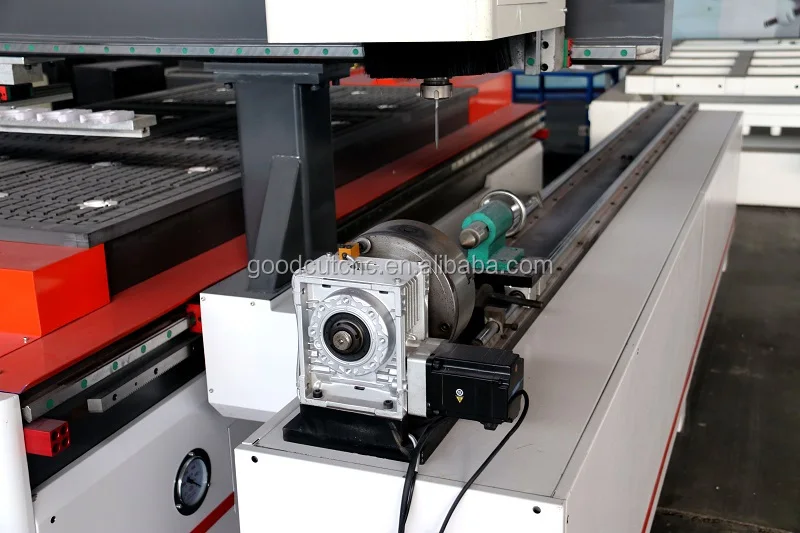

4 axis rotating device

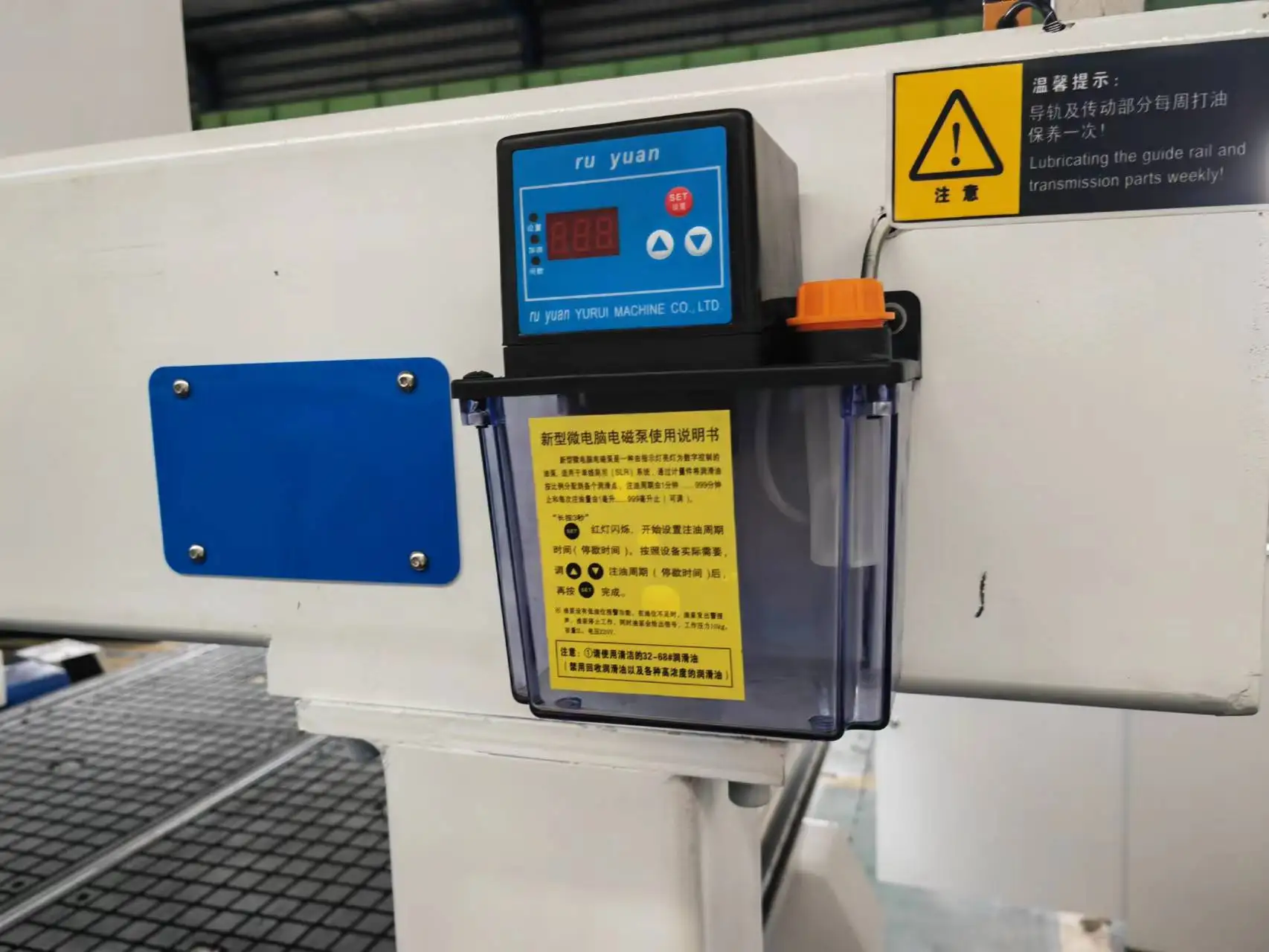

Automatic Lubrication system, keep machine maintance to be more easy

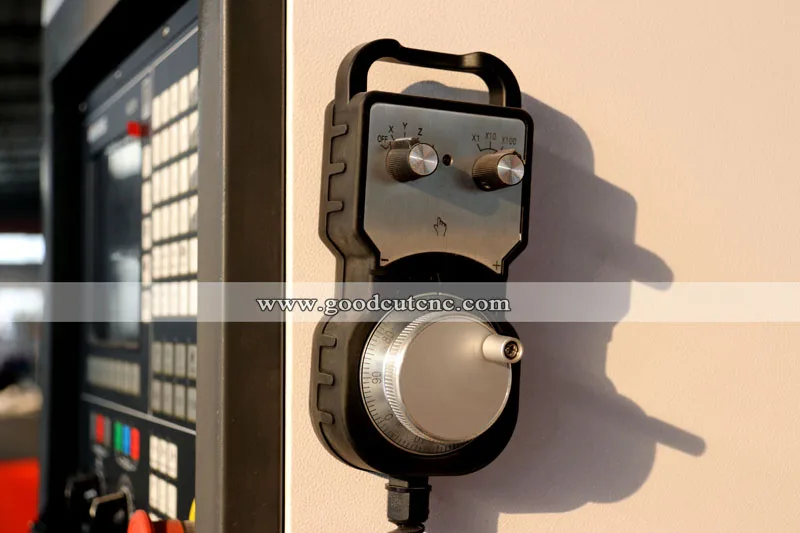

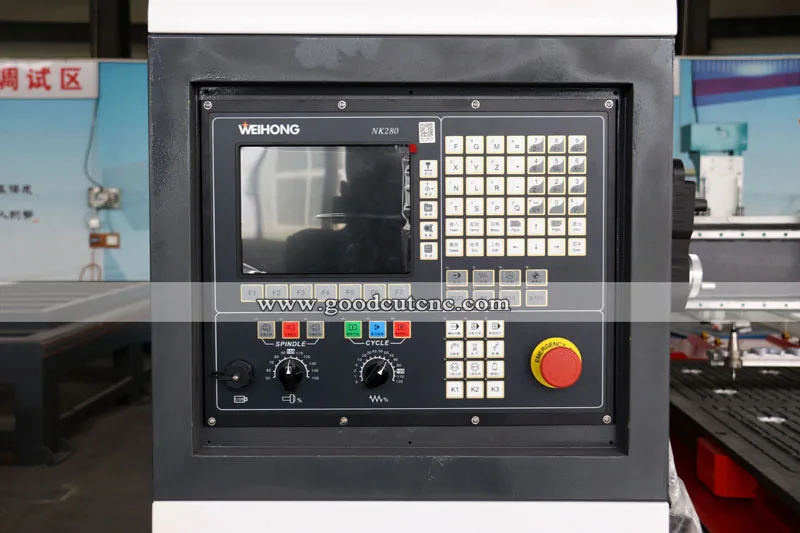

Weihong NK280 control system with handle
Syntec controller for optional
Drive motor

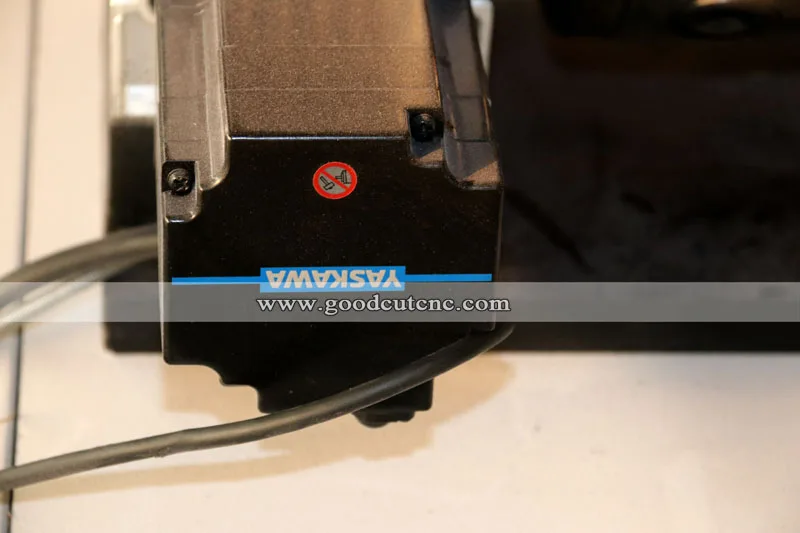

Yaskawa Motor Driver
Inverter
Taiwan Delta Inverter / Fuling Inverter
Guide Rails
HIWIN Guide Rail.Fast running speed and strong bearing capacity.
CNC Frame
Heavy duty frame.
Dust collector:

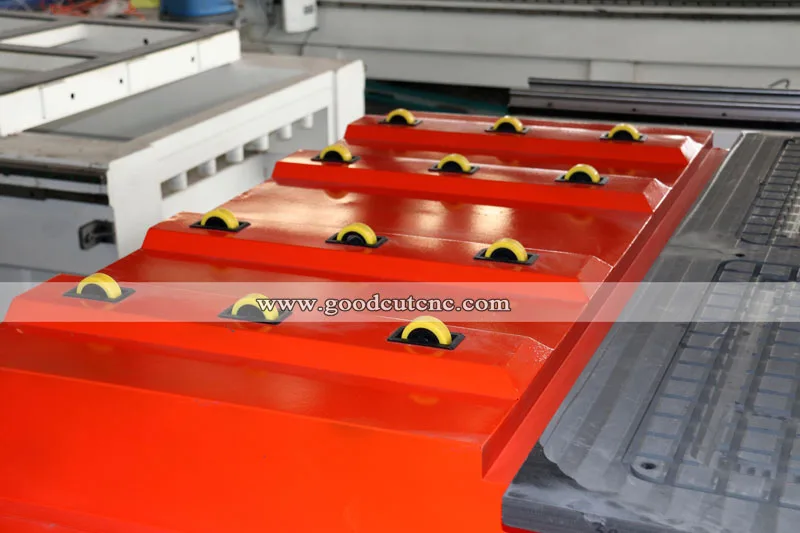

Feeding wheel
Advantages
1) Reliable and durable: all the machine parts have guaranteed quality, for example, Taiwan Syntec control system, air cooling spindle, Taiwan Hiwin linear rails, Becker Vacuum pump, Taiwan Delta inverter and Taiwan TBI ball screw etc, to keep the machine in best condition even after working for many years.
2) Long-time working time with high precision and high efficiency: Welded square tube structure, anti-deformation, strong and relaible; Imported high-precision ball screw; High-performance driven motor; Working with dust hood on all three axis, which can stop dust away from the rails and ball screws, and to keep the machine working for longer time.
3) Humanized and beautiful designing: with attractive color and curvings in cosideration of convenient user operation at the same time.
4) Safe and high efficiency: Double limit protection in avoid of excessive machining; Unique preservation way of the zero point. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
5) Easy operation and low maintenance cost: gdesign and top quality accessories to minimize the machine’s failure rate
6) Many optional configuration available.
Applications
Wood furniture industry
Doors, Cabinets, Tables, ChairsWave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry
Signage, Logo, Badges, Display board, Meeting signboard, Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry
A sculpture of copper, aluminum, iron, and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, and other non-metallic mold.
Artwork and Decoration
woodcrafts; gift box; jewelry box etc
Processing material
engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
