Single/Three Phase IGBT Type Voltage Stabilizer Regulator active voltage conditioner in low voltage distribution system
- Category: Voltage Regulators\/Stabilizers >>>
- Supplier: Yiyen,Electric,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

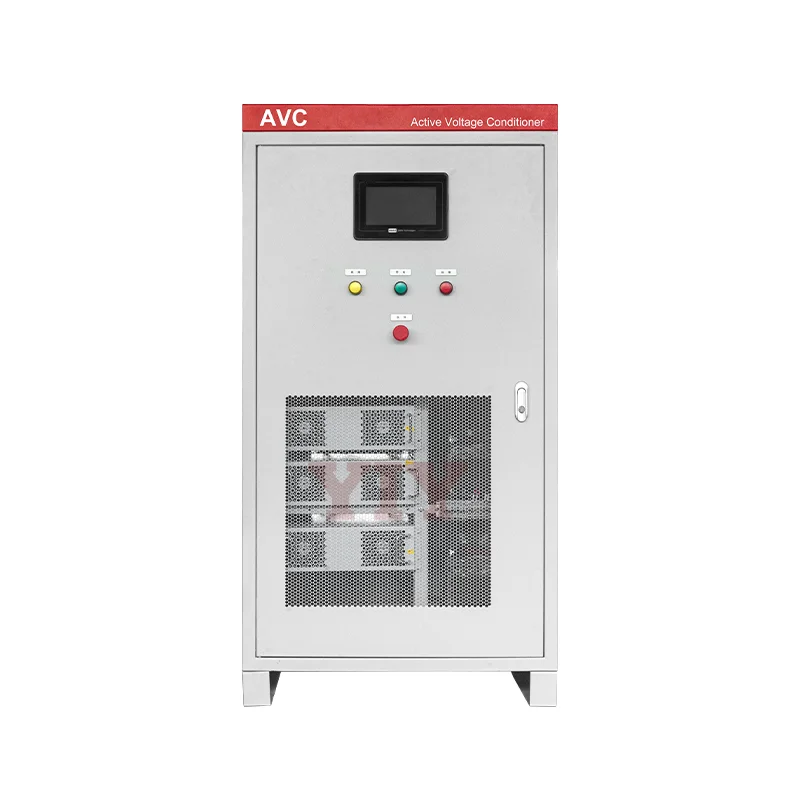

Single/Three Phase IGBT Type Voltage Stabilizer Regulator active voltage conditioner in low voltage distribution system
◆Voltage Sag Correction
◆Surge Correction
◆Continuous Voltage Regulation
◆Load Voltage Compensation
〓 Features 〓

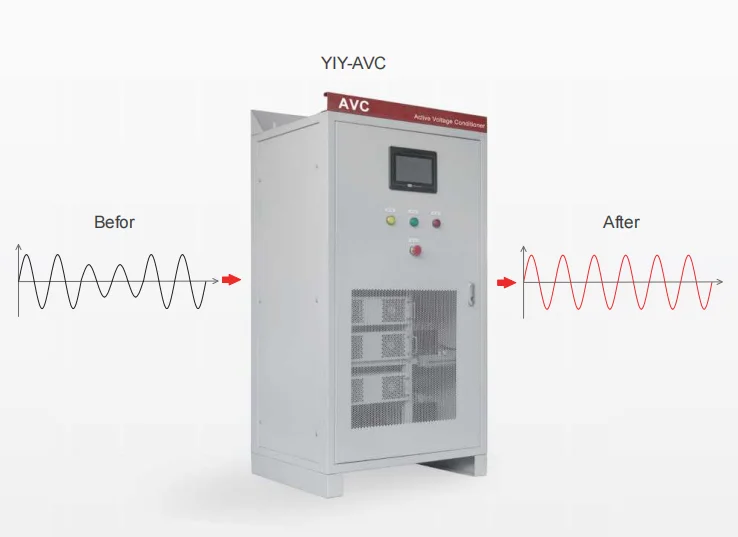

The YIY-AVC is an inverter based system that protects sensitive industrial and commercial loads from voltage disturbances.Providing fast,accurate voltage sag and surge correction as well as continuous voltage regulation and load voltage compensation.The YIY-AVC has been optimally designed to provide equipment immunity from power quality events on the supply network.
〓 Working Principle 〓
▶The YIY-AVC consists of two converters that are not on the current path between the load and the utility. Instead,the corrective voltage injection is achieved by means of a transformer winding between the utility and the sensitive load.This configuration results in a very efficient and effective method to provide voltage correction with reduced risk of negative impacts on the load.
▶The YIY-AVC requires no batteries as it draws the additional energy required during sag to make up the correction voltage from the utility supply.With no ongoing maintenance costs typically associated with batteries the cost of ownership for YIY-AVC systems is very small.
▶Furthermore,the YIY-AVC contains a redundant internal bypass system that,in the event of overload or internal fault condition,ensures that the load is continued to be supplied from the utility.
▶The YIY-AVC requires no batteries as it draws the additional energy required during sag to make up the correction voltage from the utility supply.With no ongoing maintenance costs typically associated with batteries the cost of ownership for YIY-AVC systems is very small.
▶Furthermore,the YIY-AVC contains a redundant internal bypass system that,in the event of overload or internal fault condition,ensures that the load is continued to be supplied from the utility.
〓 Operational Detail 〓

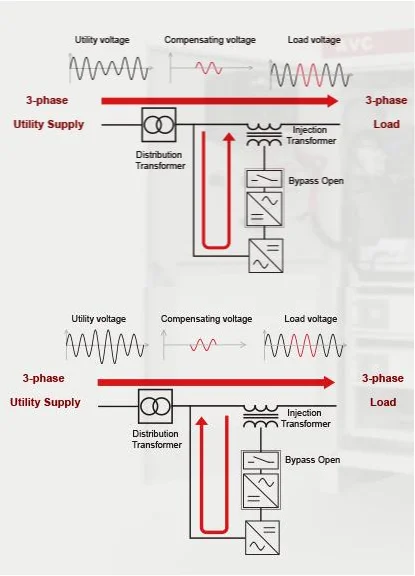

The following diagrams show the YIY-AVC operation when a utility disturbance occurs, and operation of the internal bypass.
Utility Voltage Close to Nominal Level
When the utility voltage is close to nominal level, i.e. typical utility supply conditions without sags or surges, the PCS100 AVC-40 is only adding small corrections for utility voltage unbalance or load induced voltage variation.
Internal Bypass Operation
In the case of an overload or internal fault condition the internal bypass circuit will shunt the inverter side of the Injection Transformer, bypassing the inverter and effectively providing a direct connection from the utility supply to the output, without interruption to the load.
Utility Disturbance Occurs
When the utility voltage deviates from nominal or the set point due to a power quality event, the inverter will inject a correcting voltage via the Injection Transformer.The correcting voltage level based on the disturbance level and the enemy needed for correction is sourced from the utility via the PCS100 AVC-40 rectifier.
Diagrams on the left show cases with utility voltage below and above nominal level.
Application
Specification
Item | Tech. Spec . | ||||||
Power Capacity | Single Phase : 10KVA-1800KVA | ||||||
Three Phase : 30KVA-3600KVA | |||||||
Utility Input | Power System | Three Phase 380V+V(3P4W)3Phase+Neutral(4-Wire) | |||||
Range | 220V-application range 187-253V 380V-application range 325-440V | ||||||
Max Supply Voltage | 130% | ||||||
Frequency | 50Hz/60Hz ±5Hz | ||||||
Outage-Control Ride Through | 600ms | ||||||
Harmonics2 | THDv＜ 3% | ||||||
Output | Voltage | To match nominal input voltage 3 | |||||
Regulation Mode | contactless | ||||||
Equivalent Series Impedance | ＜4% (model specific) | ||||||
Control Model | independent control on each phase | ||||||
Partial Correction Derating Conditions | 1.0PF at 80% load ,0.8PF at 100%load | ||||||
Power Factor | 0 lagging to 0.9 leading | ||||||
Crest Factor | 300% | ||||||
Overload Capacity From 100%Supply Volte | 150%for 21S , once every 500S | ||||||
Performance | Efficiency | Typically 95% | |||||
Sag Correction Response | Initial 250ps Complete 1/2 cycle | ||||||
Voltage Regulation Aaauracy | 0.5% typical , 2%max | ||||||
Continuous Regulation Range | 10% | ||||||
Sag Correction Performance 5 Three Phase Sags Single Phase | 60% to 100% for 30s ,50% to 90%for 10s ,40%to 100%for 30s | ||||||
Partial Correction Derating Conditions6 | 1.0PF at 80% load /0.8PF at 100%load | ||||||
Internal Bypass | Capacity | 100% of model rating (kVA) | |||||
Maximum Overload Capacity (in bypass) | 125% for 10 minutes / 150% 1 minute / 500% for 1s / 2000% for 200 ms | ||||||
Transfer Time | To Bypass ＜ 0.5 ms / To Inverter ＜250 ms | ||||||
Equivalent Series Impedance | Bypass ＜2.5% typical | ||||||
Injection Transformer | Transformer Type | Dry | |||||
Insulation | IEC 60085 Thermal class 200 | ||||||
Frequency | 50 Hz / 60 Hz | ||||||
Vector Group | Diii (delta + 3 independent windings) | ||||||
Protection | Input over/low voltage protection/output over/low voltage protection, input over current protection, TX over heat protection, output overload protection etc. | ||||||
Display | 7 inch Touch screen | Parameter control, power info, display, fault log, history curve line, etc. | |||||
Environmental | Operating Temperature Range | 0° C to 50° C (32° F to 122° F) | |||||
Temperature Derating | Above 40° C, derate at 2% load per °C to a maximum of 50° C | ||||||
Operating Altitude | < 1000 m without derating | ||||||
Derating with Altritude | 1 % every 100m above 1500m. 2000m max | ||||||
Inverter Cooling | Forced ventilation | ||||||
Transformer Cooling | Natural convection | ||||||
Humidity | < 95%, non-condensing | ||||||
Pollution Degree Rating | 200% | ||||||
Noise | < 75dBA @ 2 m | ||||||
Working Temperature | -25 ~ +45°C | ||||||
Storage Temperature | -30 ~ +70℃ | ||||||
IP Grade | IP20 | ||||||
