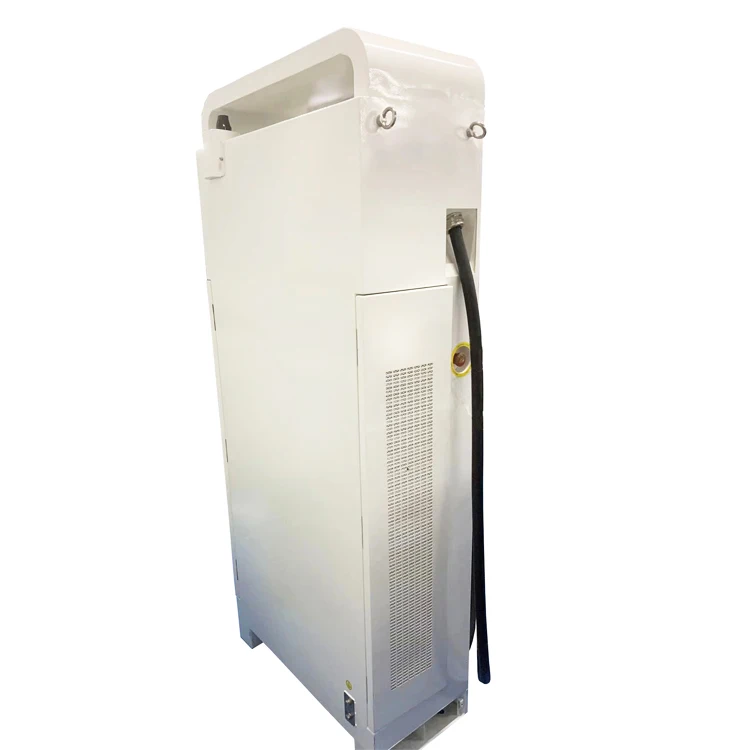

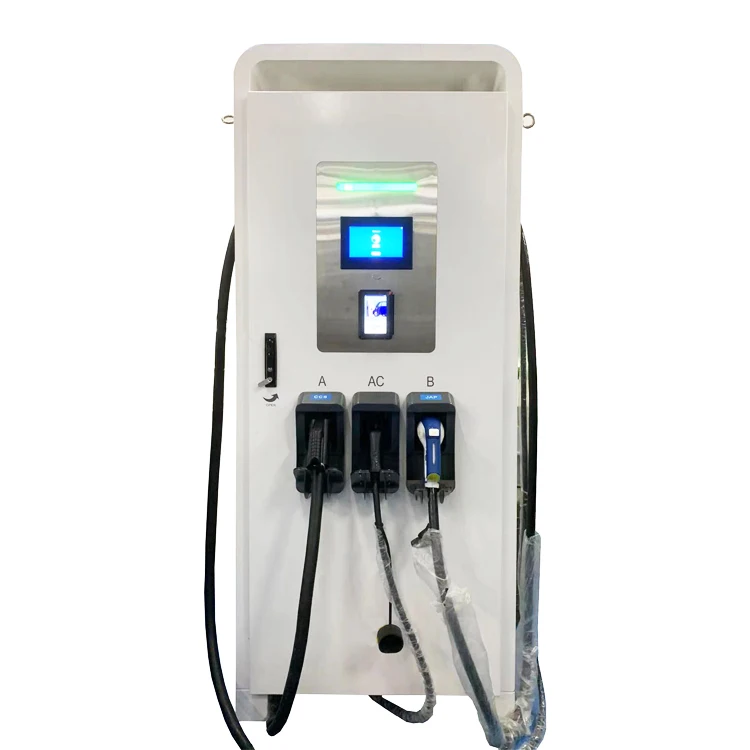

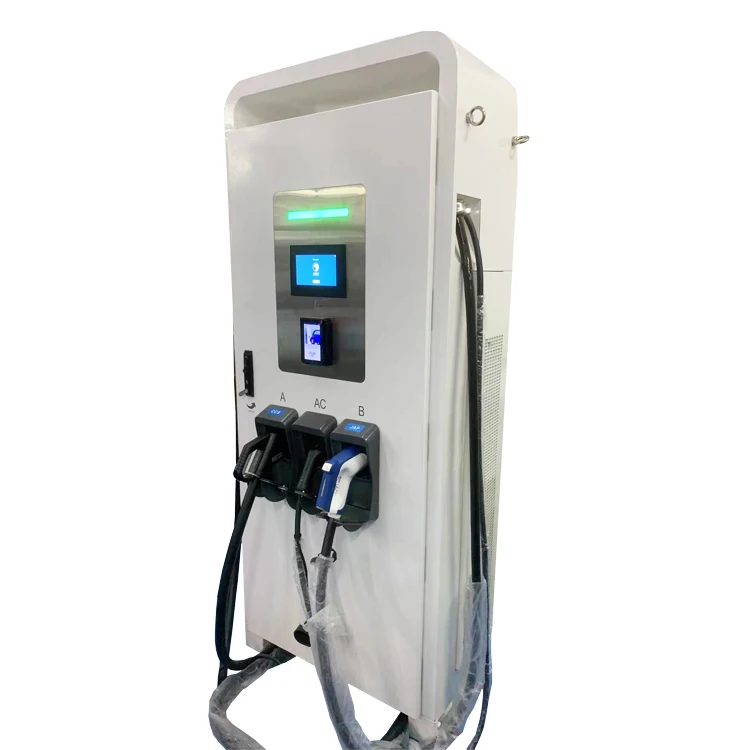

Big Bus Truck GB/T 240kw EV DC Fast Electric Car Charging Station
- Category: >>>
- Supplier: Shenzhen E-Zonda Energy Co. Ltd.
Share on (1600694028071):
Product Overview
Description
EV Charger Manufacturers Integrated AC+DC 60kw 120kw
Product Paramenters
Product Key Features

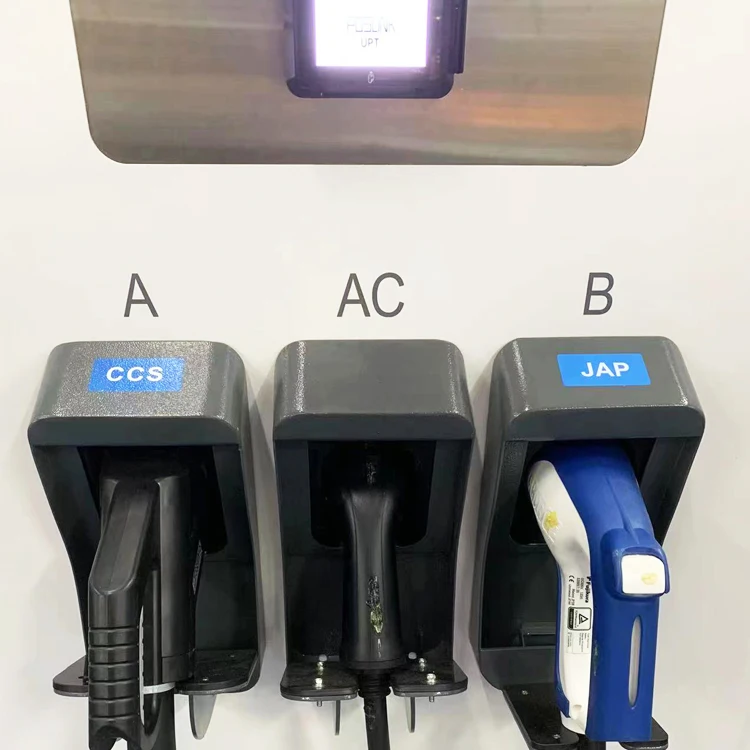

AC & DC Integration
One charger with three outputs, simultaneously charging

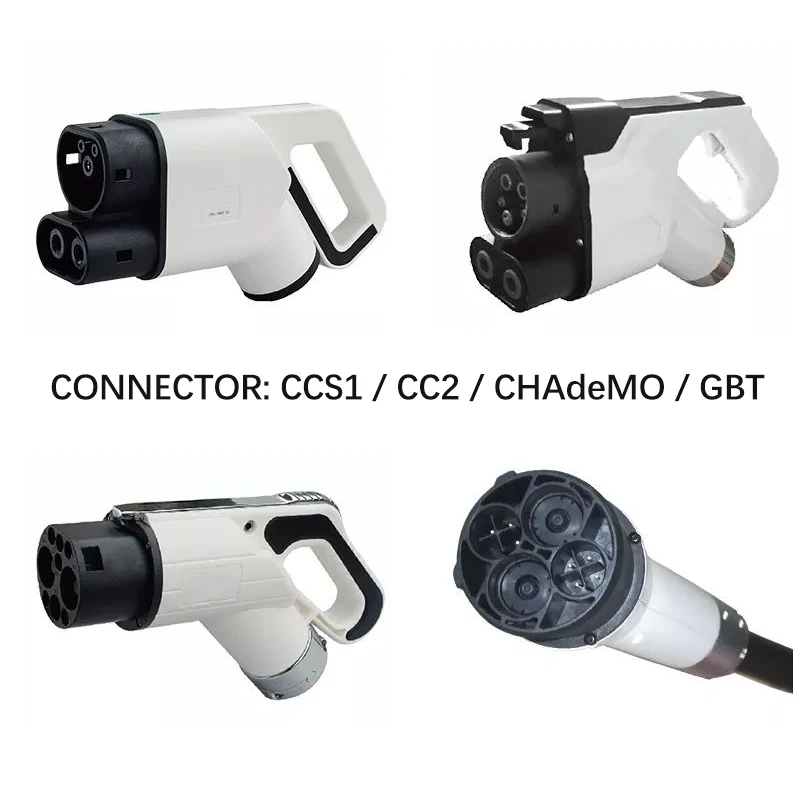

Two DC connectors: CCS1/CCS2 and CHAdeMO, with output up to 80KW
One AC connector: Type 2, with output up to 22KW
Intelligent Control
Ethernet/4G/WiFi communication all supported
OCPP communication protocol with the CMS
Intelligent operation by App and cashless payment
Flexible Option
App operation or RFID authentication or plug and play
Optional POS terminal for contactless credit card payment
High protection grade as IP54
Secure and Safe
Type A RCD for residual current protection
MID certified AC meter and PTB certified DC meter
ISO15118 prepared for advanced feature of Plug&Charge
Items | Product parameters | ||||||
Input | Input Voltage | 400 VAC +/- 10% | |||||
AC Frequency | 50 Hz/ 60 Hz | ||||||
Power Supply | 3P + N + PE | ||||||
Ground Type | TN-S,TN-CS | ||||||
Output | Connectors | CCS2 | CHAdeMO | AC Type2 Cable | |||
Output Voltage | 200-1000 Vdc | 200-500 Vdc | 400 Vac +/- 10% | ||||
Max. Output Currency | 200A | 125A | 32A | ||||
Max output power | DC: 60kw-80kW | AC: 22kW | |||||
Max system efficiency | 96% | ||||||
Working Environment | Working altitude | <2000 m | |||||
-25 °C to +50 °C, full power output below 50℃，Power derating 5%/ ℃ between 50℃-65℃. Above 65℃, module shutdown protection | |||||||
Storage Temperature | -30 °C to +70 °C | ||||||
Working humidity | 5 %-95 % | ||||||
Structure | Protection Class | IP55/ IK10 | |||||
Dimension | W850*D450*H2030mm | ||||||
Weight | ≤300 kg | ||||||
Device Features | Length | 5 m | |||||
HMI | 7" High display touch LED screen | ||||||
Emergency stop | Support | ||||||
Other Features | Network Interface | 4G / LAN | |||||
Monitor interface | OCPP1.6J | ||||||
Cooling Method | Air cooling | ||||||
Payment | RFID / APP(Mobile phone / Visa / Master support) | ||||||
Protection | Overcurrent protection, Short circuit protection, Overvoltage protection, Undervoltage protection Insulation monitoring, Protect Earth connect monitoring Reverse polarity protection, Overtemperature protection | ||||||
SOONPLUS Package
Recommend Products

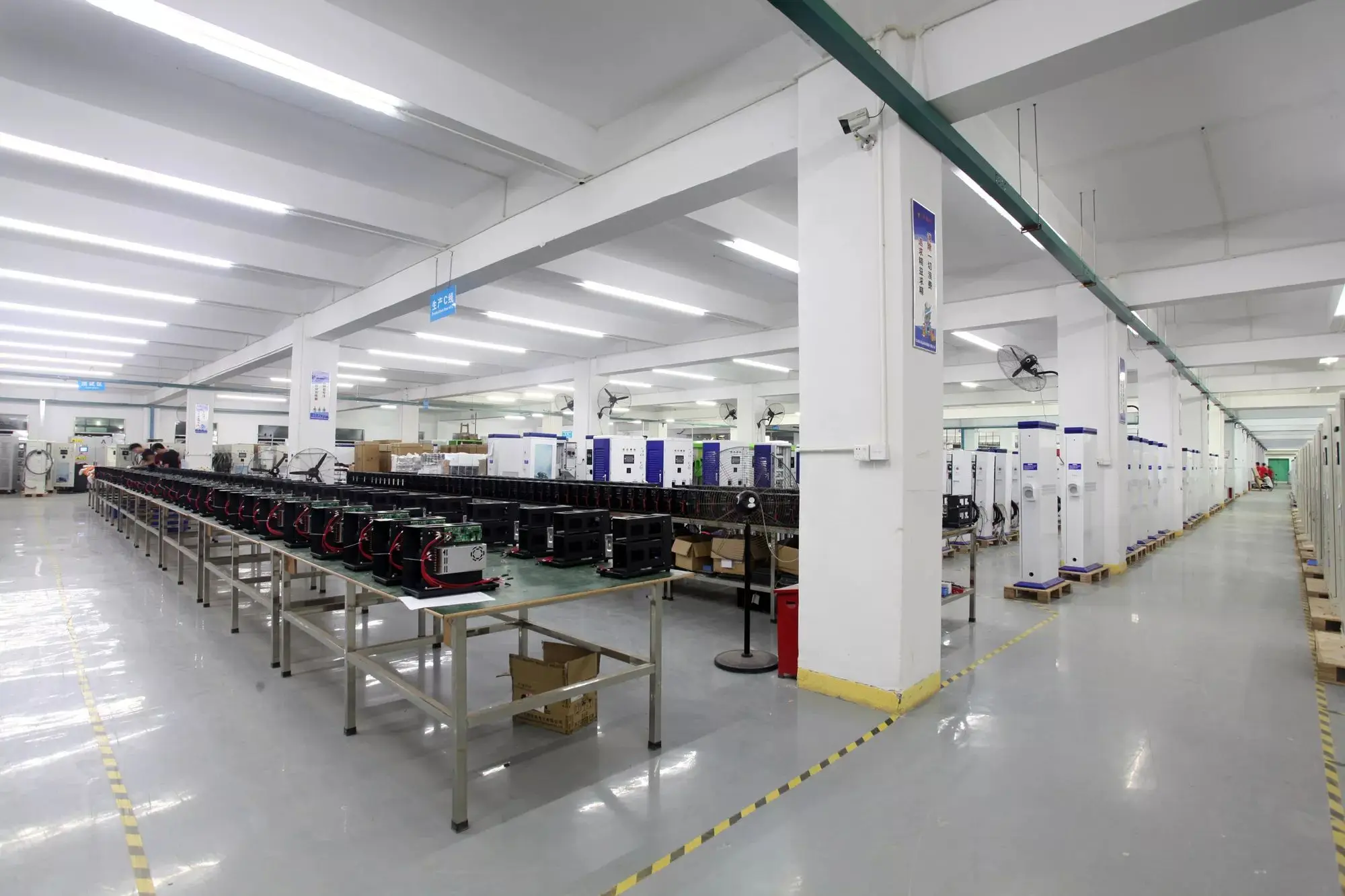

Factory Profile
Factory Brife Introduction
Shenzhen E-Zonda Energy Co., Ltd was established in 2015. We provide safe, innovative, and smart complete AC charging products for electric vehicles, including EV Charging Station,Smart EV wallbox, Portable EV Charger, EV Charging Cable, extension Cable, EV Charger Adaptor and all kinds of EV plugs, sockets, and connectors. All our products come with CE, TUV certification. The products are sold throughout the country Inside and outside with good reputation.
We can provide customers with complete charging solutions and technical support with years experiences in Ev charging industry. With professional R & D team and experiences on product customization, OEM and ODM services are available for our customers.
We can provide customers with complete charging solutions and technical support with years experiences in Ev charging industry. With professional R & D team and experiences on product customization, OEM and ODM services are available for our customers.
We would like to show our honesty, top good quality, competitive prices, and superior efficiency to start business with all of you. Our goal is providing a complete solution including product design, research and developemtn,and service for our customers to achieve a win-win situation for us as well as our clients. Welcome contact from customers all over the world.
Why Choose Us
FAQ
Q What is your sample policy?
A We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost.
Q Can I put my brand logo on charger?
A Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug with MOQ quantity of 50pcs.
Q Does your products have quality certification? How long is the warranty time?
A We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 24 month.
Q How can we guarantee quality?#0a4cad
A We always conduct a pre-production sample before mass production and 100% Inspection before shipment;
Q Can the EV charger charge all EVs on the road?
A Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers.
Q How about your Lead time?
A Generally, it will takes 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q What about the delivery?
A We can delivery by express,by Air Cargo and by sea
Q Does the EV Charger need any APPs or internet?
A Some models are set be to standalone type which use RFID card to start or plug and play mode . Some models are Wi-Fi connected and can work with App and any OCPP 1.6j application. Details please feel free to ask.
Q What is an OCPP application?
A The Open Charge Point Protocol (OCPP) is an open-source communication protocol for networked electric vehicle chargers. The Smart charger is able to work with any charger management software that uses these protocols to direct Smart Charging.
A We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost.
Q Can I put my brand logo on charger?
A Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug with MOQ quantity of 50pcs.
Q Does your products have quality certification? How long is the warranty time?
A We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 24 month.
Q How can we guarantee quality?#0a4cad
A We always conduct a pre-production sample before mass production and 100% Inspection before shipment;
Q Can the EV charger charge all EVs on the road?
A Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers.
Q How about your Lead time?
A Generally, it will takes 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q What about the delivery?
A We can delivery by express,by Air Cargo and by sea
Q Does the EV Charger need any APPs or internet?
A Some models are set be to standalone type which use RFID card to start or plug and play mode . Some models are Wi-Fi connected and can work with App and any OCPP 1.6j application. Details please feel free to ask.
Q What is an OCPP application?
A The Open Charge Point Protocol (OCPP) is an open-source communication protocol for networked electric vehicle chargers. The Smart charger is able to work with any charger management software that uses these protocols to direct Smart Charging.
