Product Overview

Description

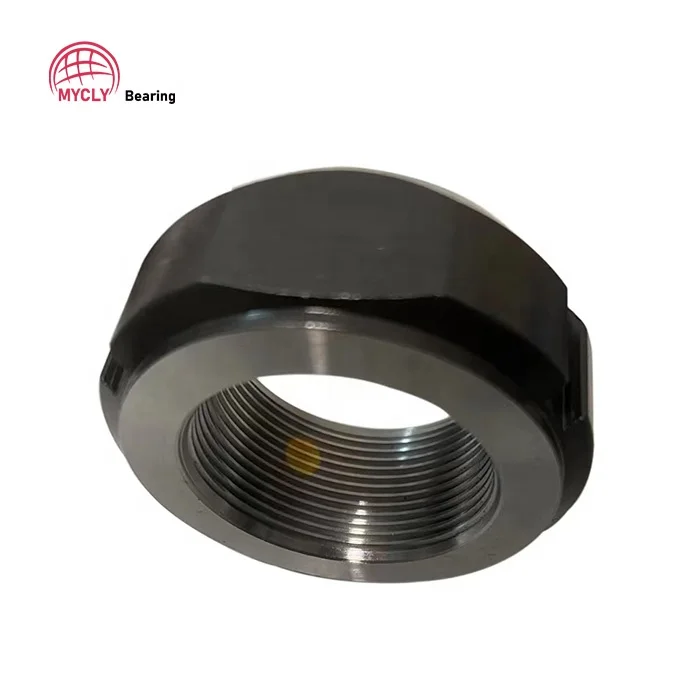

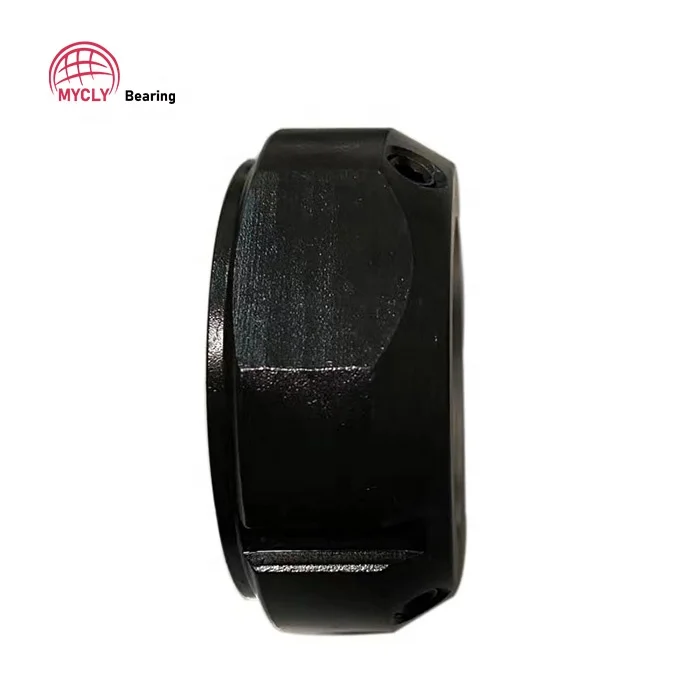

High Speed Metric Threads Locknut KMT11 KMT12 KMT13 KMT14 Lock Nut KMT 11 KMT 12 KMT 13


Specification




Description:

Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality: OEM Brand - High Quality

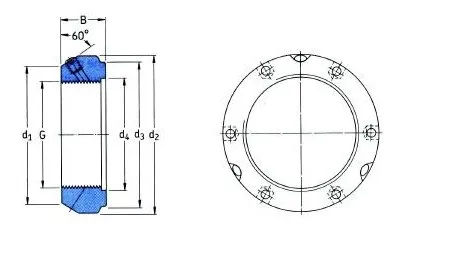

KMT14 Lock Nut Details As Below.


G
=
M70x2
d1
=
88mm
d2
=
100mm
d3
=
92mm
d4
=
72mm
B
=
28mm
b
=
8mm
h
=
3.5mm
M
=
95mm
Axial load capacity
=
490 kN
Loosening torque
=
285 N m
Mass
=
0.75 kg
Spanner
=
HN15
Grub screw
=
M8
Screw torque
=
18 N m




KMT11Lock Nut Details As Below.


G
=
M55x2
d1
=
74mm
d2
=
85mm
d3
=
78mm
d4
=
58mm
B
=
25mm
b
=
7mm
h
=
3mm
M
=
80mm
Axial load capacity
=
340 kN
Loosening torque
=
225 N m
Mass
=
0.54 kg
Spanner
=
HN12/13
Grub screw
=
M8
Screw torque
=
18 N m


KMT Series Luck Nut Catalog As Below:


Precision Nuts No.
G
Dm
D
B
m
n
M
P
Nm
mm
mm
mm
mm
mm
mm
mm
mm
mm
KMT 0
M 10x0.75
28
23
14
4
2
24
M 5
4.5
KMT 1
M 12x1
30
25
14
4
2
27
M 5
4.5
KMT 2
M 15x1
33
28
16
4
2
30
M 5
4.5
KMT 3
M 17x1
37
33
18
5
2
34
M 6
8
KMT 4
M 20x1
40
35
18
5
2
36
M 6
8
KMT 5
M 25x1.5
44
39
20
5
2
41
M 6
8
KMT 6
M 30x1.5
49
44
20
5
2
46
M 6
8
KMT 7
M 35x1.5
54
49
22
5
2
50
M 6
8
KMT 8
M 40x1.5
65
59
22
6
2.5
60
M 6
8
KMT 9
M 45x1.5
70
64
22
6
2.5
65
M 6
8
KMT 10
M 50x1.5
75
68
25
7
3
70
M 6
8
KMT 11
M 55x2
85
78
25
7
3
80
M 8
18
KMT 12
M 60x2
90
82
26
8
3.5
85
M 8
18
KMT 13
M 65x2
95
87
28
8
3.5
90
M 8
18
KMT 14
M 70x2
100
92
28
8
3.5
95
M 8
18
KMT 15
M 75x2
105
97
28
8
3.5
100
M 8
18
KMT 16
M 80x2
110
100
32
8
3.5
M 8
18
KMT 17
M 85x2
120
110
32
10
4
M 10
35
KMT 18
M 90x2
125
115
32
10
4
M 10
35
KMT 19
M 95x2
130
120
32
10
4
M 10
35
KMT 20
M 100x2
135
125
32
10
4
M 10
35
KMT 22
M 110x2
145
134
32
10
4
M 10
35
KMT 24
M 120x2
155
144
32
10
4
M 10
35
KMT 26
M 130x2
165
154
32
12
5
M 10
35
KMT 28
M 140x2
175
164
32
14
6
M 10
35
KMT 30
M 150x2
185
174
32
14
6
M 10
35
KMT 32
M 160x3
195
184
32
14
6
M 10
35
KMT 34
M 170x3
205
194
32
14
6
M 10
35
KMT 36
M 180x3
215
204
32
16
7
M 10
35
KMT 38
M 190x3
225
214
32
16
7
M 10
35
KMT 40
M 200x3
235
224
32
18
8
M 10
35
KMT 44
Tr 220x4
265
254
36
20
10
M 10
35
KMT 48
Tr 240x4
290
279
38
20
10
M 12
60
KMT 52
Tr 260x4
310
299
38
20
10
M 12
60
KMT 56
Tr 280x4
330
319
40
24
12
M 12
60
KMT 60
Tr 300x4
360
349
42
24
12
M 12
60
KMT 64
Tr 320x5
390
379
45
24
12
M 12
60
KMT 68
Tr 340x5
410
399
48
24
12
M 12
60
