0.5t to 5t steel SBC Single Ended Beam Load Cell for small weighbridge or assembled into modules and applied to charging tank
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600694293232):
Product Overview
Description
SBC Single Ended
Beam Load Cell
● Capacities (t): 0.5 to 5
● High quality alloy steel with nickel plating
● Module installing
● High quality alloy steel with nickel plating
● Module installing

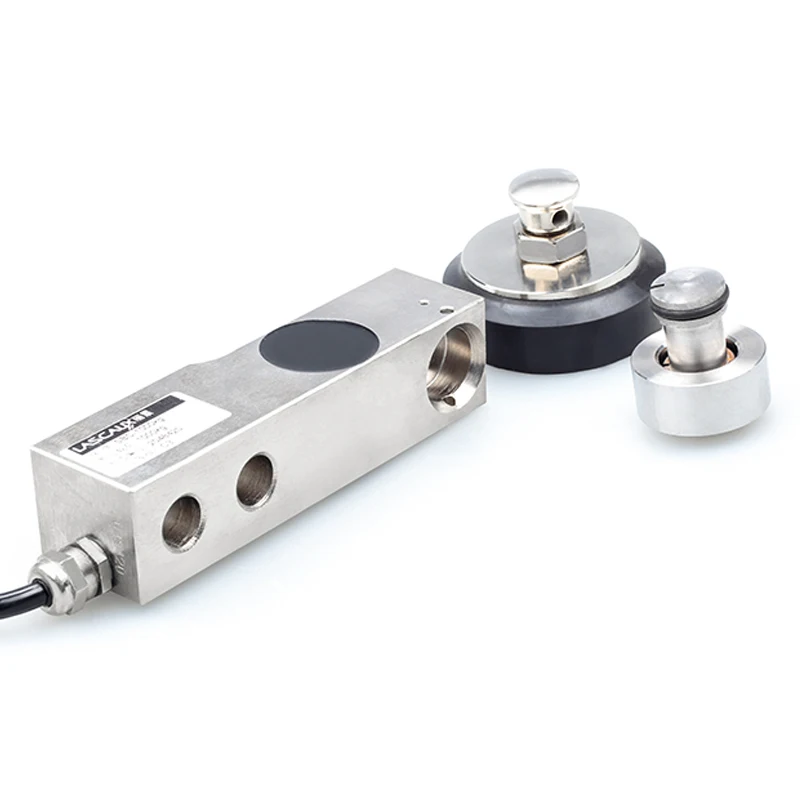

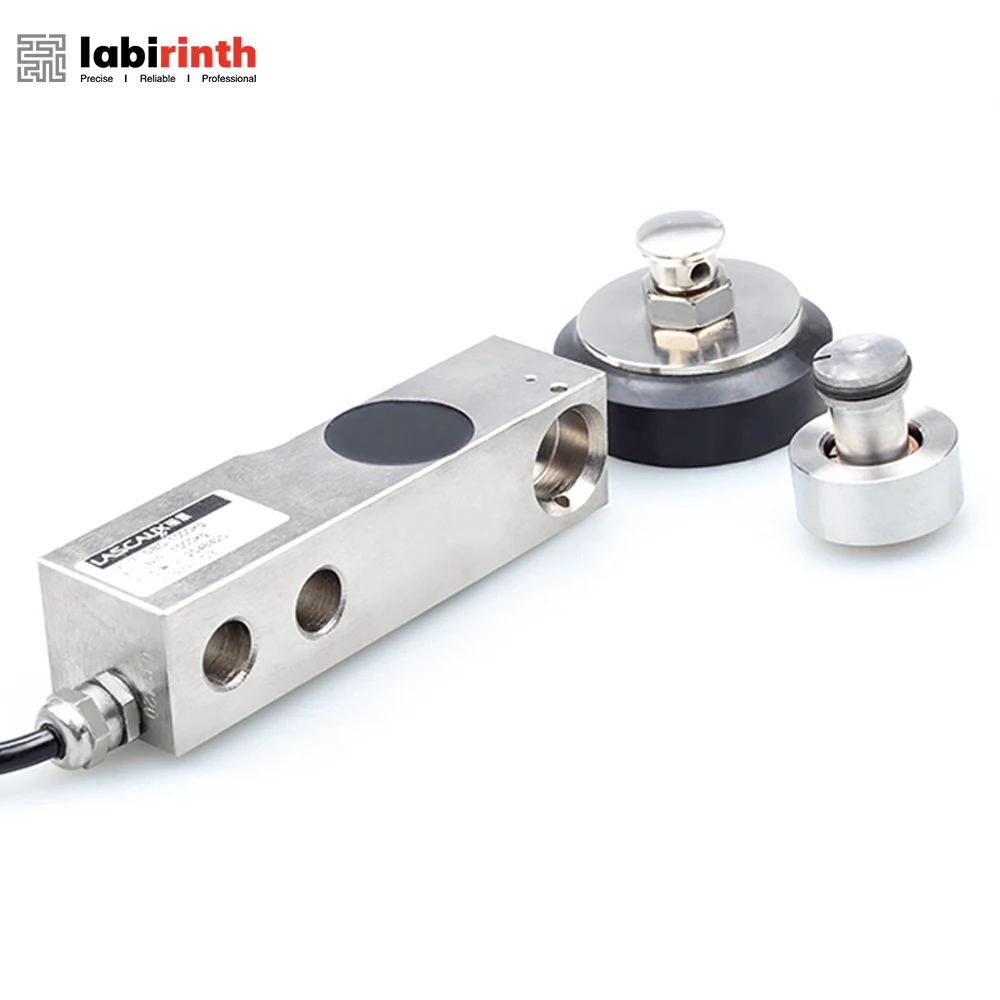

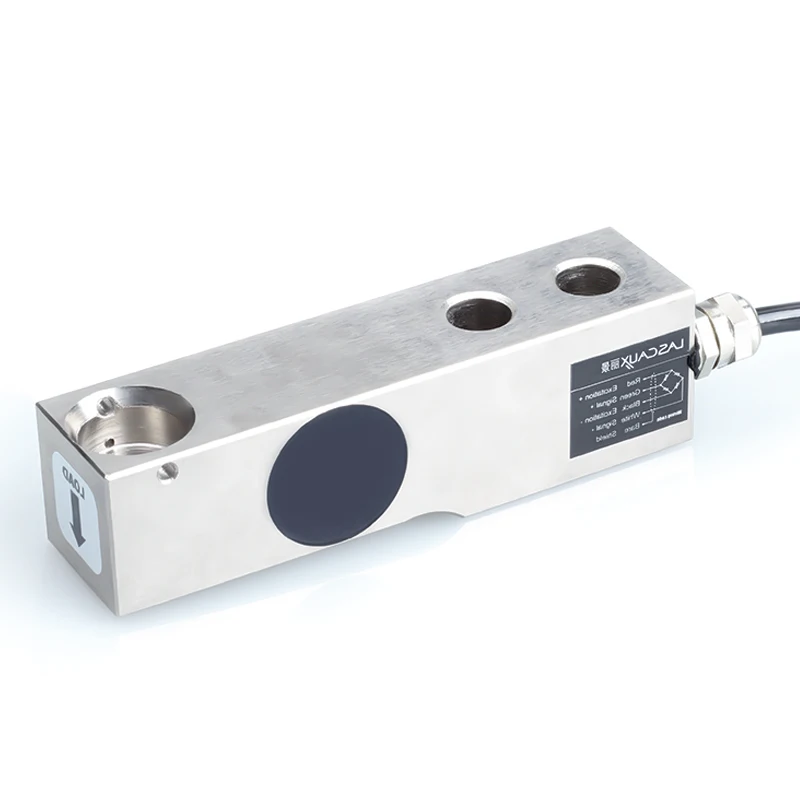

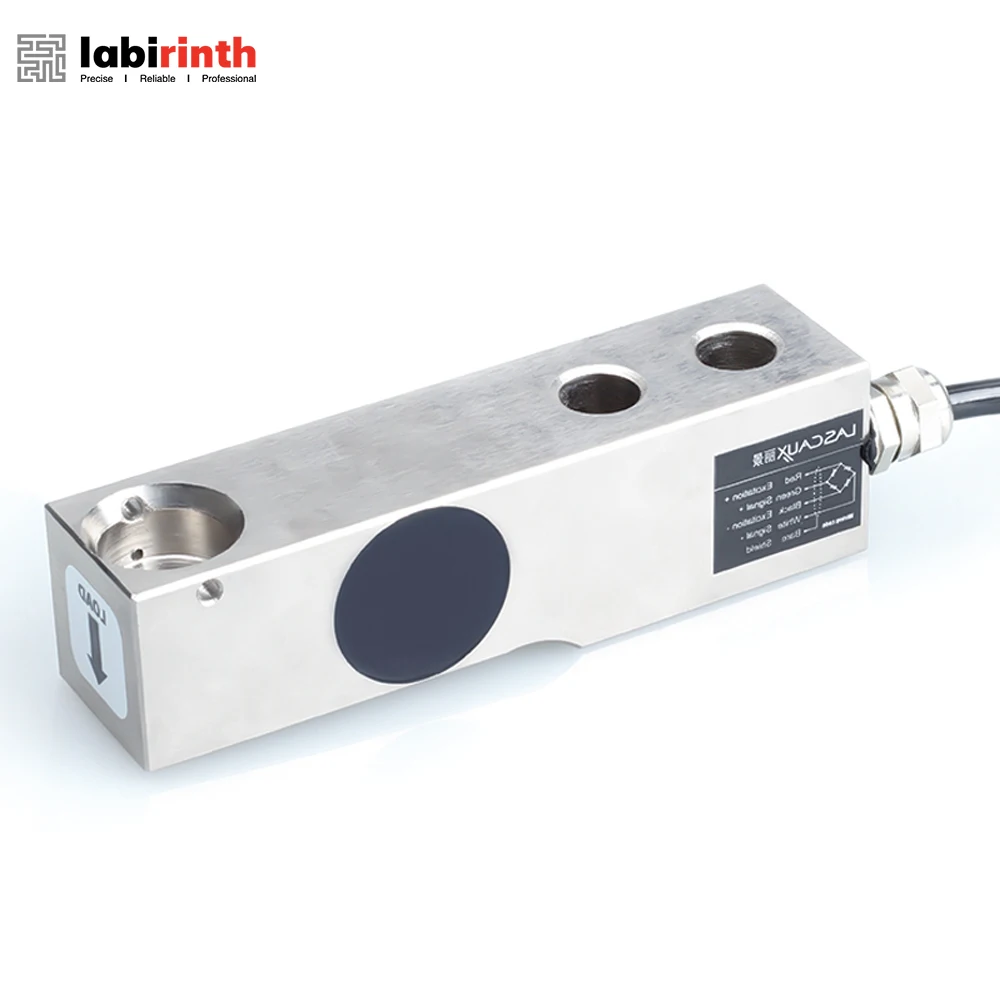

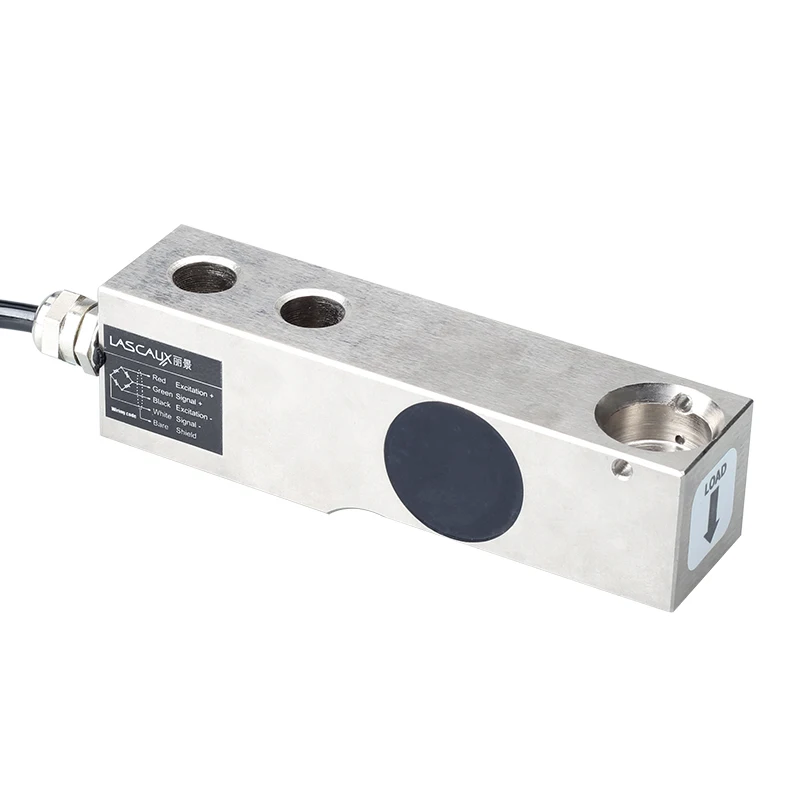

SBC Single Ended Beam Load Cell
Description:
1. Capacities (t): 0.5 to 5
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. High quality alloy steel with nickel plating
5. Alloy steel or Stainless Steel material
6. Degree of protection reaches to IP68
7. Module installing

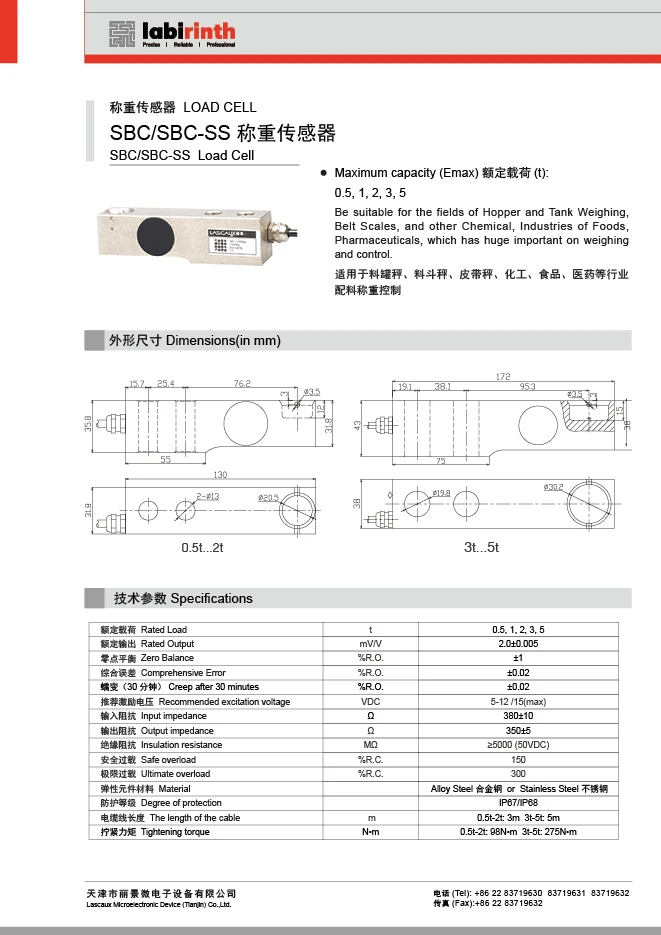

Specifications: | ||||
Rated Load | t | 0.5,1,2,3,5 | ||
Rated Output | mV/V | 2.0±0.0050 | ||
Zero Balance | %R.O. | ±1 | ||
Comprehensive Error | %R.O. | ±0.02 | ||
Non-linearity | %R.O. | ±0.02 | ||
Hysteresis | %R.O. | ±0.02 | ||
Repeatability | %R.O. | ±0.02 | ||
Creep after 30 minutes | %R.O. | ±0.02 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Maximum Excitation Voltage | VDC | 15 | ||
Input impedance | Ω | 380±10 | ||
Output impedance | Ω | 350±5 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 300 | ||
Material | Alloy Steel or Stainless Steel | |||
Degree of protection | IP67/IP68 | |||
The length of the cable | m | 0.5-3t:3m 3t-5t:5m | ||

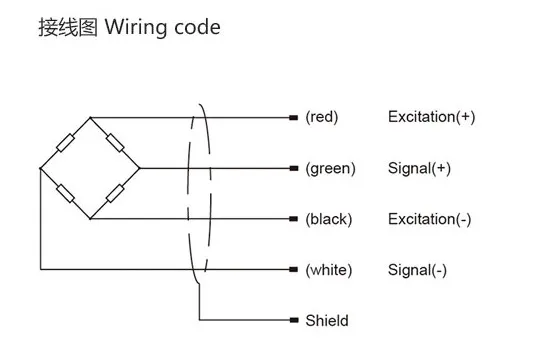

Wiring code | Ex: | Red：＋ Black：– | ||
Sig: | Green：＋ White：– | |||
Tightening torque | N▪m | 0.5-2t:98 N·m 3t-5t:275N·m | ||

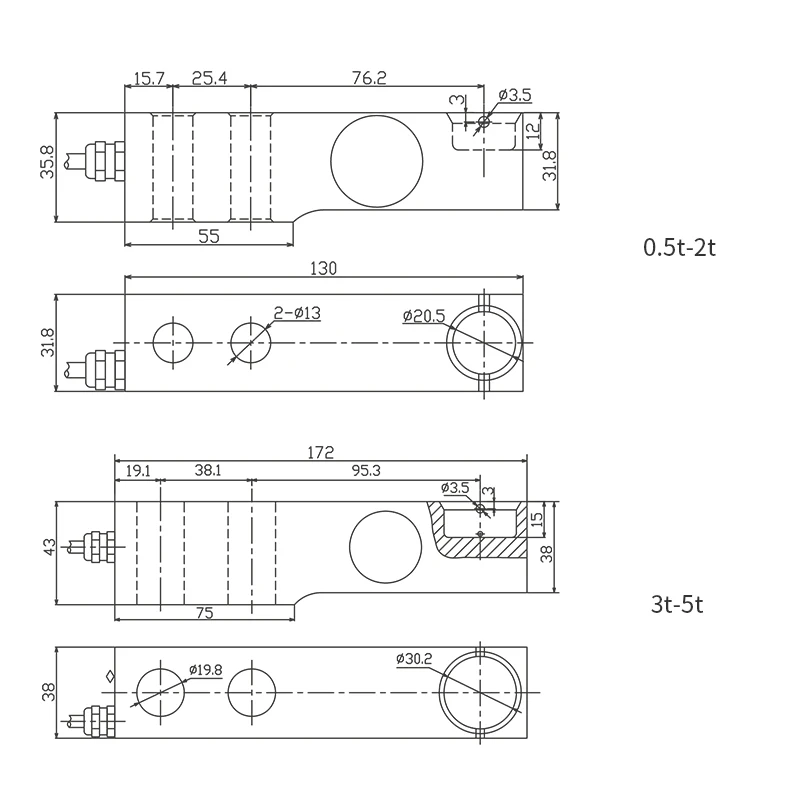

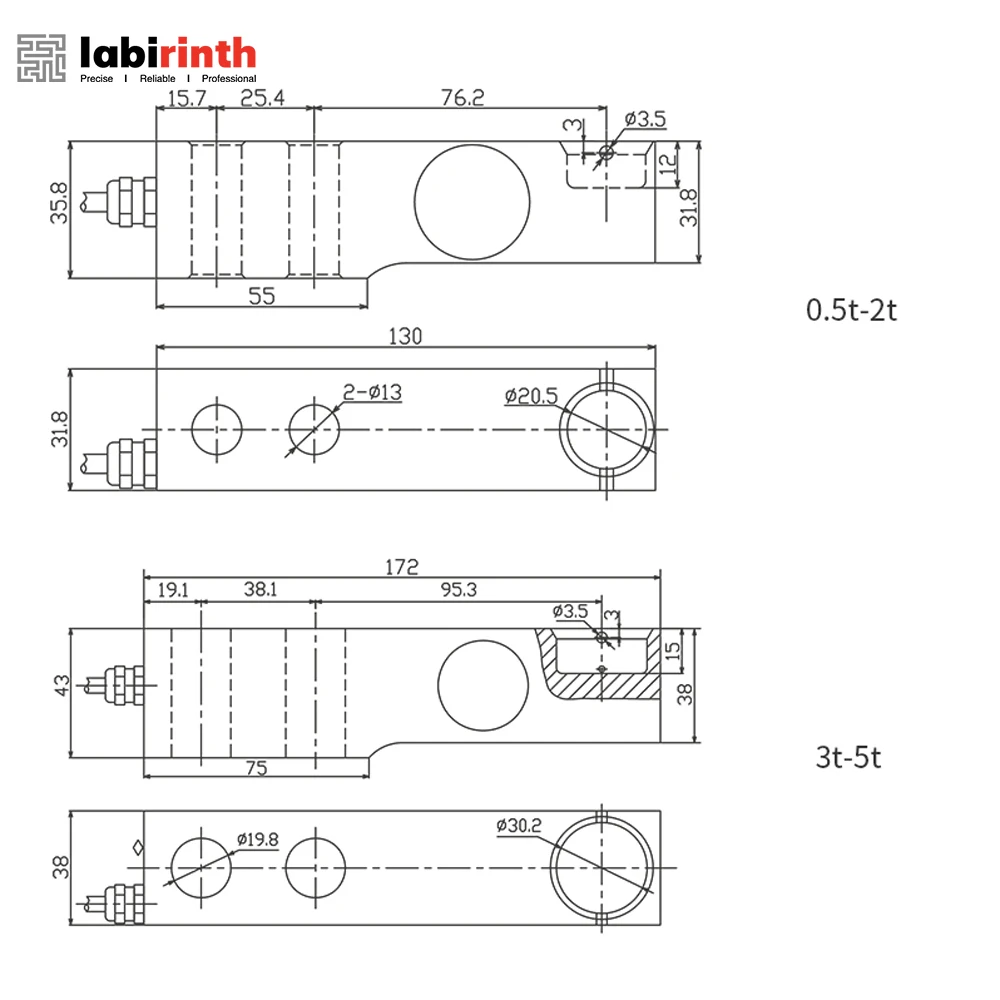

Dimension（in mm）& Capacity & Wiring Code： | ||||

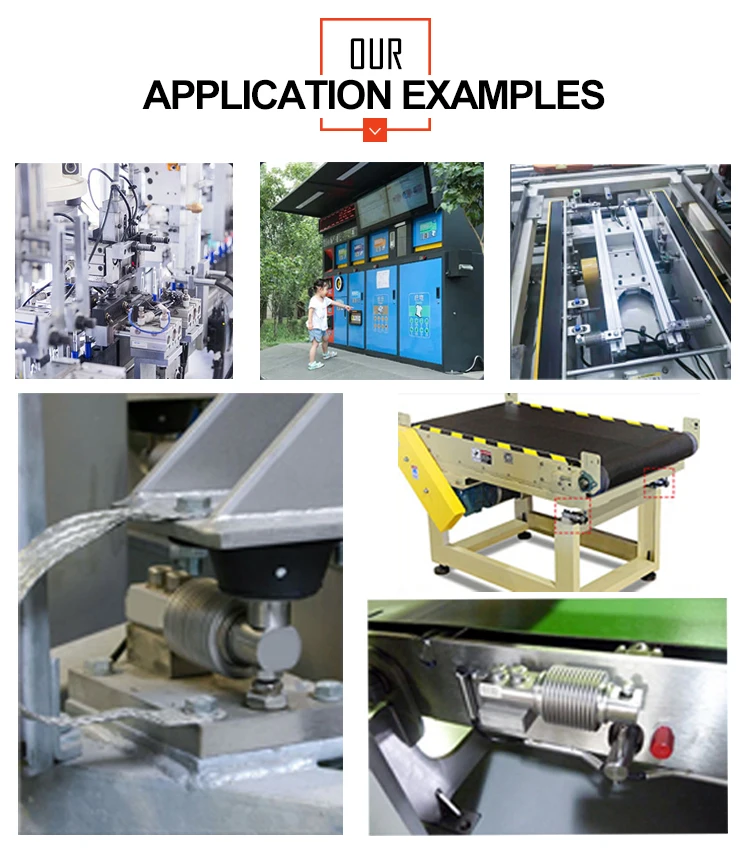

Applications:
Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals,which has huge important on weighing and control.
