0.35GHz 50.1GHz Waveguide HT Connector used for Microwave System
- Category: >>>
- Supplier: Nanjing Shinewave Technology Co. Ltd.
Share on (1600694337467):
Product Overview
Description
Product Display
Characteristic:

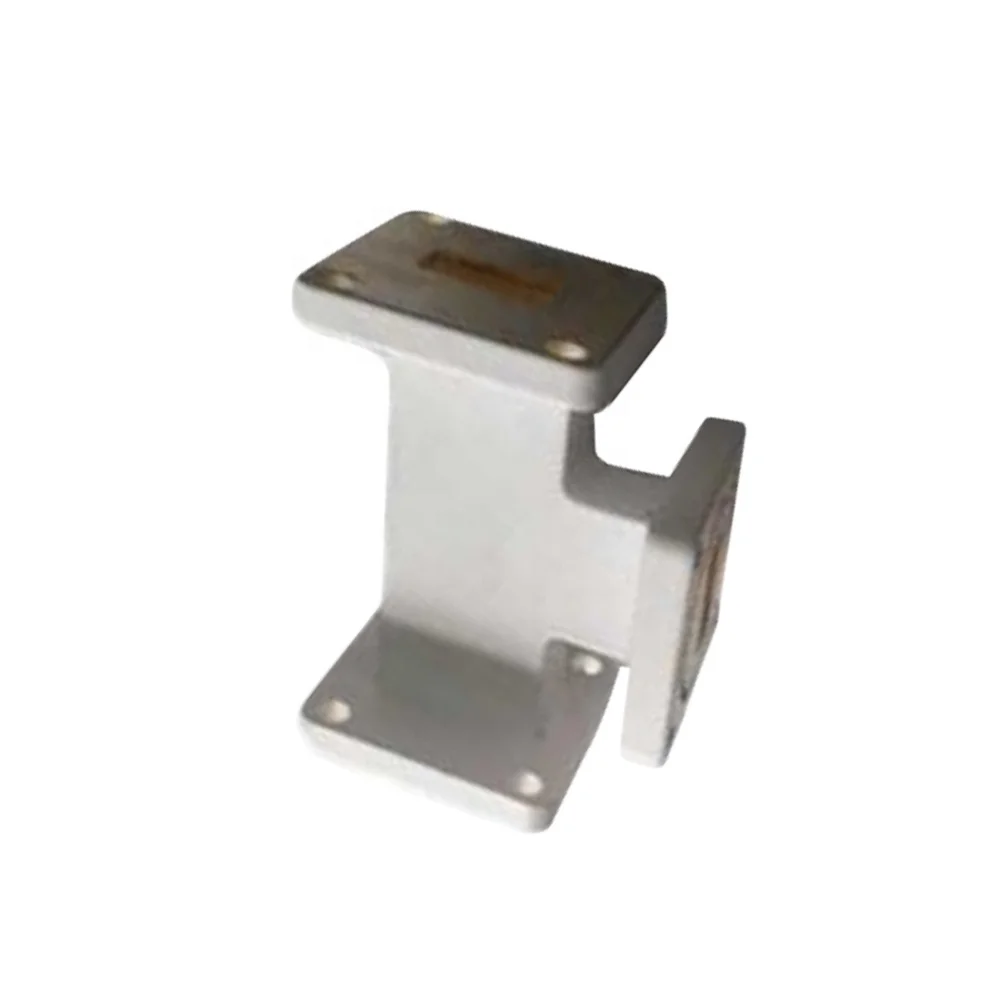

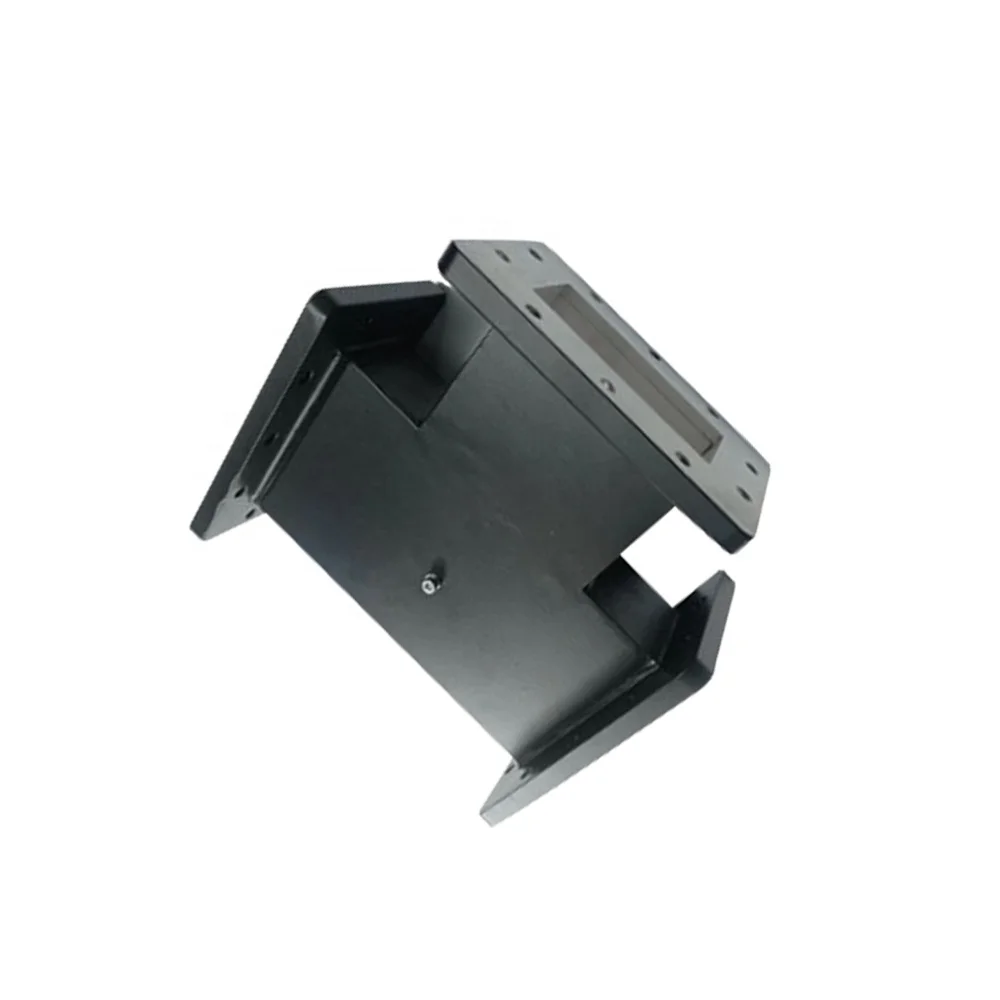

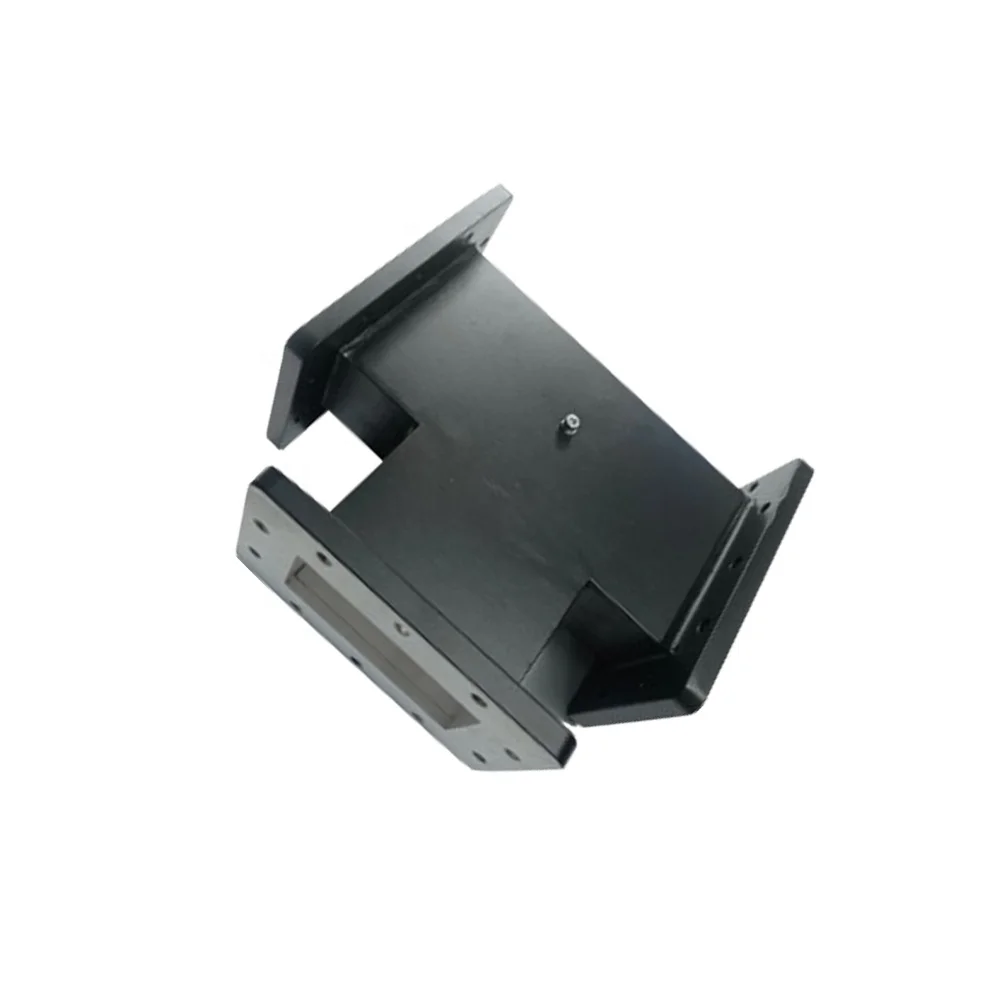

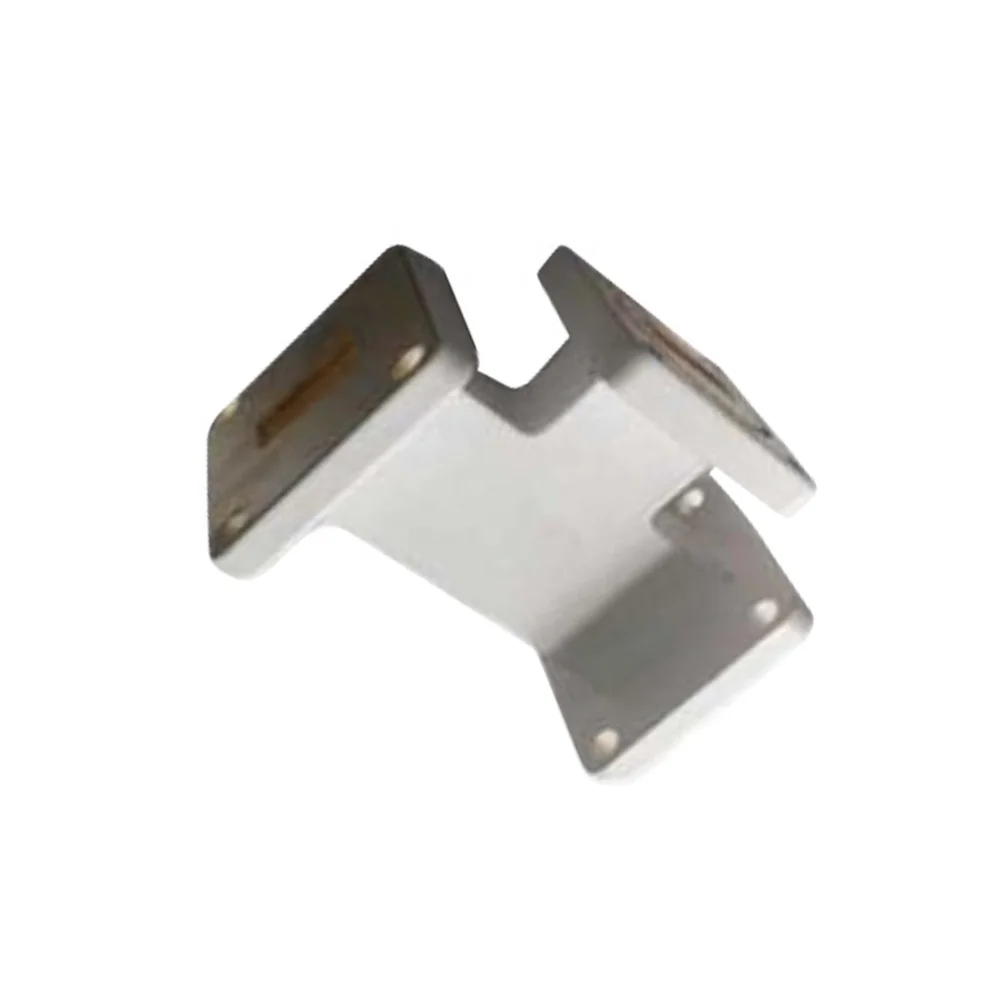

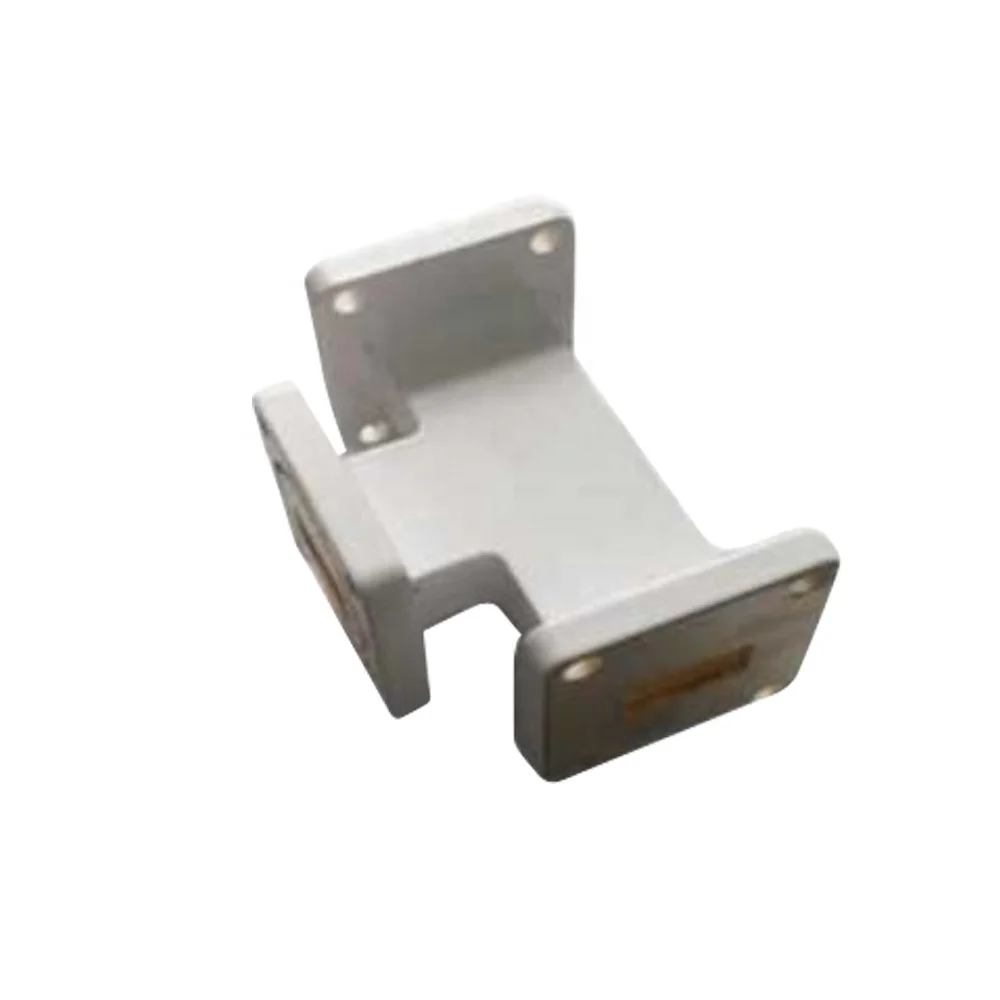

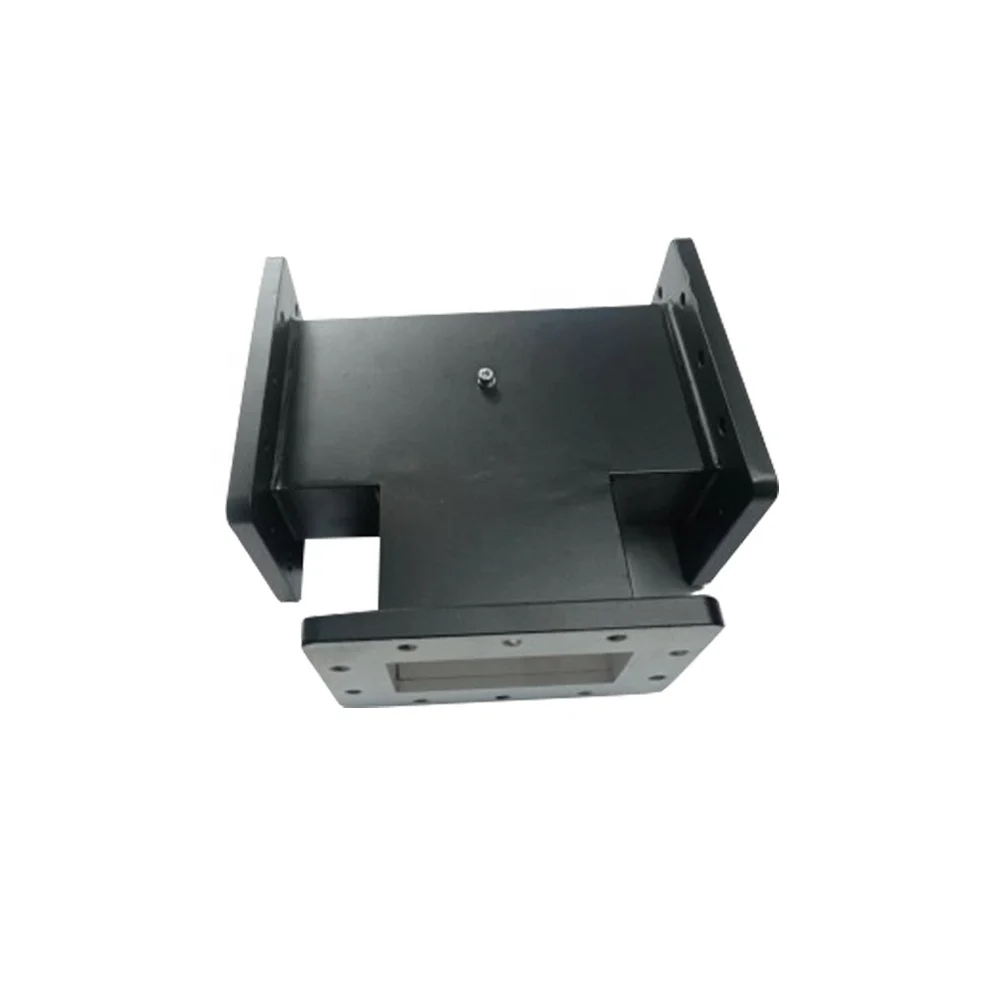

Waveguide HT is a commonly used component for power distribution and synthesis in microwave system. It can output the signal input from H port at both ends of the balanced arm with equal amplitude and in phase, whereas the signal input from both ends of the balanced arm with equal amplitude and in phase will be synthesized and output at H port.Model No. | Frequency Range (GHz) | Working bandwidth | Symmetry | Vswr | Insertion Loss(dB) | Flange | material |
SWT-ET4ADP | 0.35-0.53 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET5ADP | 0.41-0.62 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET6ADP | 0.49-0.75 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET8ADP | 0.64-0.98 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET9ADP | 0.75-1.15 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET12ADP | 0.96-1.46 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET14ADP | 1.13-1.73 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET18ADP | 1.45-2.2 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET22ADP | 1.72-2.61 | ≤15％ | ±0.2 | ≤1.1 | ≤0.15 | FDP | Aluminium |
SWT-ET26ADP | 2.17-3.3 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET32ADP | 2.6-3.95 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET40ADP | 3.22-4.90 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET48ADP | 3.94-5.99 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET58ADP | 4.64-7.05 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET70ADP | 5.38-8.17 | ≤15％ | ±0.2 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET84ADP | 6.57-9.99 | ≤15％ | ±0.3 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET100ADP | 8.2-12.5 | ≤15％ | ±0.3 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET120ADP | 9.84-15.0 | ≤15％ | ±0.3 | ≤1.15 | ≤0.2 | FDP | Aluminium |
SWT-ET140ADP | 11.9-18.0 | ≤15％ | ±0.3 | ≤1.2 | ≤0.3 | FDP | Aluminium |
SWT-ET180ADP | 14.5-22.0 | ≤15％ | ±0.35 | ≤1.2 | ≤0.3 | FDP | Aluminium |
SWT-ET220ADP | 17.6-26.7 | ≤15％ | ±0.35 | ≤1.25 | ≤0.3 | FDP | Copper |
SWT-ET260ADP | 21.7-33.0 | ≤15％ | ±0.35 | ≤1.25 | ≤0.3 | FDP | Copper |
SWT-ET320ADP | 26.3-40.0 | ≤15％ | ±0.35 | ≤1.25 | ≤0.3 | FDP | Copper |
SWT-ET400ADP | 32.9-50.1 | ≤15％ | ±0.4 | ≤1.25 | ≤0.3 | FUGP | Copper |
