OEM Manufacture Ore Mining Industry Spare Parts Iron Elevator Bucket

Share on (1600694516248):


Price:$1.99 - $9.99

Quantity:


Product Overview

Description

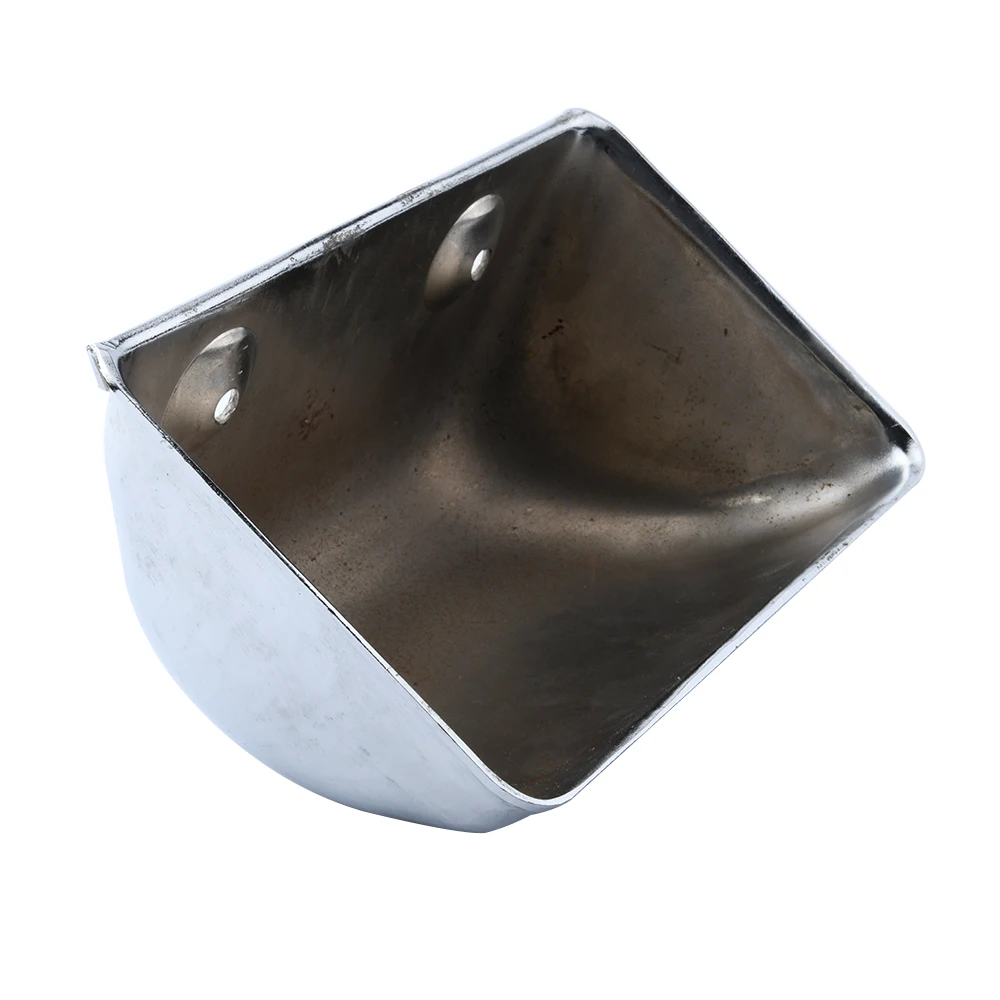

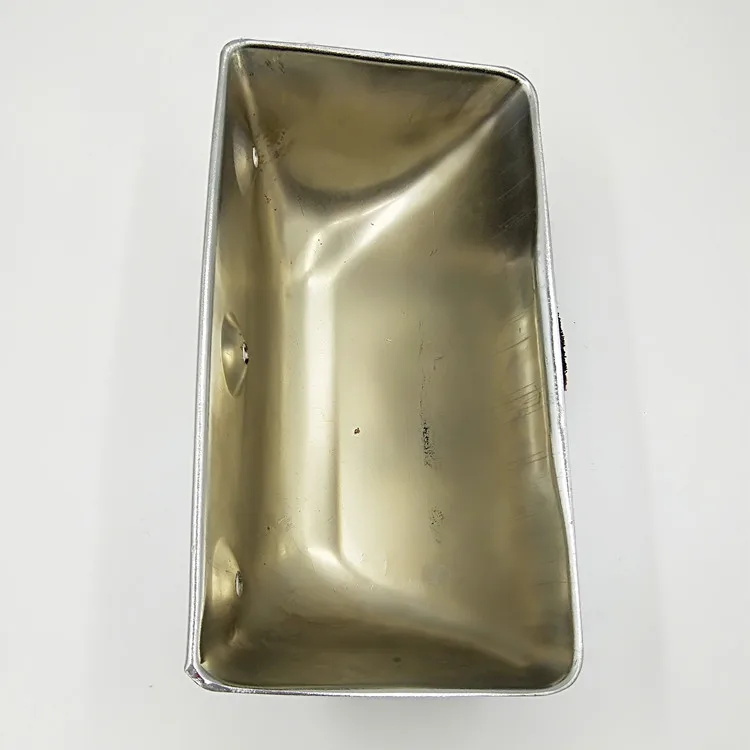

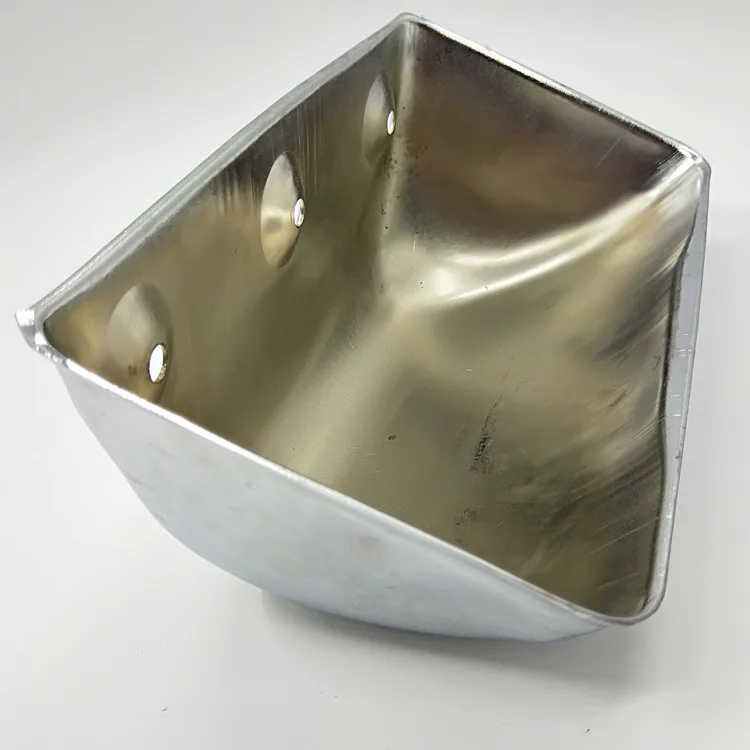

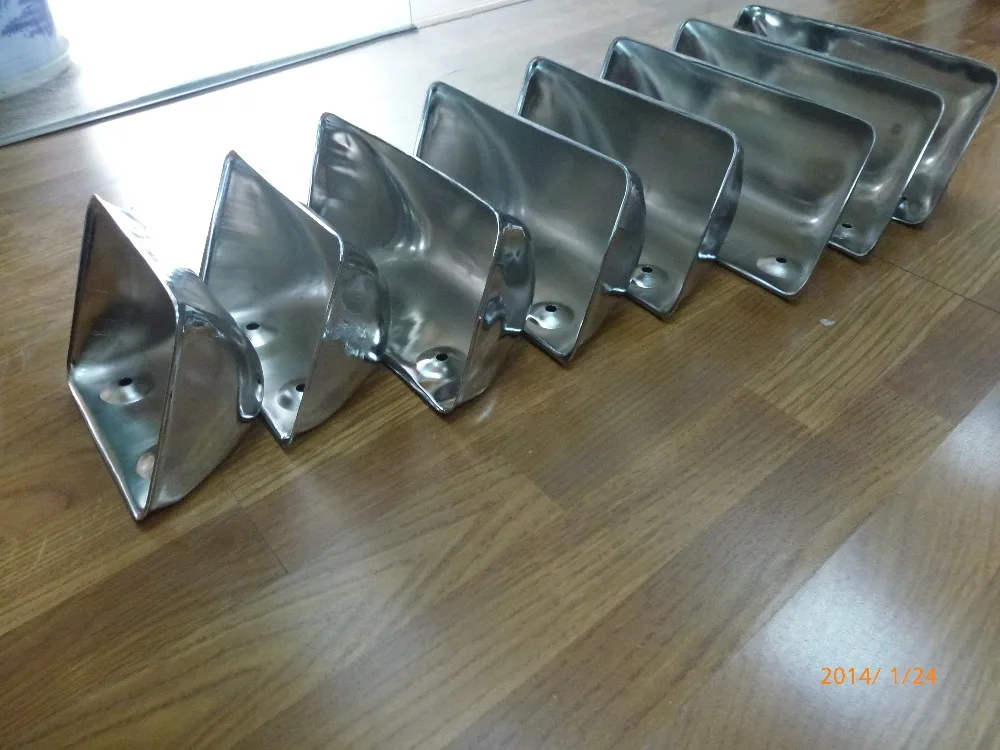

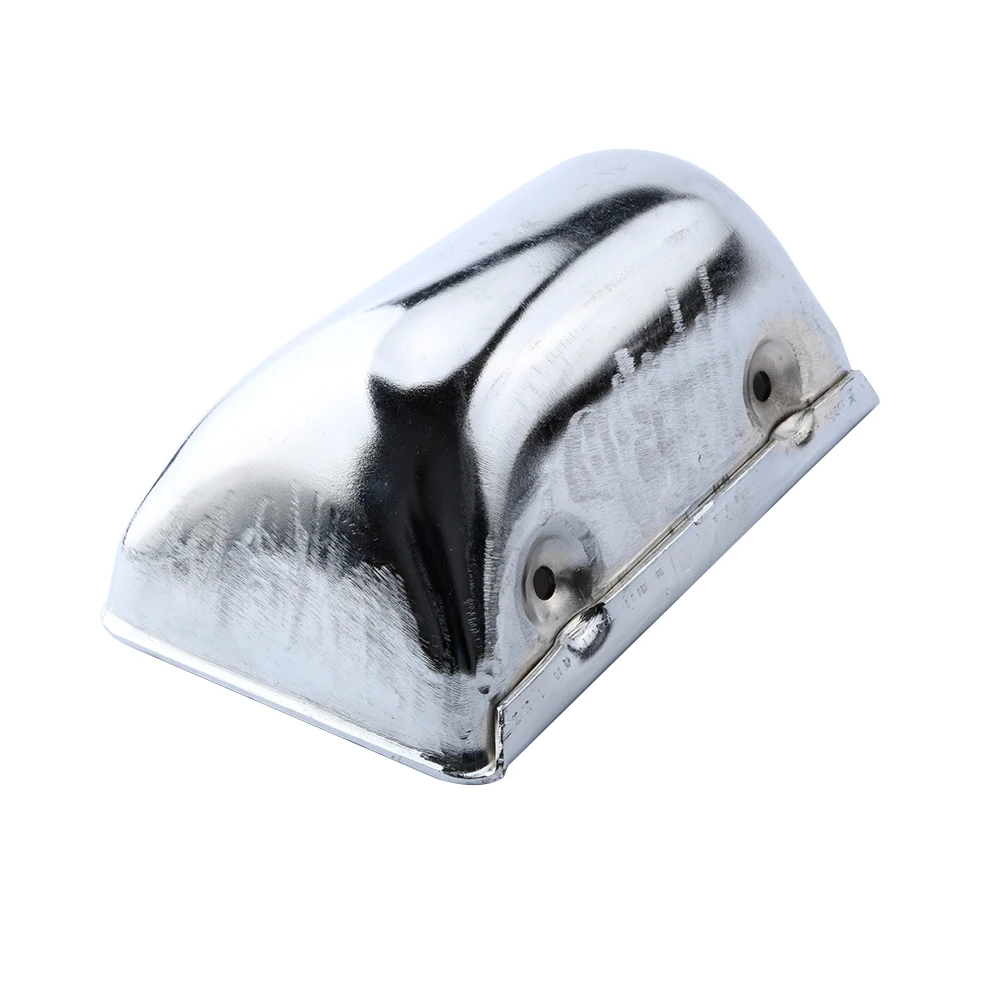

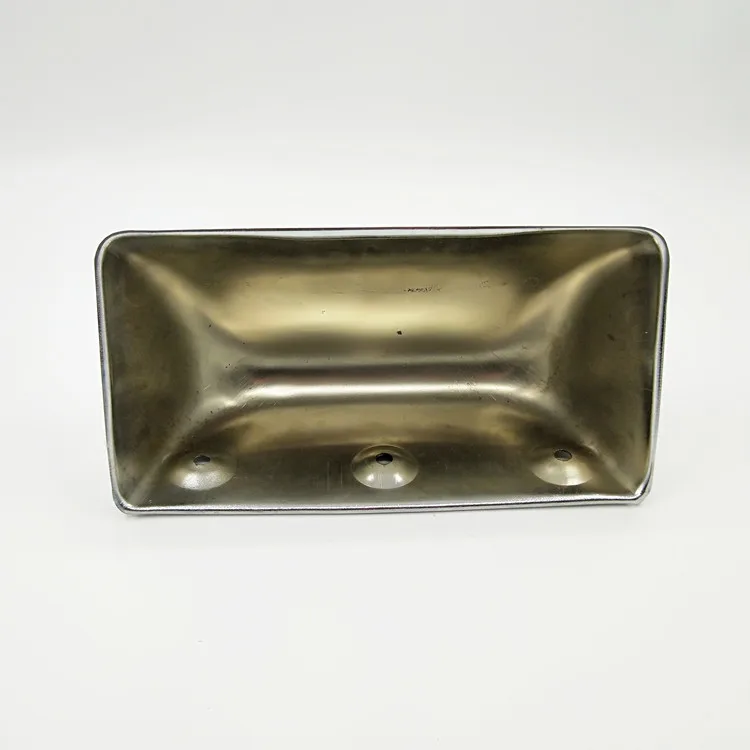

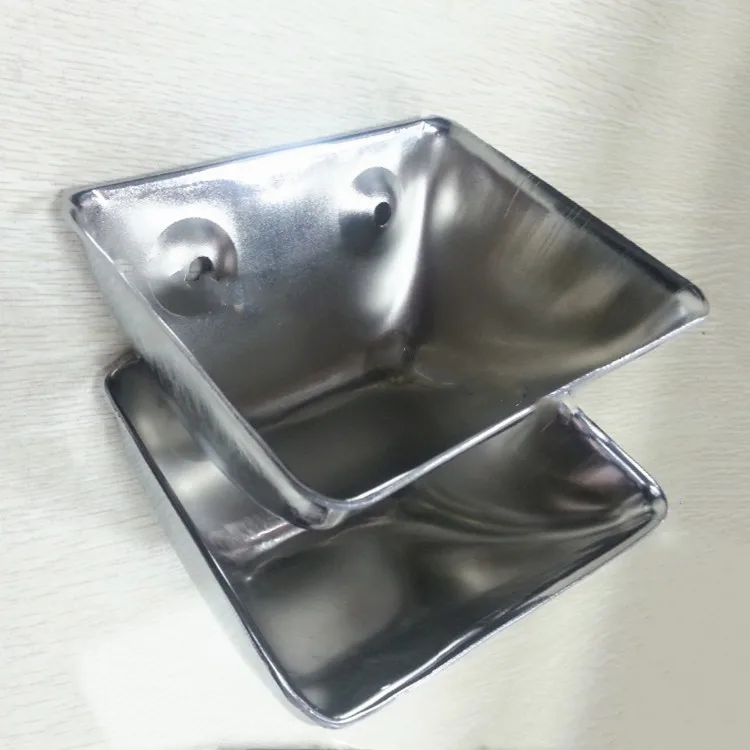

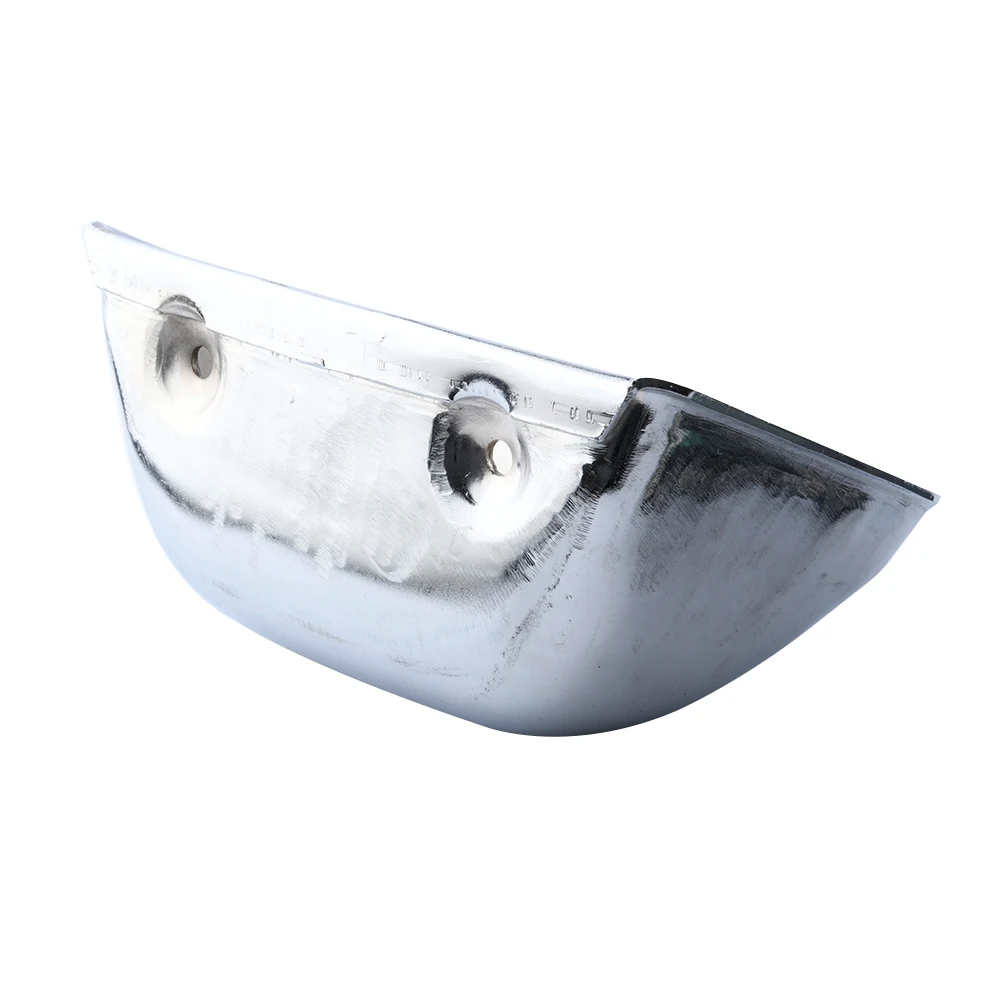

DS type Whole stamping steel elevator bucket


Detailed Images








WHY CHOOSE ME?

1.High ability of wear-resisting,abrasive resistance and intensiveness.


2.Corrosive resistance, high temperature resistance, application for food and high temperature products.


3.
Various materials and styles of plastic elevator buckets, more convenient to choose the proper bucket.

Material: Stainless.



Product Description

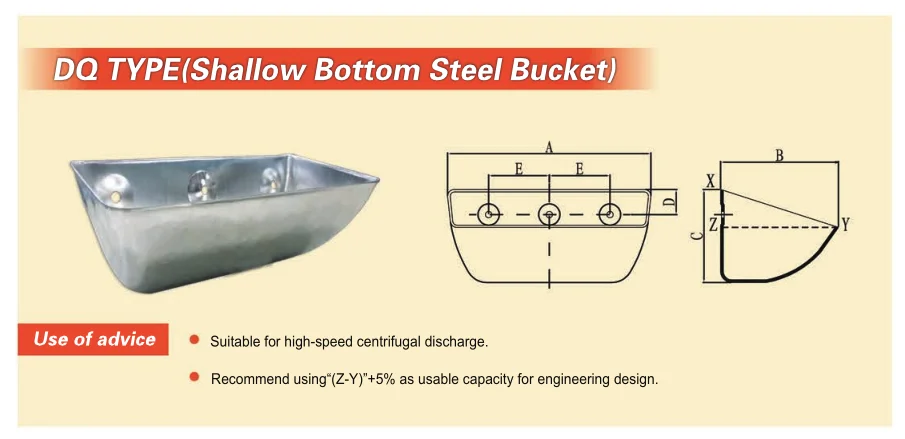

Model
Length A(mm)
Pro. B(mm)
Distance C(mm)
DQ0807
90
75
48
DQ1009
100
90
58
DQ1109
110
90
60
DQ1309
130
90
58
DQ1311
139
112
60
DQ1312
138
125
60
DQ1409
140
90
58
DQ1411
140
112
60
DQ1511
155
113
62
DQ1612
166
125
65
DQ1613
155
130
68
DQ1813
188
130
80
DQ1814
183
140
98
DQ1814A
183
142
95
DQ1914
190
142
88
DQ2014
203
142
90
DQ2313
239
130
75
DQ2314
233
142
95
DQ2314A
233
143
95
DQ2316
236
162
100
DQ2316A
238
162
100
DQ2417
240
170
109
DQ2614
265
140
88
DQ2616
260
162
90
DQ2813
288
130
85
DQ2814
283
142
85
DQ2814A
282
146
95
DQ2816
286
168
115
DQ2817
288
178
100
DQ2818
290
182
115
DQ2824
285
240
148
DQ2916
290
168
115
DQ3016
308
162
100
DQ3018
305
183
125
DQ3021
310
215
142
DQ3114
305
143
82
DQ3118
315
190
110
DQ3121
315
220
125
DQ3216
320
160
100
DQ3321
336
212
135
DQ3325
340
255
130
DQ3518
358
180
110
DQ3621
365
220
125
DQ3823
380
230
125
DQ4118
415
190
115
DQ4121
415
220
125
DQ4216
420
160
110
DQ4423
445
233
148
DQ4621
460
220
125
DQ4723
475
233
148
DQ4626
460
260
195
DQ5121
518
220
125
DQ5626
560
260
153

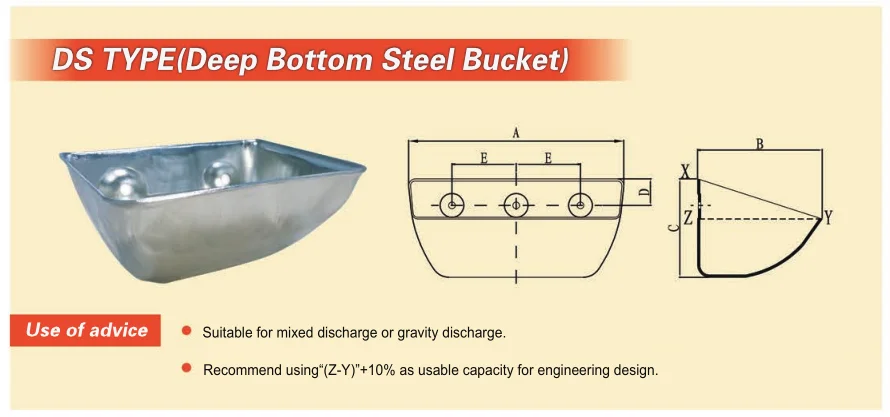

Model
Length A(mm)
Pro. B(mm)
Distance C(mm)
DS0807
90
78
55
DS1009
100
90
65
DS1109
110
90
68
DS1309
130
90
70
DS1311
139
112
85
DS1312
138
125
85
DS1409
140
90
70
DS1411
140
112
85
DS1511
155
113
90
DS1612
166
126
95
DS1613
166
135
95
DS1813
188
130
95
DS1814
183
142
115
DS1814A
183
146
110
DS1914
190
142
110
DS2014
203
142
115
DS2313
238
130
105
DS2314
233
142
115
DS2314A
233
146
115
DS2316
236
162
125
DS2316A
238
166
130
DS2417
240
170
125
DS2614
265
140
130
DS2616
260
162
125
DS2813
288
130
112
DS2814
283
142
115
DS2814A
283
142
115
DS2816
283
168
130
DS2817
288
178
125
DS2818
290
183
142
DS2823
285
230
168
DS2916
290
168
130
DS3016
308
165
135
DS3021
310
215
165
DS3114
306
142
110
DS3118
315
190
155
DS3121
315
220
160
DS3216
320
160
135
DS3321
340
212
155
DS3325
340
255
150
DS3518
358
180
145
DS3621
365
220
160
DS3823
380
230
160
DS4118
415
190
145
DS4121
415
220
172
DS4216
420
160
135
DS4423
445
233
160
DS4621
460
220
160
DS4723
475
233
160
DS4626
460
260
205
DS5121
518
220
160
DS5626
560
260
170
Fitting holes and hole diameter can be customized

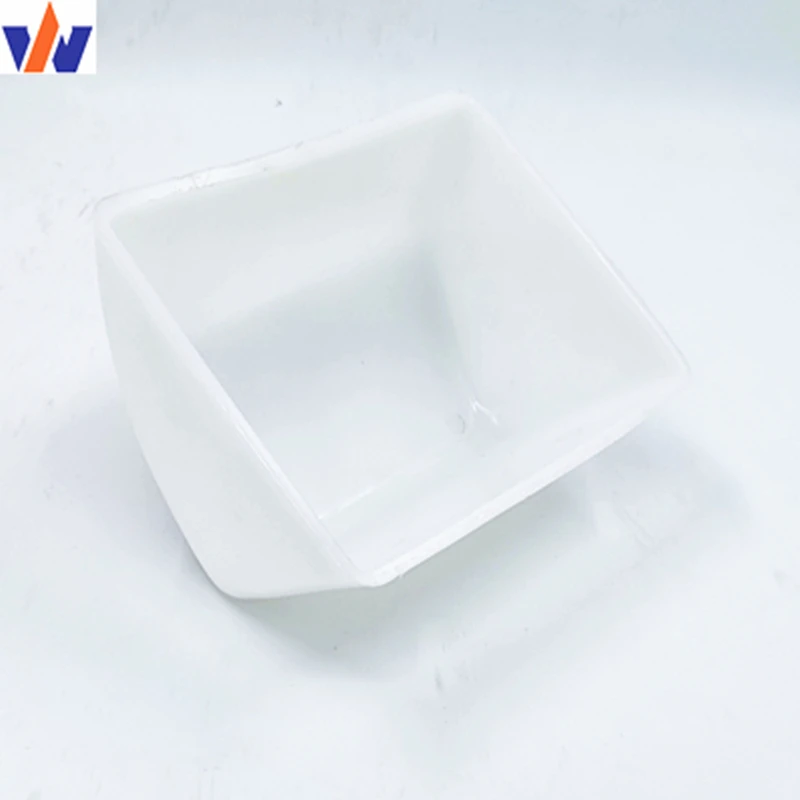

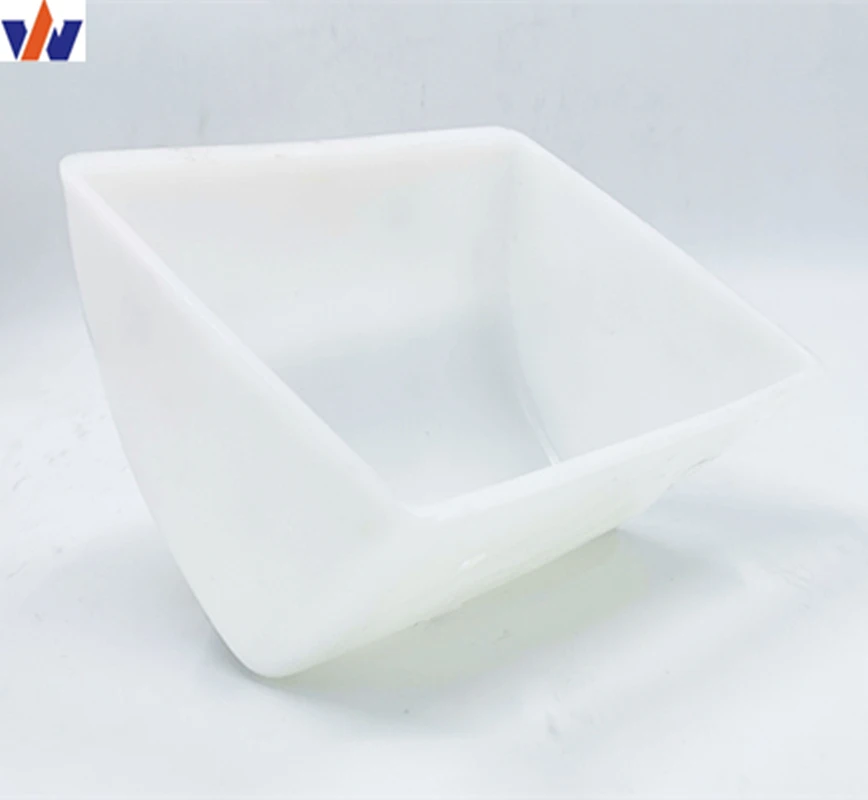

More Choice

1.High impact, abrasion resistance, no-corrosion, smooth surface.


2.Less weight, prolong service life of buckets and belts, reduce elevator consumption.


3.Good toughness, lower rate of breakage for material, no-sparking, avoid dust explosion.


4
.Higher performance than traditional cast iron bucket.


material: HDPE and NYLON.





Material
Color
Applied range
Operating temperature
Remarks
HDPE
White/ Orange
Grain, fodder, seeds, manure, food, chemicals, sand, salt and other free flowing solid objects
-50~70
Economical, misfit big unit weight material, sharp-edged & rough cullet, Large pellets of finished fodder and paddy
NYLON
Off-white/ Milk white
High temperature, rough surface, larger bulk density material
-20~100

(transient temperature 120)
Suitable for high temperature & large wear condition. Working in dry conditions, especially in -20,easy to broken


Certifications






Recommend Products












Main Product Catalogue






Our Company

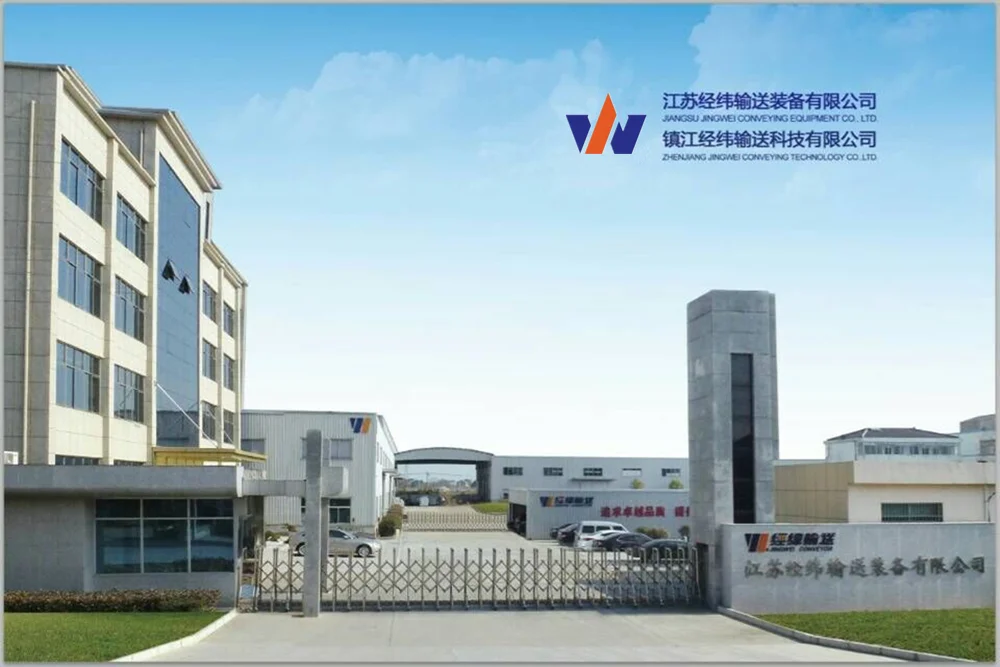

Jiangsu JINGWEI Conveying Equipment Co., Ltd was founded in January 2011. Core businesses: Produce, sales, research and development of grain machine accessories. Our team has years of rich management experiences in grain machine industry. We have developed a full range of grain machine accessories products with high cost performance base on fully summed up the needs of domestic customers and the development trend of foreign customers, and provides efficient and superior services for customers. So we got the recognition from many domestic & foreign group customers and well-known enterprises. Now we have grown into one of the Chinese main suppliers of grain conveying equipment accessories. We provide customers with more than 200 million RMB of products and services and the number of customers have exceeded 2,000.
