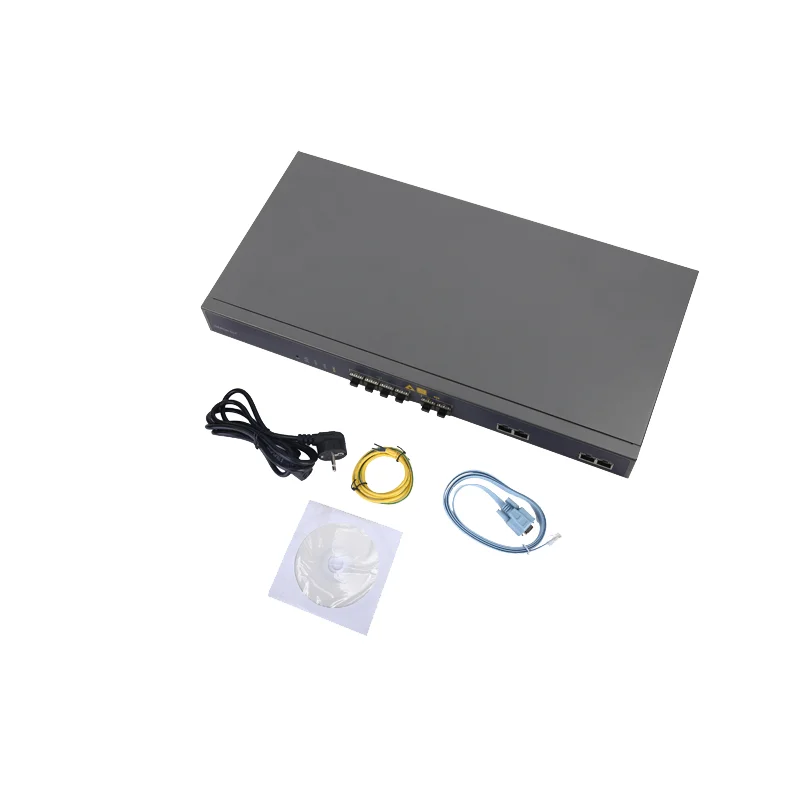

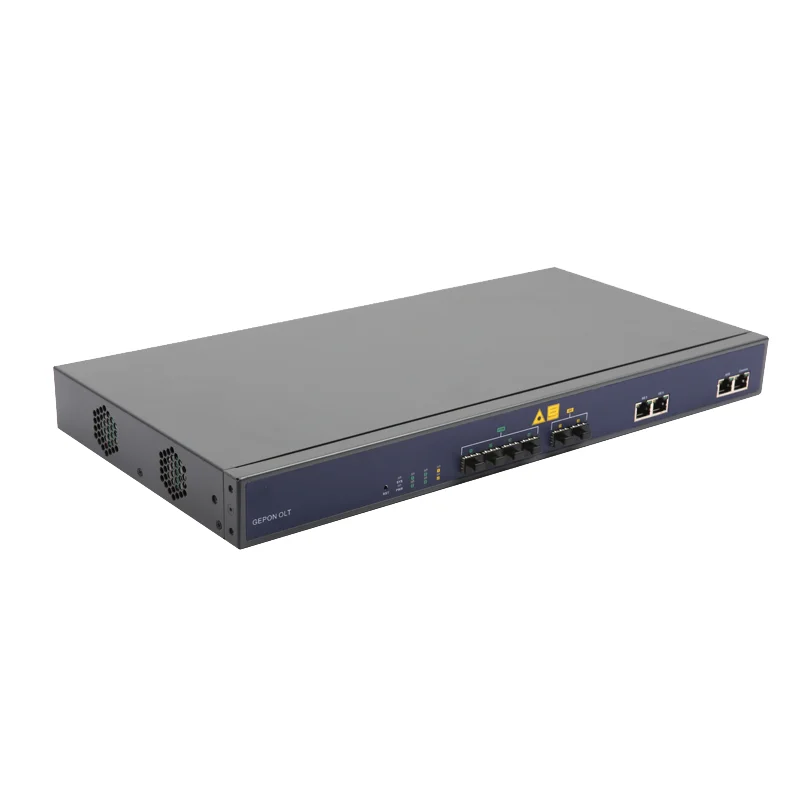

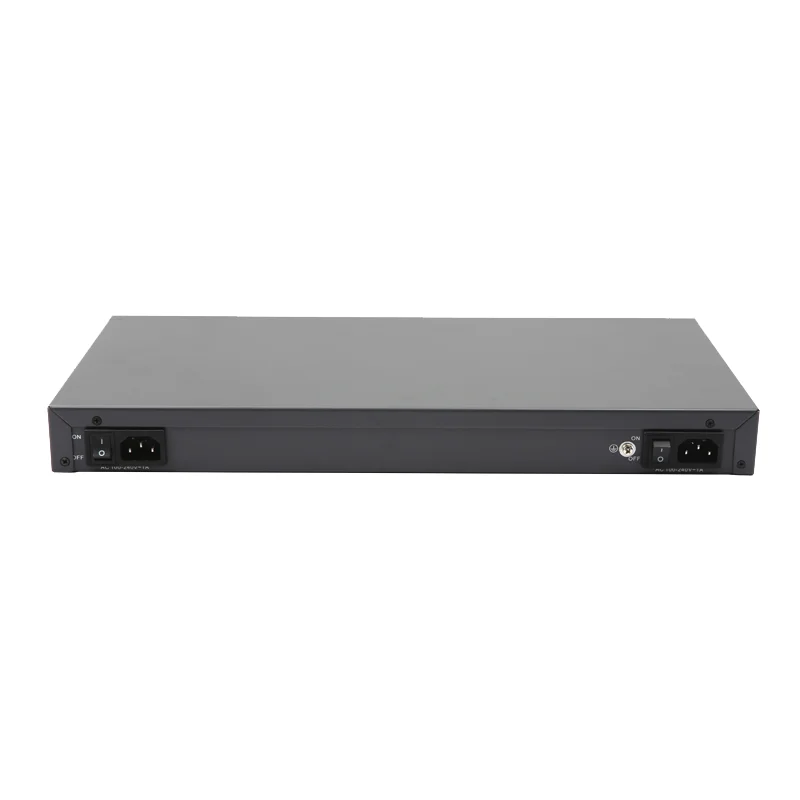

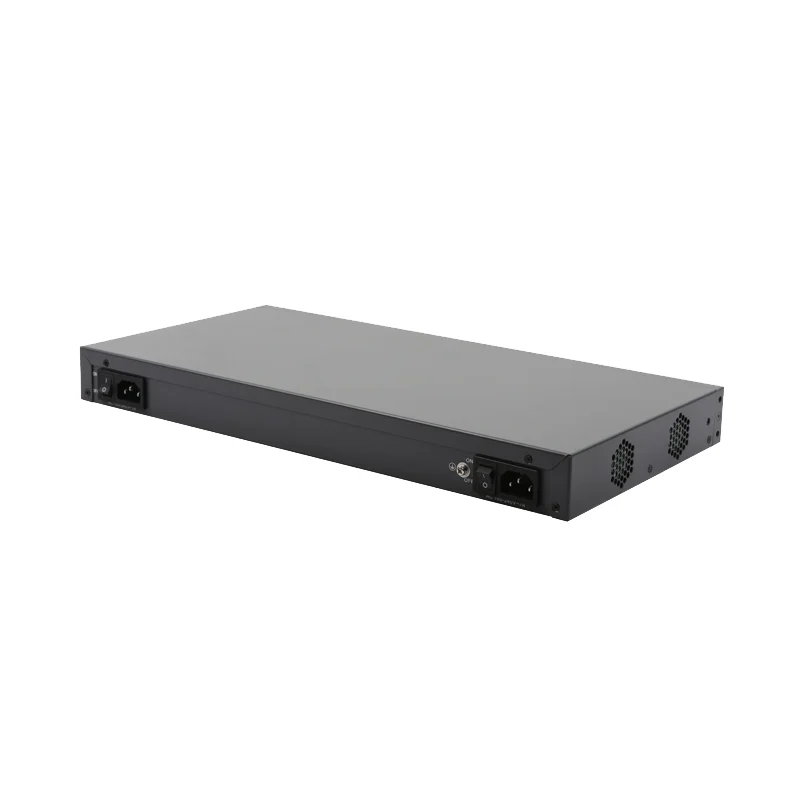

High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB
High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB
High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB
High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB
High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB
High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB

High performance 1U 19 inches Layer 2 EPON 4 PON port OLT with WEB/CLI/EMS Management EPON OLT for FTTX FTTH FTTB

Share on (1600694523154):


Price:$254.00 - $287.00

Quantity:


Product Overview

Description



Product Description


Key Features:
Efficient Layer 2 Switching
Loop Detection and Flow Control
Fast ONU Register
Credit Time Control
ONU auto-discovery/auto-configuration/remote upgrade of firmware
WEB/CLI/EMS Management




Introduction
4 Ports EPON OLT is 1U height 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.

It provides 2GE(copper) and 2SFP slots independent interface for uplink, and 4*EPON OLT ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.


Specification


Chassis
Rack
1U Height Box
1000M Uplink Port
Port count
4
Copper
2*10/100/1000M auto-negotiation
SFP(independent)
2


EPON Port
QTY
4
Physical Interface
SFP Slots
Connector Type
PX20++
Max splitting ratio
1:64
Dimension (LxWxH)
442x200x43.6mm
Weight
4.2kg
Power Supply
AC:90~264V, 47/63Hz, Support Redundant Power
Power Consumption
30W


Operating Environment
Working Temperature
-10~+50°C
Storage Temperature
-40~+85°C
Relative Humidity
5~90% (non-conditioning)
Warranty
3 Yeas
Dimensions
442x200x43.6mm
Weight
4.2kg


Technical Specifications:
Management Ports
1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification
Transmission Distance: 20KM
EPON port speed” Symmetrical 1.25Gbps
Wavelength: TX-1490nm, RX-1310nm
Connector: SC/UPC
Fiber Type: 9/125μm SMF
TX Power: +4.5dBm~+9dBm
Rx Sensitivity: -32dBm
Saturation Optical Power: -8dBm

Management Mode
Web/SNMP/Telnet and CLI

Management Function
Fan Group Detecting
Port Status monitoring and configuration
Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc


EPON management: DBA,ONU authorization, ACL, etc
Online ONU configuration and management
User management and Alarm management

Layer 2 Feature
16 K Mac address
Support 4096 VLAN
Support port VLAN and protocol VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support Vlan translation and QinQ
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Support static LACP
QOS based on port,VID,TOS and MAC address;
Access control list
IEEE802.x flow control;
Port stability statistic and monitoring
Onu switch in the same pon

Multicast
Igmp snooping, 256 IP Multicast Groups

EPON Function
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels
Support power-off alarm function,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports;
Specialized design for system breakdown prevention to maintain stable system
Online dynamic distance calculation on EMS




Packing & Delivery




Packaging and Shipping




Why Choose Us








Company Profile






FAQ


What is your main products？
We focus on FTTX product, main products is poe switch, media converter, ONU, SFP and its accessories.


Can I get sample for free?
Yes, we have limited free sample rules(full payment the first and bulk order give back). For details, please feel free to contact with your service manager.


Can you print my logo on the product?
Yes, sure. We accept the OEM/ ODM order, you can print your logo on the product face, packing box, carton even on the software manage page and so on.


What is the delivery time?
Instock products - 24h
OEM products lower than 1000pcs - 5 days about.
Over 10,000pcs, 15days about.


What is the Payment Terms that you accepted?
With the world change, we also adjusting our payment terms. For bulk order, we accept the deposit in advance and full in the final.


How About The After-sales Services?
24 Hours Online service, remote technical support, face to face meeting or send our technical expert if need.


What about the warranty?
For most of our product, we provide 1 year warranty(non-human damage).
and lifetime limited warranty.


What will my goods delivery from?
We have two factories. The one is in China, and the other is in India. We default send it from China, but if you have requirement, we can send it from India.
