folansi 12kw 18kw DC inverter air source heat pump air to water heat pump heating cooling and hot water
- Category: Water Heaters >>>
- Supplier: Guangdong,Folansi,Energy,Saving,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

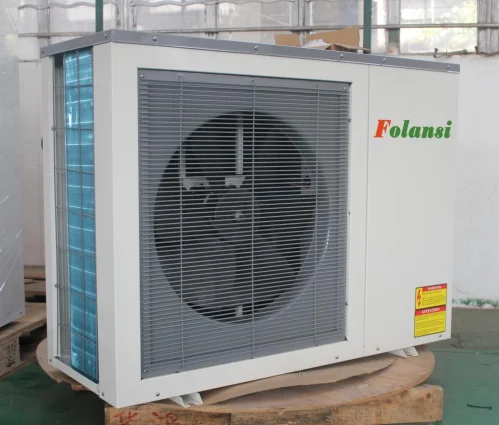

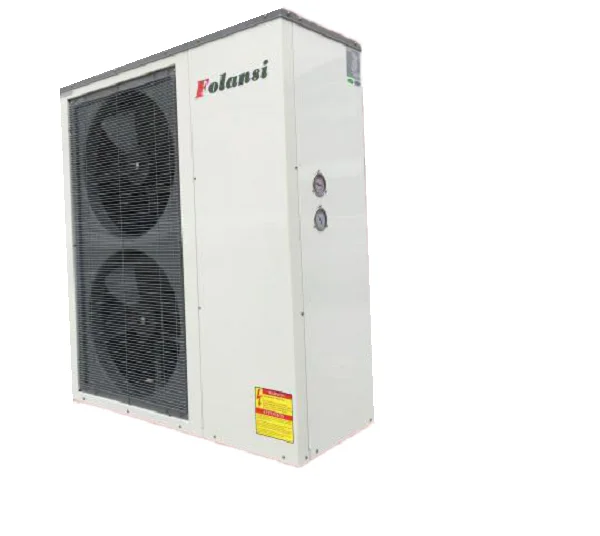

DC inverter air source heat pump
Air source heat pump (ASHP) is a type of heat pump that can absorb heat from outside a structure and release it inside using the
same vapor-compression refrigeration process and much the same equipment as air conditioners but used in the opposite direction.
Unlike an air conditioning unit, most ASHPs are reversible and are able to either warm or cool buildings and in some cases also
provide domestic hot water.
same vapor-compression refrigeration process and much the same equipment as air conditioners but used in the opposite direction.
Unlike an air conditioning unit, most ASHPs are reversible and are able to either warm or cool buildings and in some cases also
provide domestic hot water.
Specification
DC inverter air source heat pump | ||||||
Model | FAD-03 | FAD-05 | FAD-05 | |||
Power supply | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 380~400V/3Ph/50Hz | |||
Max. heating capacity (A7/W35) | 14.5kW | 19.8kW | 20.8kW | |||
Min. heating capacity (A7/W35) | 5.1kW | 6.5kW | 6.5kW | |||
Rated heating capacity (A7/W35) | 12.6 kW | 17 kW | 18 kW | |||
Rated heating power input | 2.68kW | 3.53kW | 3.53kW | |||
Rated Cooling capacity (A35/W7) | 12.3kW | 15.8kW | 16kW | |||
COP | 4.70 | 4.82 | 5.10 | |||

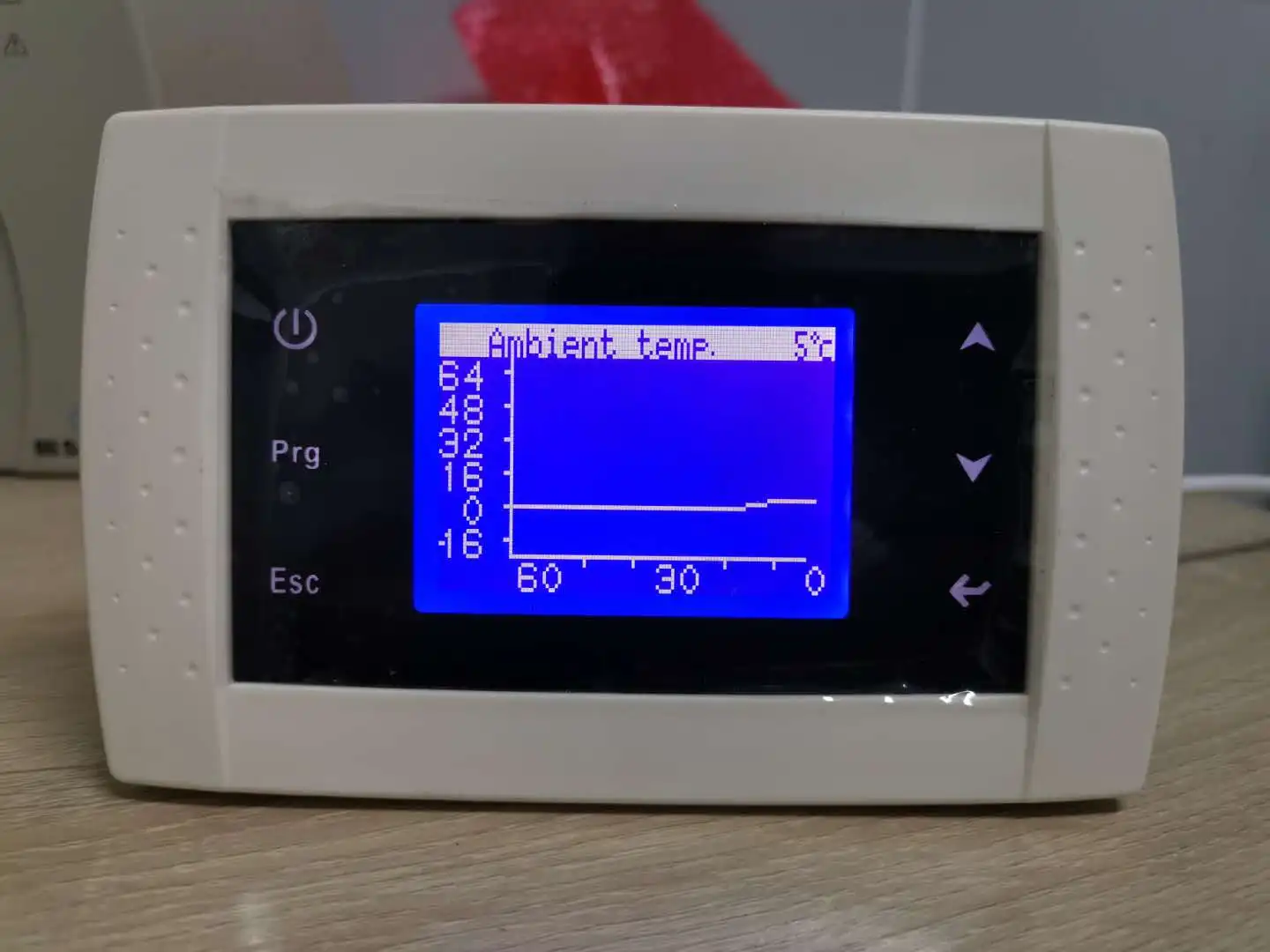

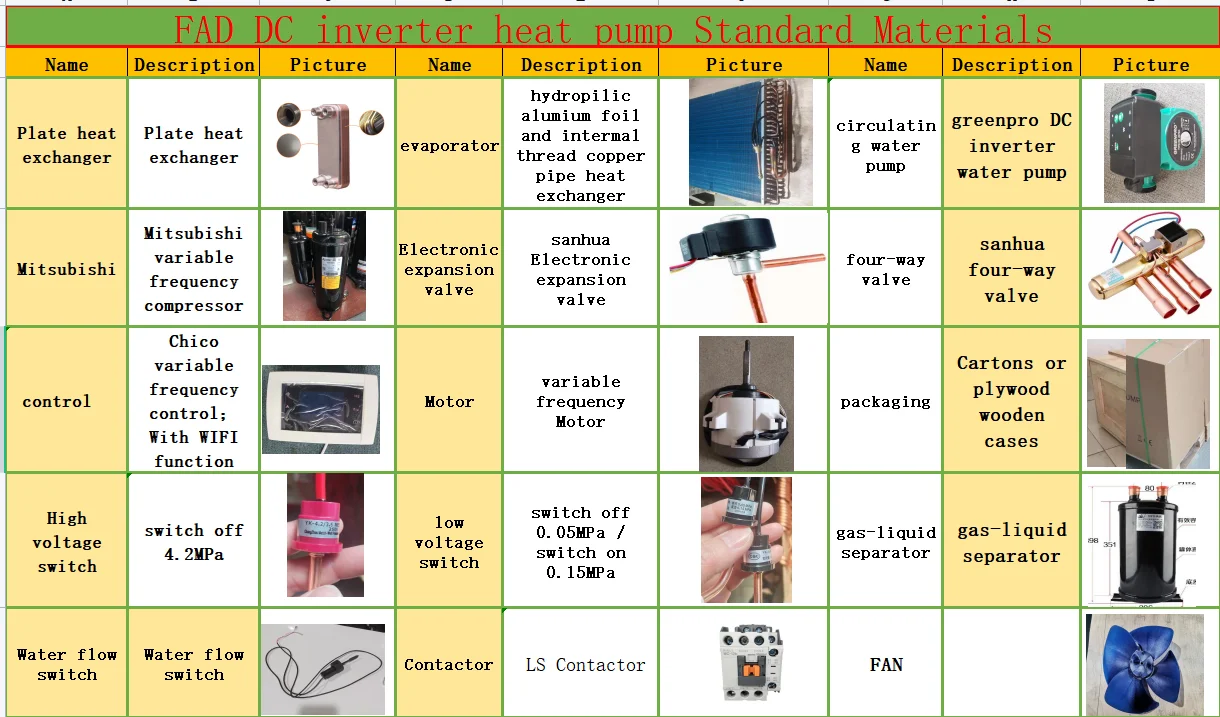

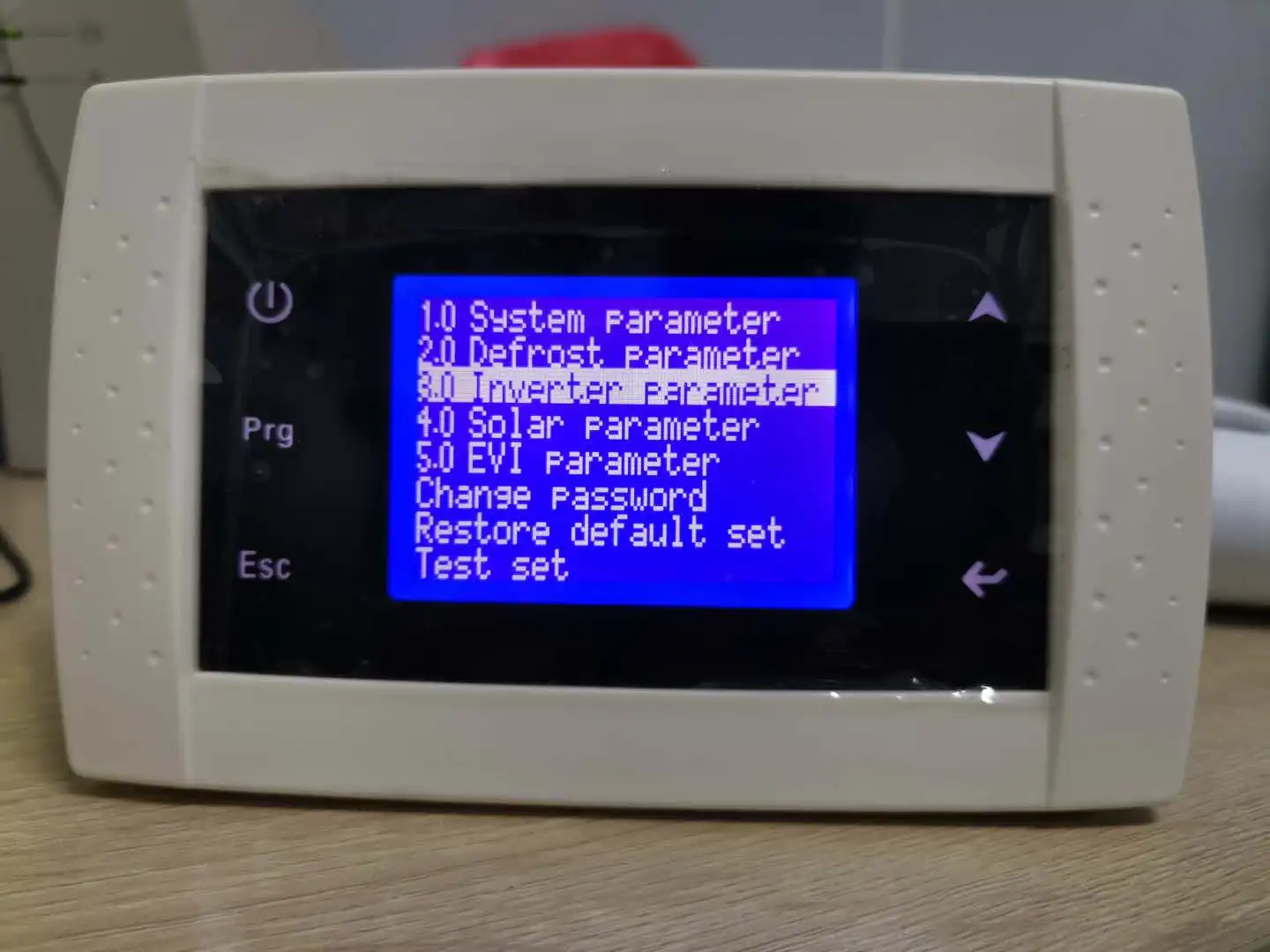

Controller | LCD Wire controller | |||||
Refrigerant | R410A | |||||
Compressor/Type | Mitsubishi | |||||
Condenser | Plate heat exchanger | |||||
Water flow switch | Built-in | |||||
Circulation pump | Built-in Energy Class A water pump | |||||
1、Working temp.：-25℃~43℃ 2、Test condition：heating mode Ambient temp.：7℃/6℃，inlet/ outlet water temp.：30℃/35℃； cooling mode Ambient temp.：35℃/24℃，inlet/ outlet water temp.：12℃/7℃ | ||||||
Packing & Delivery
Package :plywood or carton box
Company Profile
WHO WE ARE:
Guangdong Folansi Energy Saving Equipment co.,Ltd is widely known as a modern professional manufacturing enterprise in develop,research and manufacture energy saving and environment friendly products---heat pump.
Thanks to the engineers great experience and hard work, the devoted to the technology innovation of energy saving and
environmental protection gained great success!
The company is a main member of World Ground Source Heat Pump Association (IGSHPA), taking quality, technology, service as the core competitive power. For good ensure of heat pump quality, of each heat pump before shipment is good tested the engineers are
responsible for the heat pump running performance, By virtue of advanced equipment, strong technician teams and rigorous quality control, the company received favorable comments from home and overseas clients for good quality, timely delivery and sound service.
Guangdong Folansi Energy Saving Equipment co.,Ltd is widely known as a modern professional manufacturing enterprise in develop,research and manufacture energy saving and environment friendly products---heat pump.
Thanks to the engineers great experience and hard work, the devoted to the technology innovation of energy saving and
environmental protection gained great success!
The company is a main member of World Ground Source Heat Pump Association (IGSHPA), taking quality, technology, service as the core competitive power. For good ensure of heat pump quality, of each heat pump before shipment is good tested the engineers are
responsible for the heat pump running performance, By virtue of advanced equipment, strong technician teams and rigorous quality control, the company received favorable comments from home and overseas clients for good quality, timely delivery and sound service.
