Product Overview
Description
Half Cells Mono Panel

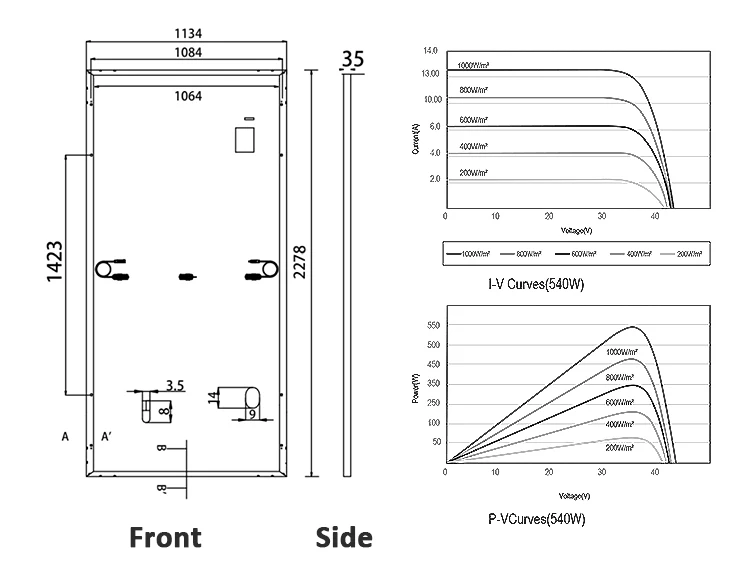

Key Features of 540W Half Cell Monocrystalline solar panel
540W Half-cell monocrystalline solar modules have solar cells that are cut in half, which improves the module’s performance and durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a little more power.
Modules | AN10-530W(144) | AN10-540W | AN10-550W | ||
Maximum Power Pmax | 530W | 540 | 550 | ||
Open Circuit Voltage | 49.30V | 49.60V | 49.90 | ||
Short Cuit Current | 13.72A | 13.86 | 14.00 | ||
Maximum Power Voltage | 41.31V | 41.64V | 41.96V | ||
Maximum Power Current | 12.83A | 12.97A | 13.11A | ||
CELLS | 182*91 Mono perc cells | ||||
CELLS QTY | 144(6×24） | ||||
Max System Voltage | DC1000/DC1500 | ||||
Open Circuit Voltage Temp | -0.282 | ||||
Short Circuit Current Temp | 0.041 | ||||
Peak Power Temp | -0.387 | ||||
Operate Temp Scope | -40 to 85 | ||||
Nominal Operating Temp | 45±2 | ||||
Shingled Solar Panels
Overlapping Solar Panel technology is simpler and more reliable,avoiding the defects such as deviation of ribbon and cold soldering.
Advantages of Shingled Monocrystalline Solar Module
1.The solar panel conversion efficiency is improved
2.Effectively reduce the power loss and hot spots caused by shading
3.Reduce the impact of defective cells
2.Effectively reduce the power loss and hot spots caused by shading
3.Reduce the impact of defective cells
Monocrystalline Solar Panel Specification
Power | 550W | 500W | 450W | 400W | 380W |
Maximum Power Voltage | 45.84V | 41.18V | 36.74V | 41.26V | 39.03V |
Maximum Power Current | 12.00A | 12.14A | 12.25A | 9.70A | 9.74A |
Open Circuit Voltage | 53.63V | 49.42V | 43.07V | 48.17V | 45.76V |
Short Circuit Current | 12.65A | 12.82A | 12.86A | 10.23A | 10.22A |

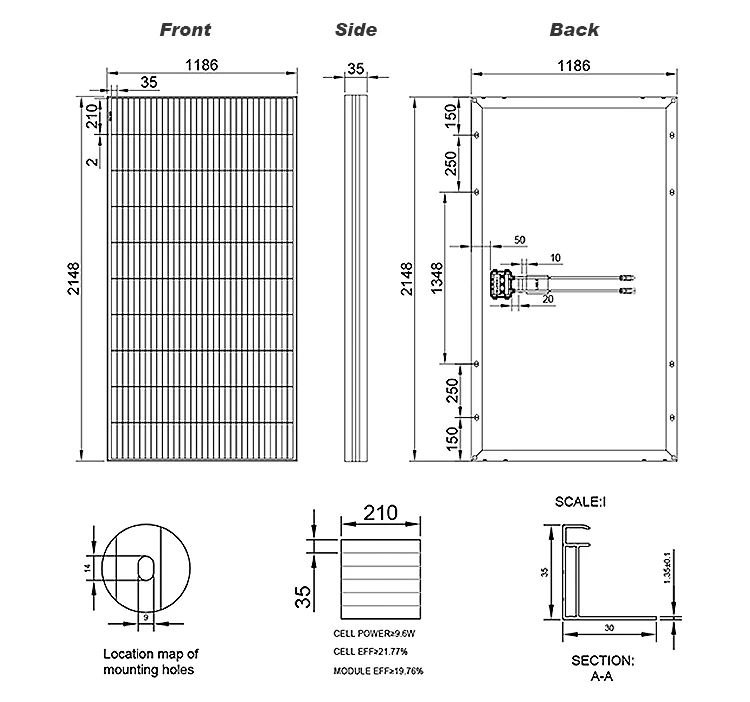

Size | 2148*1188*35mm | 2148*1020*35mm | 2148*960*35mm | 1730*1080*35mm | 1730*1020*35mm |
Weight | 28.07kg | 25.52kg | 22.68kg | 20.55kg | 19.41kg |
Monocrystalline Solar Panel
Monocrystalline solar panel
Both mono type solar panel adopt most advanced PERC cells technology, realizing higher module conversion efficiency. Black silicon cells are used, with lower reflection, so as to improve power generation output.
Power | Vmp | Imp | Dimension |
310W | 33.7V | 9.2A | 1640 × 992 × 35 mm |
350W | 38.8V | 9.02A | 1956 × 992 × 40 mm |
380W | 39.5V | 9.62A | 1956 × 992 × 40 mm |
450W | 48.1V | 9.36A | 1956 × 1310 × 40 mm |
500W | 48.7V | 10.27A | 1956 × 1310 × 40 mm |
Module efficiency up to 22% achieved through advanced cell technology and manufacturing capabilities.

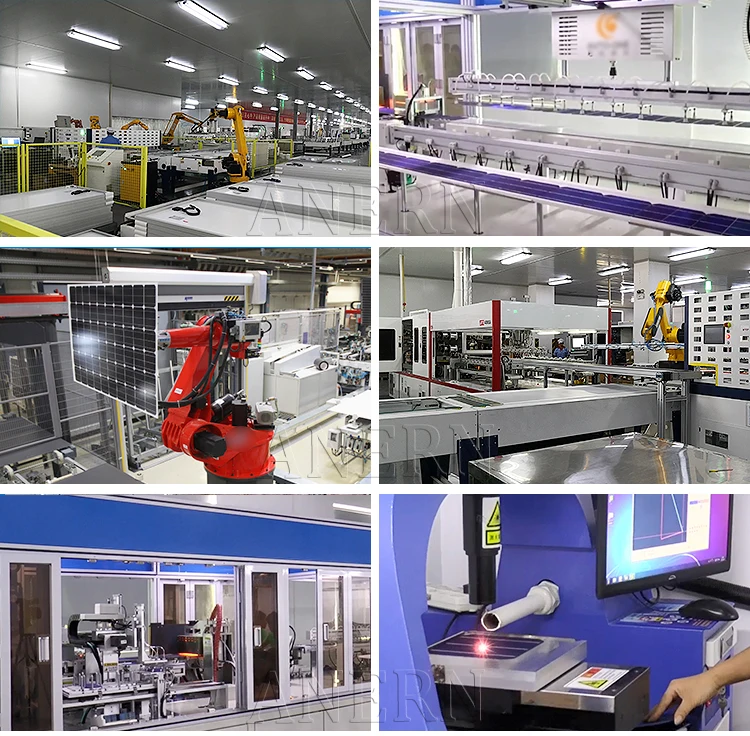

Anern Factory

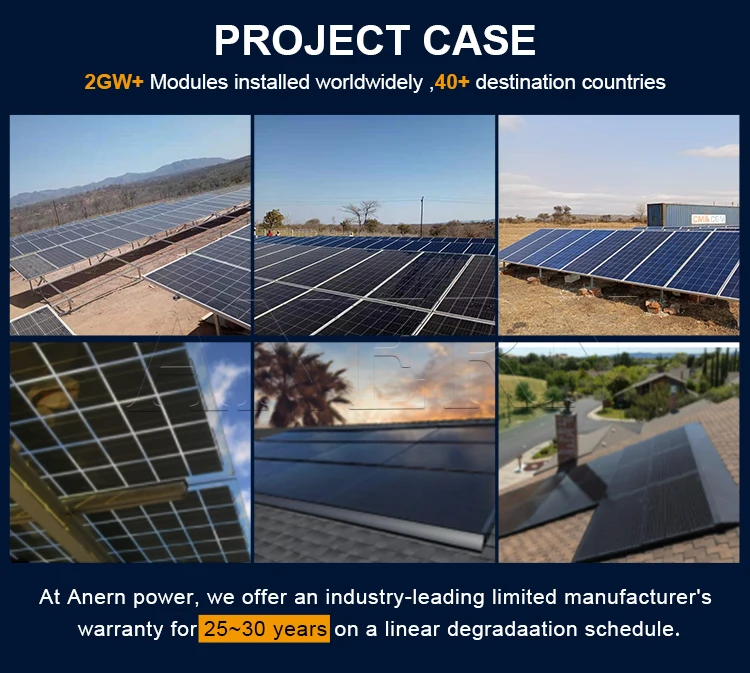

Project & Feedback
Information from our customers, if you want to know more information, please feel free to contact us, thank you!
Certifications
Company Profile
FAQ
More than 50 countries have installed ANERN Solar PV Modules and Solar Systems all over the world.
Q: How much power solar energy systems can you provide?
A: Home solar energy systems 1-100KW, and we also provide higher wattage commercial and industrial solar power systems.
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: Who is your service customer?
A: Individual client for house solar systems; distributor; importer and solar energy system installer.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, INMETRO Q: What is your warranty and after-sales policy?
A: Your order products will be guaranteed for 10 years, and solar panel warranty is 25 years.
