High Speed Wet Mixer and Granulator Powder Mixing Granulation Machine
- Category: Chemical Machinery & Equipment >>>
- Supplier: Herun,Machinery,(shanghai),Co.,Limited
Share on:
Product Overview
Description
Sample Display
Product Paramenters
Model | GHL-50 | GHL-200 | GHL-250 | ||
Working volume(L) | 35 | 140 | 175 | ||
Total volume(L) | 50 | 200 | 250 | ||
Granulating time(Min/batch) | 7-10 | ||||
Mixing power(KW) | 5.5 | 9/11 | 9/11 | ||
Cutting power(KW) | 2.2 | 4.5/5/5 | 4.5/5.5 | ||
Mixing speed(r/min) | 240/360 | 180/270 | 180/270 | ||
Cutting speed(r/min) | 1500～3000 | ||||
Weight(KG) | 800 | 1300 | 1350 | ||
Details Images
Introduction
1.The machine adopts a practical horizontal cyliner structure. Meet the GMP requriement.
2. The driving shaft is equipped with inflatable seal. While washing ,the air can be replaced by water.
3.Fluidized granulating processed is used and the final granules are quite round with high fluidity .
4.Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
5.For each batch of material, with 2 minutes’dry mixing and 1-4 minutes’granulating ,the efficiency is 4-5times higher than that of traditional technique.
2. The driving shaft is equipped with inflatable seal. While washing ,the air can be replaced by water.
3.Fluidized granulating processed is used and the final granules are quite round with high fluidity .
4.Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
5.For each batch of material, with 2 minutes’dry mixing and 1-4 minutes’granulating ,the efficiency is 4-5times higher than that of traditional technique.

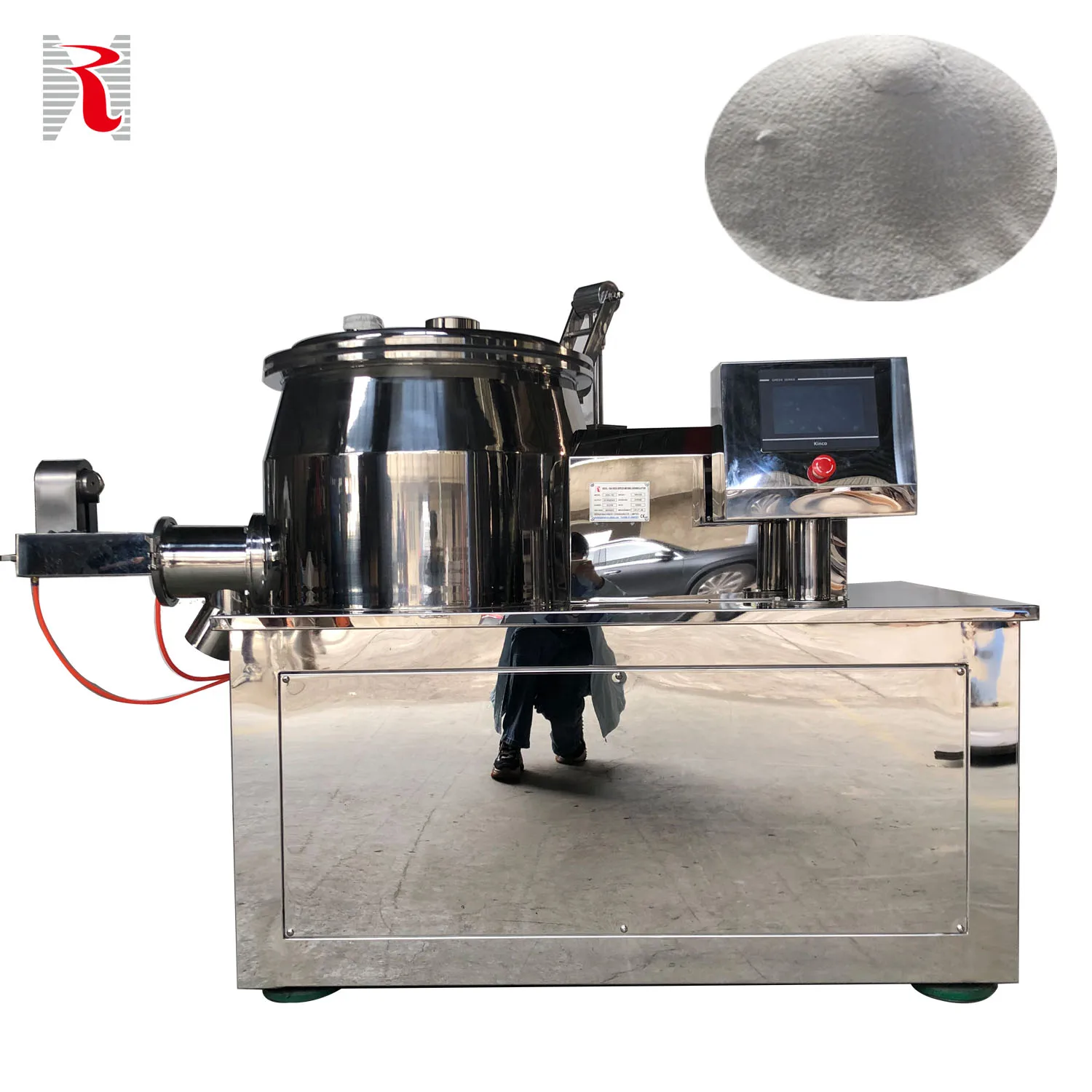

Overall Machine
Granultaion Cylinder Cover
Air supply control to open the lid
Chopping Knife
Coonections
Electric Control Cabinet
Nameplate
outlet
Outlet(Air Supply Control)
Recommend Products
Counting Machine
Capsule Filling Machine
Rotary Tablet Press Machine
Packing And Shipping
Configuration List
Name | Material | Specification | Origin |
Main machine container | SUS304 | 150L | Chuanghong |
Mixing blade | SUS304 | Match the machine model | Chuanghong |
Cutting blade | SUS304 | Match the machine model | Chuanghong |
Container lid | SUS304 | Match the machine model | Chuanghong |
Main machine platform | SUS304 | δ=12mm | Chuanghong |
Out cover board for main machine | SUS304 | δ=2mm | Chuanghong |
Mixnig motor | 8kw | Jiangsu | |
Mxing motor inveter | 8kw | Shenzhen | |
Cutting motor | 3kw | Shenzhen | |
Cutting motor inverter | 3kw | Shenzhen | |
Programmable | PLC | Siemens | |
Touch screen | 7” color screen | Siemens | |
Electric elements | chint | Zhejiang | |
Pneumatic elements | AirTac | Taiwan | |
Pneumatic automatic discharging | SUS304 | Match the machine model | Chuanghong |
View port | Glass | Match the machine model | Chuanghong |
Adhesive feeding port | SUS304 | Match the machine model | Chuanghong |
Dust catcher device | CCP anti-static cloth | Match the machine model | Chuanghong |
Spray gun | SUS304 | Two fluidity | Chuanghong |
Peristaltic pump | Single tube | Hebei |
