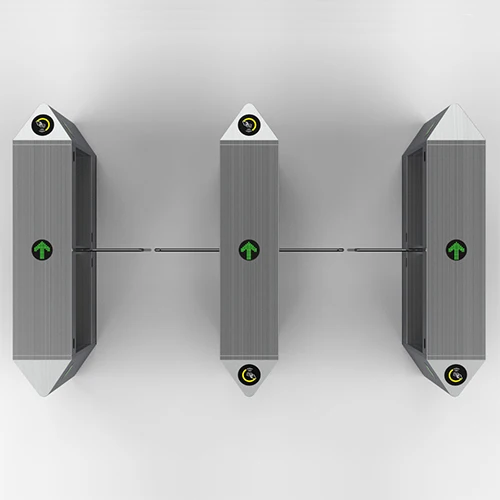

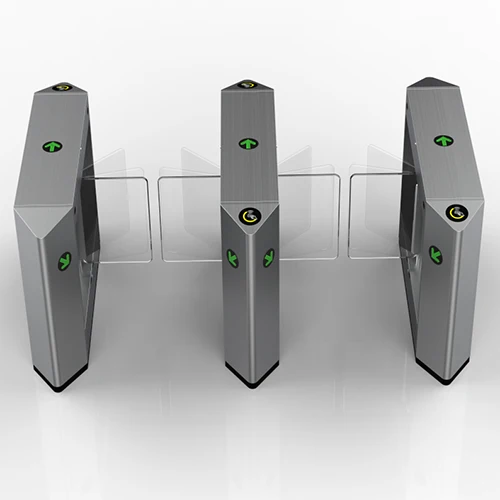

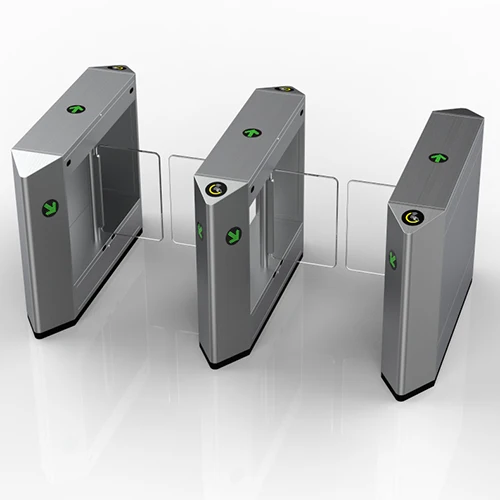

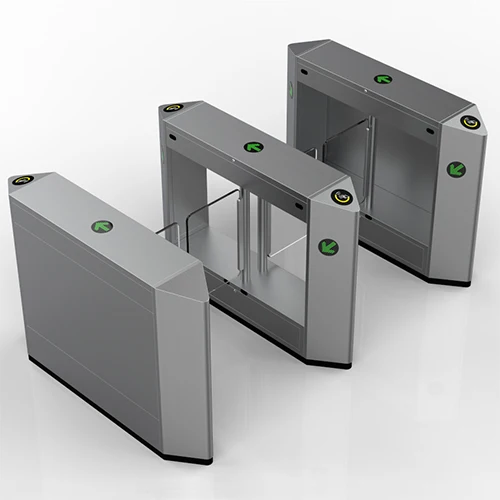

Wholesale Quality Outdoor Automatic Access Control Entrance And Exit Swing Barrier Gate For Security Systems
- Category: >>>
- Supplier: Guangdong Zecheng Intelligent Technology Co. Ltd.
Share on (1600694786164):
Product Overview
Description
Products Description
Benefit and Advantages:
(1)Plexiglass is used in the swipe card area and status display area, and the base color is deep black
(2)Break-in alarm、Trailing alarm、Reversed break-in alarm
(3)Anti-pinch function、Infrared induction function and intelligent logic judgement
(4)Emergency evacuation function、Emergency-off function
(5)Brushless motor control system
(6)Intelligent deceleration braking system
(7)Stop when get blocked or reversible system
(8)Memory function of continuous swiping card
(9)Normally open/ normally closed/unidirection/setting free passage condition
(10)Checking working status and failure indication function when starting up
(11)Standard access interface, fire linkage and remote open-close function
(2)Break-in alarm、Trailing alarm、Reversed break-in alarm
(3)Anti-pinch function、Infrared induction function and intelligent logic judgement
(4)Emergency evacuation function、Emergency-off function
(5)Brushless motor control system
(6)Intelligent deceleration braking system
(7)Stop when get blocked or reversible system
(8)Memory function of continuous swiping card
(9)Normally open/ normally closed/unidirection/setting free passage condition
(10)Checking working status and failure indication function when starting up
(11)Standard access interface, fire linkage and remote open-close function
Product Paramenters
Physical dimensions (mm): | 1400(Length) * 280(width ) * 980 (height) customized optional |
Cabinet material : | SUS304 stainless steel; Surface brushed treatment |
Material thickness (mm): | 1.5 |
Width of passage (mm): | 700（standard passageway) |
Gate material : | Plexiglass |
Gate dimension (mm): | 325 (length) * 555 (height) * 10 (thickness) |
Gate open and close responding time: | ＜0.1 seconds |
Gate running speed: | Rad/s (adjustable) |
Average times of failure-free operation : | 5,000,000 cycles |
Passageway target detection: | 4 groups of active infrared detectors |
Pass speed: | ≥50 /minutes (Normally closed type) |
Application environment | Indoor/outdoor |
Operation temperature: | - 30°C~60°C |
Operation humidity : | 90%, none condensation |
Power supply: | AC220V±，50Hz |
Average power consumption (W): | 60 |

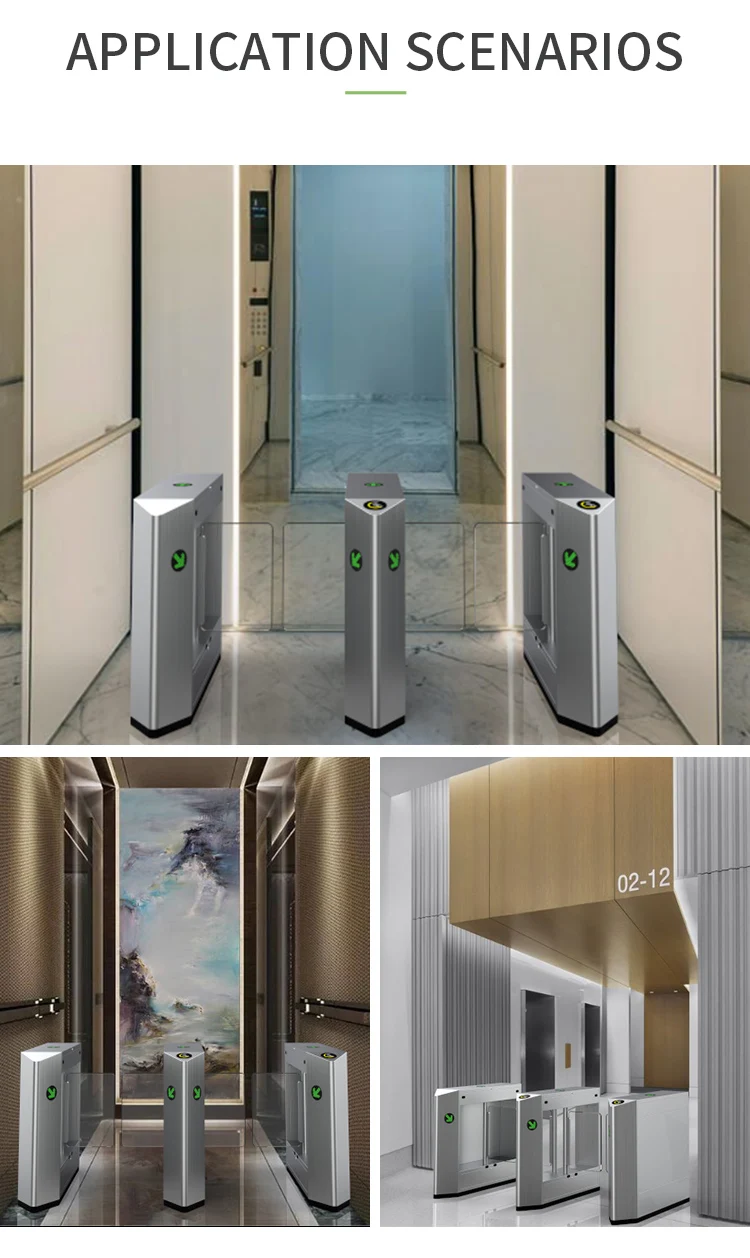

Scope of application

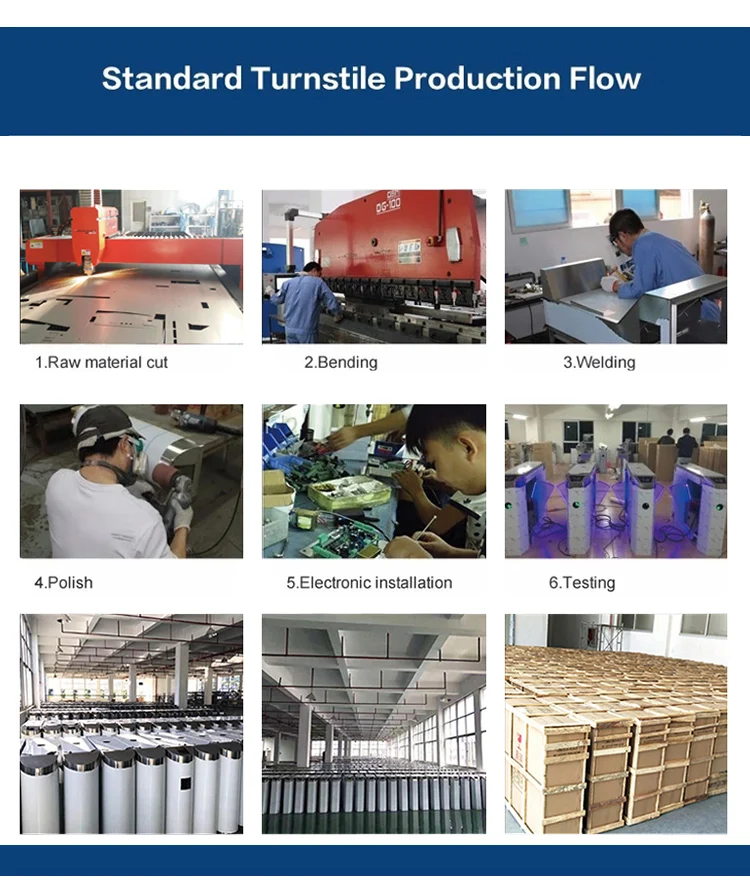

Production Process
Certifications
Company Profile

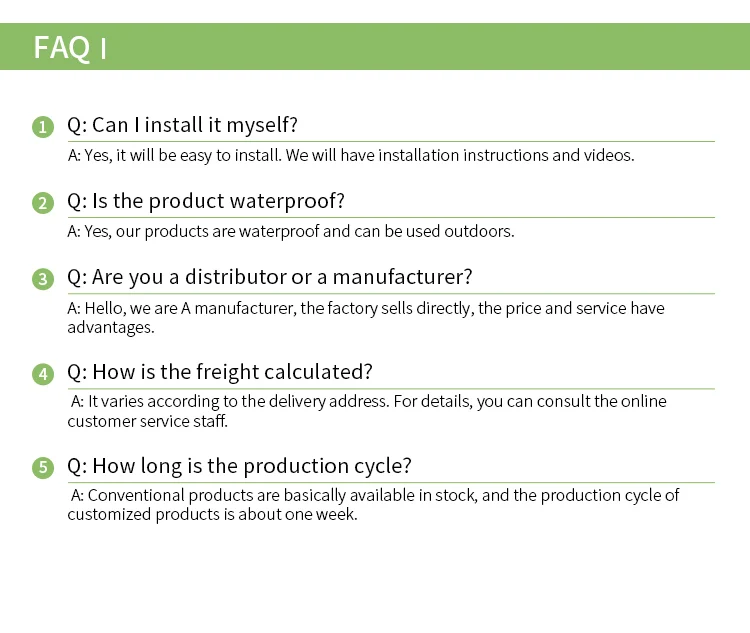

FAQ
