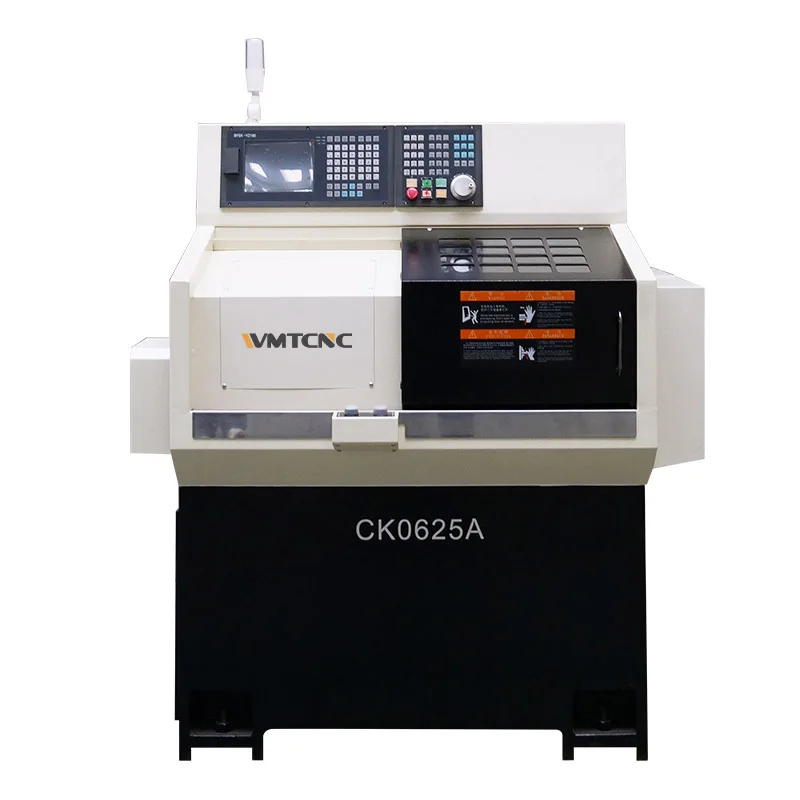

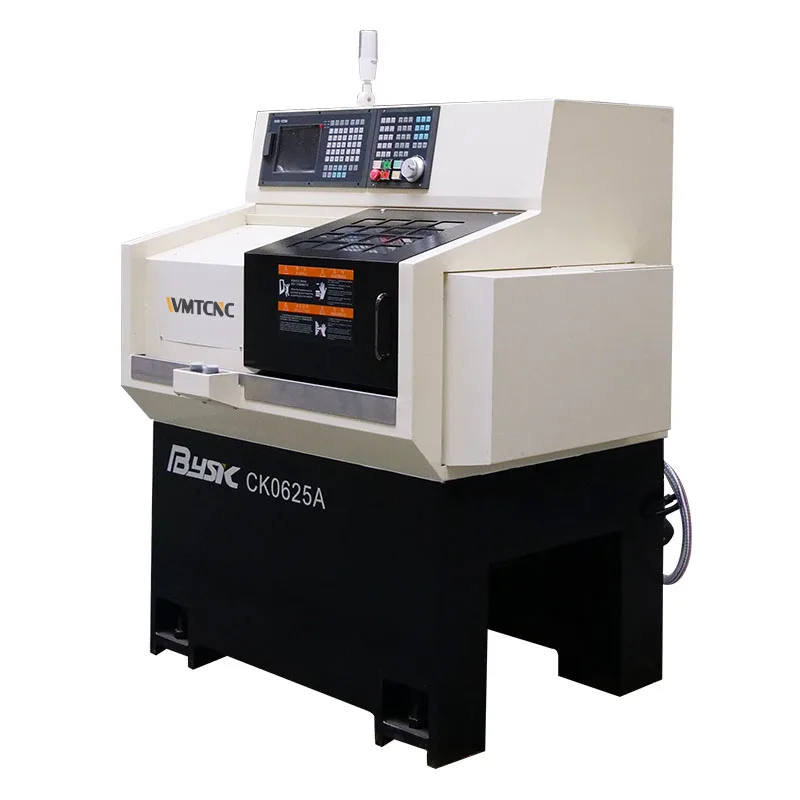

Precision gang tool type cnc lathe CK0625A swiss type cnc lathe machine with servo spindle
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600694863870):
Product Overview
Description
Product Description
Main Features:
1. CK0625A CNC lathe is suitable for mass production and single processing of instruments, meters, and electronics industry connectors, which equipped with alternative guide and linear guide, to meet the requirements from different user.
2. The key parts of machine such as servo motor and linear guide are imported from high-technology corporations.
3. CK0625 equipped with automatic lubricating device, to ensure high-precision processing and also improves equipment life.
4. Machine equipped with automatic feeder and automatic unloading device, which makes CK0625 able to get production automation.
3. CK0625 equipped with automatic lubricating device, to ensure high-precision processing and also improves equipment life.
4. Machine equipped with automatic feeder and automatic unloading device, which makes CK0625 able to get production automation.
Specification | CK0625A | |
Spindle | ||
Max. bar throught hole | Φ25mm | |
Spindle through diameter | Φ26mm | |
Max. revolving diameter | Φ300mm | |
Spindle center height from the ground | 930mm | |
Spindle speed range | 0-5000r/min | |
Spindle motor power | 2.2kw | |
STROKE | ||
X stroke | 400mm (Diameter value) | |
Z stroke | 180mm | |
X axis servo motor power | 0.75kw | |
Z axis servo motor power | 0.75kw | |
Guideway | Linear guideway | |
CNC | ||
Max. setting unit | 0.001mm | |
Max. moving unit X | 0.0005mm | |
Max. moving unit Z | 0.001mm | |
Max. program size | ±9999.999 | |
Cutting speed | 1-4000mm/min | |
X rapid travel speed | 18000mm/min | |
Z rapid travel speed | 20000mm/min | |
Gang type | 6 | |
Tool shank size | 16*16 | |
Cutting motor power | 0.09kw | |
Capacity of coolant container | 120L | |
Motor power | 25w | |
Capacity | 1L | |

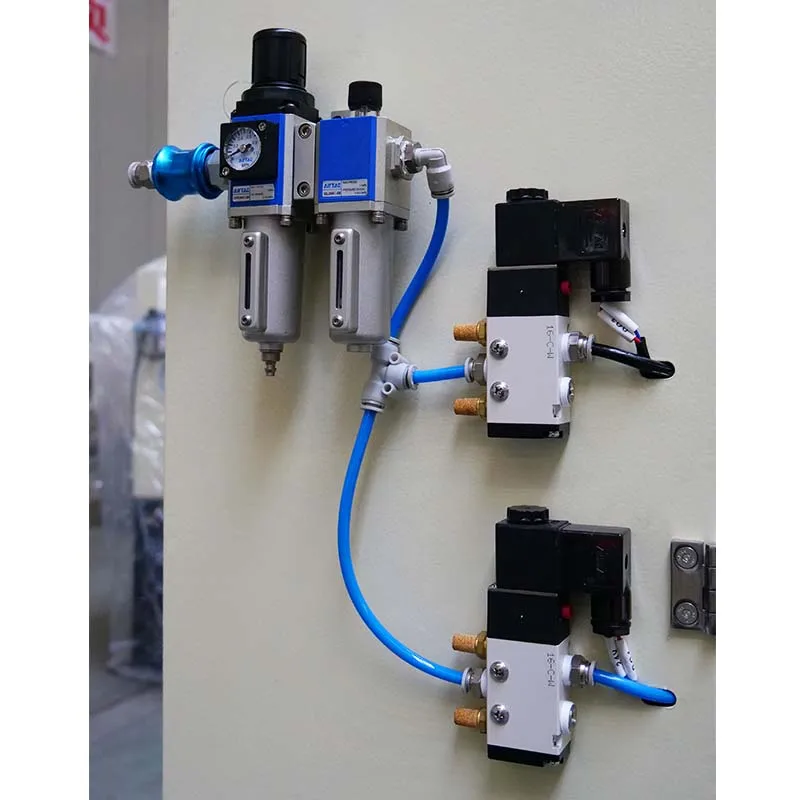

Input air pressure | 0.4-0.6Mpa | |
Machine size (L*W*H) | 1405*1050*1650mm | |
Weight | 900kg | |

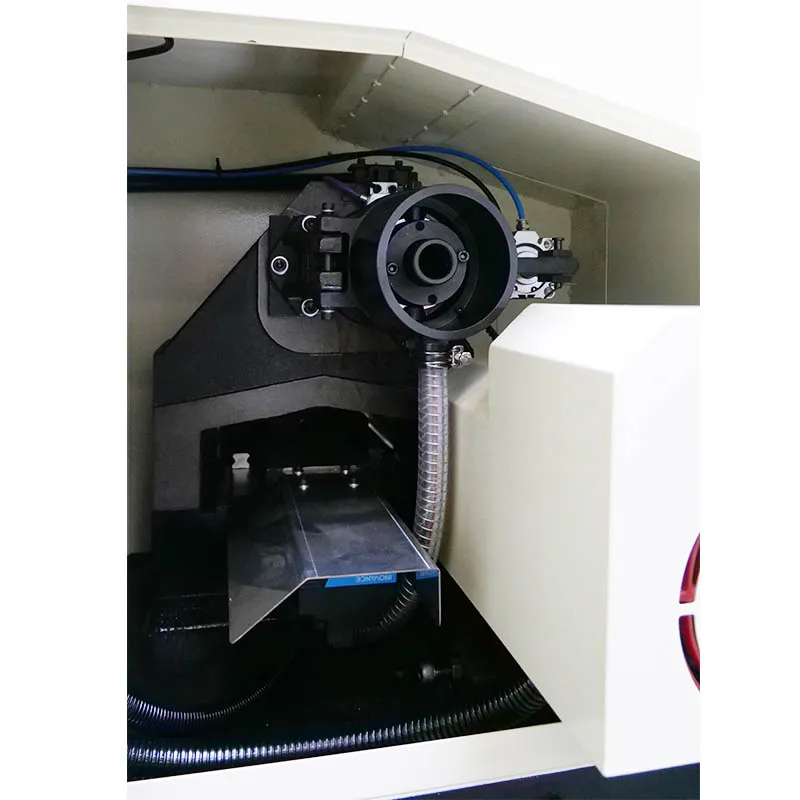

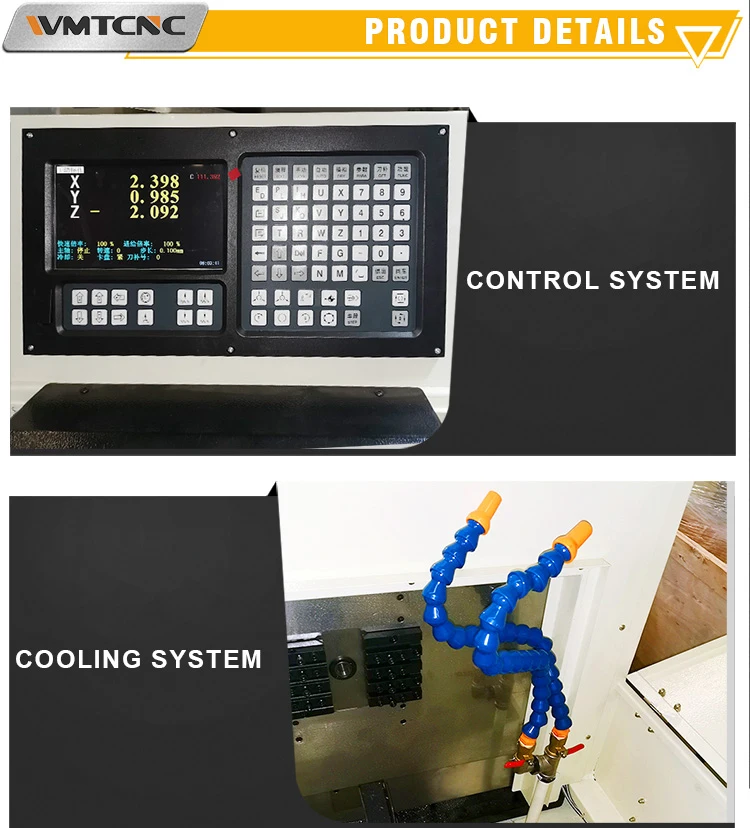

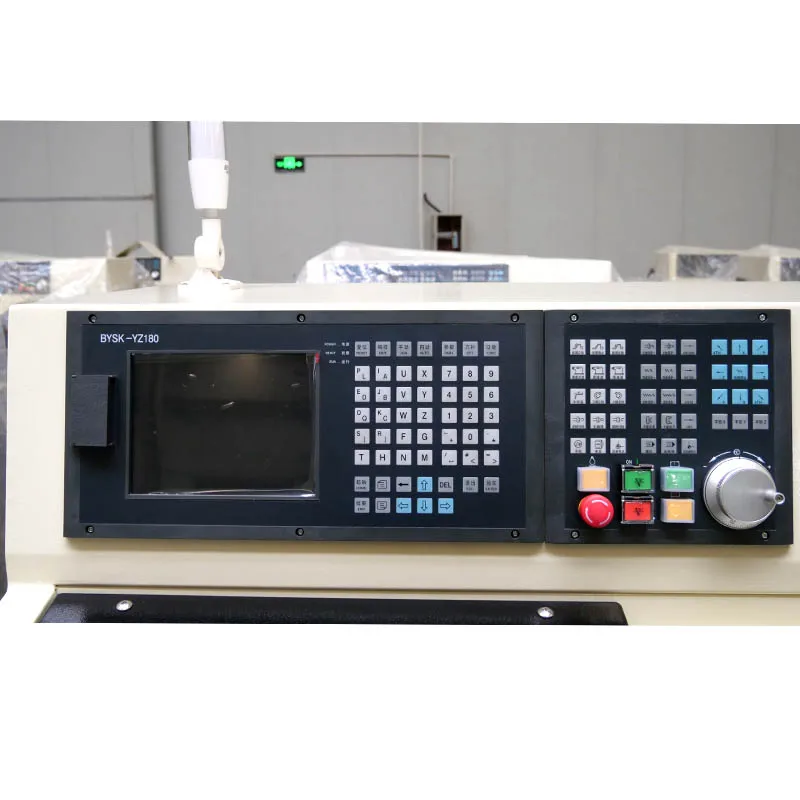

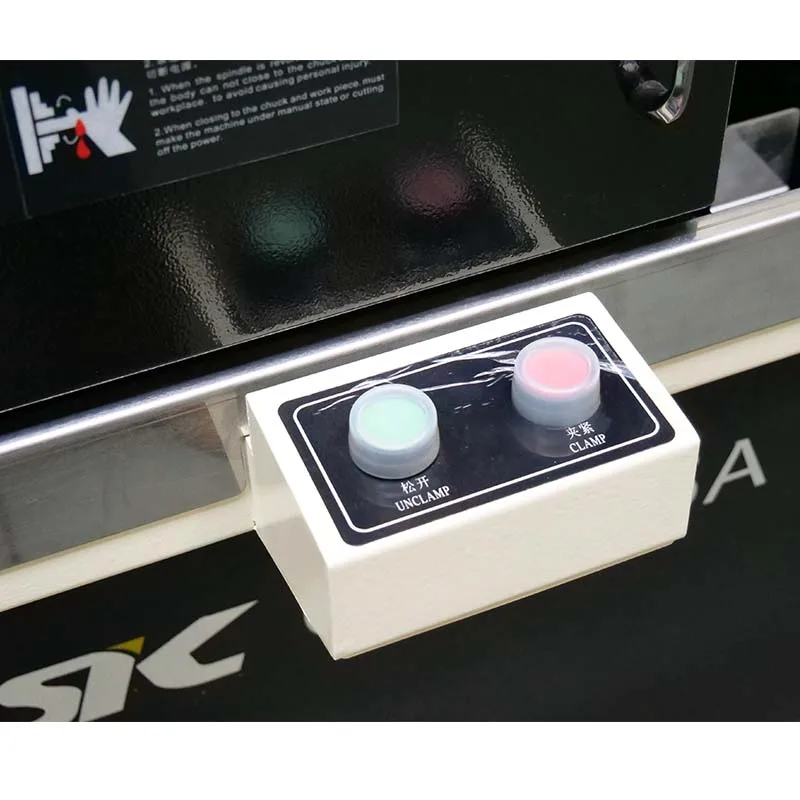

Machine Details

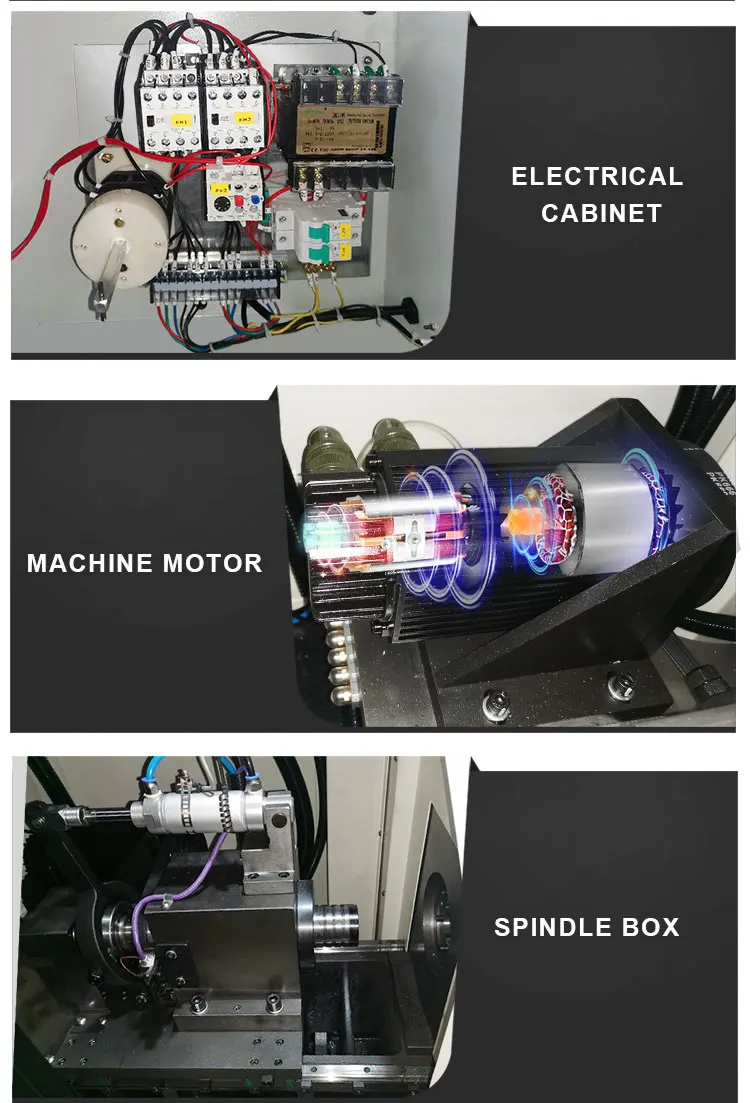

Details Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
