electric wheelchair motors turkey price wheel for electric wheelchair
- Category: >>>
- Supplier: Nanjing,Gold,Camel,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

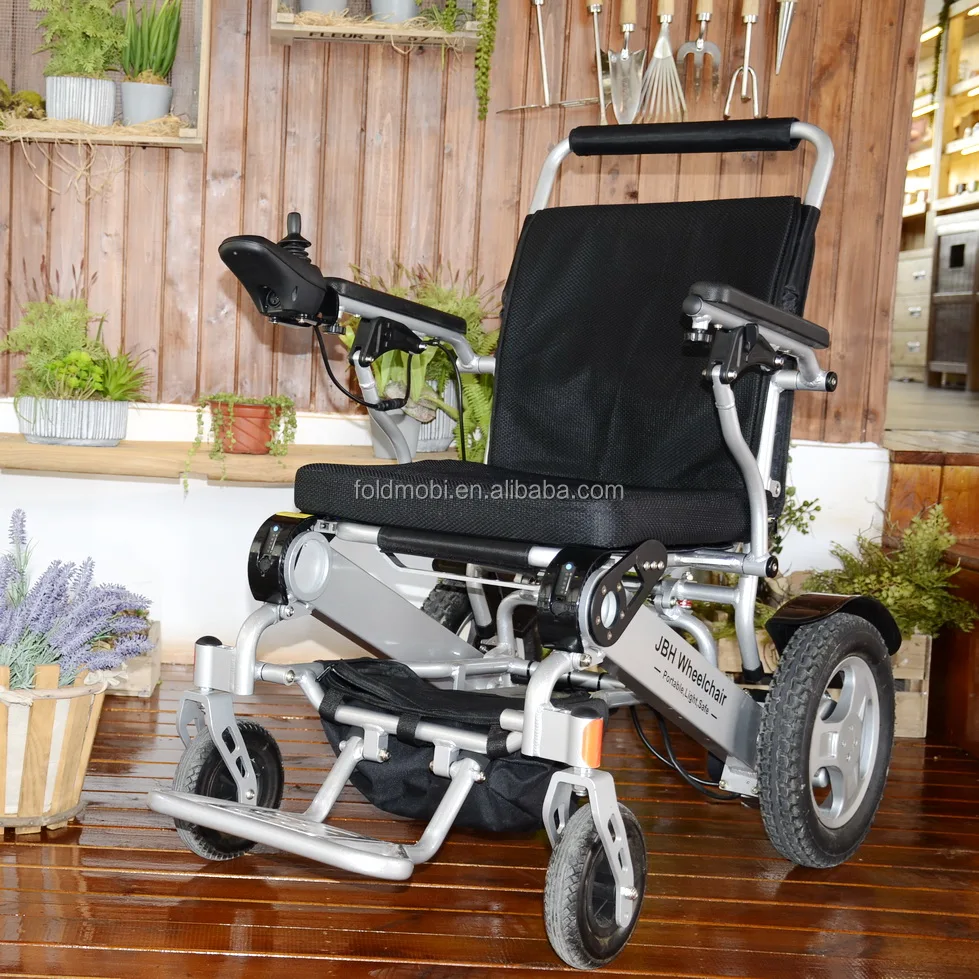

JBH D09 is the best seller electric folding wheelchair featuring:
1. Max load up to 180KG.
2. Side-way 6Ah lithium battery*2pcs, you can take them out while you are seating on it.
3. 7'' 360° front wheel and 12.5'' rear wheel.
4. Interchangeable joystick, you can control the direction on left hand or right hand.
1. Max load up to 180KG.
2. Side-way 6Ah lithium battery*2pcs, you can take them out while you are seating on it.
3. 7'' 360° front wheel and 12.5'' rear wheel.
4. Interchangeable joystick, you can control the direction on left hand or right hand.
5. D09B has a wider seat width of 53cm.
6. D09C features extra adjustable backrest if you need.
Specification
Model | D09/D09C/D09E | D09B/D09D | |
Folding | Manual Folding | Manual | |
Frame Material | Aluminum Alloy | Aluminum Alloy | |
Seat Width | 42 cm | 36/38/40/42 cm | |
Seat Depth | 40 cm | 38/40/42 cm | |
Front Seat Height | 50 cm | 39-43 cm | |
Rear Seat Height | 48 cm | 36-40 cm | |
Backrest Height(Off Seat) | 50 cm | 35 cm | |
Backrest Height(Off Ground) | 98.5 cm | ||
Armrest Distance | 48 cm | 53.5 cm | |
Armrest Height(Off Seat) | 24 cm | ||
Armrest Height(Off Ground) | 72 cm | ||
Foot Pedal Height Off the Ground | 11.16 cm Adjustable | 11.5-13.5 cm Adjustable | |
Max Load | 180 kg | ||
Unfold Size | 99*60*95 cm | 80*54-60*75 cm | |
Folded Size | 60*36*79 cm | 80*32*75 cm | |
Package Size | 70*43*88 cm | 88*40*81 cm | |
Net Weight | 25 kg | 12 kg | |
Gross Weight | 28 kg | 18.8 kg | |
Shipping Weight | 35 kg | ||
Front Wheel | 7''x1.75'' *2pcs | 4'' | |
Rear Wheel | 12.5''x2.25'' *2pcs | 24'' | |
Anti-tipper | Yes | Yes | |
Drive Range | 25 km | ||
Max Speed | 6 km/h | ||
Gradient | 8° | ||
Turning Radius | 90 cm | ||
Battery | 24V 6AH Lithium Battery *2pcs | ||
Motor | 24V 250W Motor | ||
Controller | 24V Brushless Controller | ||
Colors In Stock | Black/Red/Blue/Yellow/Silver/Pink | Black/Red/Blue/White | |
OEM/ODM | Yes | OEM | |
Warranty | 3 years on frame( Except man-made damage ), 1 year for motor and controller, 6 months for battery | 3 years on frame (Except man-made damage) | |
Video Display
Warranty
Pre-sales Service
Inquiry and consulting support.Sample testing support.
Factory tour(if you want) to our factory in MingGuang, Anhui, China
OEM Service
LOGO OEM: Accessible on wheelchair cushion, carton box, manual and frame, scooters sticker, seat cover embroidery, etc
Color OEM: You can select any color as long as it meets MOQ 100pcs.
After-sales Service
Video tutorial on how to use JBH Wheelchair and scooters.
Technical support 24hrs 365 days.
Spare parts and replacements available.
Factory tour(if you want) to our factory in MingGuang, Anhui, China
OEM Service
LOGO OEM: Accessible on wheelchair cushion, carton box, manual and frame, scooters sticker, seat cover embroidery, etc
Color OEM: You can select any color as long as it meets MOQ 100pcs.
After-sales Service
Video tutorial on how to use JBH Wheelchair and scooters.
Technical support 24hrs 365 days.
Spare parts and replacements available.
Company Profile
JBH Group, founded in March 2013, is a global leader in portable electric wheelchairs. We are committed to solving the problem of travel difficulties for the global aging population and limited mobility persons. The company focuses on the development and production of portable intelligent electric wheelchairs, portable electric folding scooter, sports wheelchairs, intelligent hospital beds and various mobility aids.

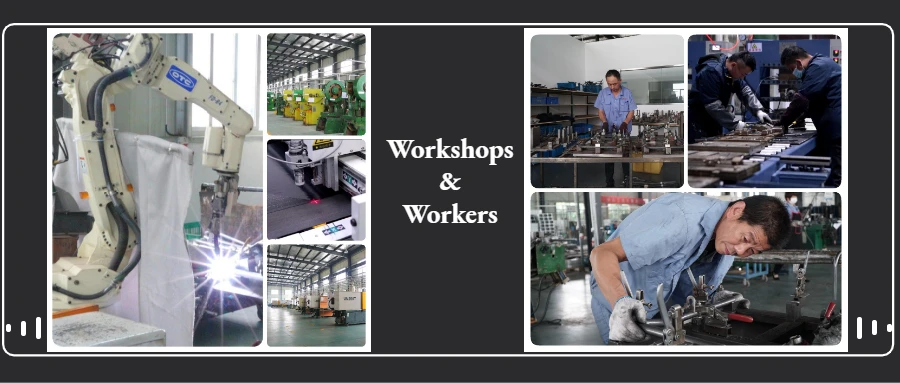

JBH Medical occupies an area of 230 acres (160,000 square meters), has more than 60,000 square meters of standard workshops, including mold, processing, welding, high-frequency, injection, painting, assembly and 100,000-level purification workshops. At present, the company has approximately 450 employees, operates in 87 countries and serves approximately 300,000 elderly users worldwide.
In recent years, JBH Medical has obtained more than 50 patents, has been recognized as a high-tech enterprise, and won the titles of "Nanjing Gazelle Enterprise" and "Nanjing Specialized New Enterprise"; Our products have been listed as the "New technology product to be promoted and applied in Jiangsu Province", successively passed TUV ISO9001, TUV ISO13485, ISO14001, ISO18000 certification, EU CE certification and SGS etc.
The company adheres to the mission of "Filial piety first, then pursue benefiting human health." We are all striving to make" To be healthier and happier with JBH in every family, every city and every country" happen!
JBH Medical occupies an area of 230 acres (160,000 square meters), has more than 60,000 square meters of standard workshops, including mold, processing, welding, high-frequency, injection, painting, assembly and 100,000-level purification workshops. At present, the company has approximately 450 employees, operates in 87 countries and serves approximately 300,000 elderly users worldwide.
In recent years, JBH Medical has obtained more than 50 patents, has been recognized as a high-tech enterprise, and won the titles of "Nanjing Gazelle Enterprise" and "Nanjing Specialized New Enterprise"; Our products have been listed as the "New technology product to be promoted and applied in Jiangsu Province", successively passed TUV ISO9001, TUV ISO13485, ISO14001, ISO18000 certification, EU CE certification and SGS etc.
The company adheres to the mission of "Filial piety first, then pursue benefiting human health." We are all striving to make" To be healthier and happier with JBH in every family, every city and every country" happen!
FAQ
1. How Do You Control Product Quality?
We have a professional QC team to handle all the procedures covering material, producing,
assembling, stock test, and final test before shipping. Every check is in charged of specific individuals with the traceable record, to make sure they are responsible enough.
2. What's the MOQ of OEM Products?
10pcs each color of each model.
3. How Long is the LEAD TIME？
1. Standard Product:
Less than 10pcs, ship out within 3 days.
Between 20-50pcs, ship out within 10 days.
More than 50pcs, ship out between 15-30 days.
2. OEM Products: Ship out between 10-38 days after all requirements are confirmed.
4. Can I Take This Wheelchair to the Airplane? Any Documents Do I Need?
Sure, our products are allowed to take onto the plane. The standard 6Ah lithium battery is qualified, but if you customize the battery with higher configuration, you may consult the airline to confirm if they are allowed.
5. Can I Use JBH Products in Different Countries?
Sure. Our products' input voltage is universal 100-240V, and we can provide you with the appropriate
charger according to the type of plug suitable for your country.
6. Does the Wheelchair Apply to Local Medical Insurance?
It depends. We are sure they are in some EU countries. For other countries, better consult your local authority for detailed information.
