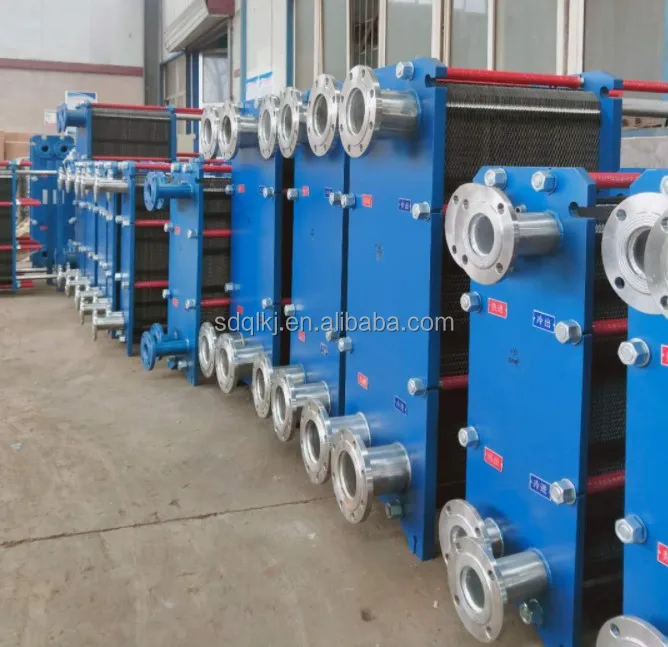

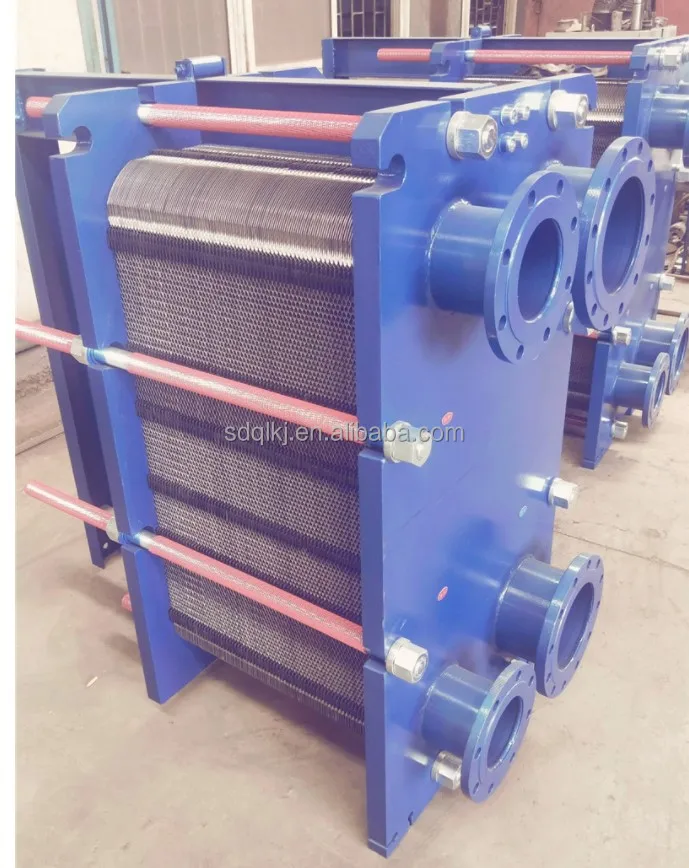

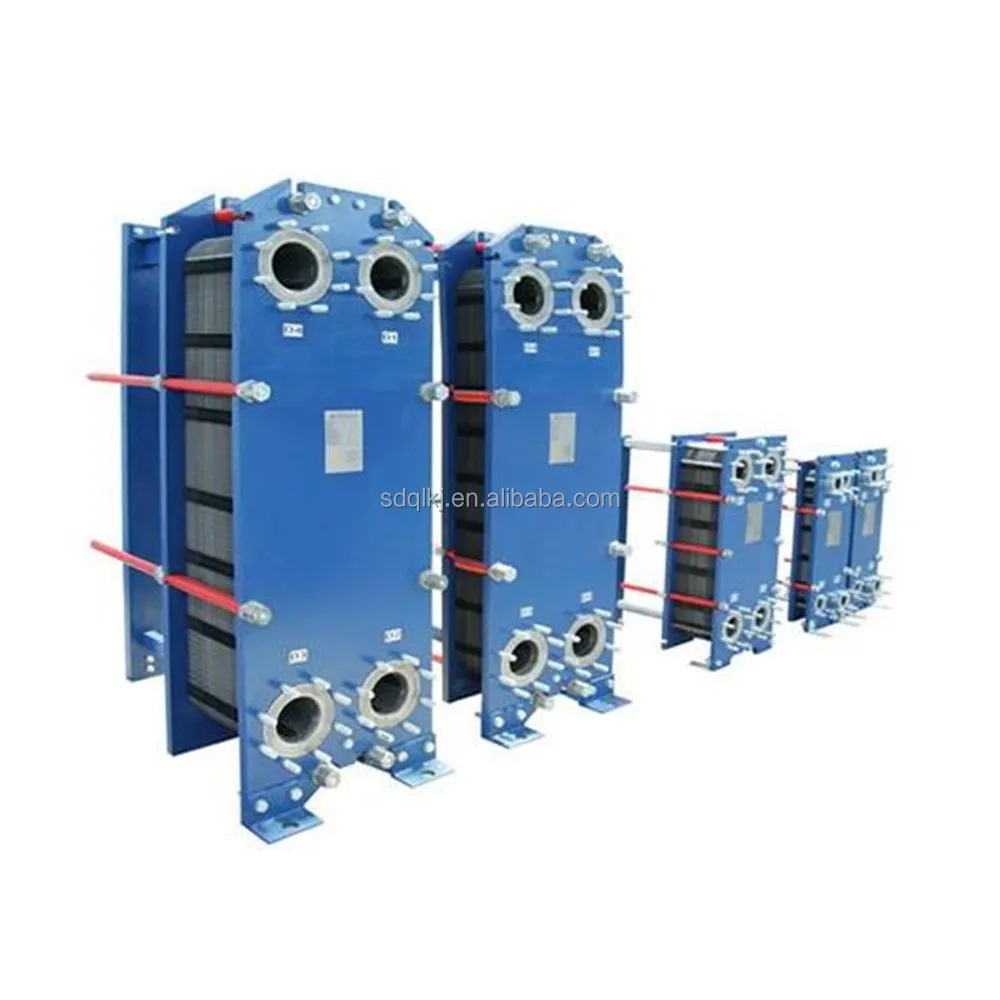

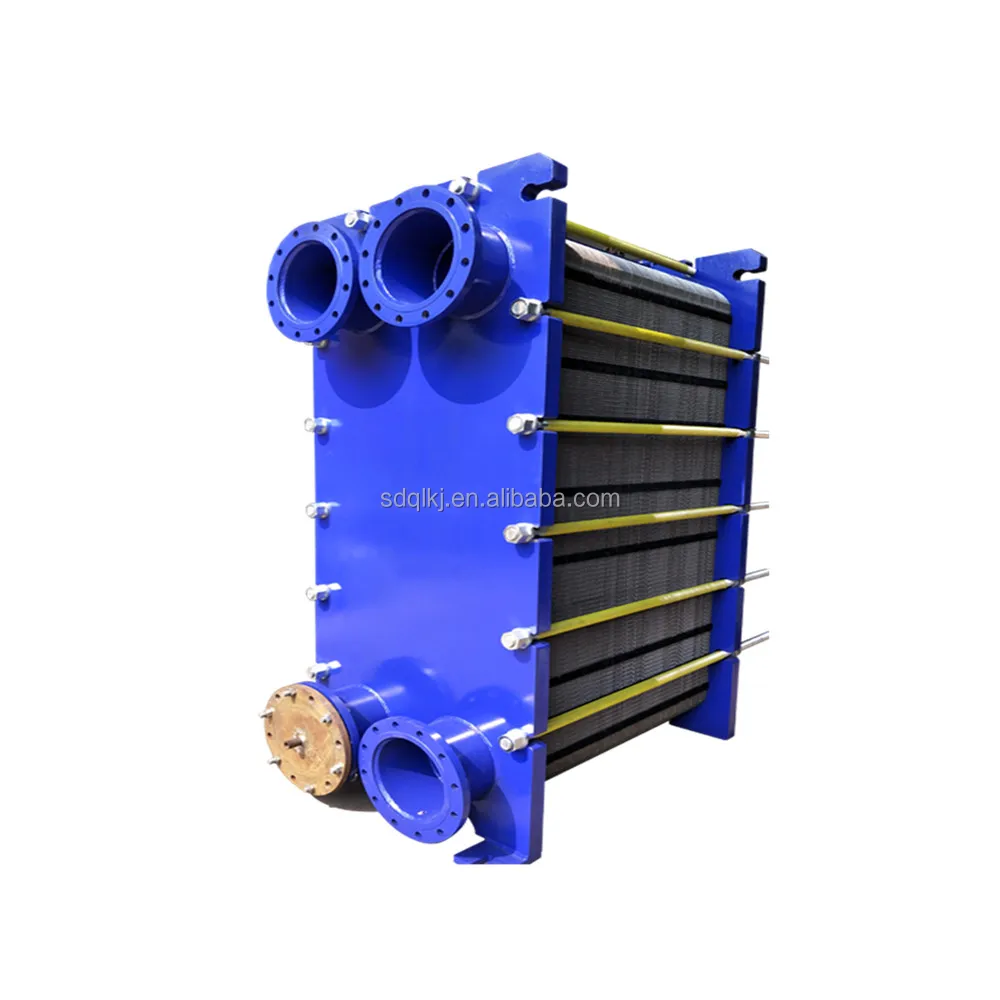

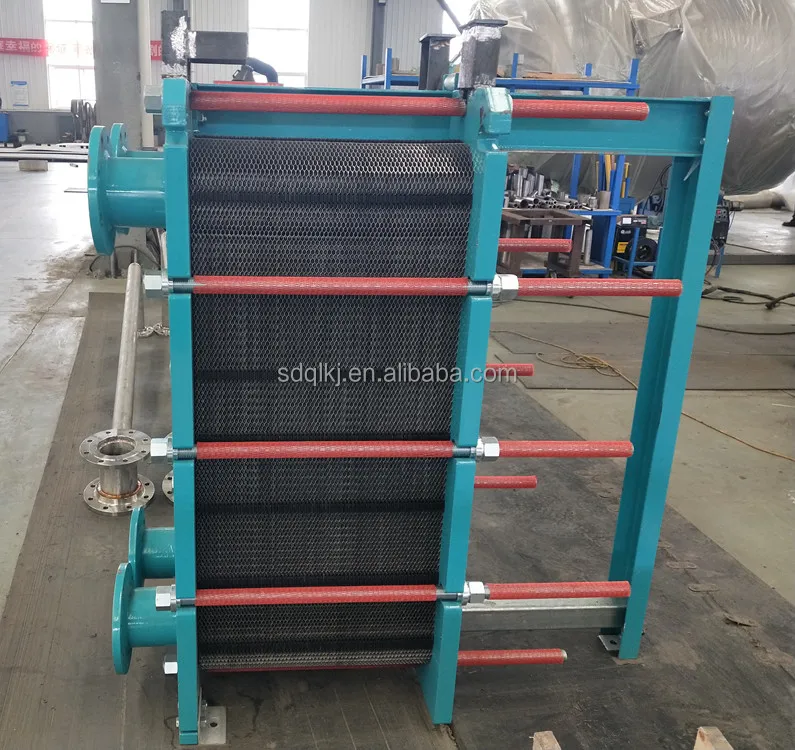

Detachable SS316L Plate Heat Exchanger with Gasket
- Category: >>>
- Supplier: Shandong Qinglei Environmental Science And Technology Co. Ltd.
Share on (1600694978645):
Product Overview
Description
Plate heat exchanger is one of the latest equipment in the field of heating and cooling. It has the advantages of compact
structure, small footprint, high heat transfer efficiency, convenient operation and maintenance, and the ability to handle small
temperature differences. As a high-efficiency and energy-saving product, plate heat exchangers have been widely used in various
industrial fields such as mining, metallurgy, petroleum, chemical industry, machinery, textile, papermaking, shipbuilding, and
marine development.It is suitable for processing various medium and materials.such as cooling, heating, evaporation, condensation,
disinfection and waste heat recovery.
structure, small footprint, high heat transfer efficiency, convenient operation and maintenance, and the ability to handle small
temperature differences. As a high-efficiency and energy-saving product, plate heat exchangers have been widely used in various
industrial fields such as mining, metallurgy, petroleum, chemical industry, machinery, textile, papermaking, shipbuilding, and
marine development.It is suitable for processing various medium and materials.such as cooling, heating, evaporation, condensation,
disinfection and waste heat recovery.
※It is especially suitable for liquid - liquid heat transfer with large flow and small temperature difference.
※Can be completely dismantled for thorough cleaning.
※The heat transfer area can be adjusted flexibly by adding or removing plates.
※Plate optional material: 304,316L, titanium.
※Seal ring optional material: NBR, EPDM, fluorine rubber.
Specification for plate heat exchanger | ||
Product name | Detachable SS316L Plate Heat Exchanger with Gasket | |
Design Temperature | -40℃- 180 ℃ | |
Design Pressure | 0.6 - 2.5 MPa | |
Assembly Surface | ≤3800㎡ | |
Diameter of port hole | DN32- DN500 | |
Area of single plate | 0.03- 3.65㎡ | |
Plate Thickness | 0.4 mm- 1.15mm | |
Plate material | ||
Matrial | Application | |
304,304L,316,316L | A fluid with a low chloride ion content | |
Ta1 | Solutions with high chloride ions such as seawater | |
Hastelloy | Chlorinating acids, such as sulfuric acid, mixed acids | |
Ta9 | Reducing acids, such as hypochlorous acid | |
Rs-2 | Strong acids, such as concentrated sulfuric acid, nitric acid, etc. | |
904L 254SMO | Solutions with high chloride ions such as seawater | |
Sealing gasket material | ||||
Material | Working Temperature | Working Enviroment | ||
EPDM | -50°C ~180°C | Water, general organic and inorganic acids, alkalis and chemical media | ||
NBR | -20°C ~110°C | Water, oil, aldehyde and general corrosive medium | ||
FKM | 0°C ~180°C | Organic solutions, acids, bases, alcohols, oils, etc. | ||
LDR | -40°C ~100°C | Alkali and some acids | ||
Application:
1.City heating: office buildings, factories, residential buildings and other buildings water supply, air-conditioning system
heating, refrigeration.
2.Inorganic chemical industry: all kinds of inorganic acid, alkali, salt heating, cooling, evaporation, condensation.
3.Organic chemicals: heating, cooling, condensation and reboiling of medium liquids.
4.Petroleum industry: heating and cooling of various oil products, factory cooling water system, factory acid water treatment.
5.Metallurgical industry: coke oven direct or indirect cooling, plant cooling water systems, plant acid water treatment.
6.Food industry: food, beverage, juice, beer and other processing process of heating, cooling, evaporation, crystallization,
sterilization.
7.Paper industry: cooling black liquor, bleach heat recovery system, lye heating, cooling, carpenter's condensation, water heating.
8.Pharmaceutical industry: all kinds of liquid medicine, pure water heating, cooling, evaporation, condensation and sterilization.
1.City heating: office buildings, factories, residential buildings and other buildings water supply, air-conditioning system
heating, refrigeration.
2.Inorganic chemical industry: all kinds of inorganic acid, alkali, salt heating, cooling, evaporation, condensation.
3.Organic chemicals: heating, cooling, condensation and reboiling of medium liquids.
4.Petroleum industry: heating and cooling of various oil products, factory cooling water system, factory acid water treatment.
5.Metallurgical industry: coke oven direct or indirect cooling, plant cooling water systems, plant acid water treatment.
6.Food industry: food, beverage, juice, beer and other processing process of heating, cooling, evaporation, crystallization,
sterilization.
7.Paper industry: cooling black liquor, bleach heat recovery system, lye heating, cooling, carpenter's condensation, water heating.
8.Pharmaceutical industry: all kinds of liquid medicine, pure water heating, cooling, evaporation, condensation and sterilization.
1.Are you manufacturer or trading company?
A: Yes,we are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
