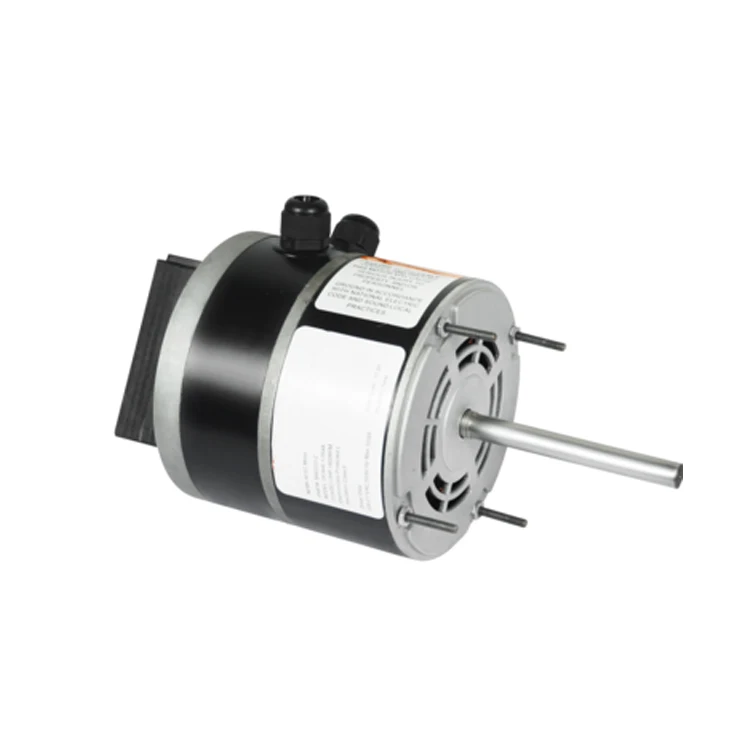

OEM Upgraded 208 230v ECM universal condenser fan motors 1/5 hp
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600695036675):
Product Overview
Description

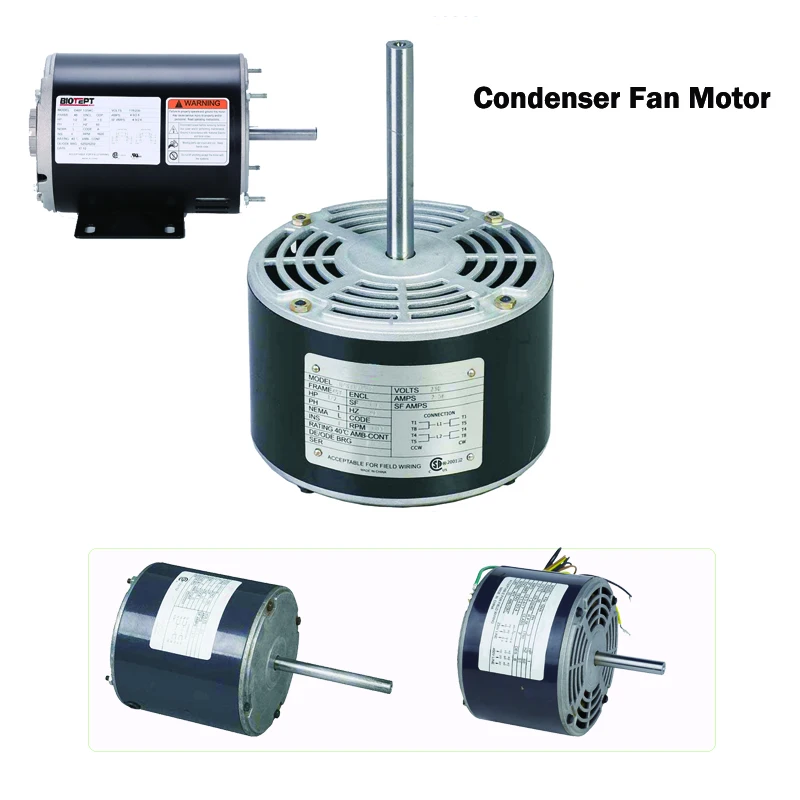

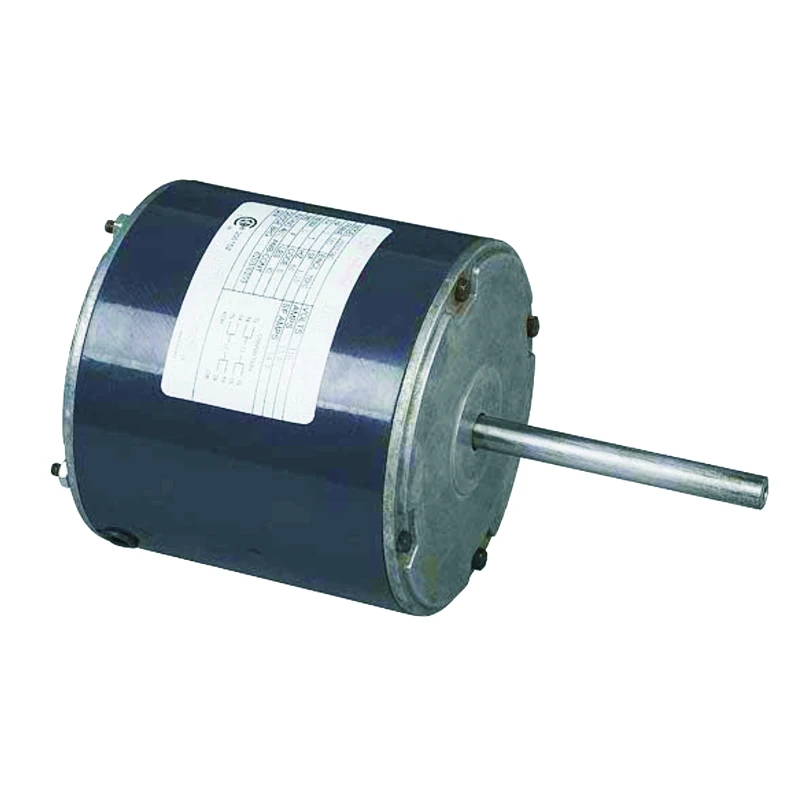

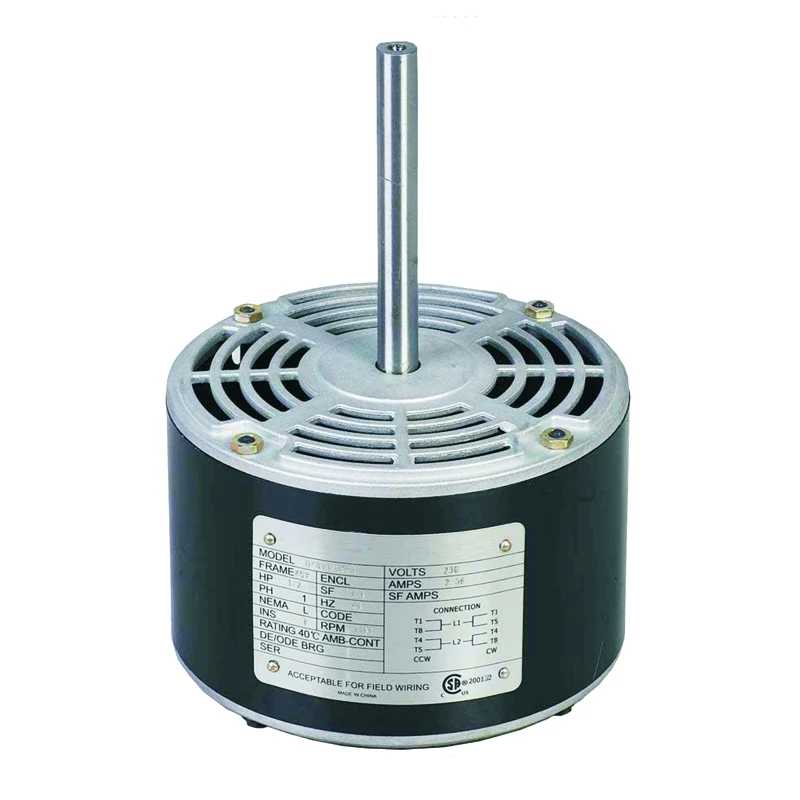

Fan motor
HP: 1/10HP-1.5HP
Pole: 4P, 6P, 8P
Frame: 48, 56
Rolled steel, C face kit
NEMA design: N
Service factor:1.0,1.4
Insulation Class: F (UL approved)
Enclosure: TEAO
IP Class: IP44, IP55
CSA and CUS certified
Accept auto thermal protector
Uses: air over duty, typically for blowers, fans, garage door
Pole: 4P, 6P, 8P
Frame: 48, 56
Rolled steel, C face kit
NEMA design: N
Service factor:1.0,1.4
Insulation Class: F (UL approved)
Enclosure: TEAO
IP Class: IP44, IP55
CSA and CUS certified
Accept auto thermal protector
Uses: air over duty, typically for blowers, fans, garage door
The follows just show a part of model:
HP | RPM | FRAME | MODEL | VOLTS | HZ | ENCL | S.F. | AMPS | WGT |
1/10 | 1625 | 48 | A481/10S4C | 115/230 | 60 | TEAO | 1 | 1.3/0.65 | 12 |
1/8 | 1625 | 48 | A481/8S4C | 115/230 | 60 | TEAO | 1 | 1.64/0.84 | 12 |
1/6 | 810 | 48 | A481/6S8C | 115/230 | 60 | TEAO | 1 | 2.75/1.38 | 14 |
1/5 | 1625 | 48 | A481/5S4C | 115/230 | 60 | TEAO | 1 | 2.2/1.1 | 12 |
。 | 。 | 。 | 。 | 。 | 。 | 。 | 。 | 。 | 。 |
1.5 | 1750 | 56 | A56 | 208-230/460 | 61 | TEAO | 1.4 | 6.5-5.9/2.95 | 37 |

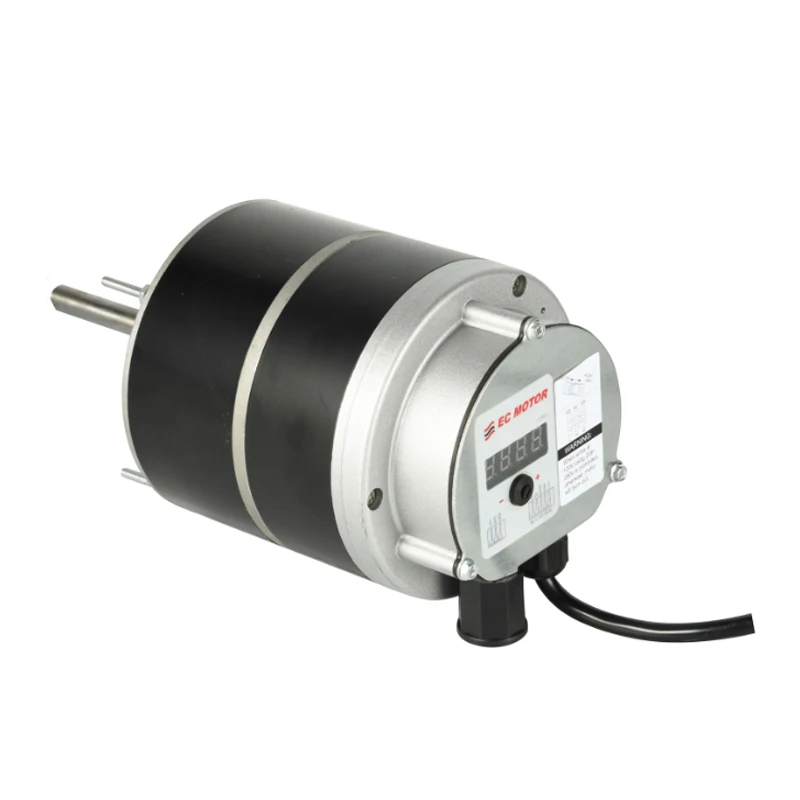

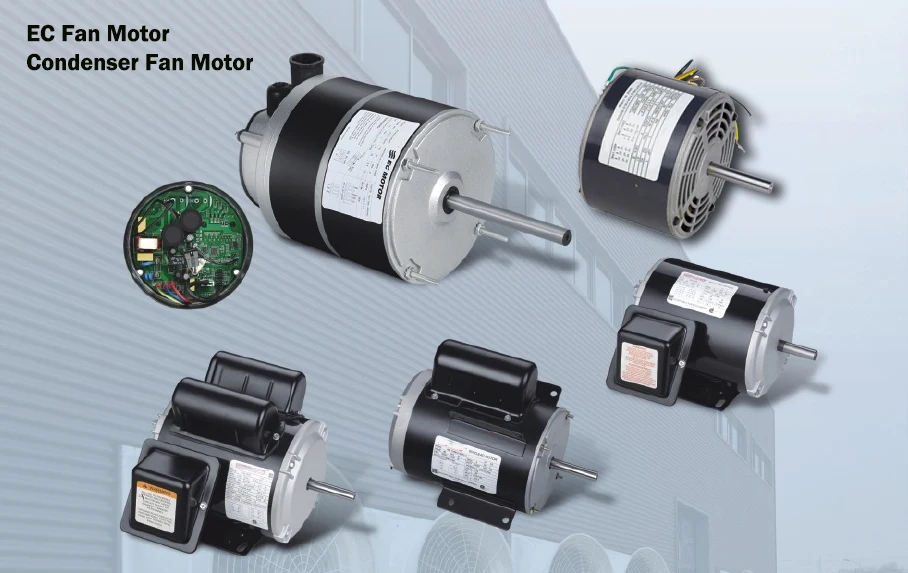

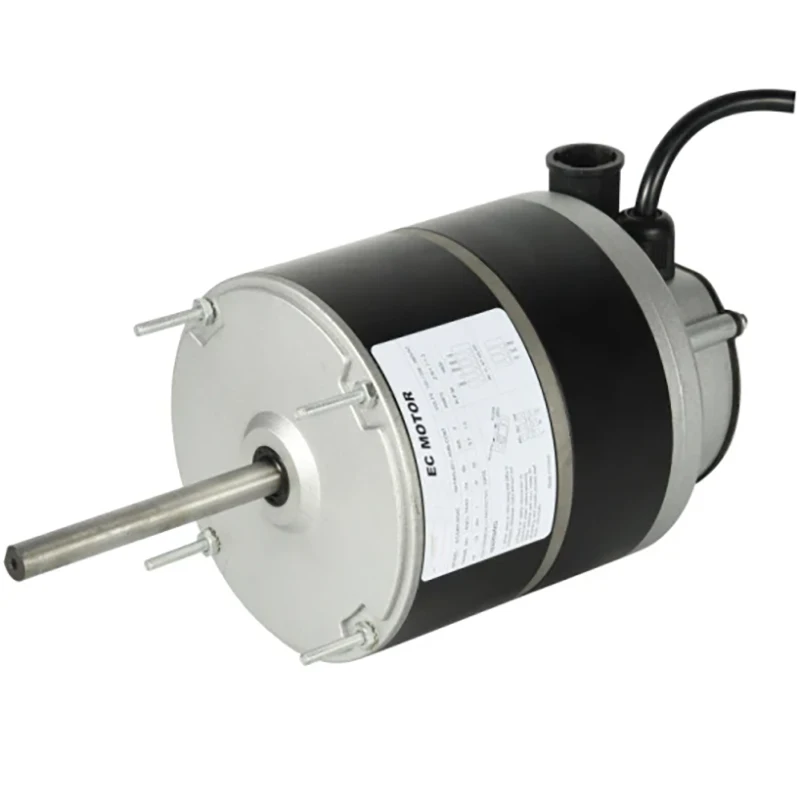

EC Fan Motor
HP: 1/4HP-1HP
Frame: NEMA 48
Rated speed: 1800rpm, 1200rpm, 1000rpm
Insulation Class: F
Enclosure: TEAO, ODP
IP Class: IP23, IP55
Motor protection: program protection, failure code display
Function setting: 0-10V sensor speed adjustment, motor CW and CCW switchover, high and low voltage switchover, RJ45 speed adjust interface, RS485 communication control external remote speed adjustment configuration, maximum RPM setting, etc,
CSA and CUS certified
Frame: NEMA 48
Rated speed: 1800rpm, 1200rpm, 1000rpm
Insulation Class: F
Enclosure: TEAO, ODP
IP Class: IP23, IP55
Motor protection: program protection, failure code display
Function setting: 0-10V sensor speed adjustment, motor CW and CCW switchover, high and low voltage switchover, RJ45 speed adjust interface, RS485 communication control external remote speed adjustment configuration, maximum RPM setting, etc,
CSA and CUS certified
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Power | Voltage | Hz | Class | Rated speed | Speed range |
1/4HP | 115/208-277V | 60/50hz | F | 1800rpm 1200rpm 1000rpm | 300-1800rpm 300-1200rpm 300-1000rpm |
1/3HP | 115/208-277V | ||||
1/2HP | 115/208-277V | ||||
3/4HP | 115/208-277V | ||||
1HP | 115/208-277V |
Top-quality motor:
Core technical, not the copy
Best data match/configuration to
guarantee the excellence quality
Performance:
100% copper materials for winding
Beautiful design for the appearance
Low body temperature
Quite operation give you a safer
More comfortable life
Best cost-performance:
Favor material price from our long term supplier
Strict materials selection and sample test before mass production
Favor price offer which support the long and stable cooperation between customers and us
Core technical, not the copy
Best data match/configuration to
guarantee the excellence quality
Performance:
100% copper materials for winding
Beautiful design for the appearance
Low body temperature
Quite operation give you a safer
More comfortable life
Best cost-performance:
Favor material price from our long term supplier
Strict materials selection and sample test before mass production
Favor price offer which support the long and stable cooperation between customers and us
FEATURES AT A GLANCE
This NEMA 48 frame single phase EC Fan motor can use for Smart IOT, Smart speed adjustment, Smart maintenance, With premium efficiency, have long life, Is your best choice！
This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required. Motor Thermal Protection Auto
Permanent split capacitor (PSC) condenser fan AC motors run with a required capacitor They have a high starting torque and energy efficient performance
Company Information
Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
FAQ
Q1: What kind motors you can provide?
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
