Digital display 16kw 0 1000V 80V 160V 200V 240V 300V 400V 500V adjustable dc power supply support customized and OEM service
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (1600695162102):
Product Overview
Description
Digital display 16kw 0-1000V 80V 160V 200V 240V 300V 400V 500V DC Power Supply support adjustable power supply
PART 1. CUSTOMIZED RANGE
Input: (Option)
l 1 Phase: AC220V±15%,50Hz/60Hz;DC(230~330)V
l 3 Phase: AC380V±15%,50Hz/60Hz;DC(450~600)V
Output: (Option, Free combination of voltage and current base on user request)
l 1~3000V,Stabilizer voltage value. 1% to 100% adjustable
l 1~2000A,Constant current value. 1% to 100% adjustable
Adjustable mode: Keystroke type / Knob type optional
Shell: (Option)
l Desk/ tower type /19inch Rack Mount Type
l 0-5Vdc /0-10Vdc analog signal control output voltage & current
l 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current
l 0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF
l 4-20mA analog signal control output voltage & current
l RS232/RS485 Communication port control by computer
Brand | IDEALPLUSING |
Model | IPS-ATD100016 |
Input Voltage | 3 Phase AC380V±15%,50Hz/60Hz |
Output Voltage/Current | 10~1000VDC,Stabilizer value. 1% to 100% adjustable 0.16~16A,Constant current value. 1% to 100% adjustable |
Output Power | 16000W |
Source Voltage Regulation Rate | ≤0.5% |
Load Regulation | Stabilizer Voltage ≤1%; Constant Current≤2% |
Voltage Display Accuracy | + 1.2% |
Current Display Accuracy | + 1.5% |
Display form | 0.000 to 9999 |
Heat Dissipation Mode/ Cooling mode | Fan heat dissipation |
Protection | lower voltage, over voltage, over current, short circuit, overheating Protection |
Insulation Strength | Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
MTTF | ≥50000h |
Remote Control Function (Option) | 0-5Vdc /0-10Vdc analog signal control output voltage & current |
| 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current |
| 0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF |
| 4-20mA analog signal control output voltage & current |
| RS232/RS485 Communication port control by computer |
Dimension /Net Weight | 430*370*352MM, 36KG |
Adjustable Voltage / Current Mode | Knob type & Keystroke type for option |
adjustable power supply 1000v is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrument, military, medical, ship, railway and other high-tech fields.
The details are as follows:
1. Motor: electric motor, electric vehicle controller, dc motor test, etc
2. Electric tools: LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification, etc
3. Automobile: automobile electronics, high power dc motor, automobile motor controller, car lighting, cigarette lighter, automobile audio and video, etc
5. Electronic devices: capacitors, resistors, relays, transistors, sensors, etc
6. Display: display screen, liquid screen, touch screen, on-board DVD, mobile phone display, etc
7. Electrochemical class: electrolysis, electroplating, anodic oxidation, nonferrous metal research, etc
About the adjustable power supply 1000v, We can customize different kind of specification according to your request. Such as:
(1)Input voltage: 1 phase 110VAC/220Vac or 3 phases 380Vac;
(2)Output voltage: 0-3000V variable or appointed;
(3)Output current: 0-2000A variable or appointed.
(4)Serial port: RS232,RS485,timing switch.

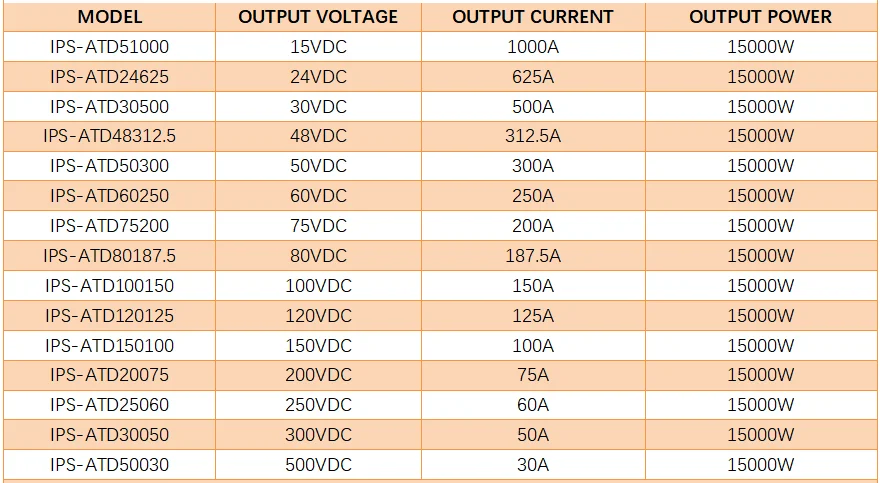

For Example : IPS-A T D 1000 16
- IPS—IDEALPLUSING BRAND
- A—AC
- T—TO
- D—DC
- 150—The max output Voltage (V)
- 100—The max output Current (A)
Operation--adjustable power supply 1000v
1. Before connect with loads, please preset the needed output voltage, or check the output voltage is suitable or not, or adjust the voltage potentiometer and current potentiometer to minimum.
2. Please connect with loads when POWER OFF. Then turn Power ON. Turn the Voltage potentiometer, current potentiometer to minimum at first. After power supply machine works steadily, then adjust the needed output voltage which can avoid the overshoot voltage to damage the loads equipments.
3. In running status, you can adjust the voltage potentiometer, current potentiometer to change the output voltage and output current as you need.
4. Internal fan is temperature-control, only when high temperature, the fan will work, when low temperature the fan will stop.

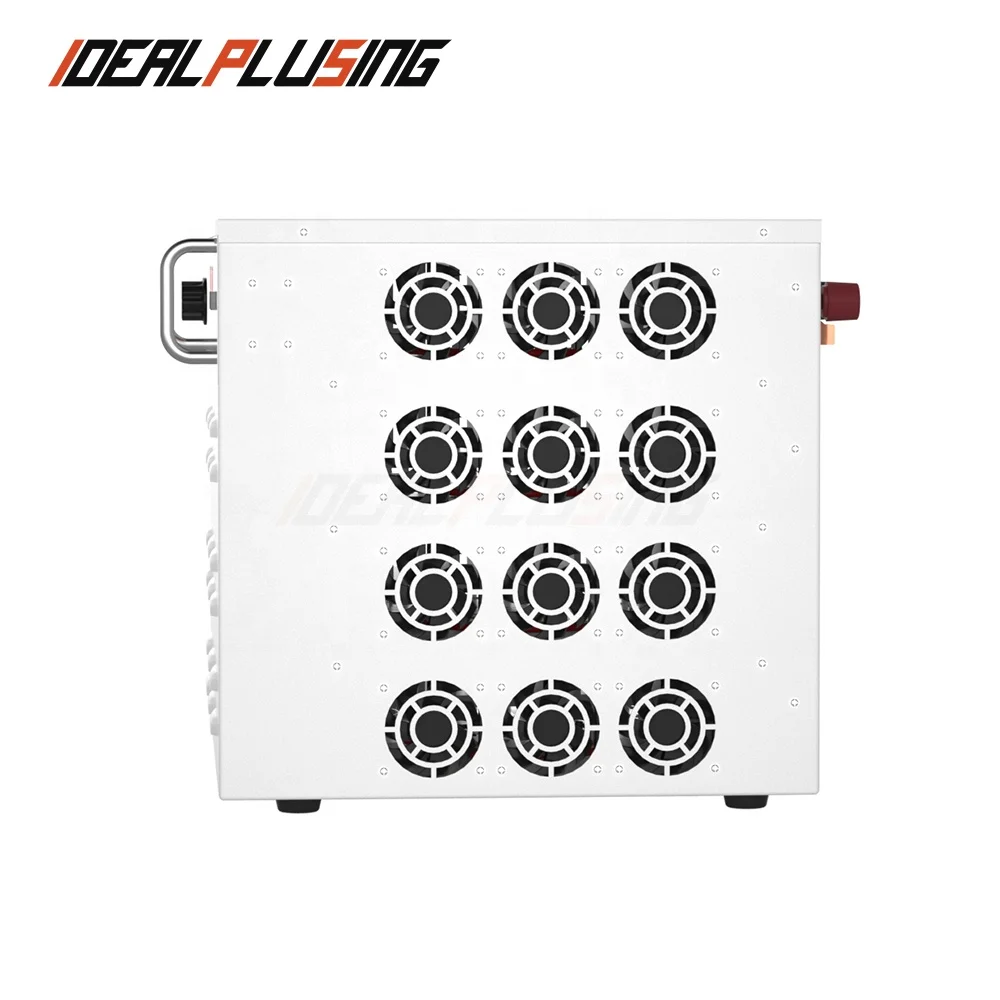

5. Internal radiating wind hole: left-in and right-out, please make sure there is no barrier in the left and right wind hole.
Factory Display
Recommend
FAQ
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of the model in the stock, sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
Q6. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply.
