Blue Light Stations IP66 Weatherproof Phone Outdoor Wall mounted Telephone for Tunnels
- Category: Other Telecommunications Products >>>
- Supplier: Koon,Technology,(shenzhen),Ltd.
Share on:
Product Overview
Description
Product Description

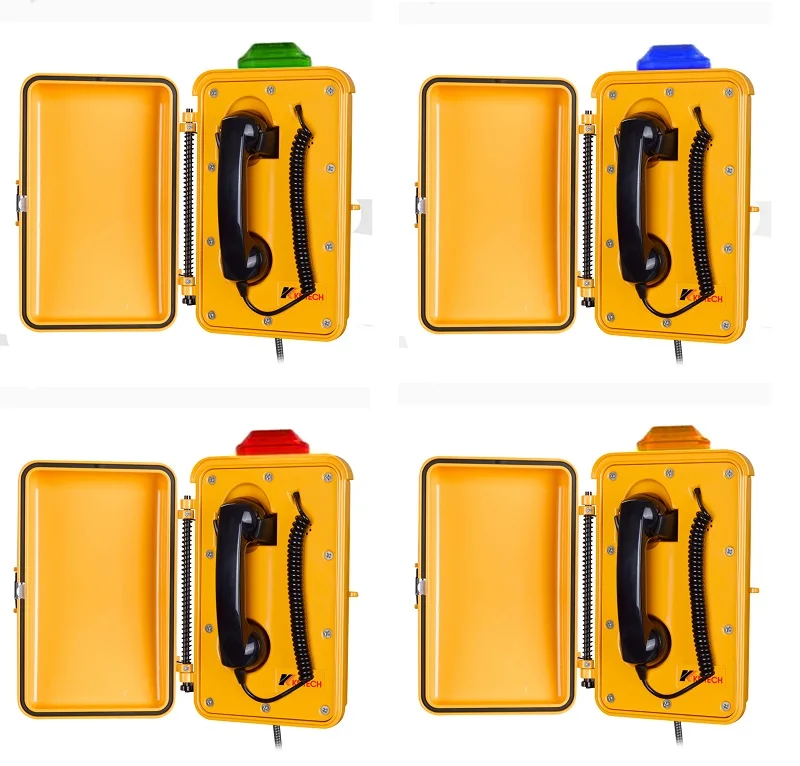

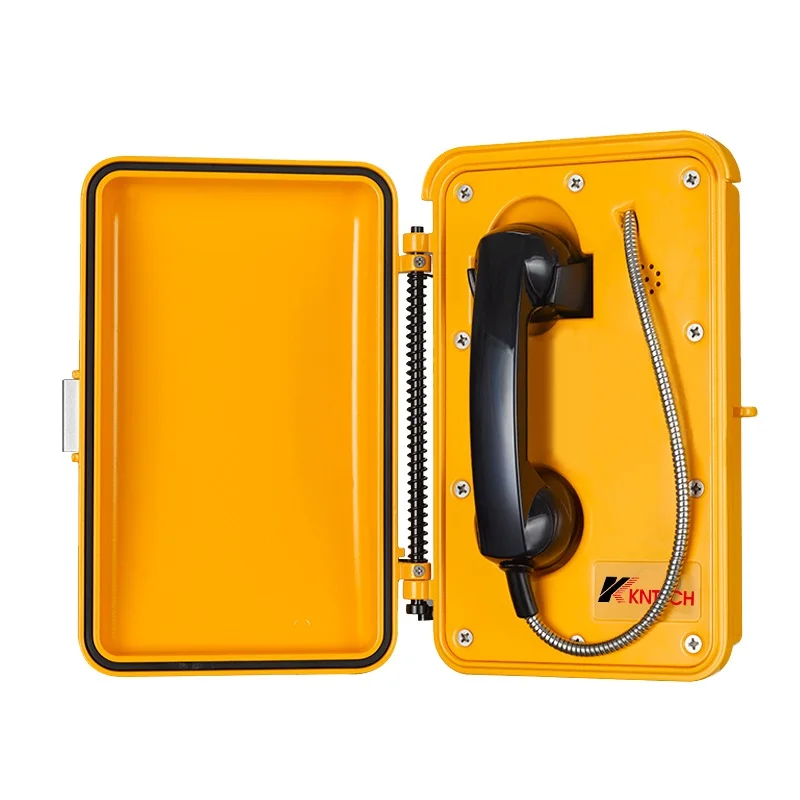

The waterproof telephone for outdoor and industry

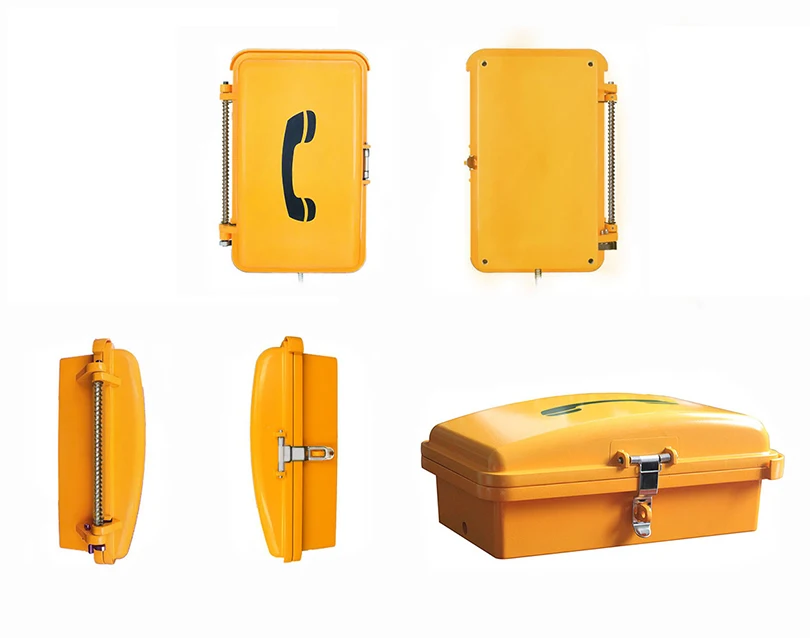

Tunnel Telephone KNSP-03
We are a Tunnel telephone manufacture. we produce large quantity of Tunnel telephone and export to many countries. Tunnel telephone are widely used in railway trackside. Most of metro line under ground inside the tunnel need to install Tunnel telephone. This Subway telephone installed at tunnel and subway need waterpoof IP66. The Subway telephone need to be rugged and rubost.
We are a Tunnel telephone manufacture. we produce large quantity of Tunnel telephone and export to many countries. Tunnel telephone are widely used in railway trackside. Most of metro line under ground inside the tunnel need to install Tunnel telephone. This Subway telephone installed at tunnel and subway need waterpoof IP66. The Subway telephone need to be rugged and rubost.

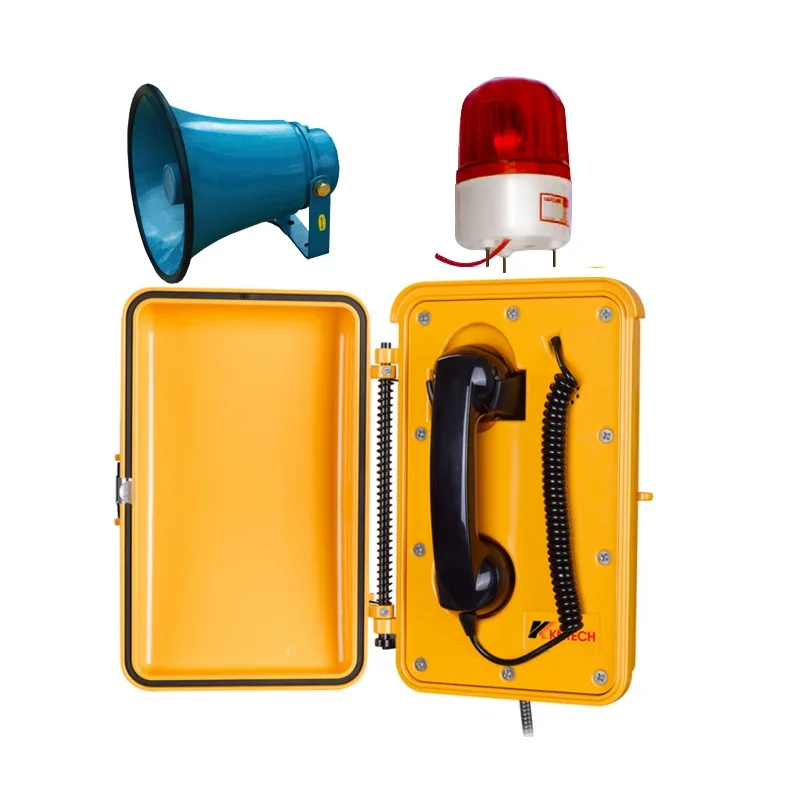

Rugged telephones waterproof IP66 dusty proof for -outdoor environment. Tough telephones with door and handsf ree hotline call. work on in rugged conditions in analogue and VOIP.
It is specially designed to use in high wet environment of all kinds of electric power tunnel, with the characteristics of high
protection, and low power consumption. A line can support 10 sets of telephones, and the standard of DTMF code sending exceeds 10 kilometers. With 1W speakers built-in, voice is clear and loud. The transmission distance could reach to 10 kilometers without additional power supply.
It is specially designed to use in high wet environment of all kinds of electric power tunnel, with the characteristics of high
protection, and low power consumption. A line can support 10 sets of telephones, and the standard of DTMF code sending exceeds 10 kilometers. With 1W speakers built-in, voice is clear and loud. The transmission distance could reach to 10 kilometers without additional power supply.
Technical Parameters
Ambient temperature:-30 ~ +60 degreeRelative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
Sound level of ringing:over 70dB(A).
Standard frequency:low frequency group:697. 770. 852. 941Hz,
high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
If service line is a 3Km signal - level:
Standard frequency:low frequency group:-12dB~-6dB, high frequency group:-10dB~-4dB, level difference between low and high
frequency of compound signal:0dB~3dB, the total distortion caused by intermodulation of harmonic wave is lower than the basic
level by at least 20dB.
Call transmission index:(5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm
Parameters is kept in EEPROM, no losing with power-fail.
Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
Sound level of ringing:over 70dB(A).
Standard frequency:low frequency group:697. 770. 852. 941Hz,
high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
If service line is a 3Km signal - level:
Standard frequency:low frequency group:-12dB~-6dB, high frequency group:-10dB~-4dB, level difference between low and high
frequency of compound signal:0dB~3dB, the total distortion caused by intermodulation of harmonic wave is lower than the basic
level by at least 20dB.
Call transmission index:(5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm
Parameters is kept in EEPROM, no losing with power-fail.
Specification
SPECIFICATION - Analogue(Model NO.SP0010012)
1. PSTN analogue telephone
2. DTMF dialing
3. MTBF:100000hours
3. MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
SPECIFICATION - VoIP(Model NO.SP0010032)
1. VoIP SIP2.0 telephone
2. DTMF dialing
3. MTBF100000hours
4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A 10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE802.1x),STP(IEEE
802.1d),RSTP(IEEE 802.1d-2004)
2. DTMF dialing
3. MTBF100000hours
4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A 10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE802.1x),STP(IEEE
802.1d),RSTP(IEEE 802.1d-2004)

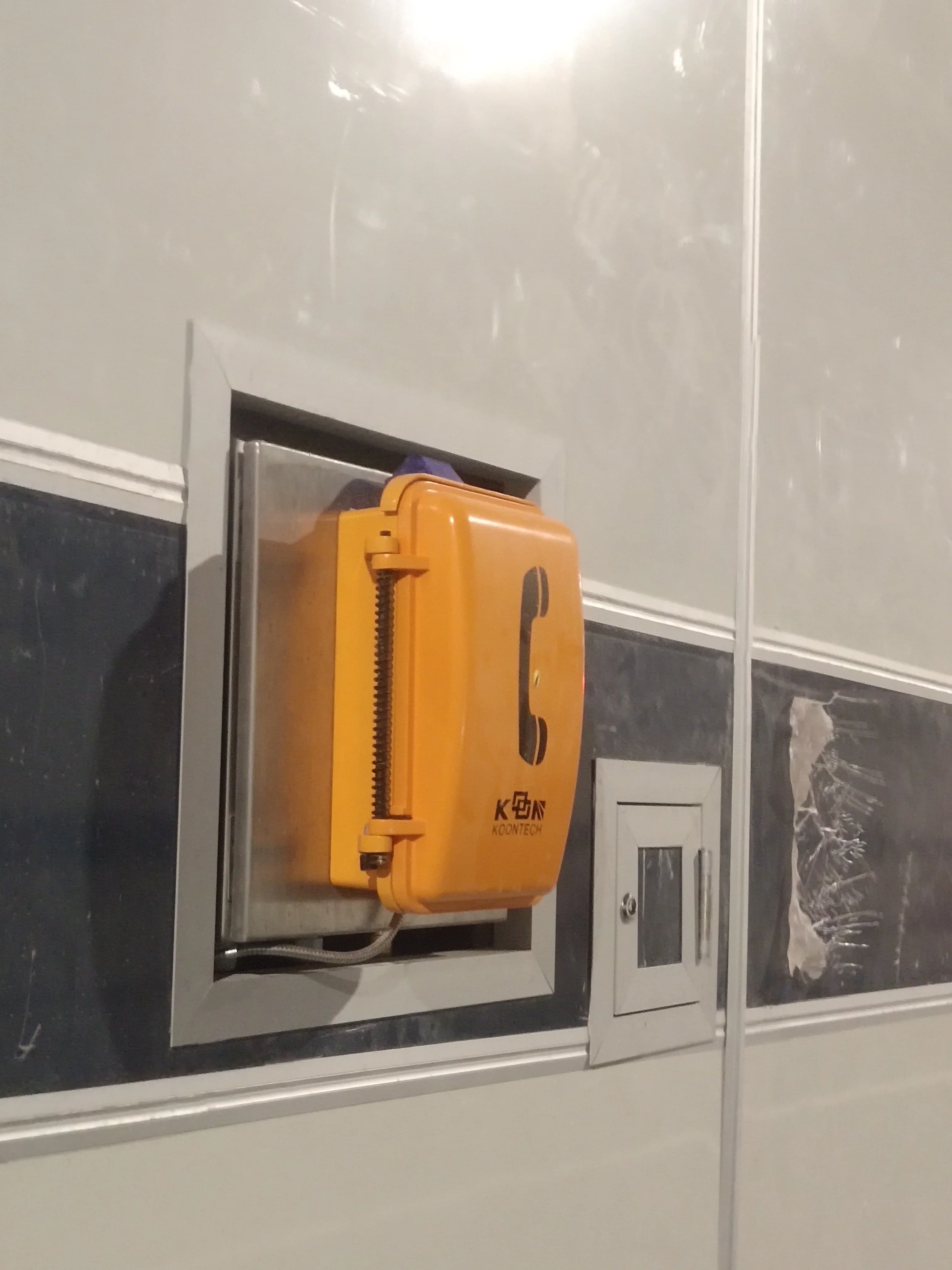

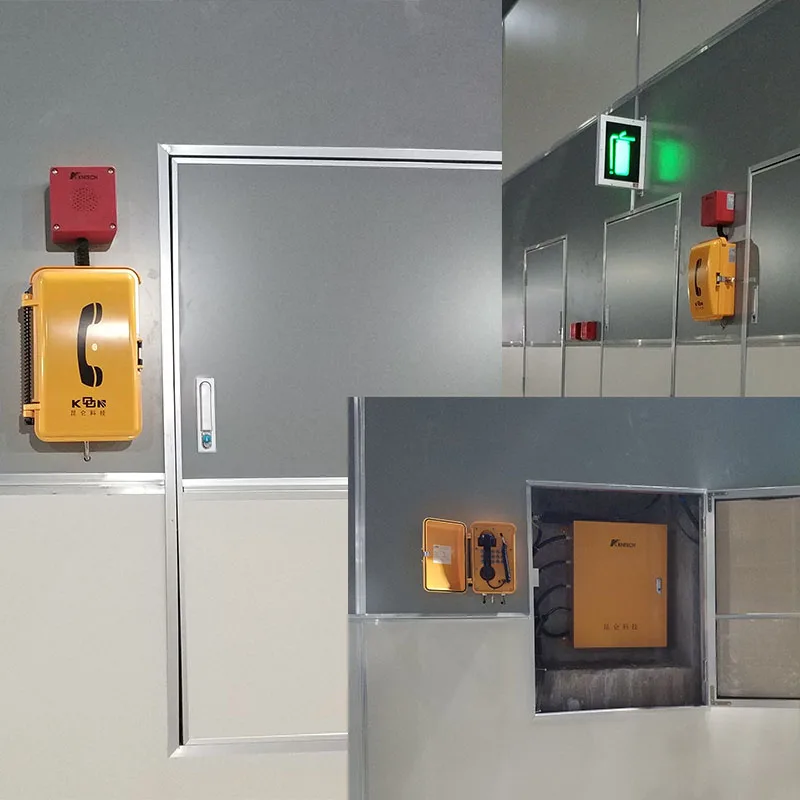

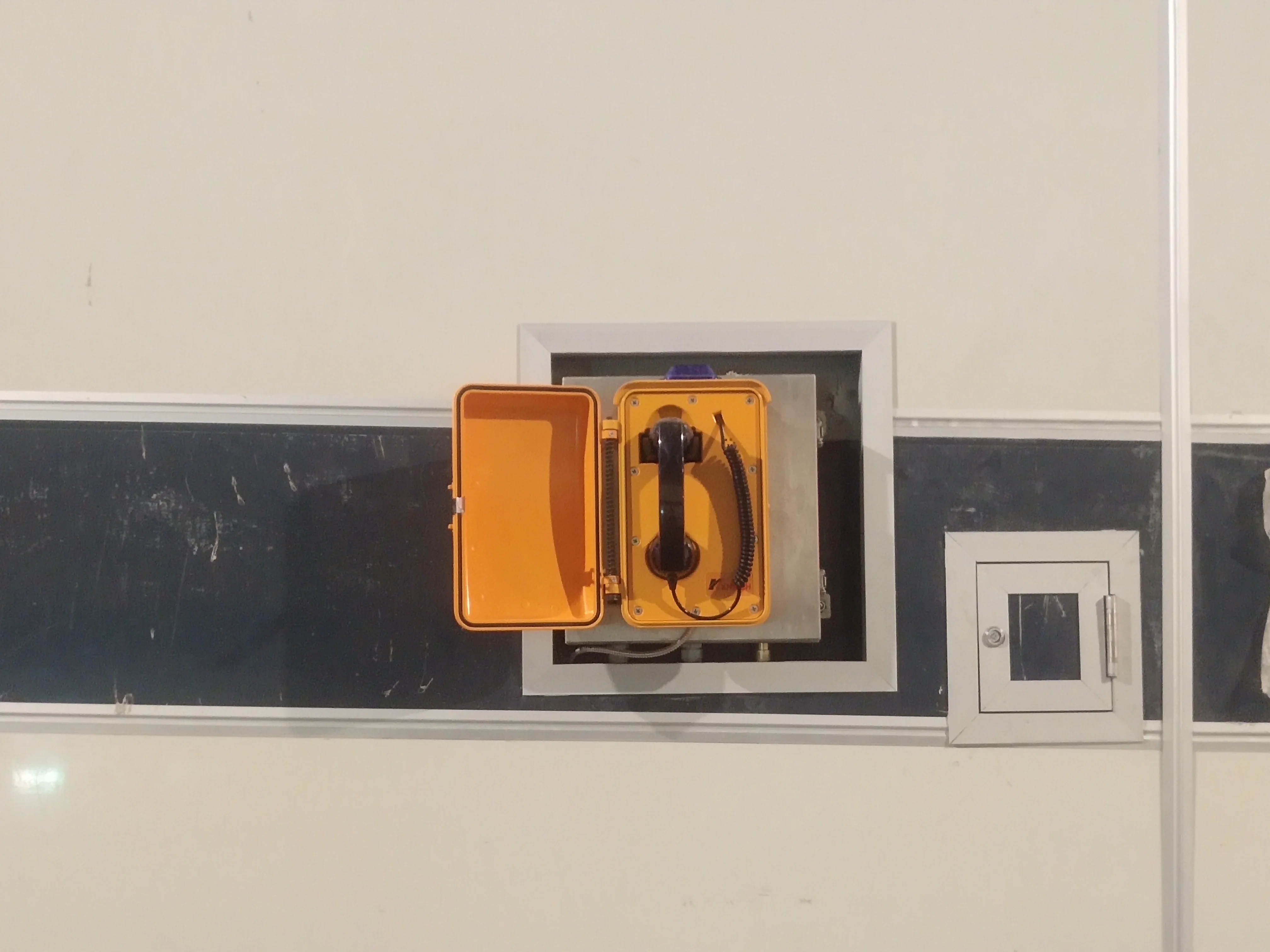

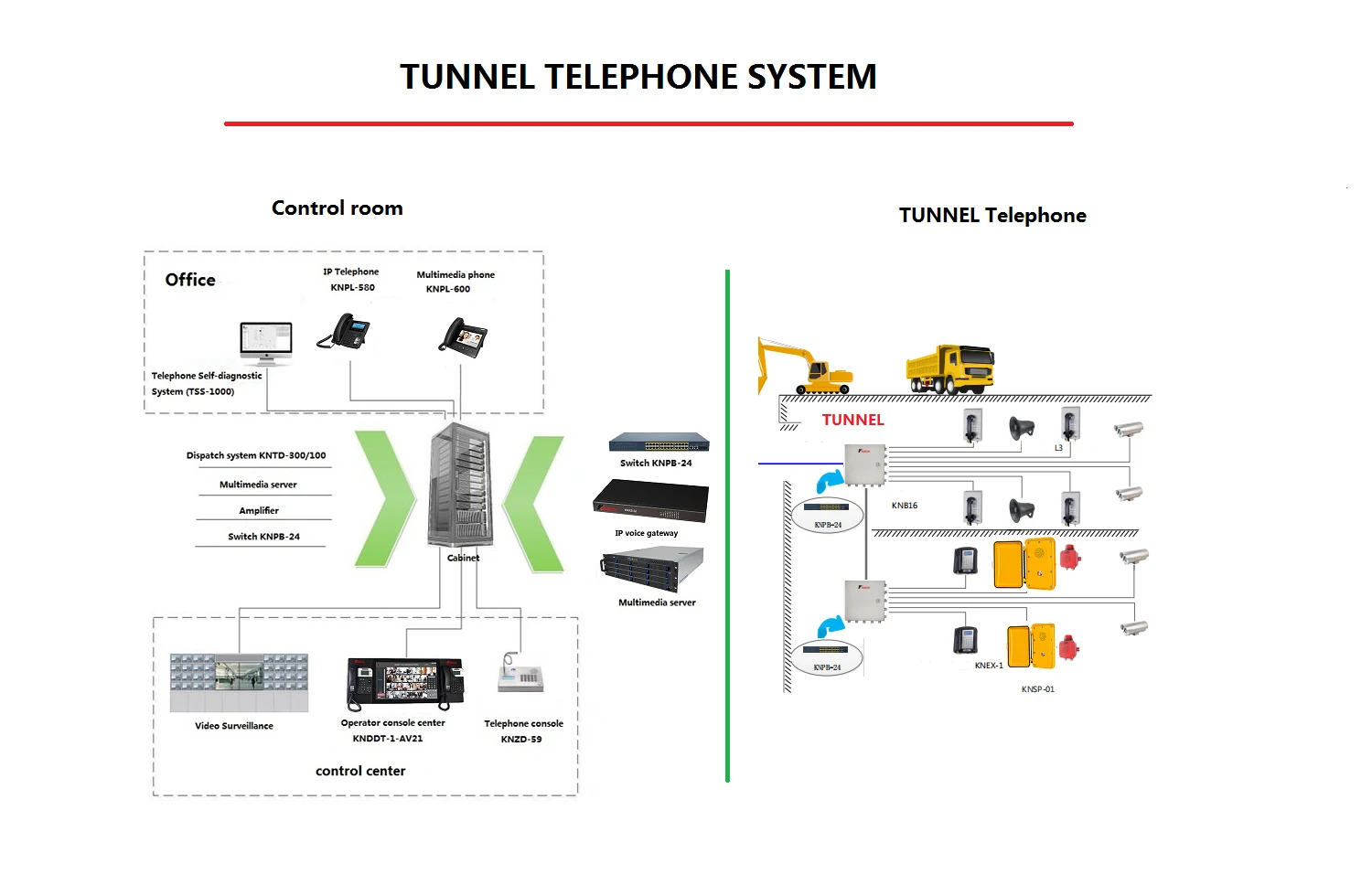

The waterproof telephone system application

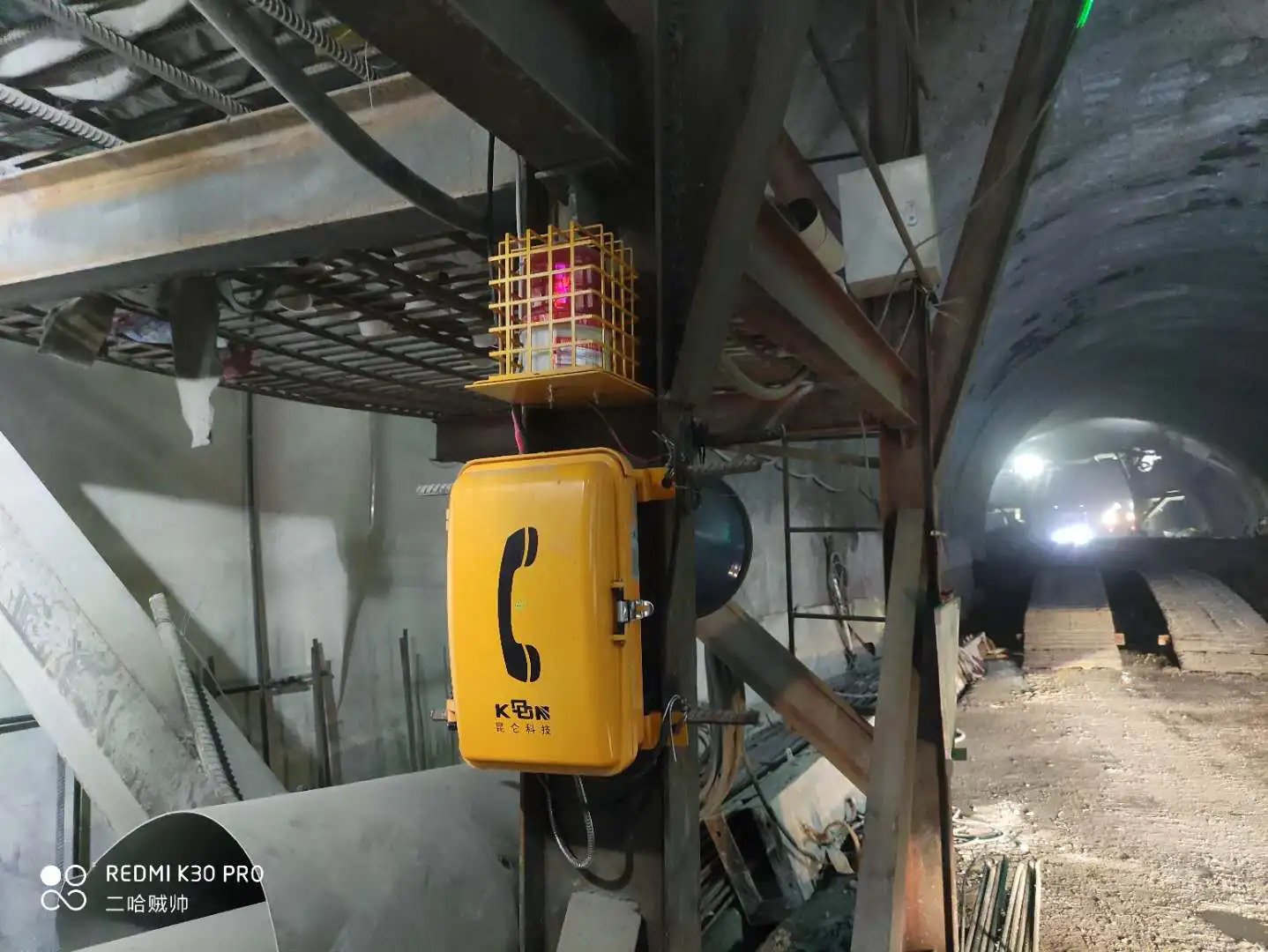

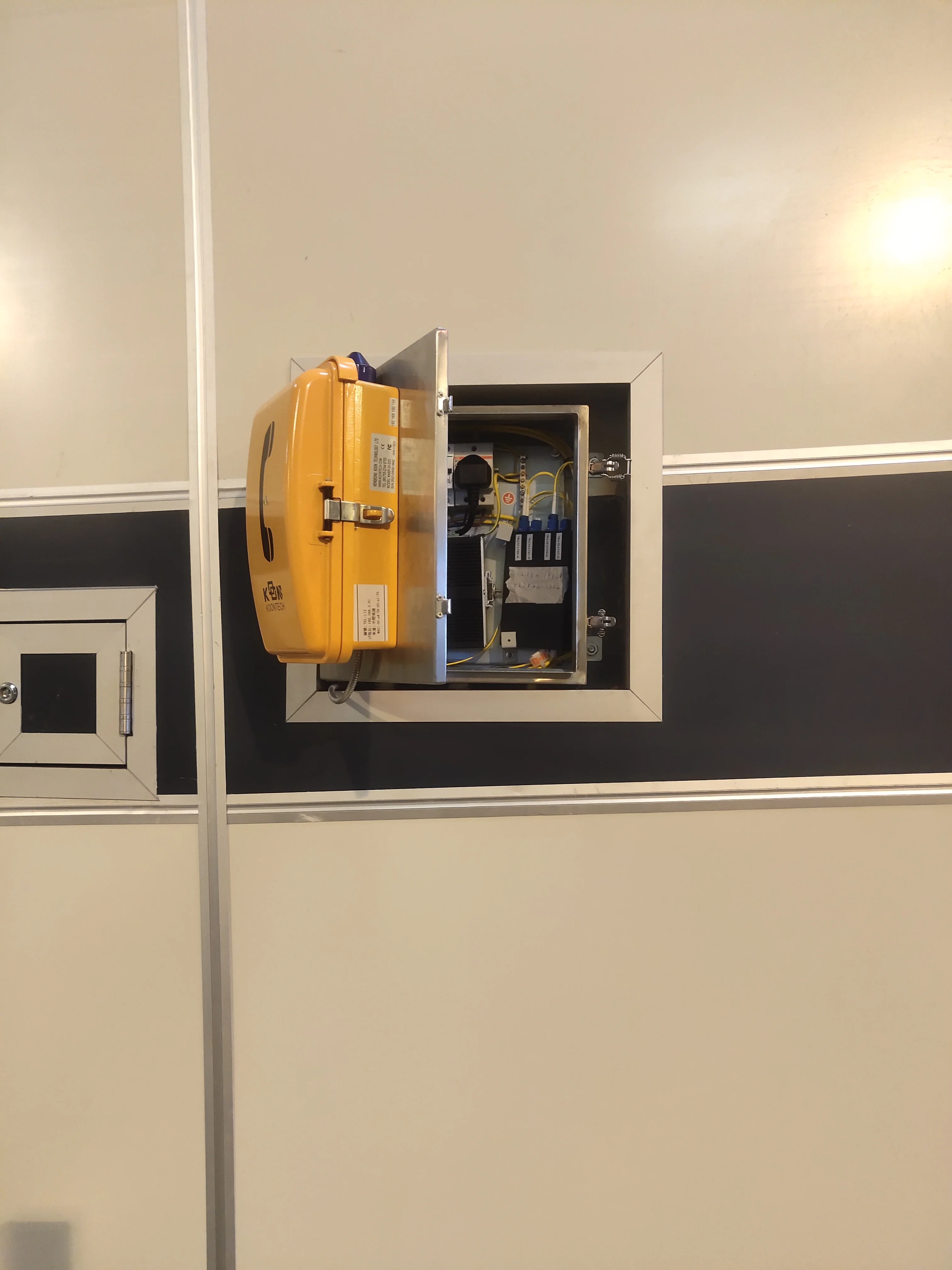

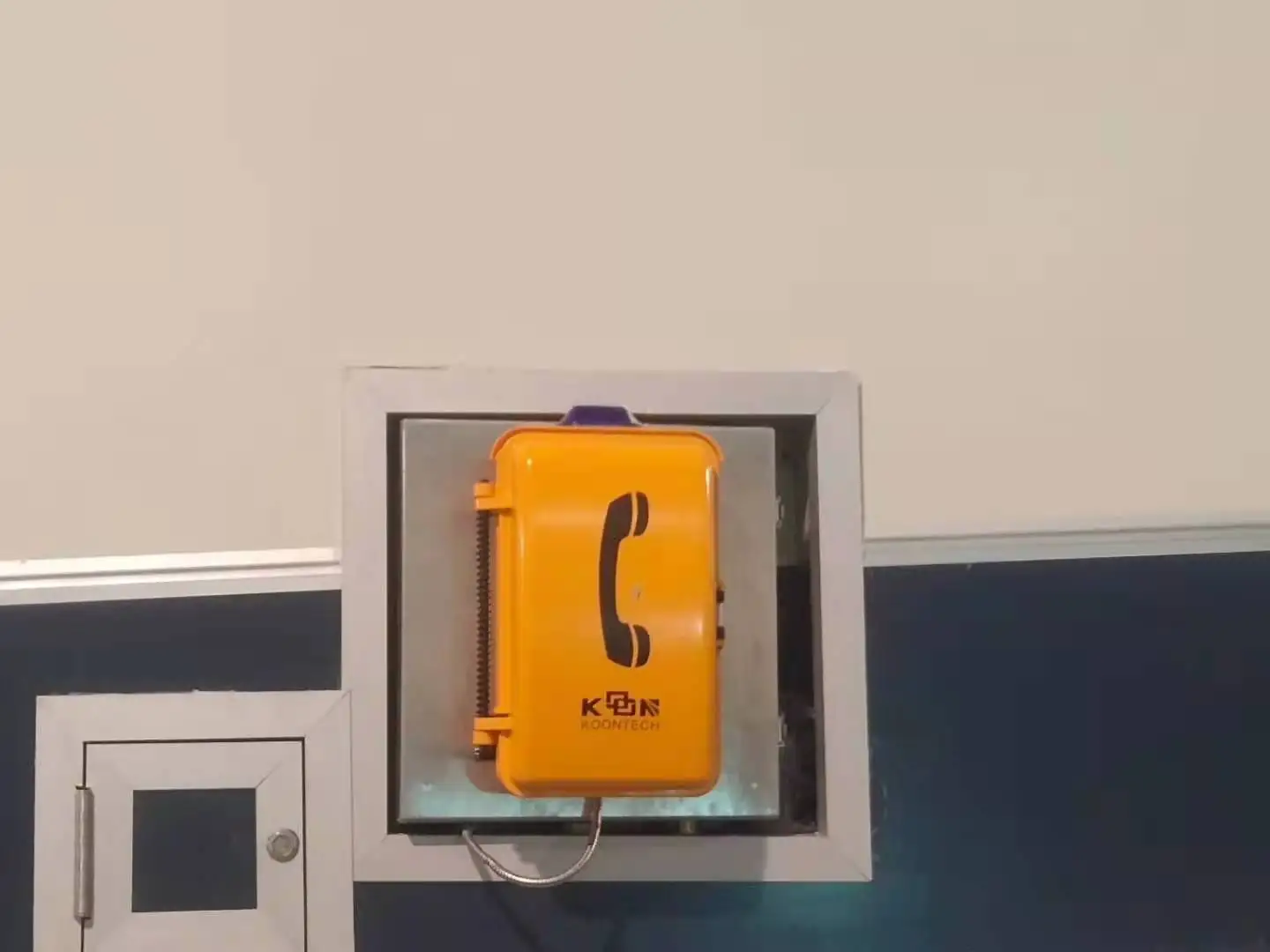

The waterproof telephone application outdoor

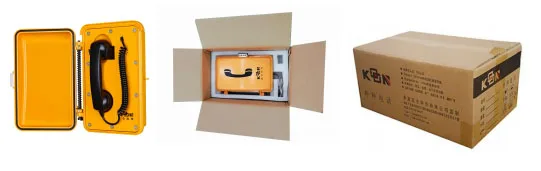

Packing & Delivery
