project | JSL-20RBY parameters or functions | |||
Basic specifications | Maximum machining diameter of positive spindle | 20mm | ||
Maximum machining diameter of the counterspindle | 20mm | |||
The maximum bore inner diameter of the positive spindle | 10mm | |||
Maximum bore inner diameter of the counterspindle | 8mm | |||
The positive spindle is the maximum tap | M10 | |||
Maximum tapping of the counter-spindle | M8 | |||
Inner diameter of deep hole hole on the front of spindle | 8mm | |||
The maximum inner diameter of the beryllium hole in the side beryllium | 8mm | |||
The side is the maximum attack | M6 | |||
The maximum beryllium bore inner diameter of the end beryllium | 5mm | |||
The maximum attack on the teeth of the end of the crest | M4 | |||
Basic specifications | Maximum processing length | Fixed guide sleeve:280mm | ||
Rotate the guide sleeve:190mm | ||||
Pass type:60mm | ||||

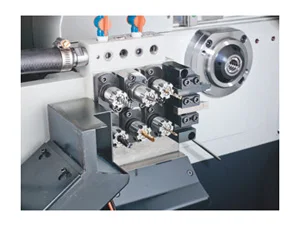

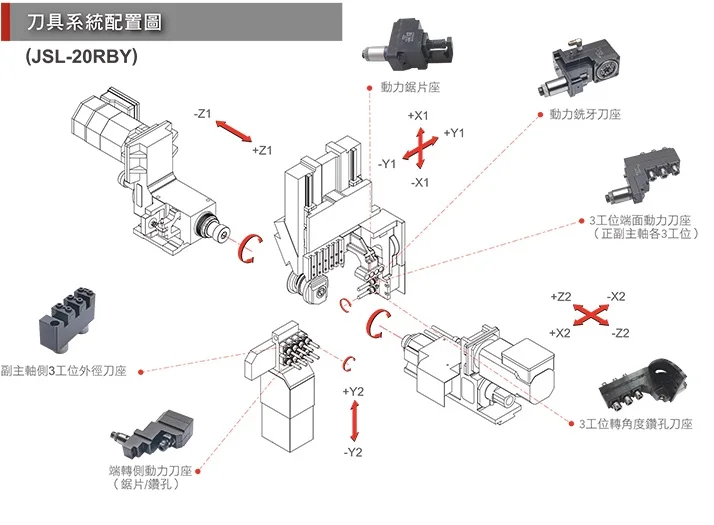

Number of tools | Outside diameter knife | 6 | ||
Internal hole knife | 4 | |||
Side beryllium knife | 5(4) | |||
Deep hole cutter on the front of the spindle | 2 | |||
Counterspindle end beryllium knife | 3 | |||
Counter-spindle outside diameter cutter | 3 | |||
Counter-spindle bore cutter | 3 | |||
Tool size | Tool size | 口12mm/∮22mm | ||
Fast feed | 24M/min | |||
Control the number of axes | Control the number of axes | 8 | ||
Mechanical appearance (L*W*H) | Mechanical appearance (L*W*H) | 2846x1284x2024 | ||
Mechanical appearance (L*W*H) | 2670kg | |||
