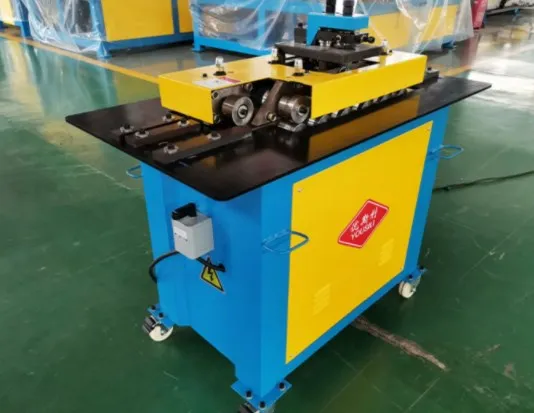

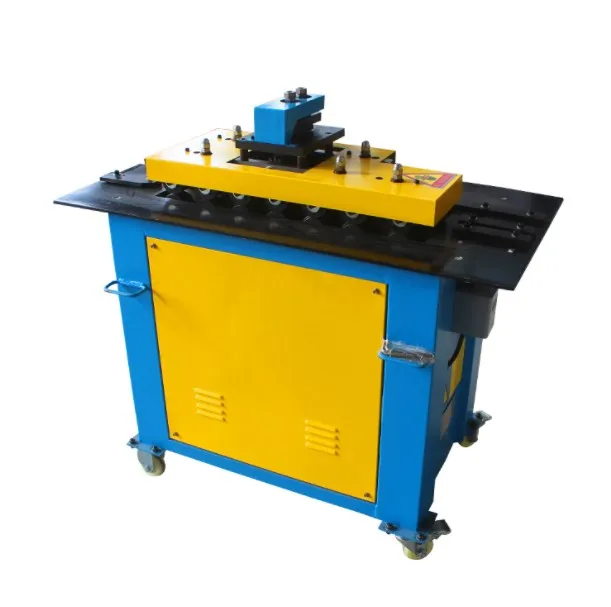

Square plate joining nibbling machine Round air duct closing connection nibbling processing machinery

Product Overview

Description

Square plate joining nibbling machine Round air duct closing connection nibbling processing machinery

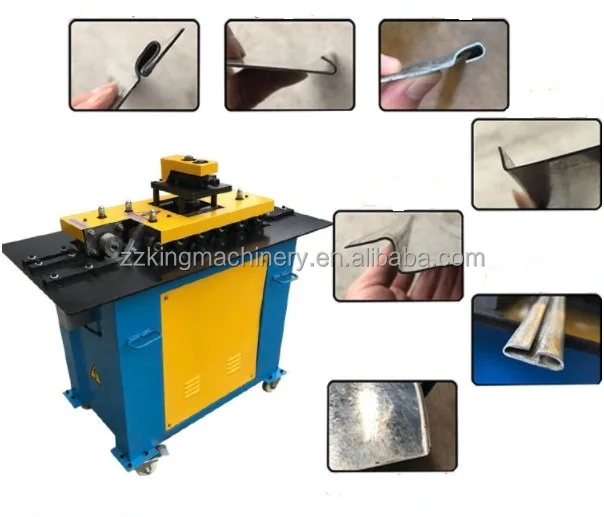

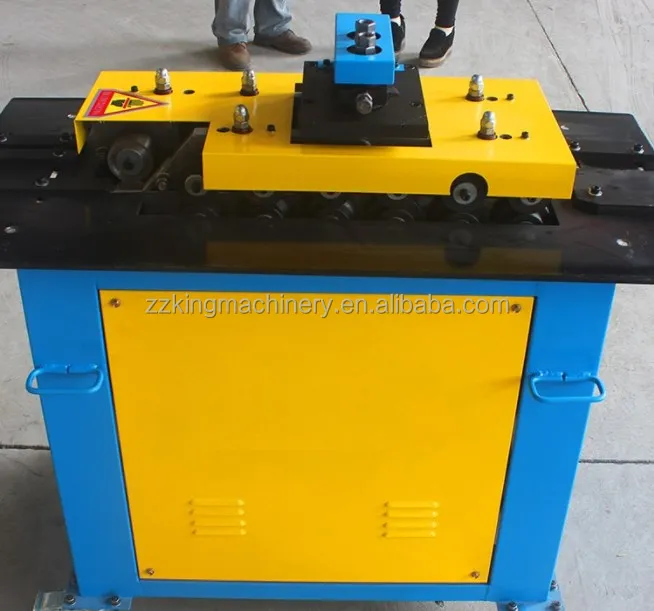

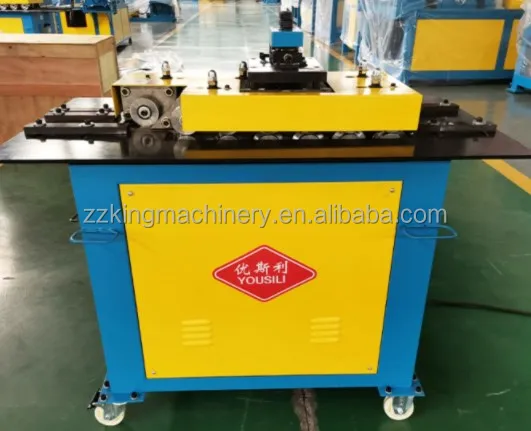

Lock Forming Machine / Lock former rolling heads are manufactured using precision machined components consisting of hardened & ground shafts runing in needle roller bearings; a hardened gear train; hardened & blackened alloy steel rolls for corrosion resistance. The thickness of machined plates is 0.4-1.5 mm. All gears, shafts, rollers are selected high-quality steel, after arigorous heat treatment process to ensure the durability of the machine. The lock forming profile rolls are fitted between side plates; the machine is provided with shafts on to which can roll 7 types of duct connection of square, rectangular thin plate HVAC duct.

Specification:

Model	No.	YW-12HB	YW-15HB
Motor		1.5 Kw/3 Phase/50hz	1.5 Kw/3 Phase/50hz
Plate thickness	mm	1.2	1.5
Weight	kg	210	320
Dimension	mm	1050*550*1100	1050*550*1100
