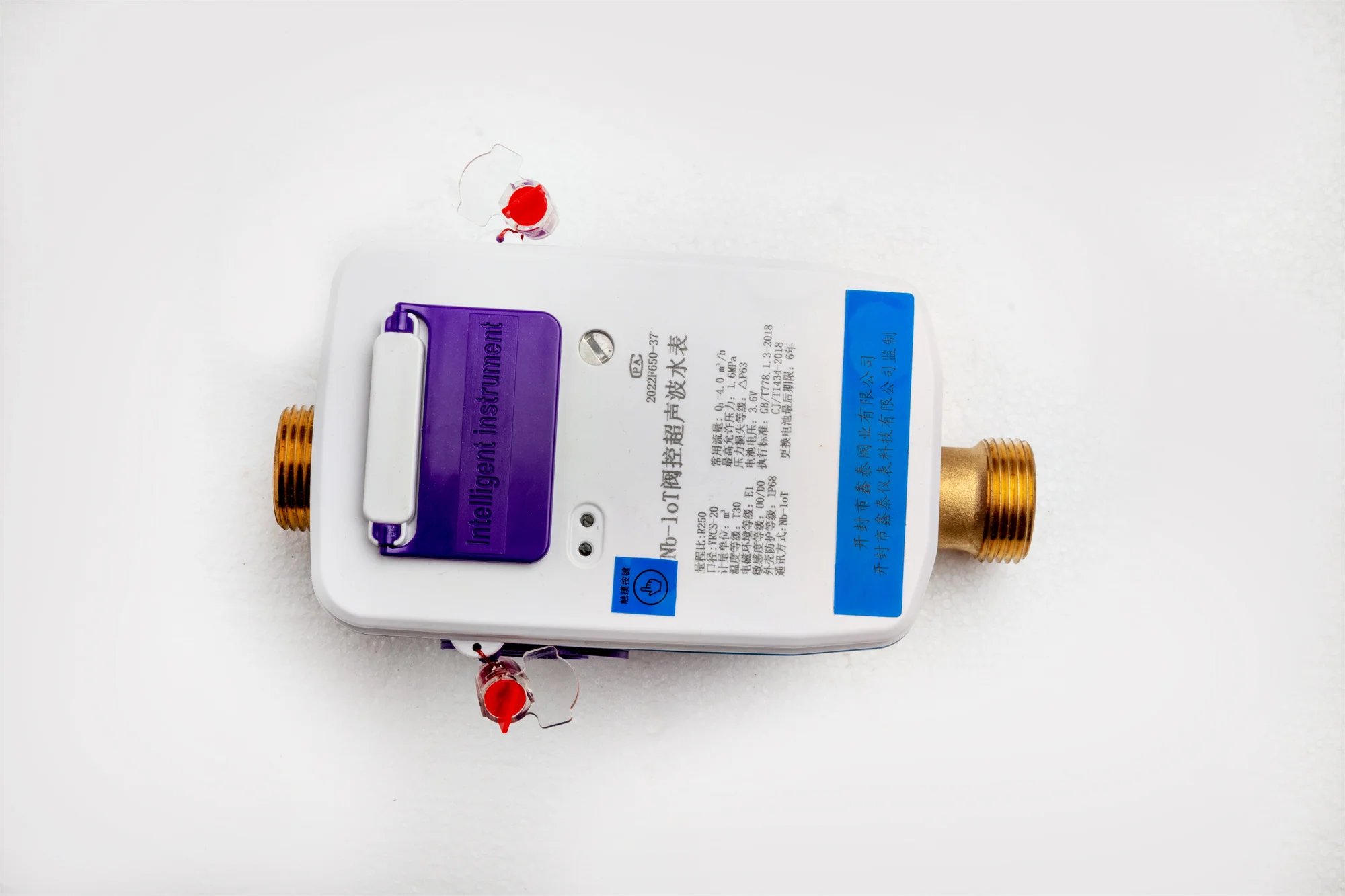

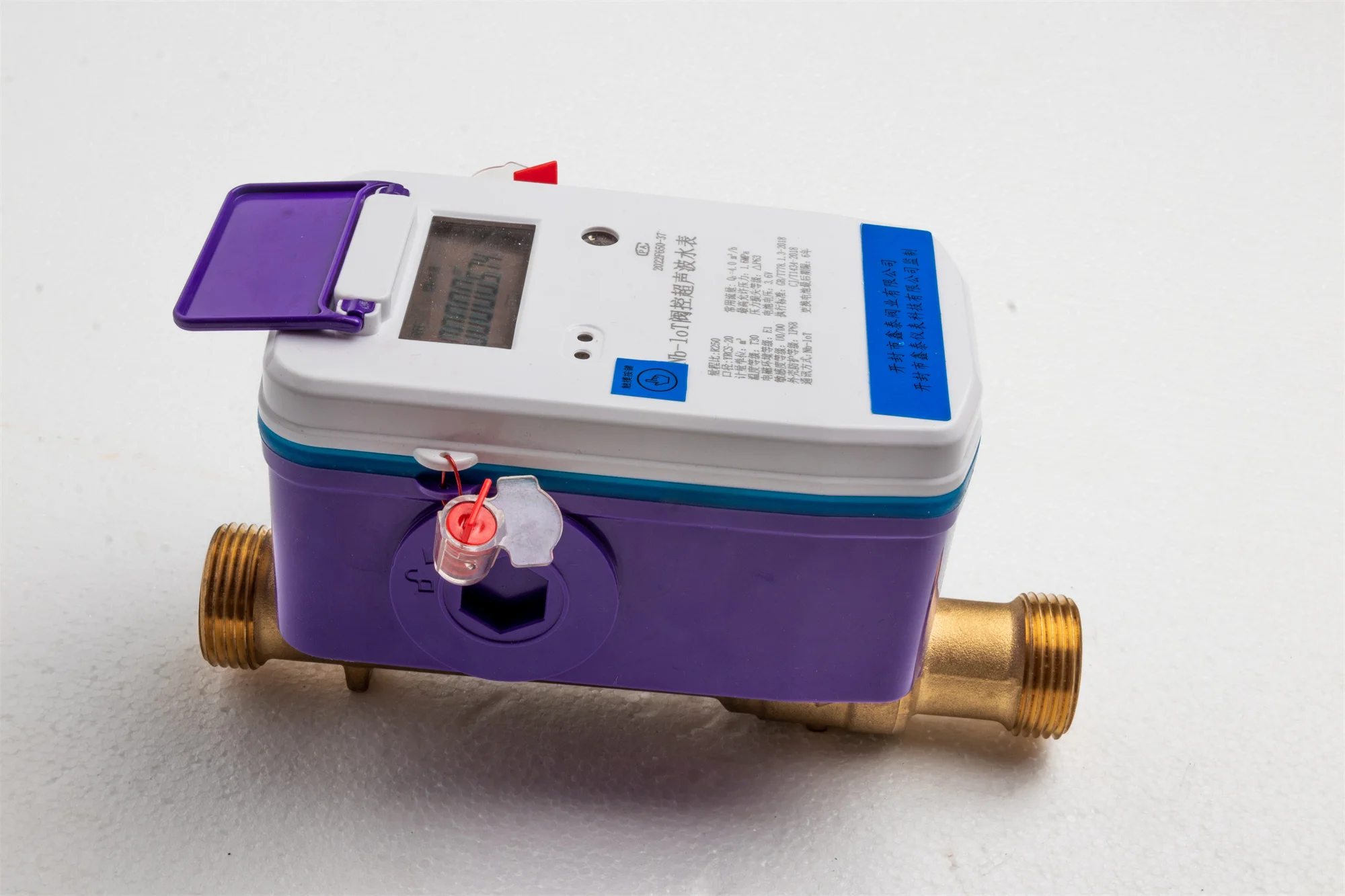

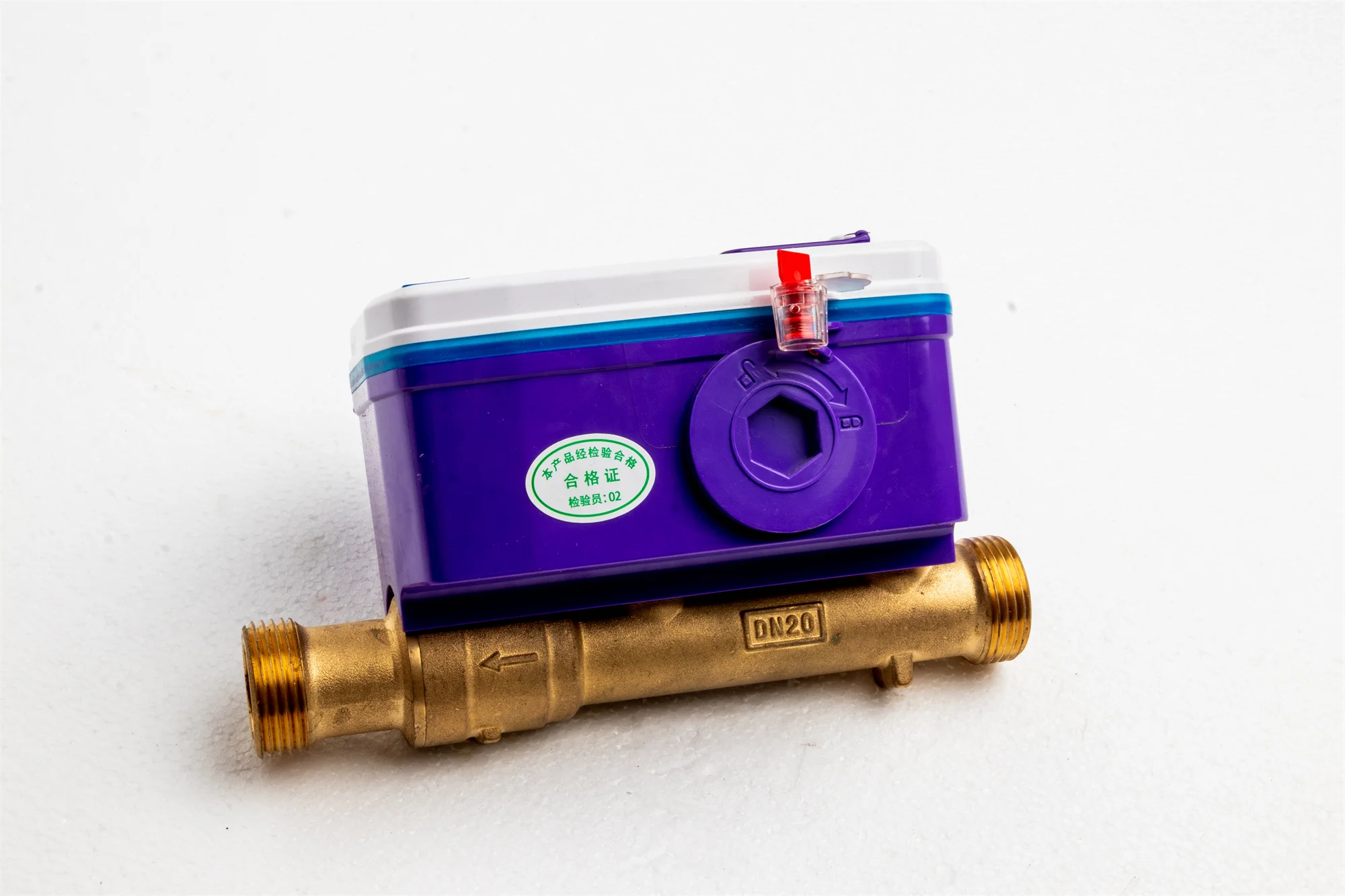

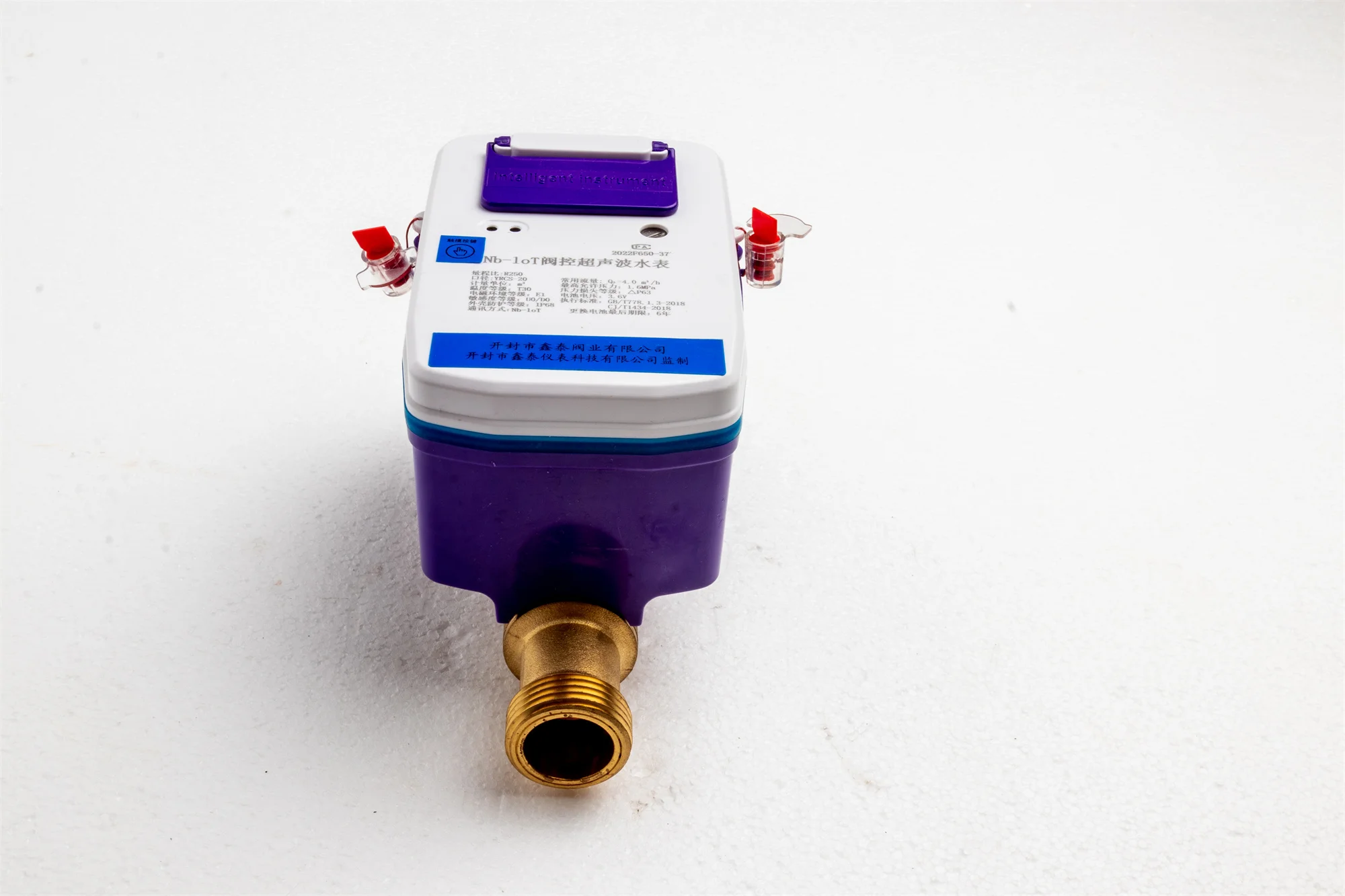

Смарт NB IOT счетчик воды клапан, управляемый ультразвуковой водомер
- Category: Water Meters >>>
- Supplier: Kaifeng Xintai Valve Co. Ltd.
Share on (1600695632115):
Product Overview
Description
Product Description
Specification
Product Name | valve controled ultrasonic water water | Pressure grade | MAP16 |
Model | DN15 | Maximum pressure loss (Mpa) | ≤0.040 |
Nominal diameter DN(mm) | 15 | Temperature grade | T30 |
Commonly used flow Q3(m³/h) | 2.5 | Protection grade | IP68 |
Boundary flow Q2(m³/h) | 0.025 | Environmental Classes | Class B / Class O |
Minimum flow Q1(m³/h) | 0.016 | Electromagnetic environment class | E1 |
Thread length of flow sensor interface (mm) | 10 | Flow field sensitivity | U5/D3 |
Flow sensor interface thread specification | G¾B | Pipe section material | copper |
Flow sensor connector size, connector length (mm) | 43 | Local gossip | Infrared reading interface/ M-BUS/485 |
Nozzle size of flow sensor, thread length (mm) | 15 | OCF | NB-LOT |
Flow sensor nozzle size, thread specification | R½ | Data storag | 24 months |
Body length (mm) | 165 | Installation | H/V |
Range ratio | Default R160 (R125/R200/R250/R400 customized) | Long life lithium ion battery | +10 years |
Company Profile
Certifications
Packing & Delivery
Installation Site
FAQ
Q1: Can I get free samples?
A: Yes, we can provide you with free samples, but you have to bear the delivery costs
Q2: Can your company print our brand logo on your products?
A: With the customer's permission, our factory can print the customer logo on the product. However, the customer needs to provide us with a logo authorization so that we can print the customer logo on the product.
Q3: What are your quality control procedures?
A: We adhere to strict quality control procedures, from product design to the end of the production process, using the most advanced quality control equipment, so that all processes are always in the best state of control.
Q4: Can I request a change in packaging and shipping?
A: Yes, we can change the packing and shipping method according to your requirements, but the cost and difference incurred in the meantime will be your responsibility.
Q5: What are your payment terms?
A: T/T, L/C, Alibaba Trade guarantee is available to provide full protection for your orders.
Q6: What is the standard lead time for each order?
A: It depends on the number of orders you need to purchase. Normally, we complete the order within 15 days.
A: Yes, we can provide you with free samples, but you have to bear the delivery costs
Q2: Can your company print our brand logo on your products?
A: With the customer's permission, our factory can print the customer logo on the product. However, the customer needs to provide us with a logo authorization so that we can print the customer logo on the product.
Q3: What are your quality control procedures?
A: We adhere to strict quality control procedures, from product design to the end of the production process, using the most advanced quality control equipment, so that all processes are always in the best state of control.
Q4: Can I request a change in packaging and shipping?
A: Yes, we can change the packing and shipping method according to your requirements, but the cost and difference incurred in the meantime will be your responsibility.
Q5: What are your payment terms?
A: T/T, L/C, Alibaba Trade guarantee is available to provide full protection for your orders.
Q6: What is the standard lead time for each order?
A: It depends on the number of orders you need to purchase. Normally, we complete the order within 15 days.
