JAB-920 SERIES HIGH SPEED AIR JET LOOMS
This 910 series air jet loom is one of our company hot sales products, have advantages of high speed , low energy consumption , wider application of fabrics etc , it can be equipped cam motion , electronic dobby , also can be crank shedding with plain designs . Adopt advanced electronic control system ,10 inch touch screen , can show looms status , error reason analyse , parameters setting on the screen ,easy for operations.


FEATURES AT A GLANCE

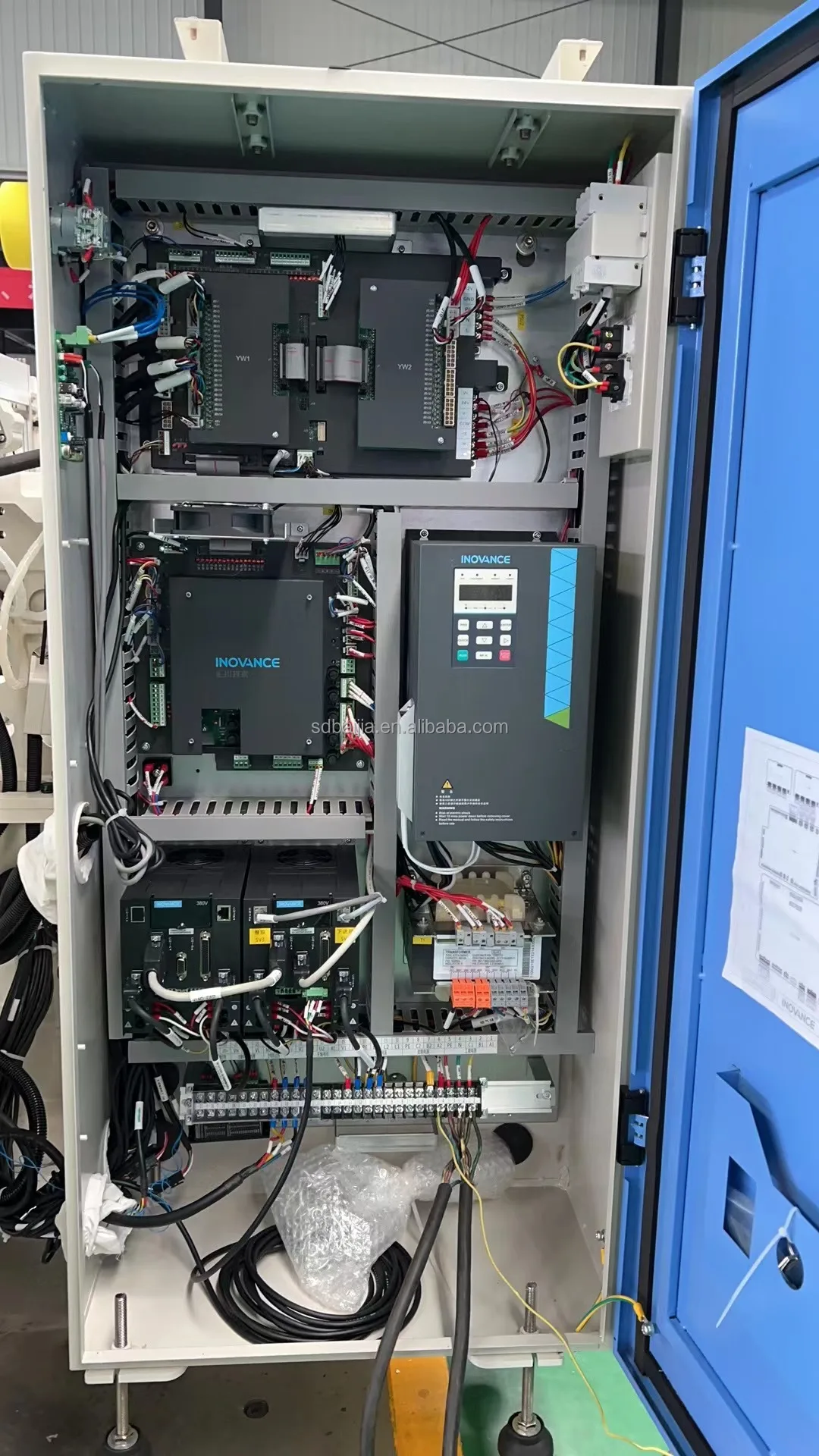

Adopt advanced electronic control system , cpu (high speed arm processor) based program with main control cpu 64 bit/150 mhz processor. 10"touch screen interactive display software system , language can be English/Chinese/Russia /Turkish.
it's with USB interface ,can input all the parameters to other looms, and monitor the running situation of machines , thus increased the looms working efficiency and fabric quality .

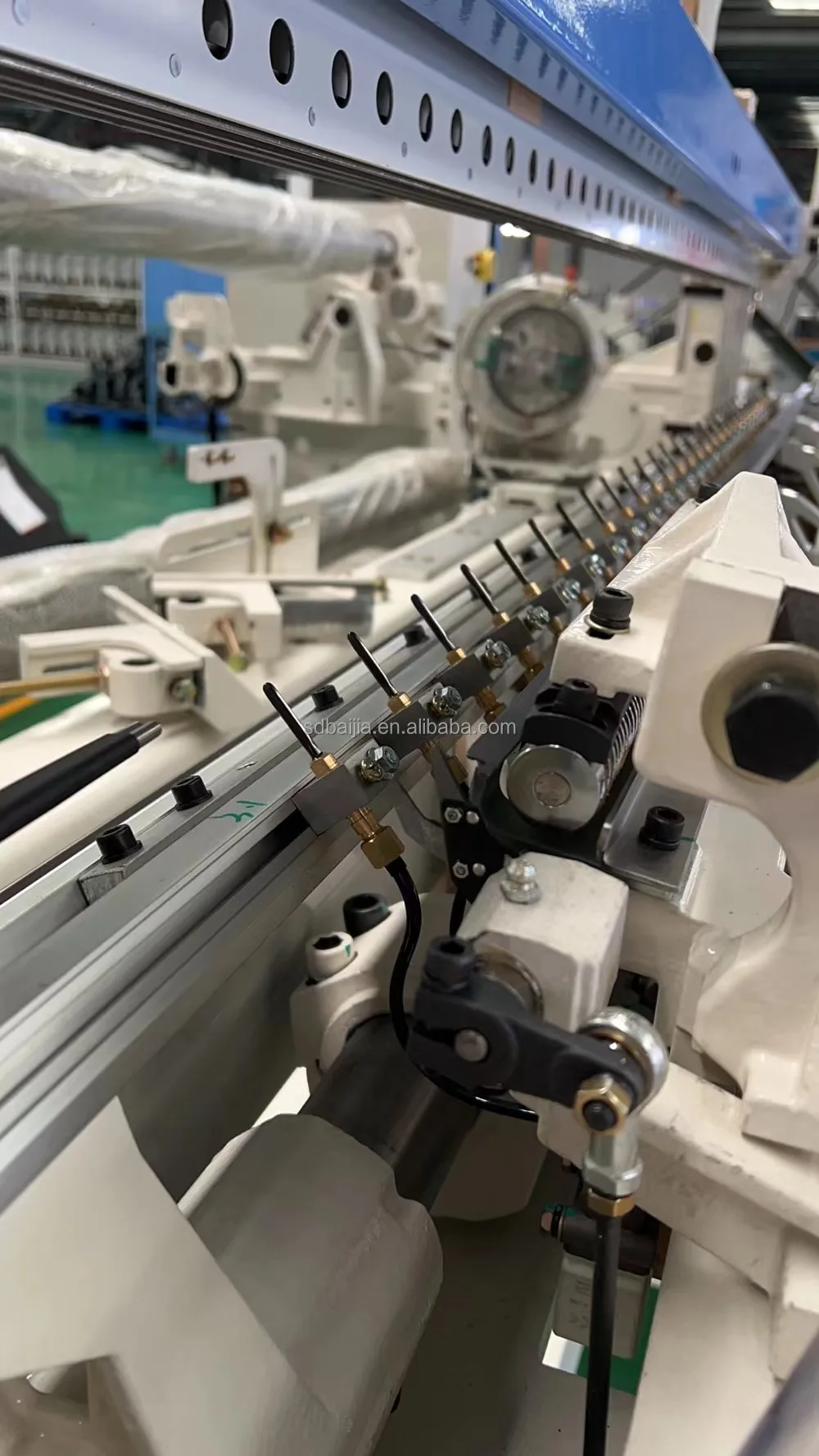

Sub nozzles control by solenoid valves directly connect with sub air tank (separate air compartments controlled by individual
pressure control regulators to ensure minimum utilization of compressed air). Solenoid valve (smc, japan). (the tank have bottom reserve air tank to accommodate more volume of air to control pressure drop)

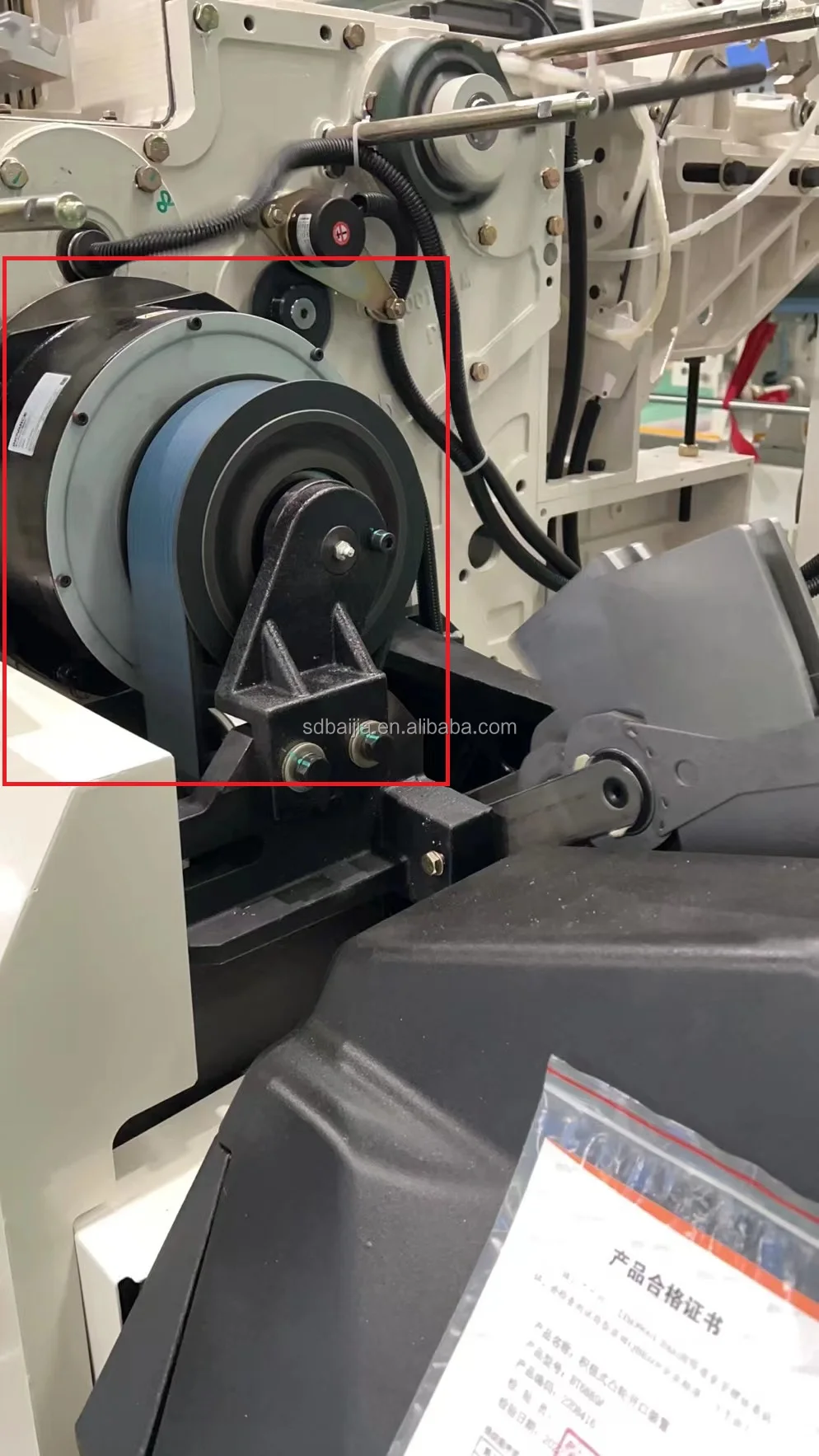

Main shaft drive motor will be installed on the machines ,as per the market investigation, it can save 15%-25% electricity comparing to common motor ,especially for the fabrics which consume the high electricity . Another advantage is X-motor maintenance is very low .








PRODUCT SPECIFICATIONS


No
Item
Specifications
Options
Remark
1
Width
170 cm-420 cm
2
Speed
650 rpm- 1100 rpm
3
Application
All kinds of cotton , polyester ,wool ,linen
4
Yarn range
Spun: Ne 100-Ne 5 ; Filament: 30 d-2000 d
5
Weft selection
two colours
4- 16 colours
6
Shedding
Crank (maximum 6 frames )
Cam motion (maximum 10 frames )
Dobby (maximum 20 frames)
Electronic jacquard
7
Let off
Flange dia 800mm
914/ 1000 mm
8
Take up
Maximum 600 mm
Outer batching
9
Beating System
Off-set solid beating system
10
Leno
Electronic
Mechanical
11
Cutter
Right side electronic ,left side mechanical
12
Grease
Centralized grease , oil bath in main driving parts
13
Boarder
Raw
Pneumatic tuck in


Successful Project


Project in India
Project in Vietnam
Project in Russia


Project in Pakistan
Project in Bangladesh
Project in Russia


ISO 9001:2015
CERTIFICATE OF REGISTRATION BY BSI .
CE
CERTIFICATE ATTESTATION OF CONFORMITY


FAQ


Q1： why choose us ?
A1: Our air jet looms can save 10-15% electricity comparing to other chinese brand when run the same quality fabric at same speed. In the last few years , we devoted to power saving technology ,such as air tank design ,sub-nozzles distribution and solenoid valve improvements etc aspects .

Q2: How about our strength ?
A2: We have more than 20 years rich experience in air jet looms and water jet looms design and manufacturing, factory occupied 96000 square meters , year production 90000 sets .

Q3: How do we control machine quality ?
A3: 1). Our qc control team make physical and chemical inspect to all batch raw material about ingrediant ,aging ,heat treatment etc
special checking with the advanced detection equipment
2). Fot the ready components , inpect all the dimensions , hardness and finishings and weights .
3). All the machines will do 24 hours free running before delivery ,check the noise and heat etc .
4). Outer packing inspection before delivery for anti-rust ,moistureproof and anti-corrosion.

Q4: we always provide best quality machine at competitive price ,and respect all the customers from all over the world. Expecting long time business relationship with you.
