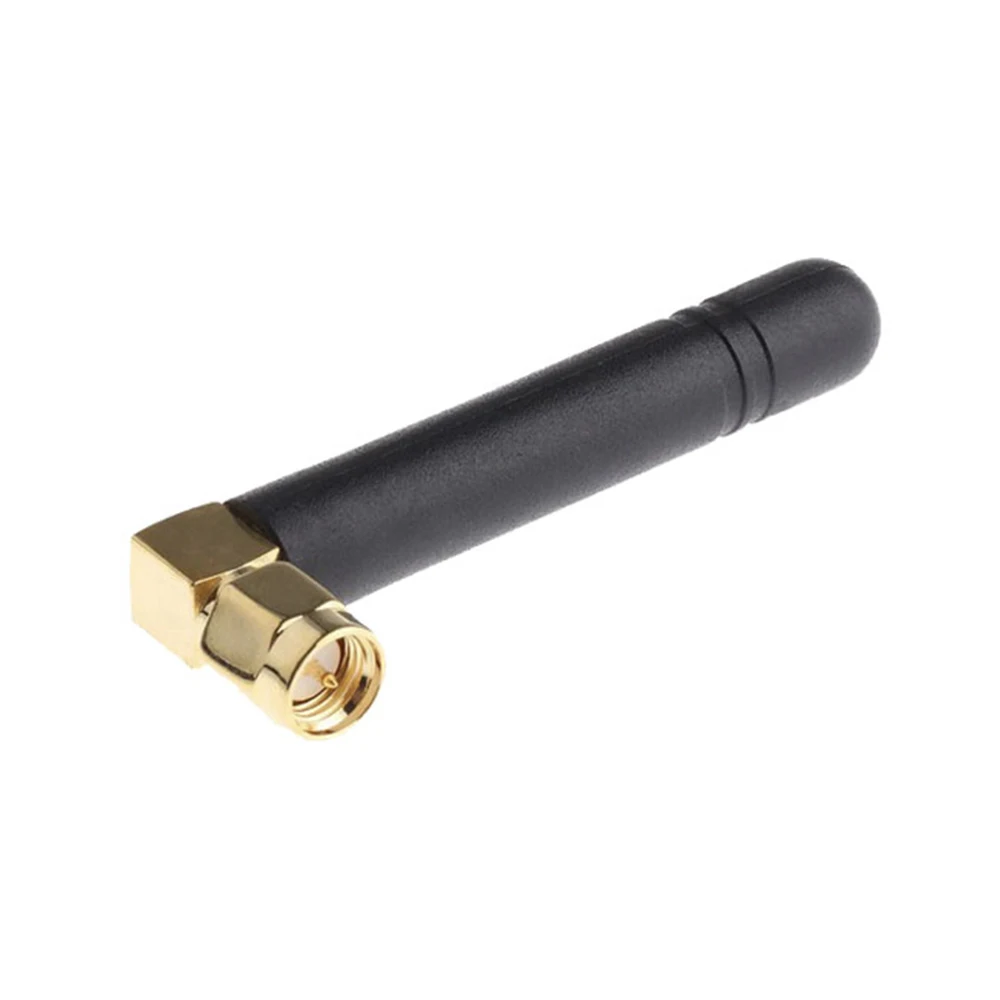

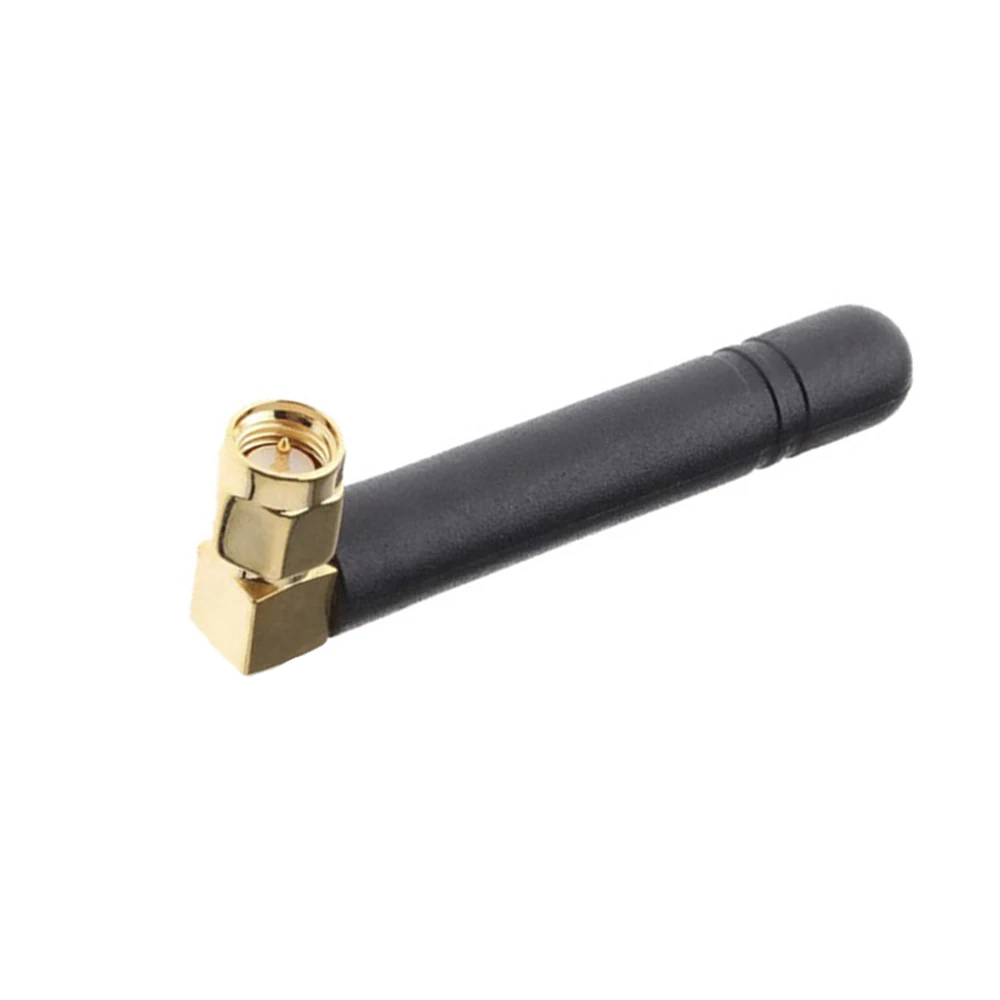

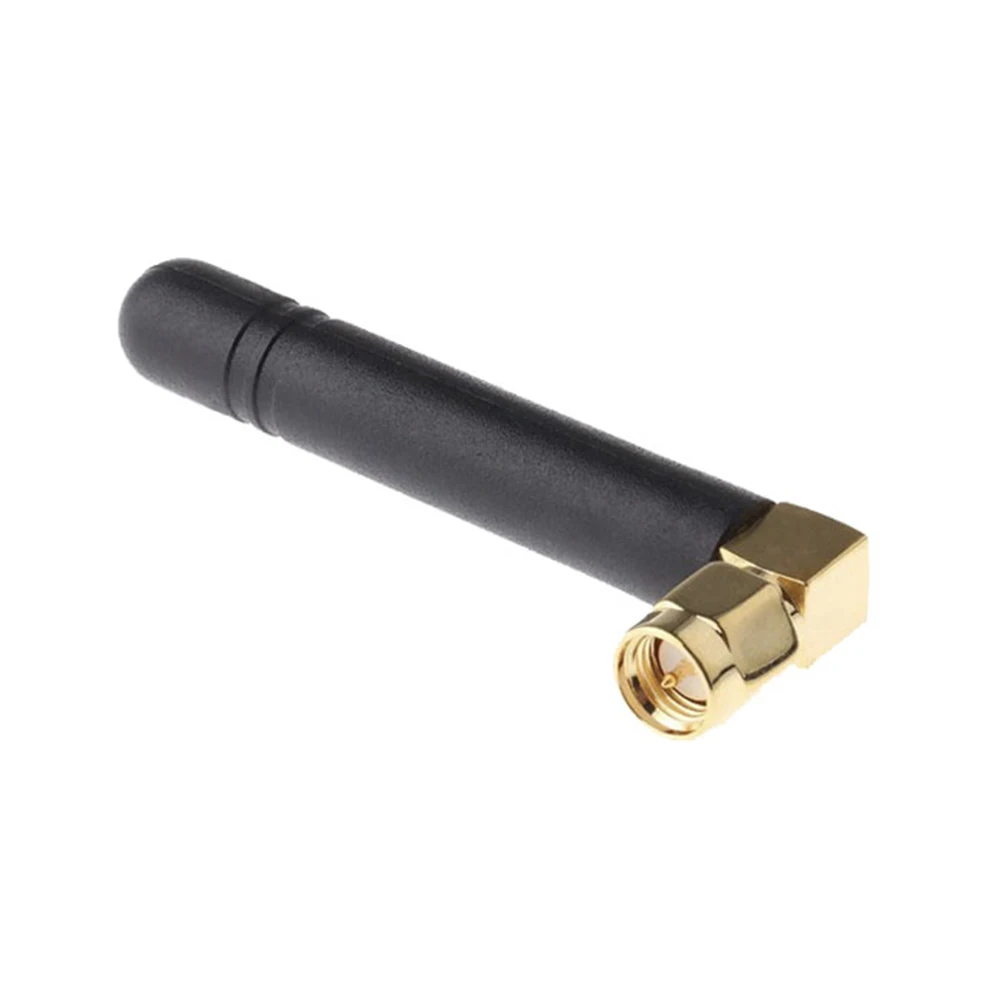

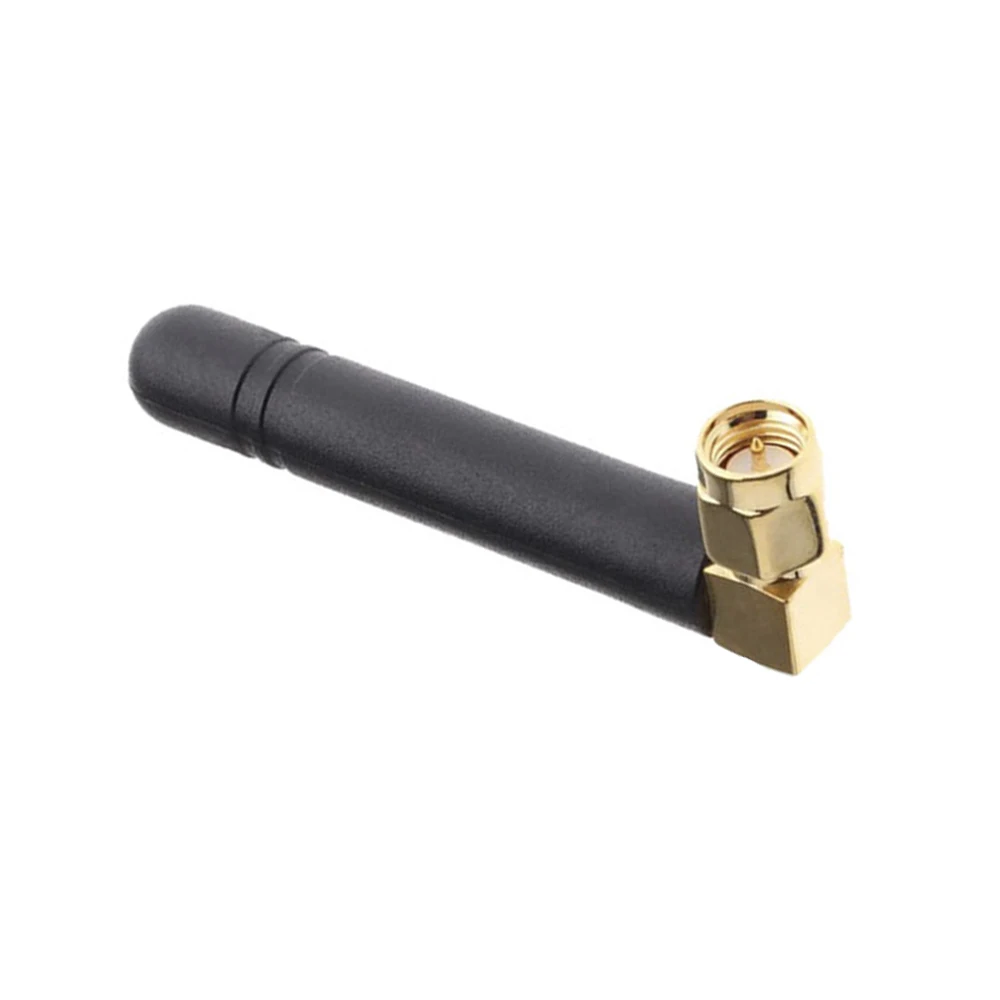

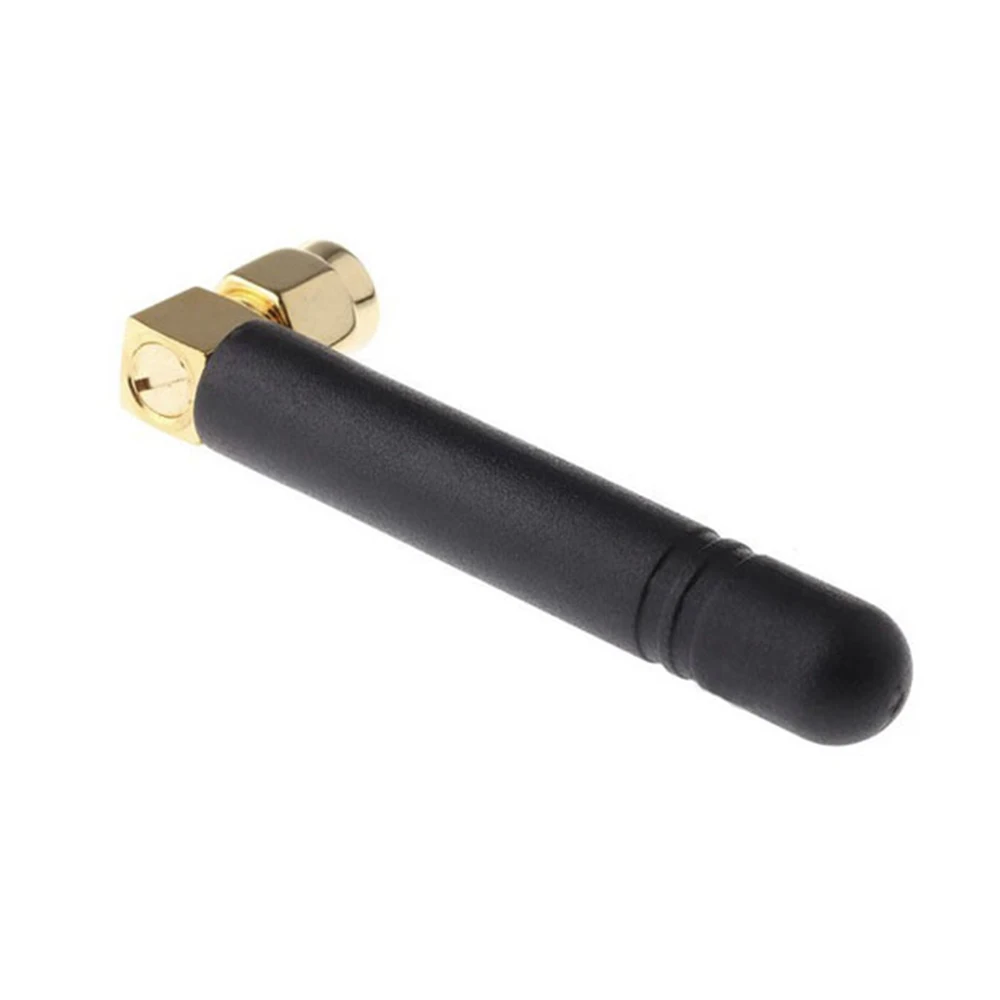

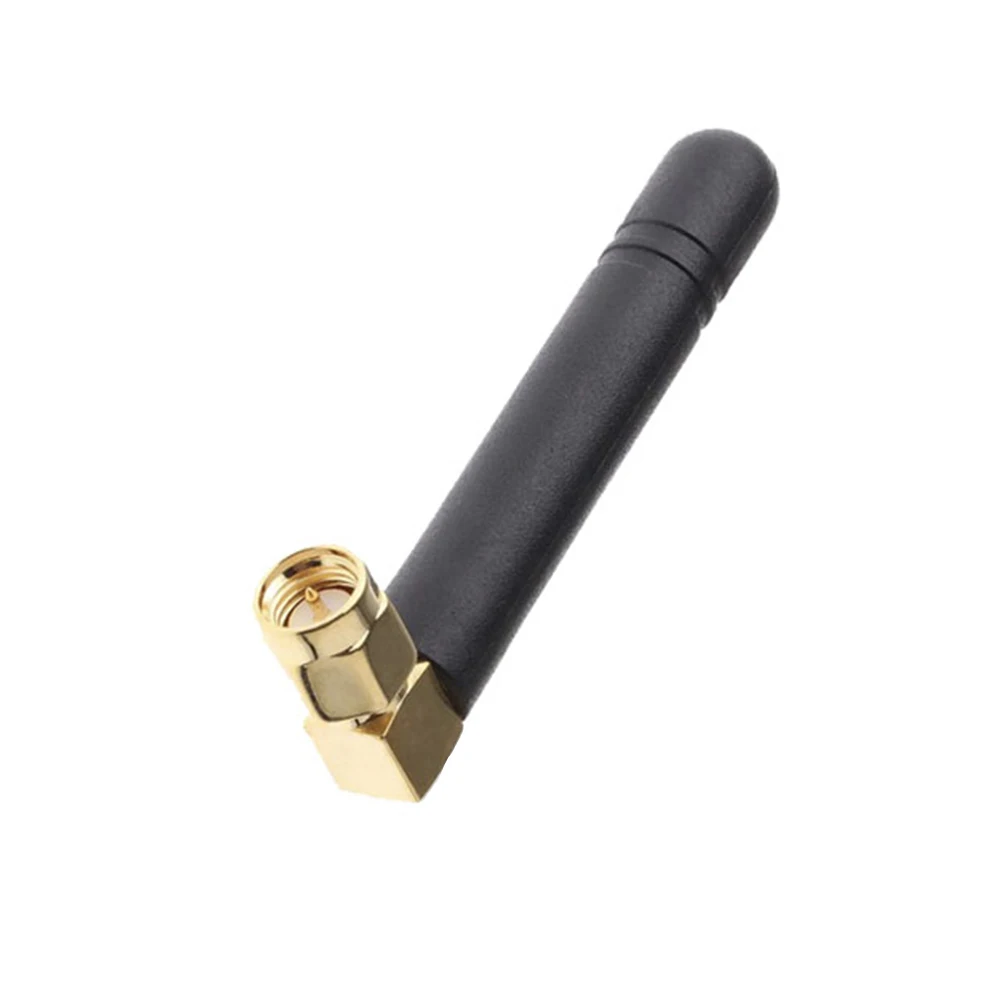

T/R Components 868MHz 2.15dBi (50W) RFID Terminal Antenna (1600695782871)

Share on:


Price:$2.09 - $2.38
Price in USD:Details

Quantity:


Product Overview

Description



Product Display




Production Name:RFID Terminal Antenna
Model NO.:SWT-Q868-40W
Dimension:Φ8x47mm
Gain:2.15dBi

Description:
The antenna is made of TPEE material with compact structure, beautiful modelling and easy to install.
RFID system, GSM/GPRS/Support mobile Unicom, wireless hotspot coverage, mobile terminal equipment.

MECHANICAL SPECIFICATIONS


Technical Parameter
Frequency
868 MHz
Bandwidth
±3MHz
Gain
2.15dBi
VSWR
≤2.0
Radiativity
Omni-Direction
Polarization
Vertical
Input Power
50W
Impedance
50Ώ
Connector
SMA Male
Material
TPEE
Mechanical Parameter
Dimension
Φ8×47mm
Weight
10g
Operating Temperature
-40℃ to+70℃




Main Products














Company Profile






Nanjing Shinewave Technology Co.,Ltd.is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.

Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.

Our company is located in the beautiful ancient capital of six Dynasties,  in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.


Our Factory








Customer Photos




Why Choose Us




Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.


Certifications




Packing&Shipping
