Product Overview
Description
Gauge with gauge
* 15-135mm
1.The comparison measurement method shall be used together with the correction ring gauge, micrometer or gauge block.
2.Measure the groove size and its deviation in the deep hole of the workpiece.
3.Rapid measurement of batch parts with low precision requirements.
2.Measure the groove size and its deviation in the deep hole of the workpiece.
3.Rapid measurement of batch parts with low precision requirements.
Main Technical Parameters and Dimensions
Product number | Measuring range (mm) | Index value (mm) | Precision (um) | Basic dimension (mm) | Stock | ||||
A | B | L | |||||||
1014048035 | 15-35 | 0.01 | 40 | 3 | 3 | 50 | Semi | ||
1014048055 | 35-55 | 0.01 | 40 | 6 | 3 | 80 | Semi | ||
1014048075 | 55-75 | 0.01 | 40 | 8 | 3 | 90 | Semi | ||
1014048095 | 75-95 | 0.01 | 40 | 8 | 3 | 100 | Semi | ||
1014048115 | 95-115 | 0.01 | 40 | 10 | 3.2 | 150 | Semi | ||
1014048135 | 115-135 | 0.01 | 40 | 10 | 3.2 | 150 | Semi | ||

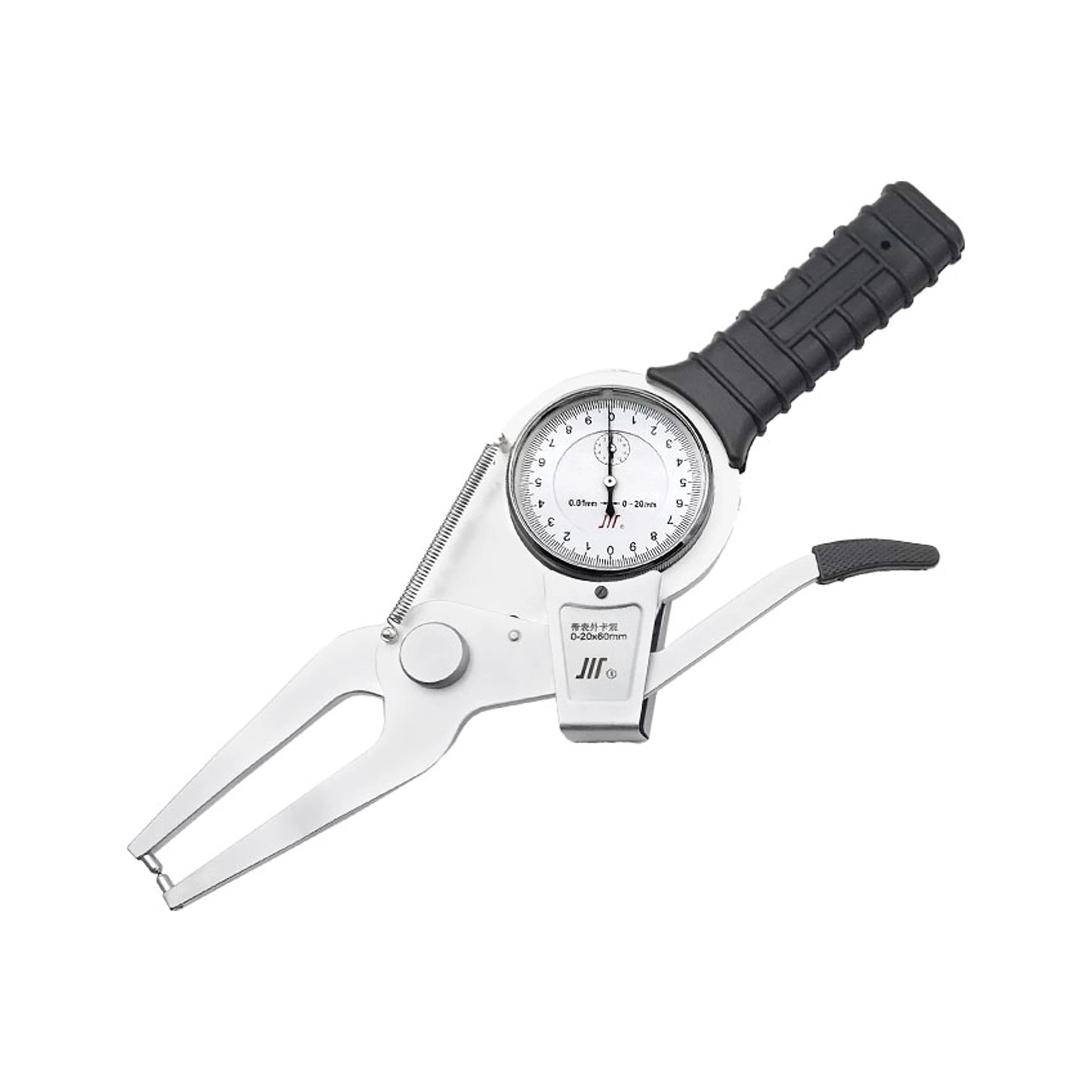

Caliper with meter outside
* 0-100mm
1.Use comparative measurement method and coordinate with gauge block.
2.Measure the external groove, plate thickness and other dimensions of the workpiece and their deviations. 3.Rapid measurement of batch parts with low precision requirements.
Main Technical Parameters and Dimensions
Product number | Measuring range (mm) | Index value (mm) | Precision (um) | Basic dimension (mm) | Stock | ||||
A | B | L | |||||||
1014048020 | 0-20 | 0.01 | 40 | 6 | 3 | 60 | Semi | ||
1014048040 | 20-40 | 0.01 | 40 | 6 | 3 | 60 | Semi | ||
1014048060 | 40-60 | 0.01 | 40 | 6 | 3 | 55 | Semi | ||
1014048080 | 60-80 | 0.01 | 40 | 6 | 3 | 55 | Semi | ||
1014048100 | 80-100 | 0.01 | 40 | 6 | 3 | 55 | Semi | ||
