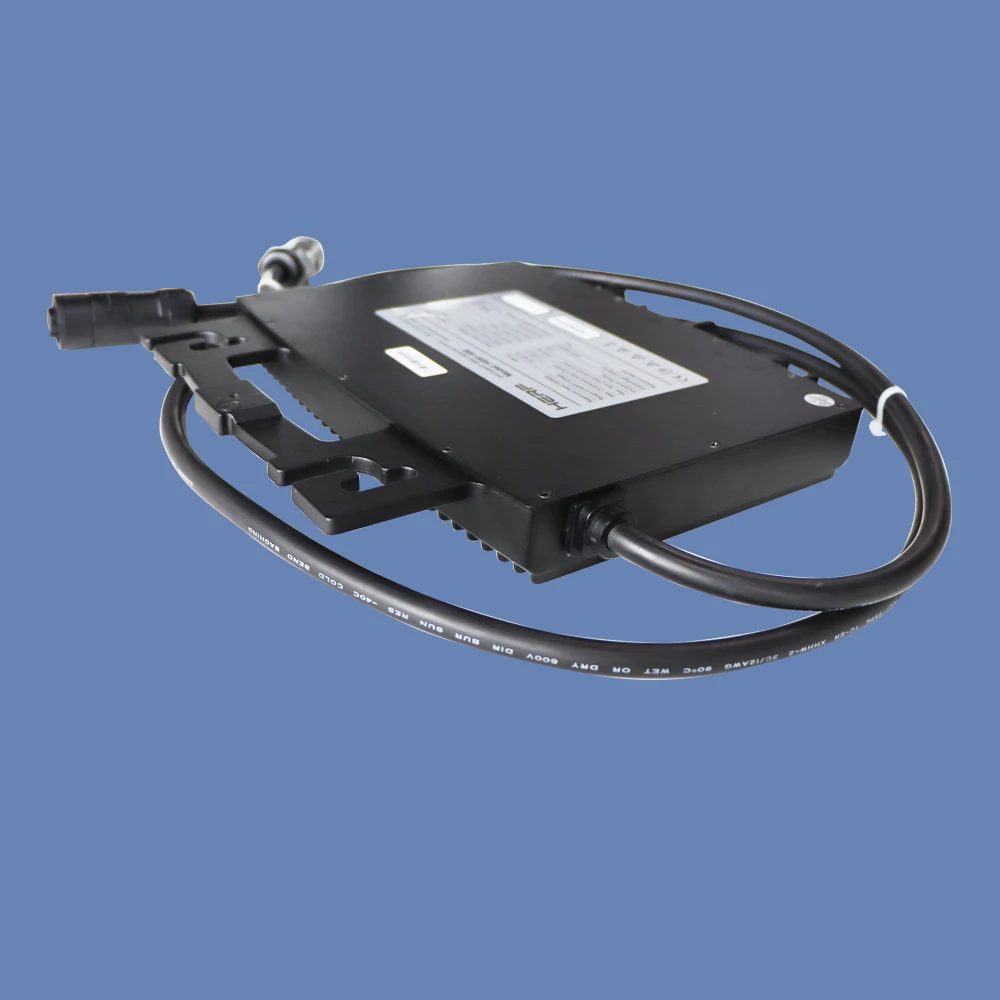

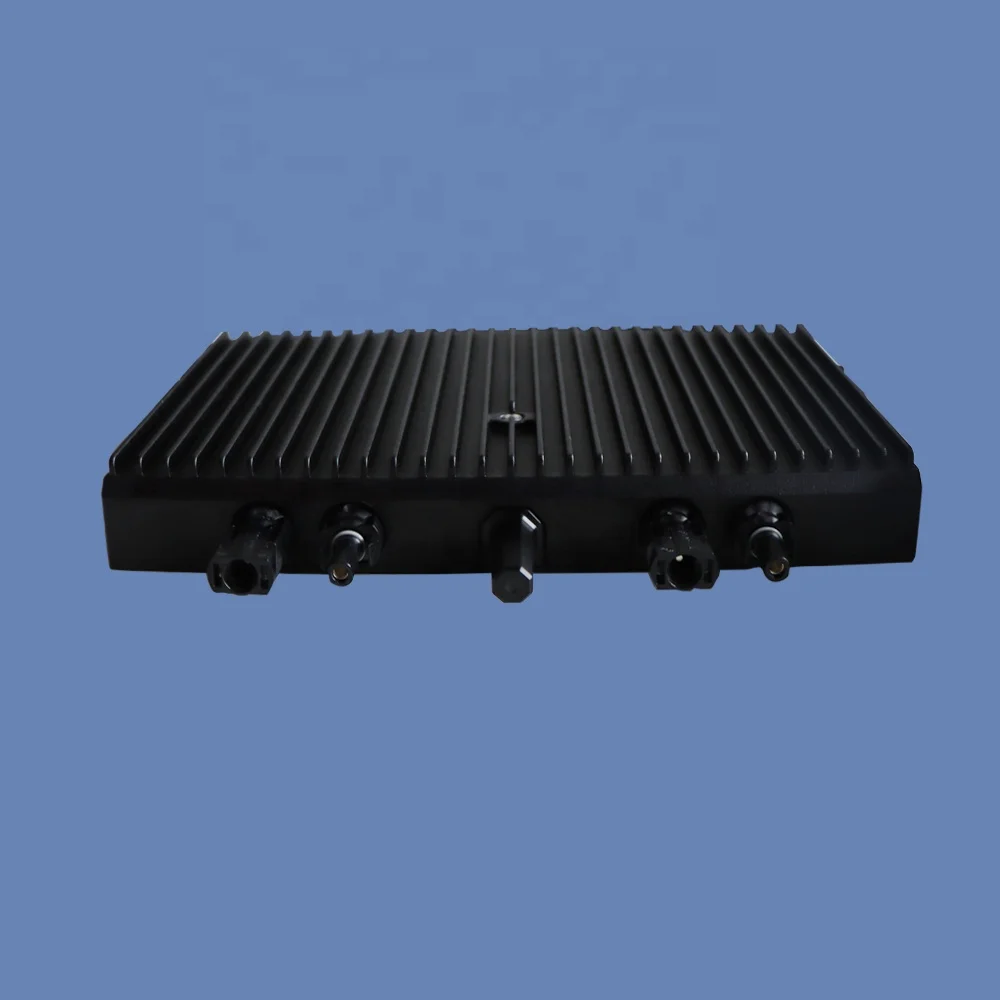

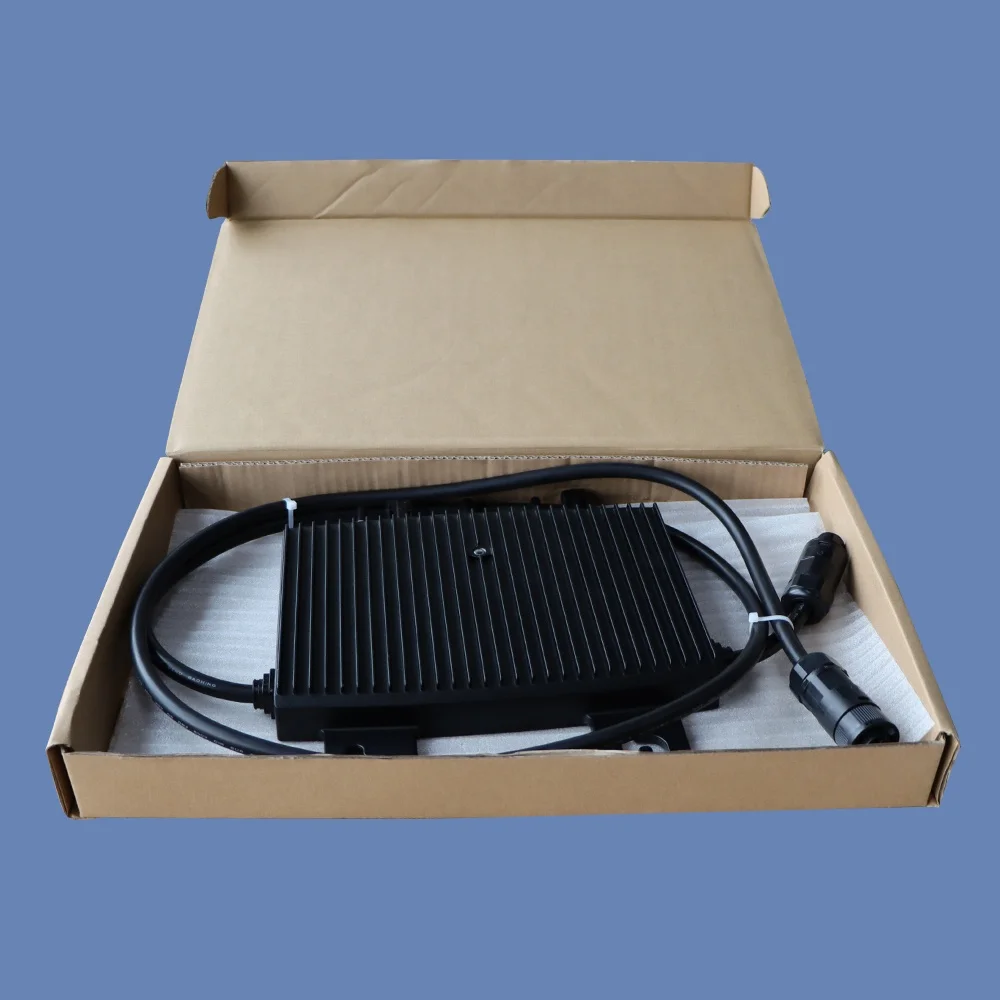

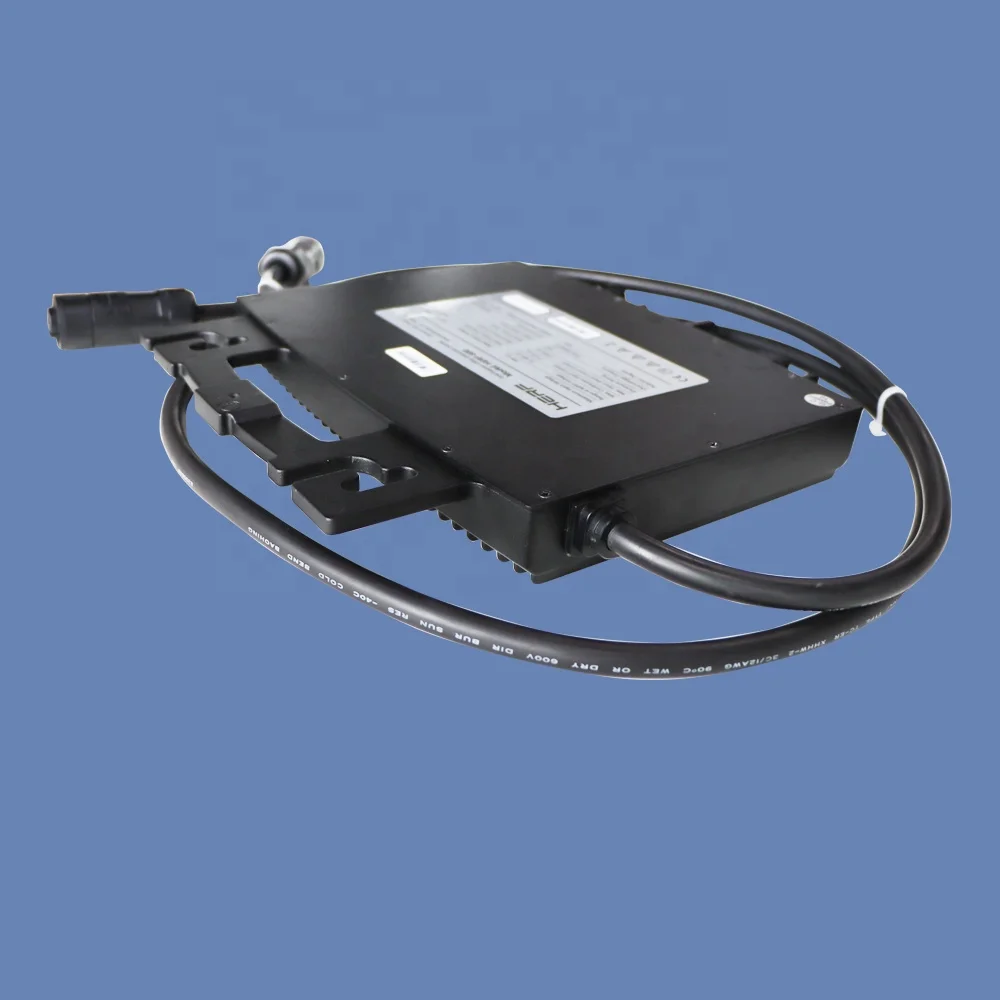

600W Balcony Complete Inverter On Grid Tie Solar Panel System Micro Inverter
- Category: >>>
- Supplier: Yanglin Tech Co. Ltd.Yanglin Ltd.
Share on (1600695913127):
Product Overview
Description
Product Description
Looking to go off grid and power your house with a solar energy system? If you plan on using appliances and lights that use AC(Alternating Current) electricity, you will need an off-grid inverter. Solar panels convert sunlight directly into DC
electricity,which is then stored in deep cycle batteries. In an off-grid solar system it’s the job of a solar inverter to convert
the DC electricity to AC electricity.

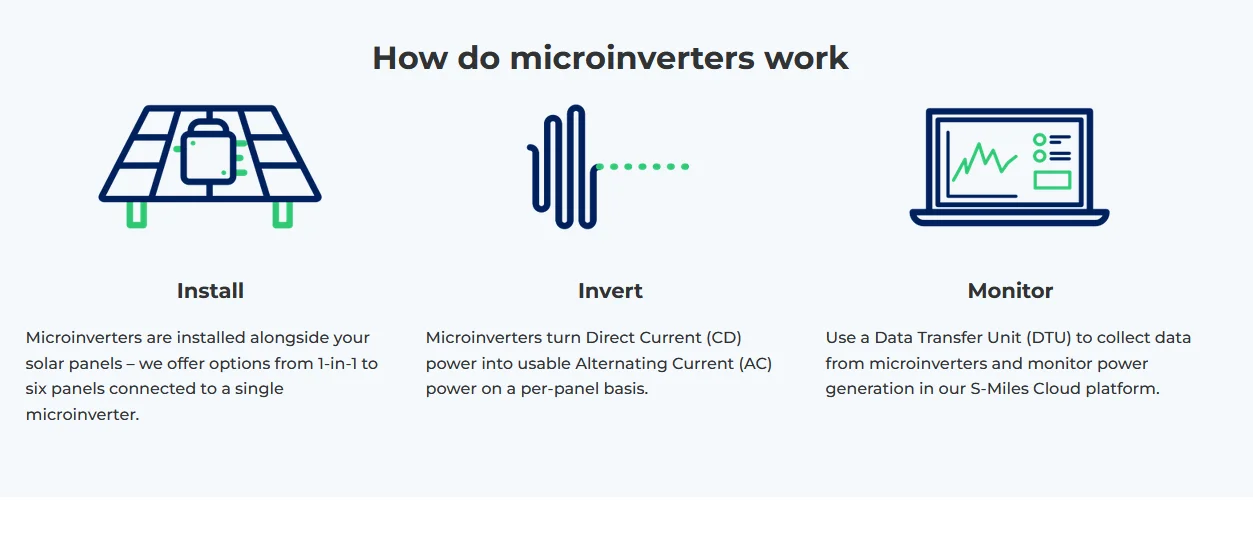

Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. With us, get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.
electricity,which is then stored in deep cycle batteries. In an off-grid solar system it’s the job of a solar inverter to convert
the DC electricity to AC electricity.
Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. With us, get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.
Energy you can trust
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year. That’s why they all come with a minimum 12-year warranty as standard, with options to extend right up to 25 years.
Microinverters Highlight
Easy to install
Our microinverters are built to plug-and-play, ready to get your solar ecosystem up and running sooner
Adjustable power
Configure your microinverters to match your installation and solar panel layout
Highly reliable
Our microinverters come with low failure rates and built-in surge protection
Compliant energy
Our microinverters are compliant with standards like EN50549-1:2019 and California Rule 21
Our microinverters are built to plug-and-play, ready to get your solar ecosystem up and running sooner
Adjustable power
Configure your microinverters to match your installation and solar panel layout
Highly reliable
Our microinverters come with low failure rates and built-in surge protection
Compliant energy
Our microinverters are compliant with standards like EN50549-1:2019 and California Rule 21

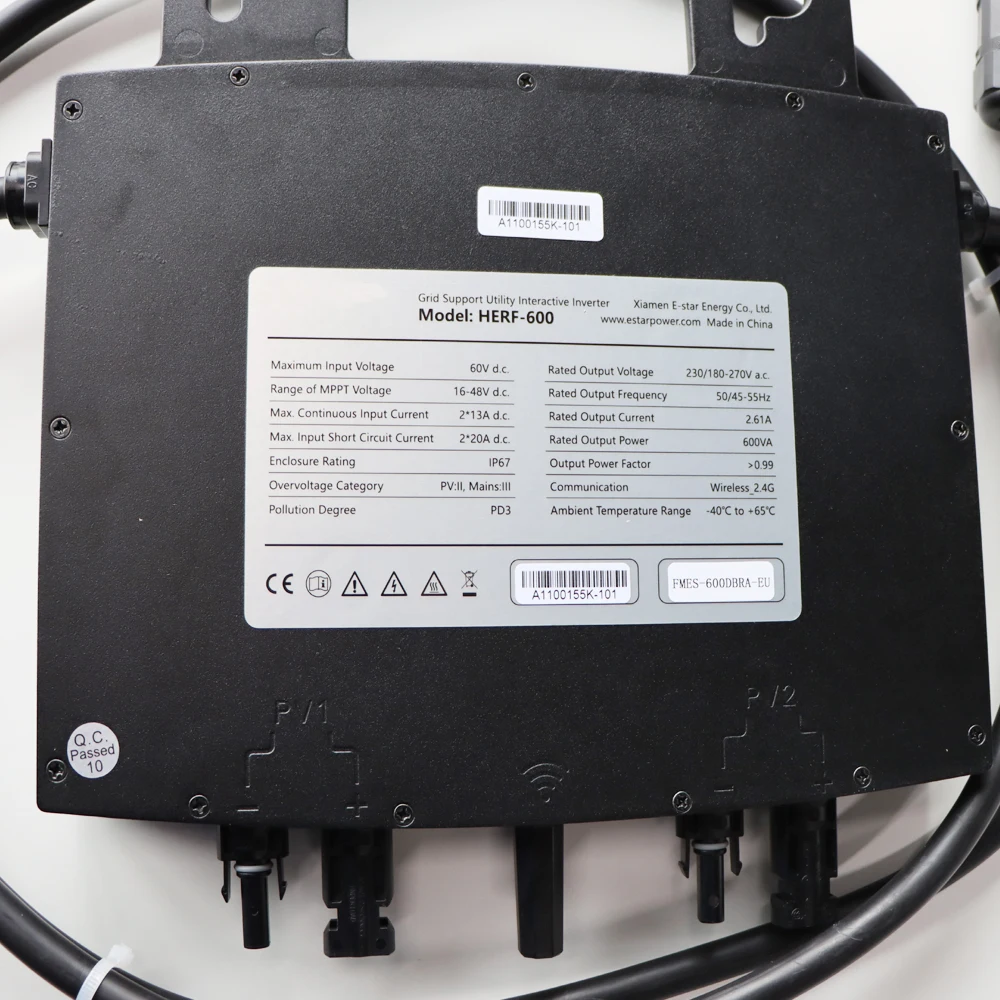

Specification
Model# | YLHERF-600cus | |
lnput Data (DC) | ||
Recommended module power (W) | 240~420+ | |
Peak power MPPT voltage range (V) | 16~48 | |
Start-up voltage (V) | 22 | |
Operating voltage range (V) | 16~60 | |
Maximum input voltage (V) | 60 | |
Maximum input current (A) | 2×13 | |
No. of MPPTs | 2 | |
Output Data (AC) | ||
Rated output power (VA) | 600 | |
Rated output current (A) | 2.61 | |
Nominal output voltage/range (V) | 230/180-270 | |
Nominal frequency/range (V) | 50/45-55 | |
Power factor(adjustable) | 0.8 leading…0.8 lagging | |
Maximum units per branch | 9 | |
Efficiency | ||
CEC peak efficiency | 96.50% | |
Nominal MPPT efficiency | 99.50% | |
Ambient temperature range (℃) | -40~+65 | |

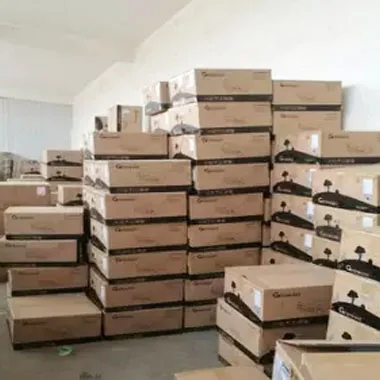

Packing & Delivery
We can always arrange a better transportation solution to meet your delivery time.
Carton+wooden crates.

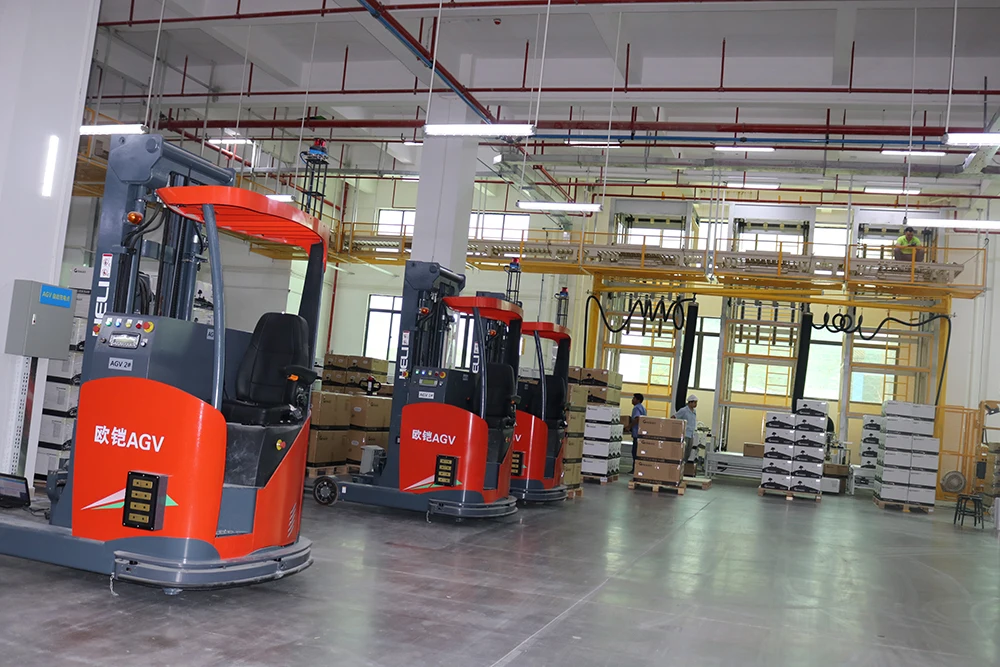

Company Profile
Yanglin Tech Co., Ltd.has been engaged in solar system industry since 2012 and our mission is to provide solar energy system and mounting solution & products which are easy for installation, trustable for good quality, satisfying for considerate service.
FAQ
Question 1: Is it 2 in 1 unit?
“The world's best daisy-chain 2 in 1 microinverter with reactive power control” is designed for two solar panels with dual MPPT, applicable for modules up to 540W, targeting high-power residential and commercial solar applications.
Question 2: What is MOQ request?
Answer: 200 unit is acceptable. For more quantities, welcome to contact us for details.
Question 3 Are you a manufacturer?
Answer: Our factory is located in the beautiful coastal city Xiamen, China. From our factory to your place, quality is assured.
Question 4: Does this solar inverter fit all that I need?
Answer: Please inform 1) which country and which state you are from 2) your average daily electricity kilowatt-hour, voltage, 3) ideal for balcony solar panel system
Question 5 How long can you ship this item after I place orders?
Answer: 20 days for 1 sets. For more sets, shipped in 35 days after payment.
Question 6 How about your service and warranty?
Answer:We will answer any of your question within 24 hours.
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year. That’s why they all come with a minimum 12-year warranty as standard, with options to extend right up to 25 years.
Question 7: Do you design the solar panel mounting system for us?
Answer:Yes. We can always offer a satisfying solution after we get your requests.
Question 8: Can I receive the solar inverter without damages?
Answer:We care the package very much and the products will be packed more safely for better protection.
Question 2: What is MOQ request?
Answer: 200 unit is acceptable. For more quantities, welcome to contact us for details.
Question 3 Are you a manufacturer?
Answer: Our factory is located in the beautiful coastal city Xiamen, China. From our factory to your place, quality is assured.
Question 4: Does this solar inverter fit all that I need?
Answer: Please inform 1) which country and which state you are from 2) your average daily electricity kilowatt-hour, voltage, 3) ideal for balcony solar panel system
Question 5 How long can you ship this item after I place orders?
Answer: 20 days for 1 sets. For more sets, shipped in 35 days after payment.
Question 6 How about your service and warranty?
Answer:We will answer any of your question within 24 hours.
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year. That’s why they all come with a minimum 12-year warranty as standard, with options to extend right up to 25 years.
Question 7: Do you design the solar panel mounting system for us?
Answer:Yes. We can always offer a satisfying solution after we get your requests.
Question 8: Can I receive the solar inverter without damages?
Answer:We care the package very much and the products will be packed more safely for better protection.
