13/15/17 Inch Diameter 600 601 Inconel 625 Tube Price Per Kg Nickel Pipe
- Category: >>>
- Supplier: Wuxi Anchang Metal Products Co. Ltd.
Share on (1600695951986):
Product Overview
Description
Product Description

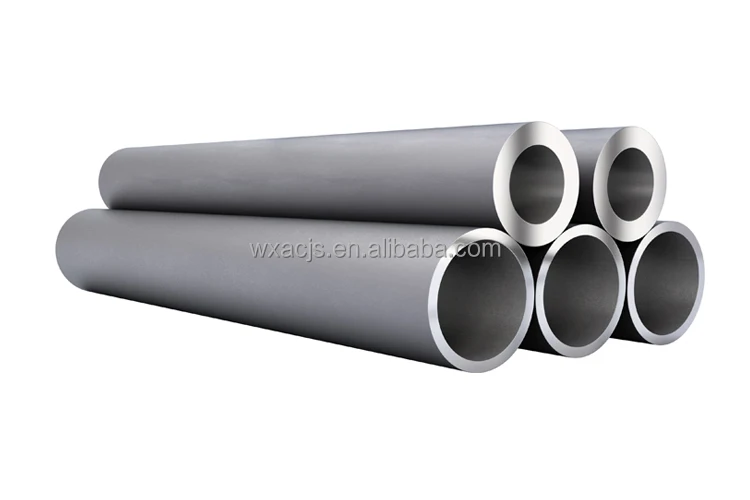

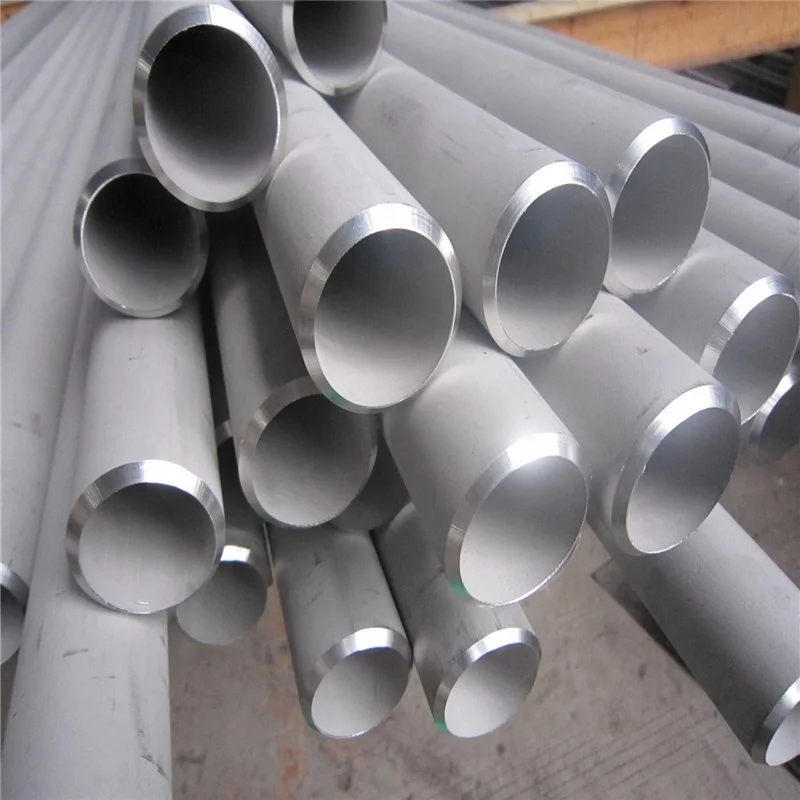

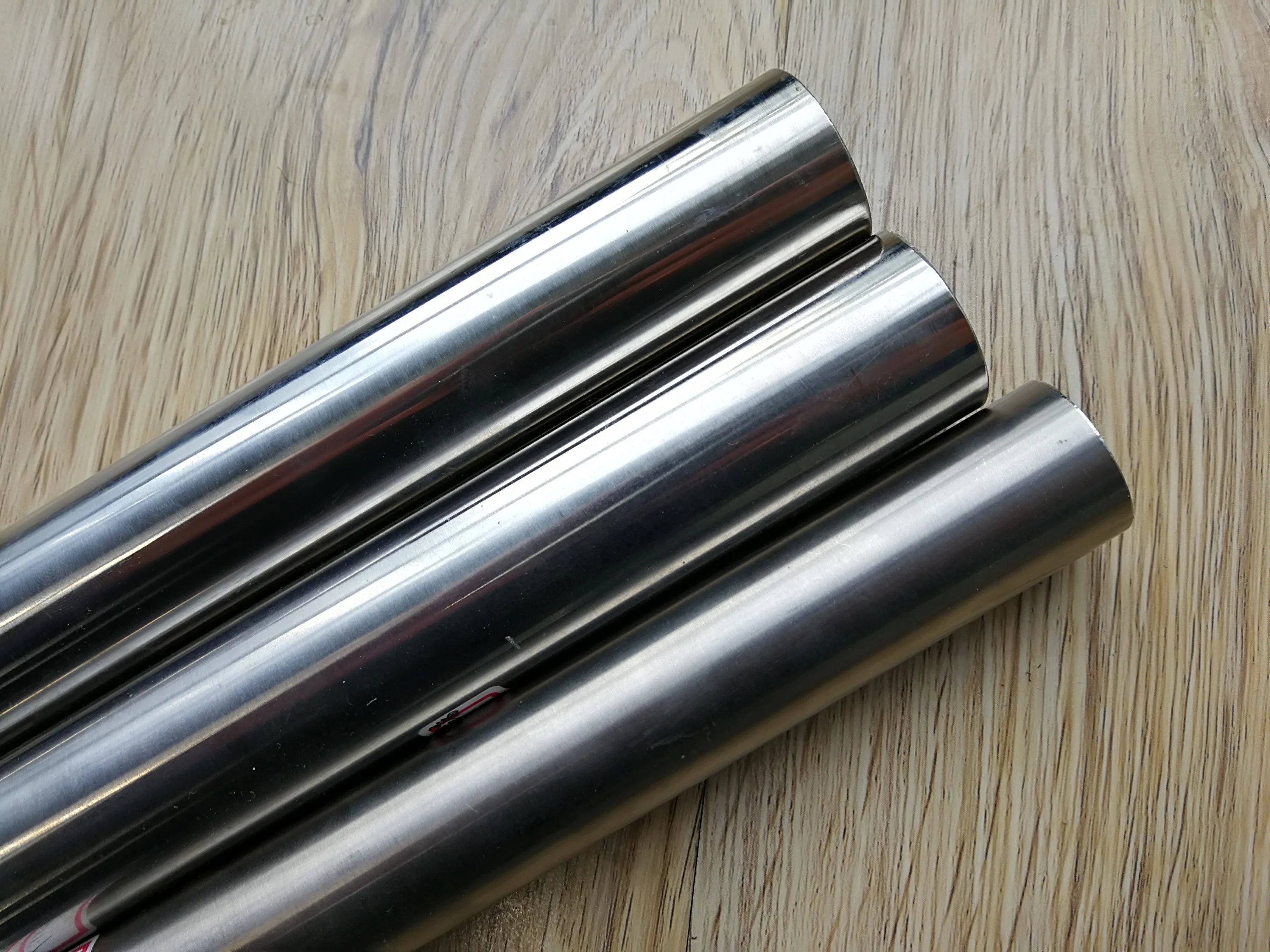

Inconel Pipe
Inconel pipes are nickel-chromium based pipes that are non-magnetic and have superb resistance to high-temperature oxidation. These pipes have easy weldability under a wide range of temperatures and thus are highly preferred in multiple industries.
Benefits of Inconel Pipe
* Impeccable Resistance to High Corrosion Environments
* Good fabrication properties
* High strength alloy
* Oxidation Resistant
* High tensile strength
* Suitable for high temperature
Usage of Inconel Pipe
* Chemical processing plants
* Furnace components
* Petrochemical processing factories
* Sea water applications
* offshore oil and gas platforms
* Heat exchangers
* Nuclear engineering
Specification
Product Name | Inconel Pipe |
Application | * Oil & Gas Extraction * Heat Treat Applications * Rapid Temperature Changes * Saltwater Applications * Jet Engines |
Thickness | 0.5mm-30mm |
Diameter | 6mm-530mm |
Length | 1-6m or customized |
Material | Inconel 600/601/602CA/617/625/713/718/738/X-750 |
Standard | GB, AISI, ASTM, DIN, EN, SUS, UNS |
Surface | Bright/Acid white |
Capacity | 800 tons/month |
Package | Standard export package |
Chemical Composition (%) | ||||||||||||||
Inconel | Ni | Cr | Fe | Mn | Si | C | S | |||||||
600 | 72 | 14-17 | 6-10 | 1.0 | 0.5 | 0.15 | 0.015 | |||||||
617 | 44.2-56.0 | 20-24 | 3 | 0.5 | 0.5 | 0.15 | 0.015 | |||||||
625 | 58 | 20-23 | 5 | 0.5 | 0.5 | 0.1 | 0.015 | |||||||
690 | 59.5 | 30 | 9.2 | 0.35 | 0.35 | 0.019 | 0.003 | |||||||
718 | 50-55 | 17-21 | Balance | 0.35 | 0.35 | 0.08 | 0.015 | |||||||
X-750 | 70 | 14-17 | 5-9 | 1.0 | 0.5 | 0.08 | 0.01 | |||||||
Mechanical Properties | ||||||||
Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |||||
Rockwell B (HR B) max | Brinell (HB) max | |||||||
Psi – 1,35,000 , MPa -930 | Psi – 75,000 , MPa – 517 | 42.5 | -- | -- | ||||
Physical Properties | ||||
Density | lb/in3 | 0.306 | ||
Mg/m3 | 8.47 | |||
Melting Range | °F | 2470-2575 | ||
°C | 1354-1413 | |||
Specific Heat | Btu/lb-°F | 0.106 | ||
J/kg-°C | 444 | |||
Electrical Resistivity | ohm-circ mil/ft | 620 | ||
μΩ-m | 1.03 | |||
Curie Temperature | °F | -192 | ||
°C | -124 | |||
Permeability at 200 oersted (15.9 kA/m) | 1.010 | |||
Recommend Products
Company Profile
Detection
Why Choose Us
Packing & Delivery
Q1: Can you provide samples?
A1: Yes, free samples will be provided regarding to your needs. And the delivery cost, which will be returned after the first cooperation, needs to be afforded by the customers.
Q2: What is your delivery time?
A2: Within 7 days after deposit received for in-stock. 15-30 days for products out of stock.
Q3: What is your payment terms?
A3: 30% T/T in advance, the balance before shipment or based on BL copy or LC at sight.
Q4: How can you guarantee the quality?
A4: Confirmed samples before mass production; strict inspection before delivery.
Q5: What is the time of preparing a sample?
A5: 1-3 days.
Q6: What’s your shipping port?
A6: Shanghai, Ningbo, Tianjin or negotiated.
Q7: What’s the package?
A7: Standard export sea worthy package or negotiated.
Q8: Can we visit your factory?
A8: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
