TUF-2000M Hot-selling liquid DN25-6000mm RS485 module ultrasonic flow meter

TUF-2000M Hot-selling liquid DN25-6000mm RS485 module ultrasonic flow meter

Category: Flow Meters >>>
Supplier: Henan,Junyuan,Automation,Equipment,Co.,Ltd.

Price:$178.00 - $198.00

Price in USD:Details

Quantity:

Product Overview

Description

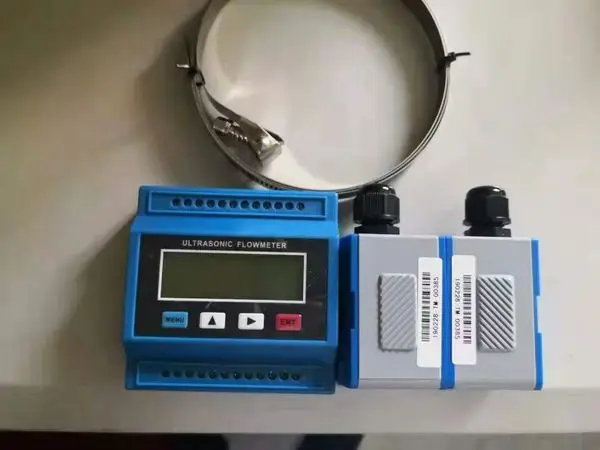

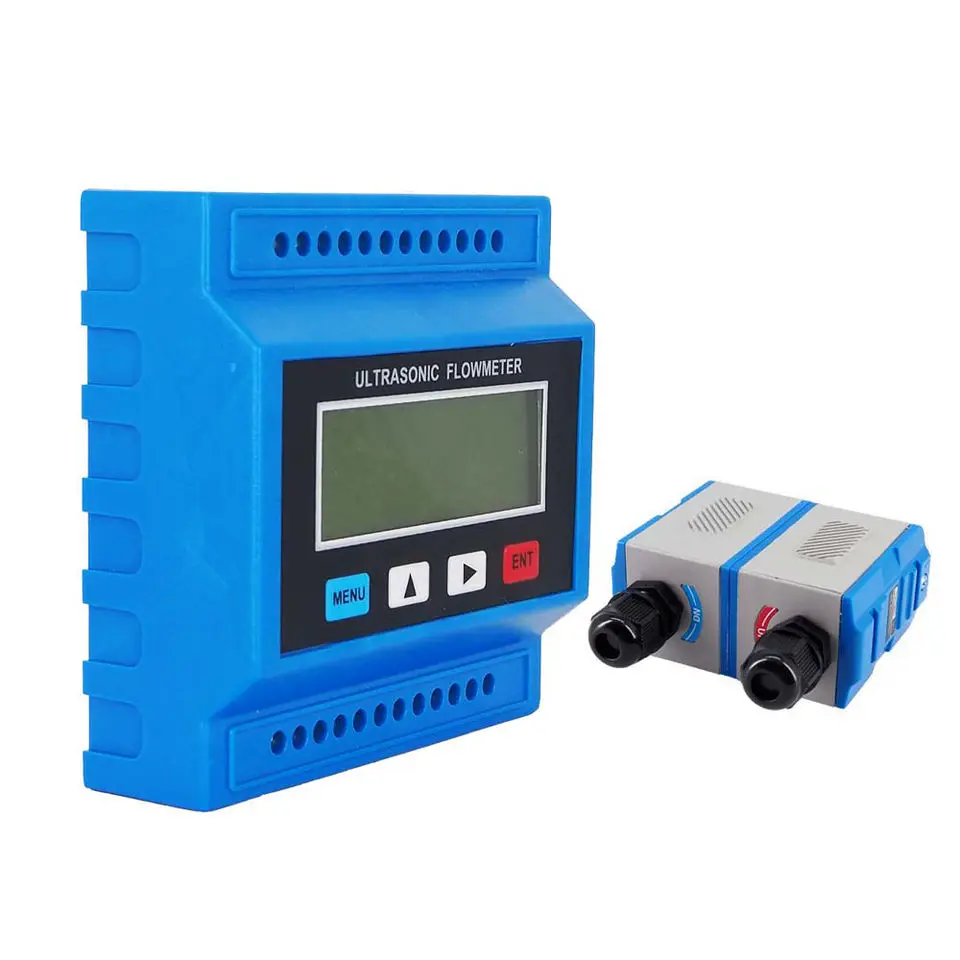

TUF-2000M Ultrasonic Hydraulic Flow Meter For water measurement

Product Description

Techincal Paremeter

Features	Description
High accuracy	Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Wide measuring range	Several types transducer for selection, pipe size from DN15mm to DN6000mm
Far transmission distance	Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
Powerful Functions	Current output: 4-20mA, one channel, can be used for flow/heat transmitter; OCT output: two channels, can be used for flow /heat switch; Current input: 4-20mA, three channels, can be used for data collector; Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

Optional Transducer		Model	Measuring Range	Liquid Temperature	Accuracy
Clamp-on Transducer	TS-1(Small Size)	TUF-2000SNB1	DN15-100mm	-30°C~90°C	±1%
	TM-1(Medium Size)	TUF-2000SNB2	DN50-1000mm
	TL-1(Large Size)	TUF-2000SNB3	DN300-6000mm
High-temperature Clamp-on Transducer	THS-1(Small Size)	TUF-2000SNB4	DN15-100mm	-30°C~160°C
High-temperature Clamp-on Transducer	THM-1(Medium Size)	TUF-2000SNB5	DN300-1000mm	-30°C~160°C
Insertion Transducer	TC-1(Standard)	TUF-2000SNC1	DN80-6000mm	-40°C~160°C
Insertion Transducer	TLC-2(Lengthen)	TUF-2000SNC2	DN80-6000mm	-40°C~160°C
Prover section	Prover section	TUF-2000SNG	DN15-1000mm	-40°C~160°C	±0.5%

Feathers:

(1)Portable Converter

1. IP65 protection
2.Chinese, English, Italian and other languages can be customized.
3.LCS Display instantaneous flow, accumulated flow(positive, negative and net), velocity, working status etc.

(2)Pipe Material & Size

1. Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed.
2. DN15-6000mm

(3)Multiple Output Modes

1. Built-in rechargeable NI-MH battery, provide over 12 hours of continuous operation.
2. Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc.
3. 1 way OCT output

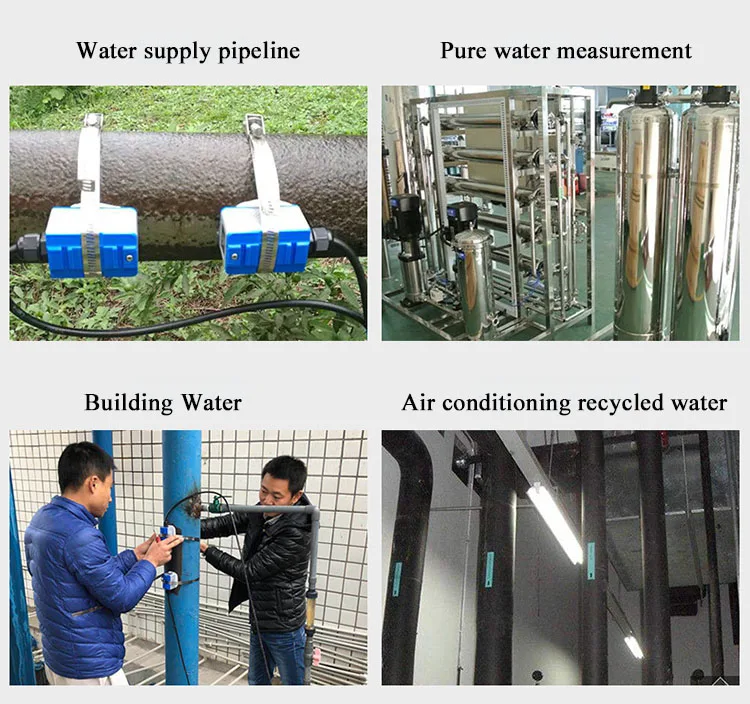

(4)Typical Application

1.Pipeline water supply
2.Building water
3.Pure water measurement
4.Air conditioning circulating water

Application

Clamp on ultrasonic flowmeter doesn't need any adjustment before installation, easy to install, repair and oreration.

It's suitable for medium as water, oil and other noncorrosive fluids.

Company Information

.jpg

    Henan Junyuan Automation is a high-tech enterprise specializing in the research, development and production of flow meters such as electromagnetic flowmeters and vortex flowmeters.
    The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking , medicine, light industry, environmental protection and other industries.
    Our philosophy: the pursuit of excellence, professionalism.
Our aim: to survive by quality, to win the word of mouth by service.

.jpg

Our Services

	Sales Service * View our Factory. * customized products. * Sample testing support. * Inquiry and consulting support
	After-Sales Service * 1~2years warranty for most of our products; * We will arrange delivery of the goods on time: * Within the warranty period, we will bear all the quality problem of our products; * Without any problem, we will gain the feedbacks of our products to help improve better products

Certifications


Packaging & Shipping

PACKAGE:
The goods packed by plastic film ,then put into carton box with foam,then all the cartons put into a big wooden box.
Delievery by sea or air.

DELIVERY TIME:

If our factory have stock,will delievery immediately,if no stock,after customers deposit arrive our account, will product as soon as possible,after produced well ,will delievery immediately.

_20181129143526

FAQ

1.Q:How to intallation flowmeter ?

A:We can provide manual of flowmeter ,kindly contacts us freely.

2.Q:How can I choose this flow diameter ?

A:Yes.that's according to your pipe diameter and flow range.

3.Q:Could i get samples?

A:Yes,We have materials in stock to help you to get the samples as sooon as we can.

4.Q::Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

5.Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

6.Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

7.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce

immediately.
