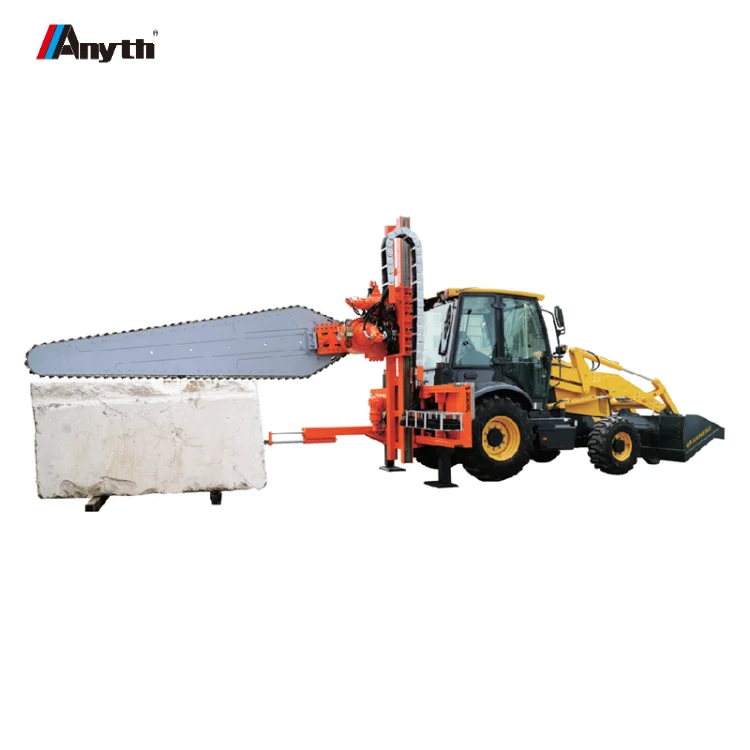

Машина для производства цепной пилы, колесный погрузчик, состоит из цепной ручки, карьерной кирпичной машины для резки камня

Product Overview

Description

Chain Saw Wheel Loader Making Machine Consists Of Chain Arm System Quarry Brick Stone Cutting Machine

Model NO.	SMT-CS3400
Trademark	haineng
HS Code	8464109000
Production Capacity	5pieces/Per Months
Origin	China
Certification	ISO,CE
Transport Package	Plastic Film

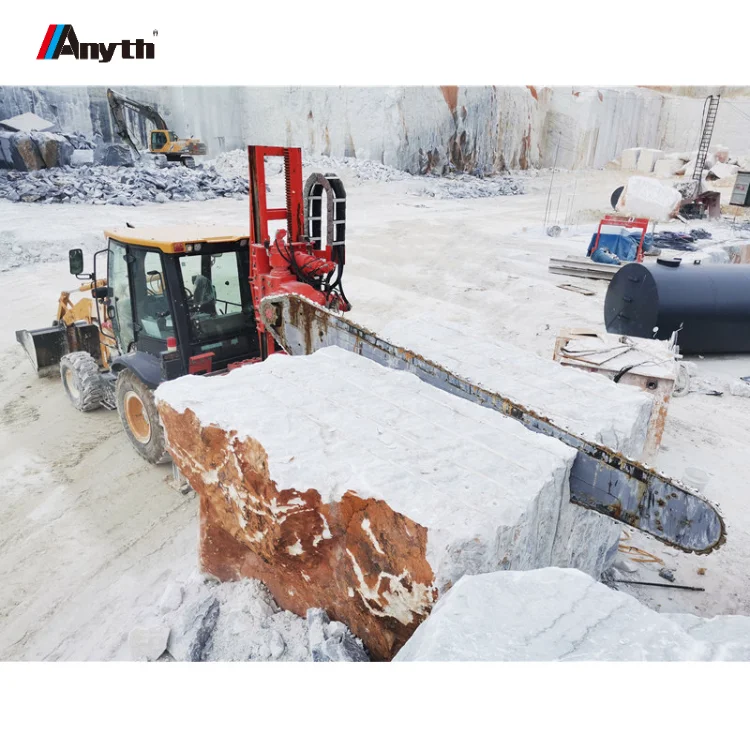

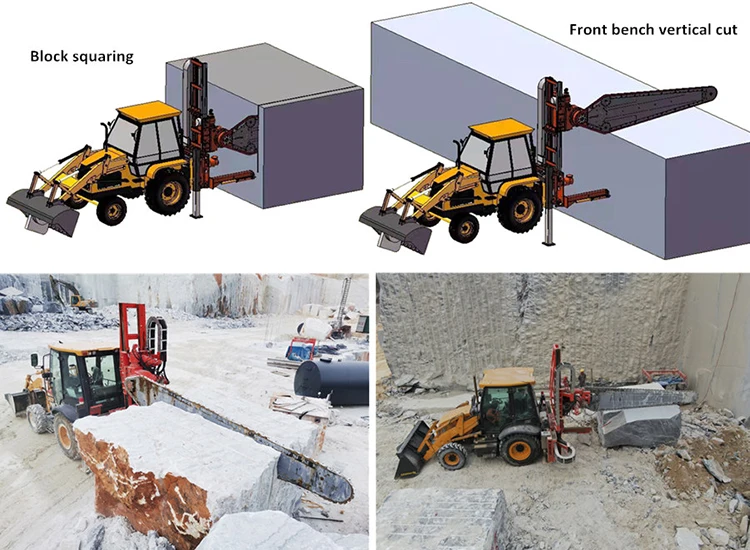

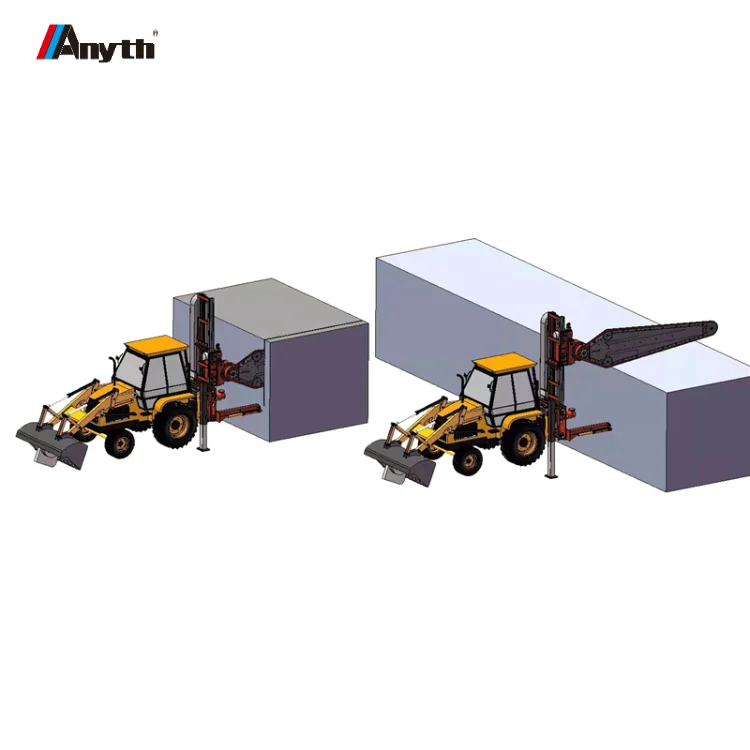

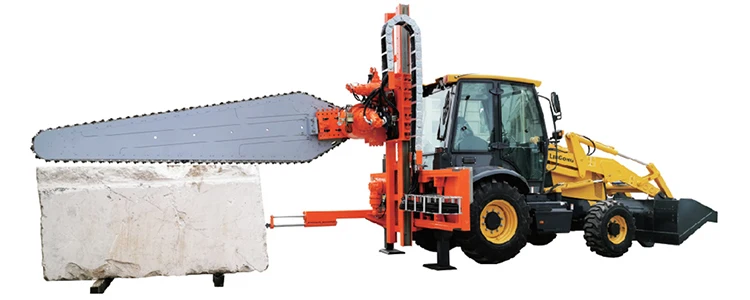

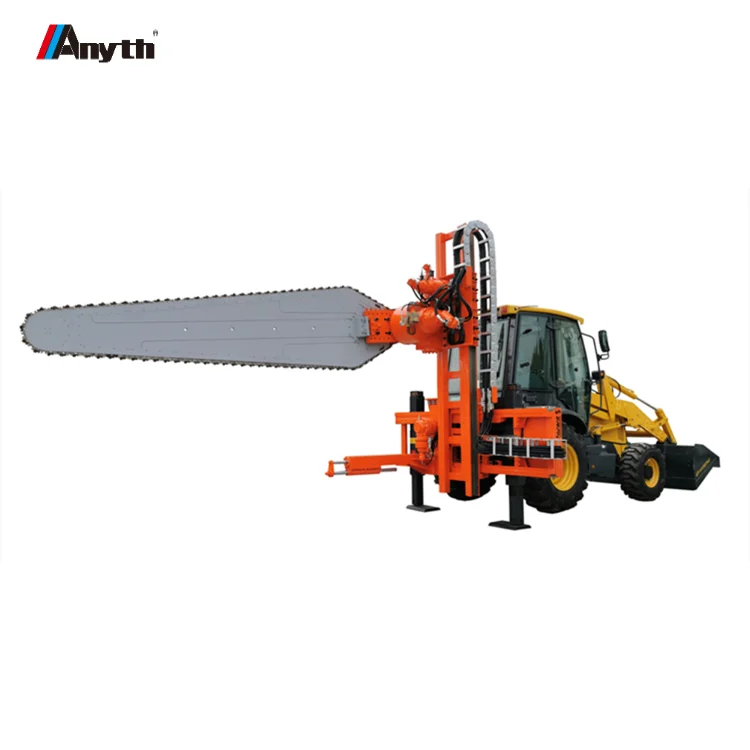

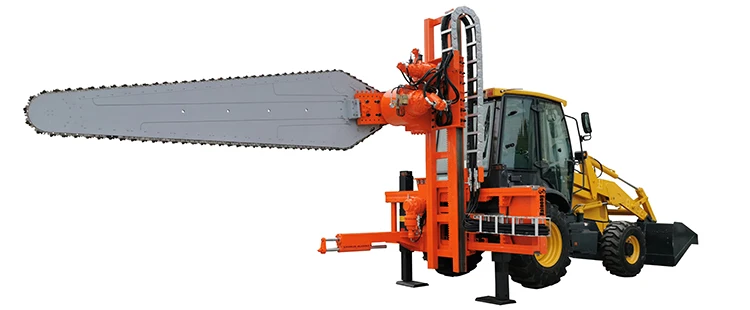

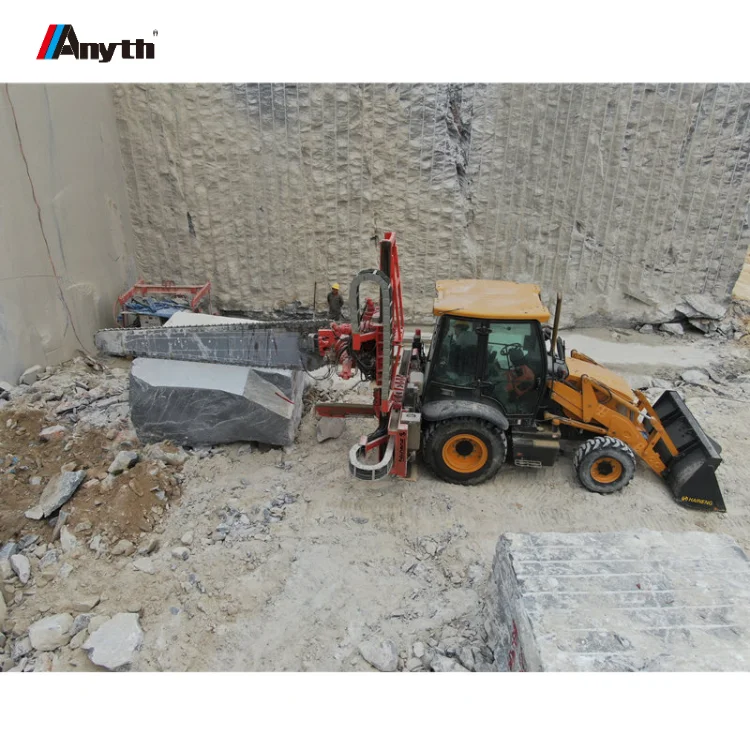

SMT-CS3400 Chain Saw For Wheel Loader consists of chain arm cutting system and wheel loader , mainly used for cuting large blocks and cutting strip ore belt in mine , its features are :

1. This machine is powered by the diesel engine of the wheel loader , which can work independently without external power supply.
2. Mining operators work in the sealed cab in a friendly and safe working environment .
3. The machine can move fast and operate conveniently with high eficiency .

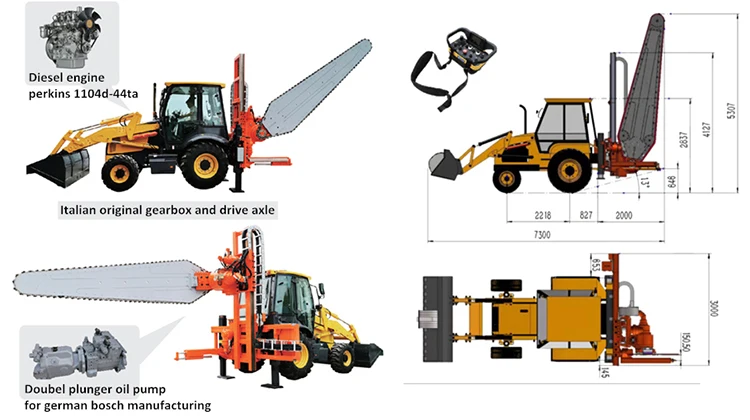

Product Parameters

Chain saw for wheel loader
Model	Unit	SMT-CS3400

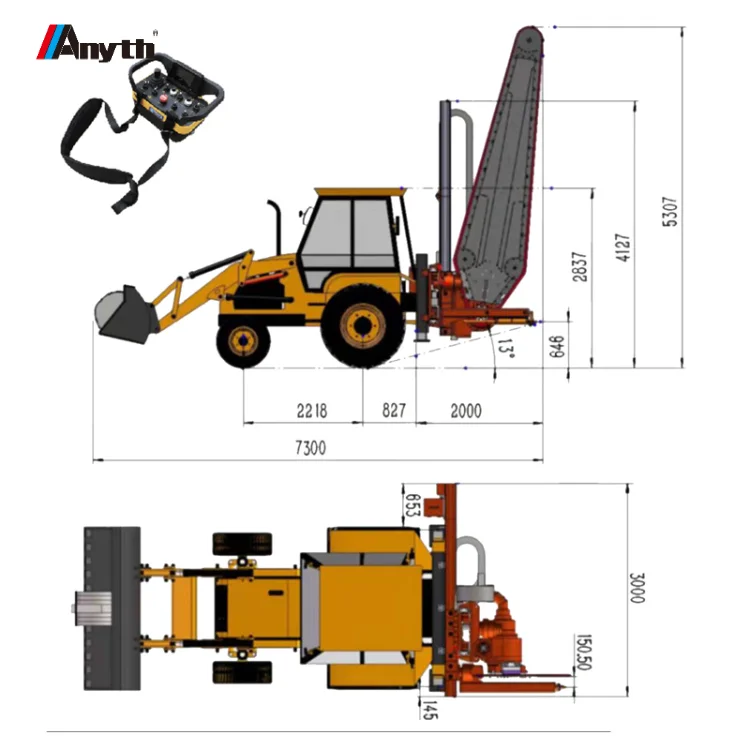

Available lenghts of arm(Useful cut)	m	Da/from 2m-a/to 3.40m
Arm rotation	n°	90
Vertical stroke	mm	3000
Horizontal stroke	mm	2000
Weight of cutting unit	kg	3800
Cut width	mm	40
Grease tank capacity	kg	30
Grease capacity	Kg/h	0.3-1
Diesel comsumption	L/h	7-10
Round per minutes of the chain rotation pinion	rpm	65
Round per minutes of the diesel engine	rpm	1400-1500
Rear gear movement maximum slope		21%
Total power	kw	74.5
Total weight, including wheel loader	kg	11000
