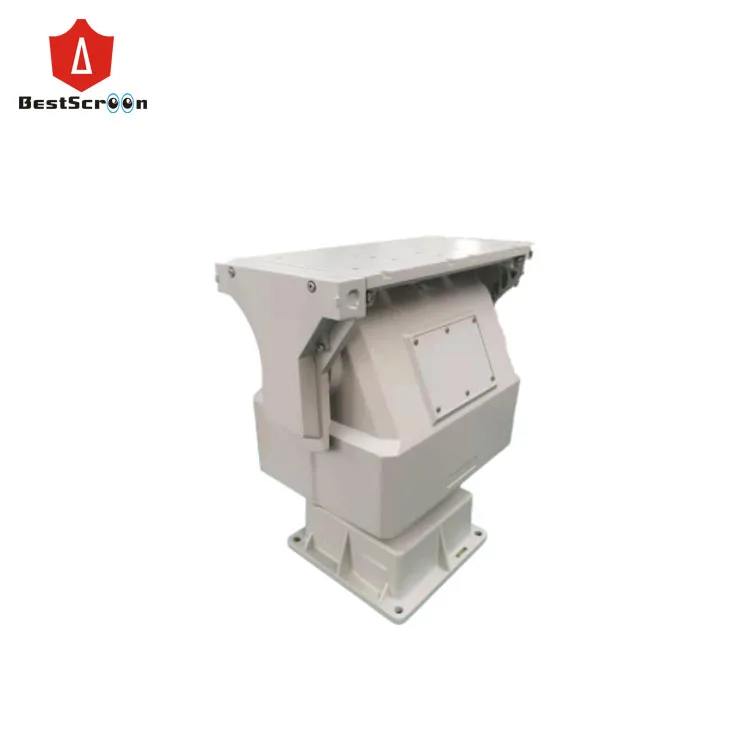

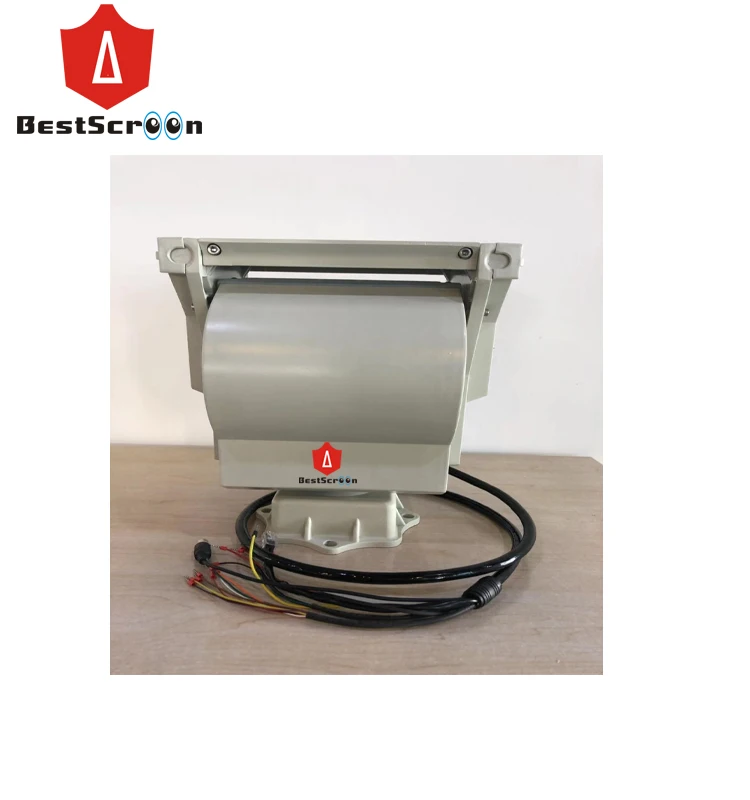

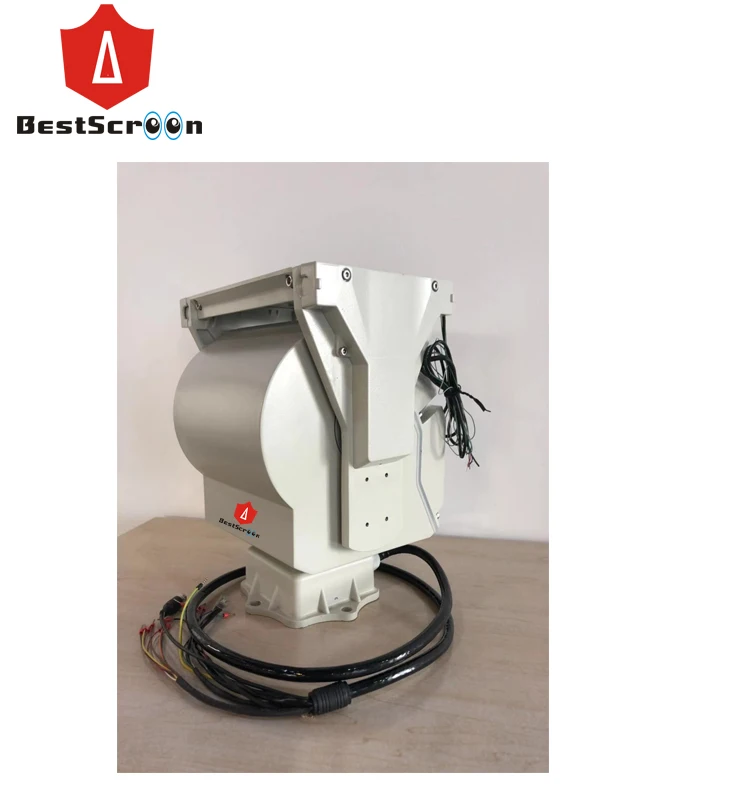

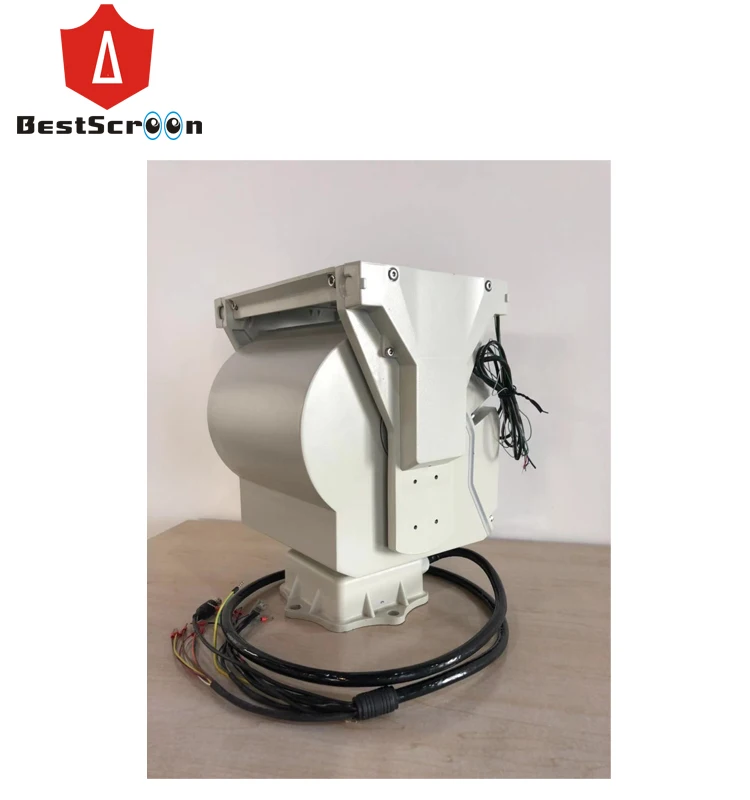

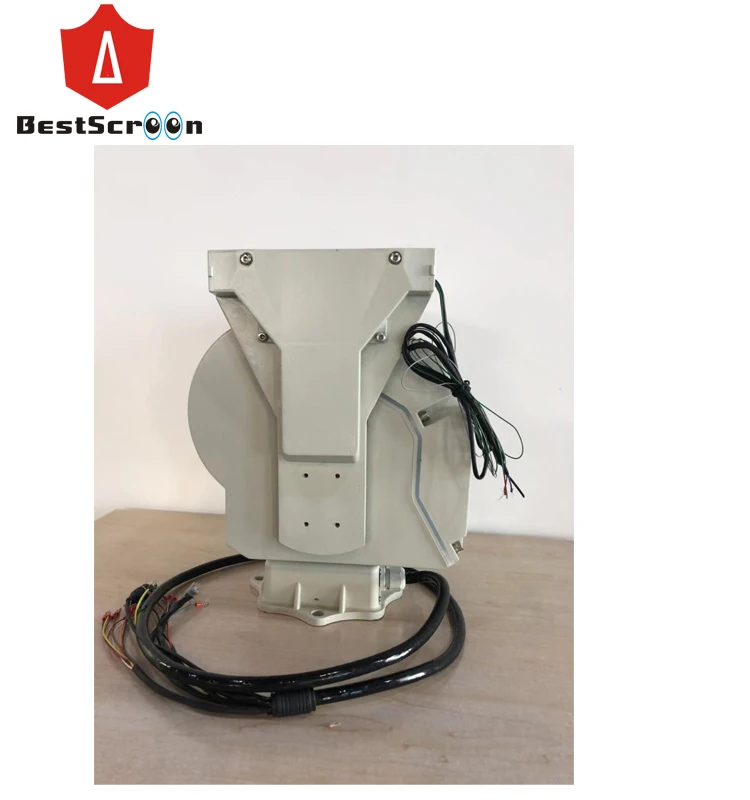

top play loading >25 kg heavy duty PTZHeavy Duty 25KG Payload IP66 Waterproof High Speed Outdoor Rotate Pan Tilt
- Category: >>>
- Supplier: Shenzhen BestScreen Technology Co. Ltd.
Share on (1600696262196):
Product Overview
Description
Product Introduction:
1. Professional wiper structure, high and low temperature test design, high temperature anti-ice;
2. Advanced electromagnetic compatibility test, with triple lightning protection technology;
3. PTZ worm using large transmission ratio design, metal structures, copper gear wheel, torque, strong bearing capacity, after a power failure with high-strength self-locking capability;
4. Dynamic voltage drive technology, head high load capacity, wind, seismic capability;
5.PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
6. AC/DC 24V input , able to install camera and housing on the top of PTZ and LED light /IR at both sides
7. Max loading >=50kg
Technical Parameters :
| Pan Manual Control Speed | 0.01°/S -- 40°/S |
| Tilt Manual Control Speed | 0.01 /S -- 15°/S |
| Pan Angle | 360°Endless Rotation |
| Tilt Angle | +40°~-75° |
| Preset Position | 256 Positions |
| Tracking | 8 channel |
| Automatic Scan | 8 channel |
| Automatic Home | Support |
| Cruis Tracking | 4 channel |
| Auxiliary switch | 2 groups |
| Structure Design | worm-gear |
| Loading | Top Load 25KG |
| Control Way | RS485 control,Angle of rotation can be achieved backhaul and angle control |
| Relative Humidity | 90% |
| IP Grade | IP66 |
| Working Temperature | -40 ℃ - 55℃ |
| Power | AC24V/DC24V |
| Consumption | ≤100W |
| Weight | 15KG |
| Network parameters: | |
| Video Compression | H.264/H.265 |
| Audio Compression | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compression output rate | 32Kbps—16Mbps |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP |
| SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181 | |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communication Protocol | PelcoD-P Protocol |
| Storage Function | Support MicroSD storage |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |
| While previewing video | Most 10 Channels |
| Dual-Stream | 960P+D1 |
| User Rights | At most 32 users,with three grades: Administrator, Operator, and ordinary users can only view |
| Safe Mode | Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
| ROI Code | Support 24pcs,Grade can be adjusted |

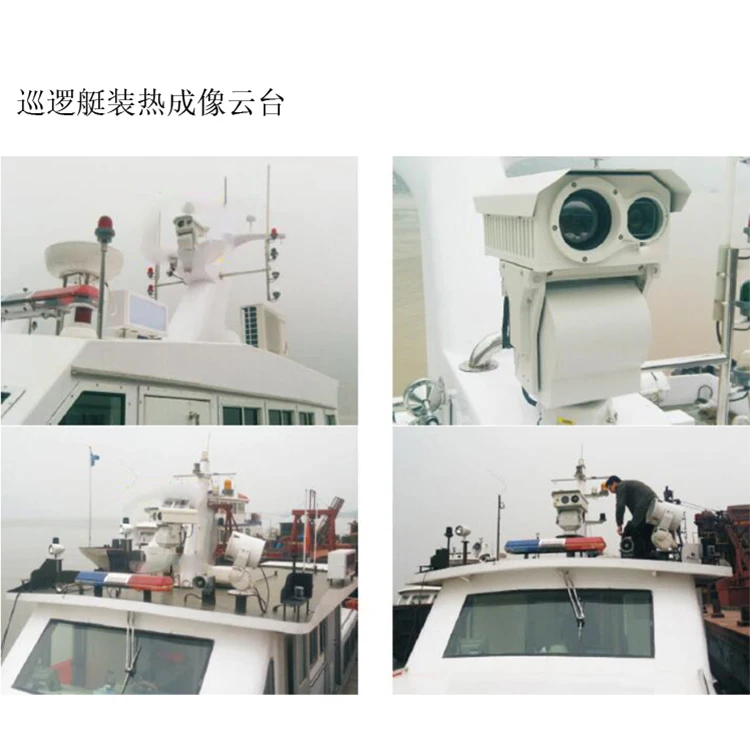

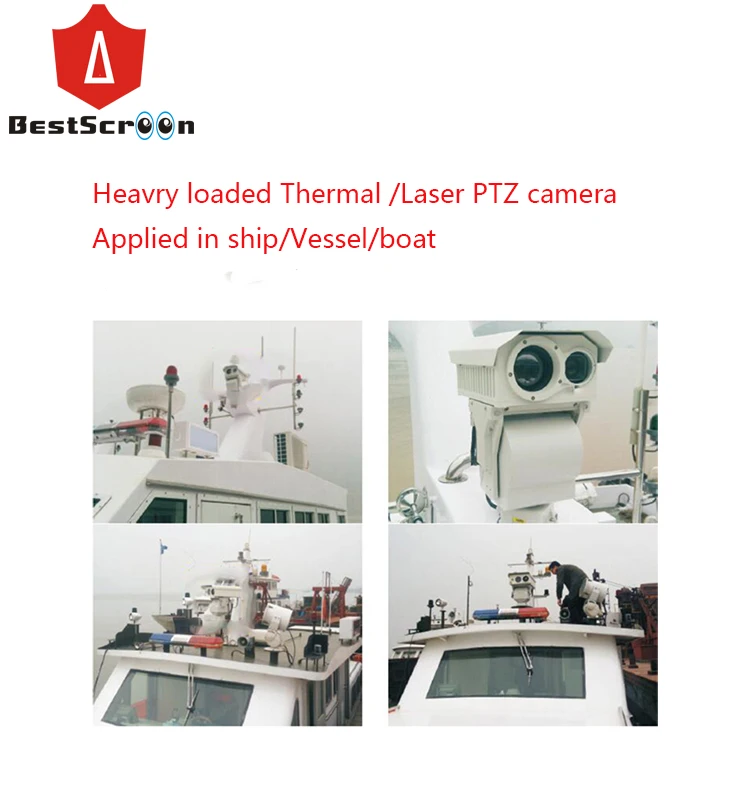

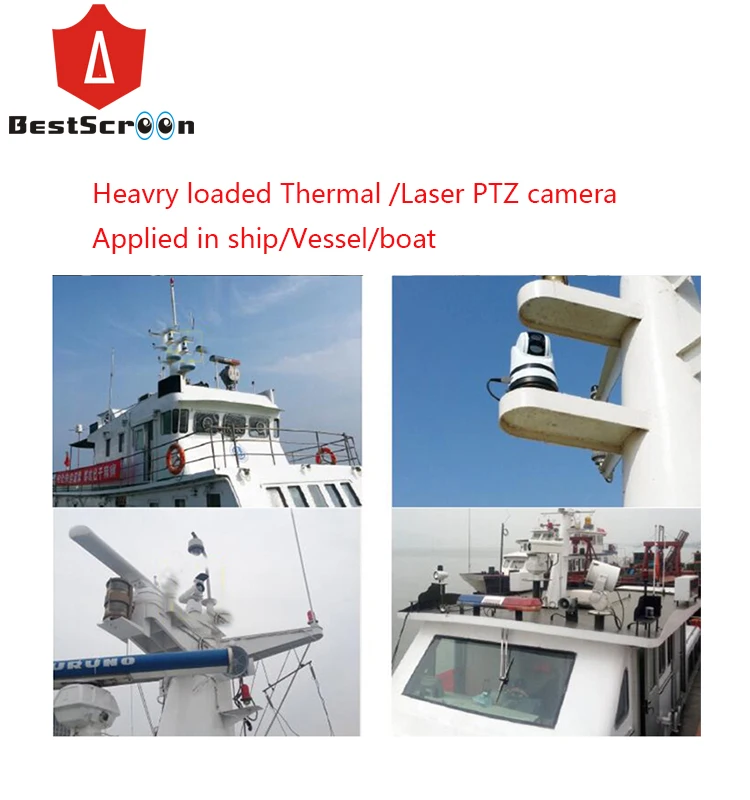

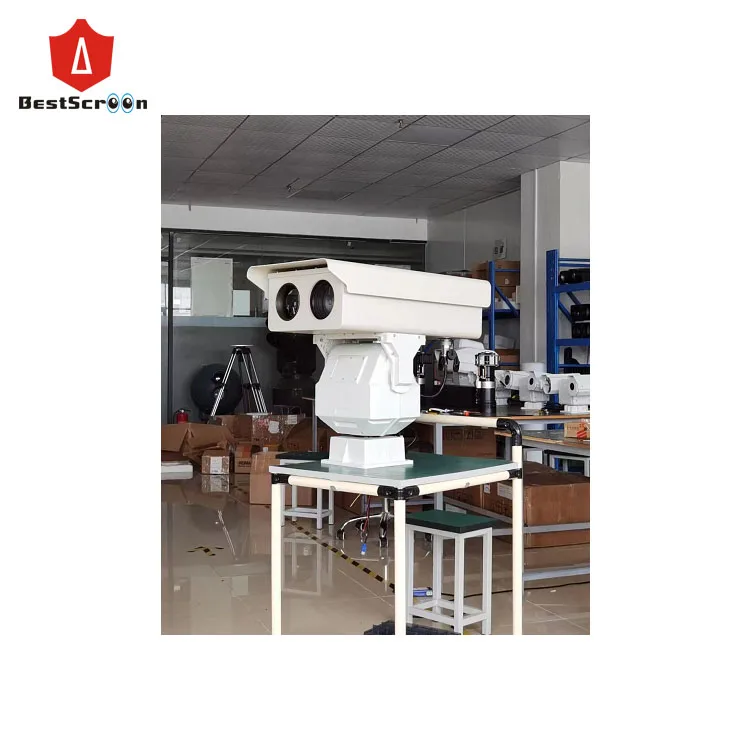

Product Case:
